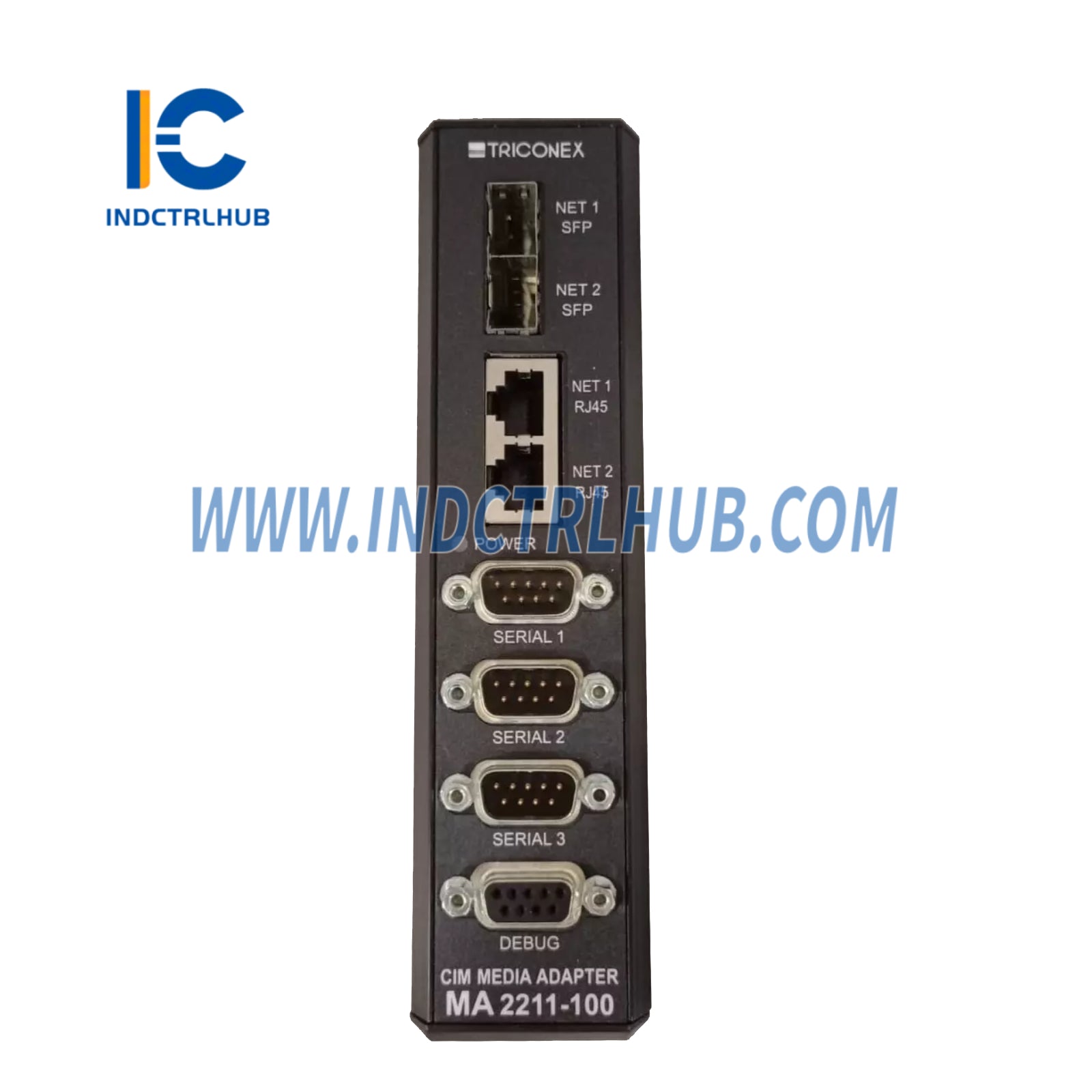

Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model/Part Number | 2211 |
| Description | Safety Manager Module (SMM) for Triconex safety systems, designed to interface with Honeywell TDC 3000 and Universal Control Network (UCN) systems for safety-critical applications |
| Key Features | Supports Honeywell UCN integration, triple modular redundancy (TMR), high-speed communication, hot-swappable, SIL 3 certified, fault-tolerant design |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 2211 |
| Product Type | Safety Manager Module (SMM) |
| Series | Tricon Safety System |
| Communication Interface | Honeywell Universal Control Network (UCN) |
| Protocols | Proprietary Honeywell protocols, Modbus |
| Data Rate | Up to 1 Mbps |
| Power Supply | 24 VDC (via chassis backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Approx. 300 x 50 x 200 mm (11.8 x 2.0 x 7.9 in) |
| Weight | Approx. 1 kg (2.2 lbs) |
| Certifications | SIL 3 (IEC 61508), CE |
External Connection Options
| Connection Type | Details |
|---|---|

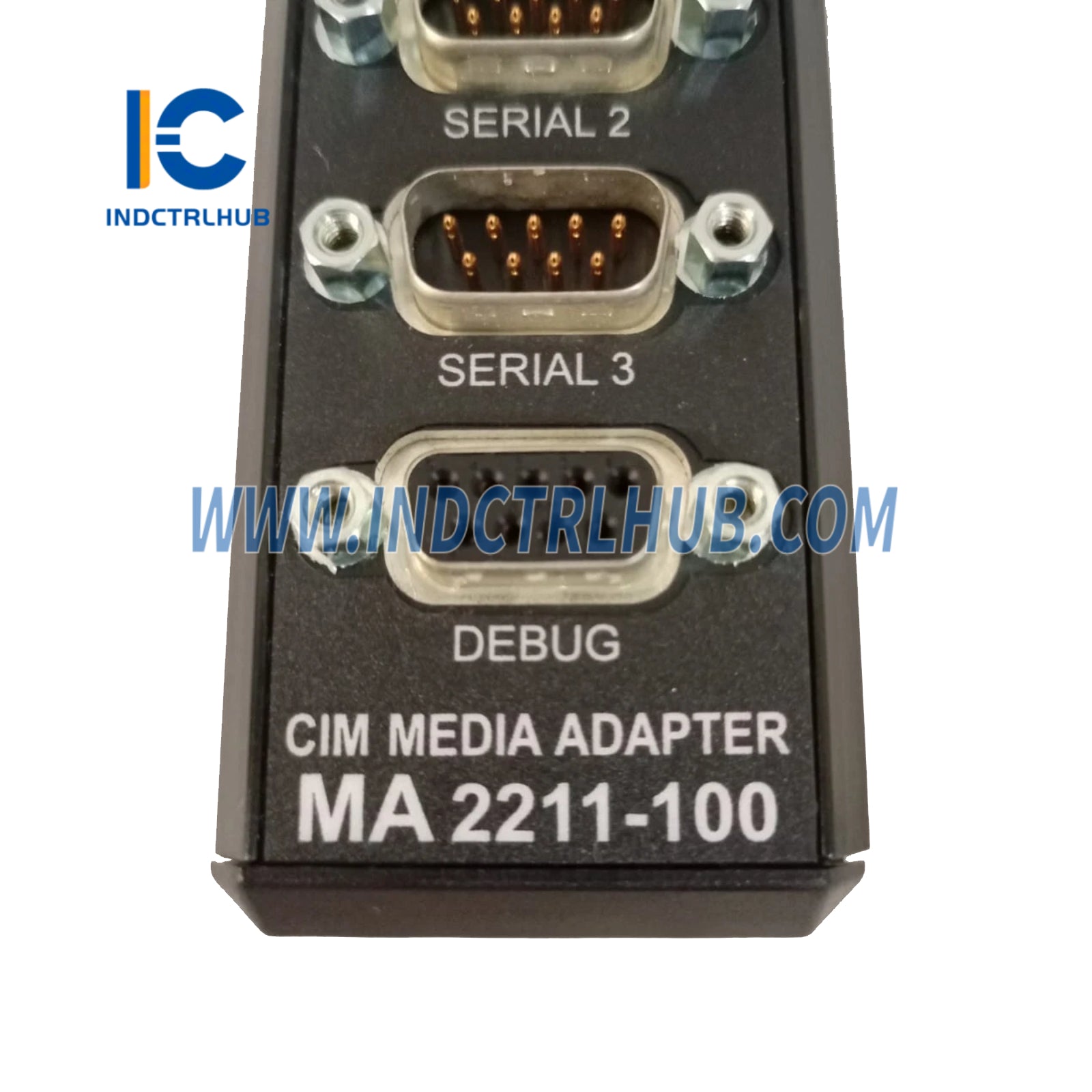

| Supported Connections | Serial (RS-232/RS-485), connects to Honeywell TDC 3000 UCN, integrates with Tricon chassis backplane |
Functional Features
| Feature | Details |
|---|---|
| Communication | Facilitates data exchange between Tricon safety systems and Honeywell TDC 3000 |
| Redundancy | Supports TMR architecture for fault-tolerant operation |
| Hot-Swappable | Allows module replacement without system shutdown |
| Diagnostics | Built-in diagnostics for communication status and module health |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 2211 |
| Configuration | Standard, non-redundant module, configurable via TriStation software |
