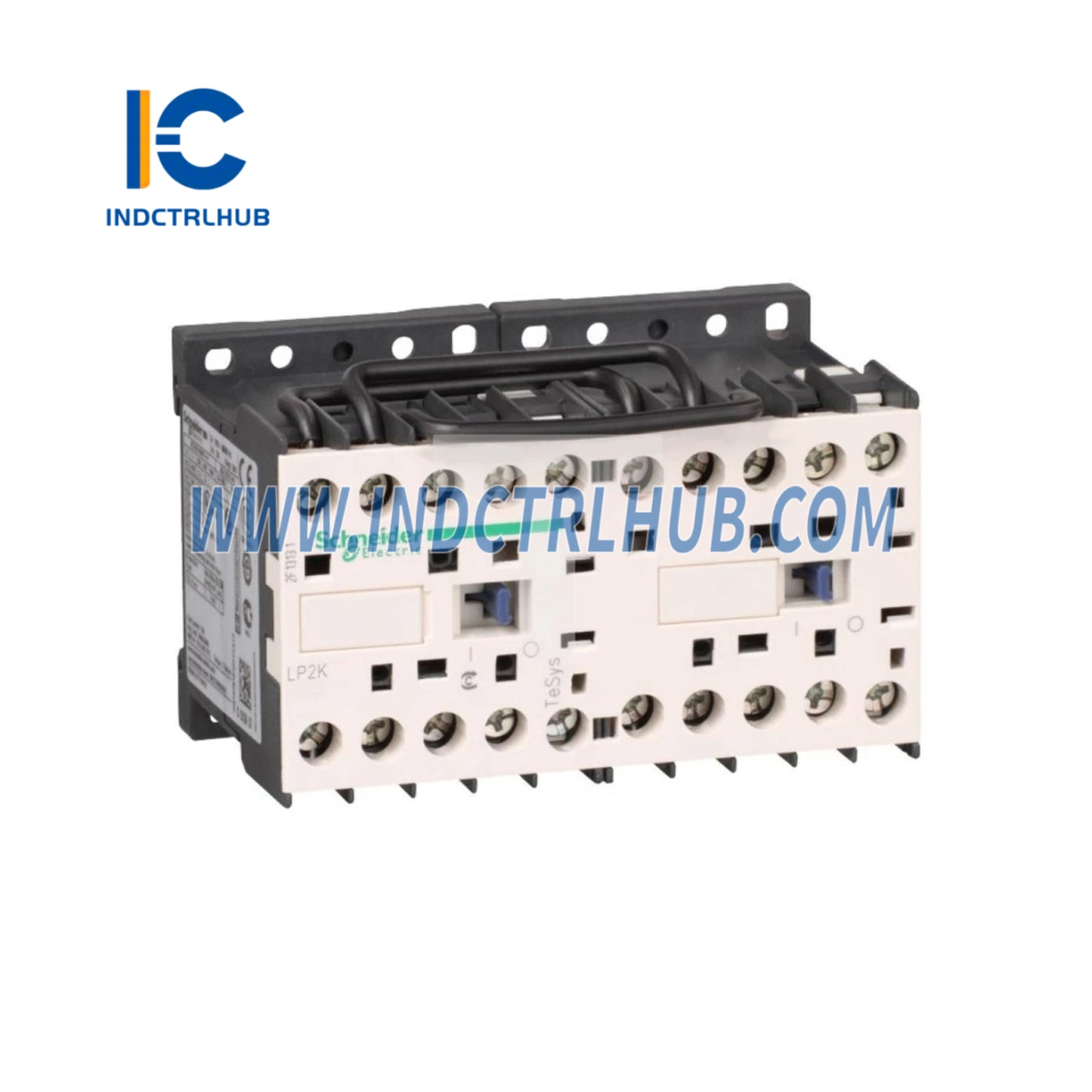

Schneider Electric LP2K1210BD Motor control, Resistive load

General Information

• Range: TeSys

• Product Name: TeSys K

• Product or Component Type: Reversing contactor

• Device Short Name: LP2K

• Device Application: Control

• Contactor Application: Motor control, Resistive load

• Utilisation Category: AC-1, AC-3, AC-3e, AC-4

• Device Presentation: Preassembled with reversing power busbar

• Poles Description: 3P

• Power Pole Contact Composition: 3 NO (normally open)

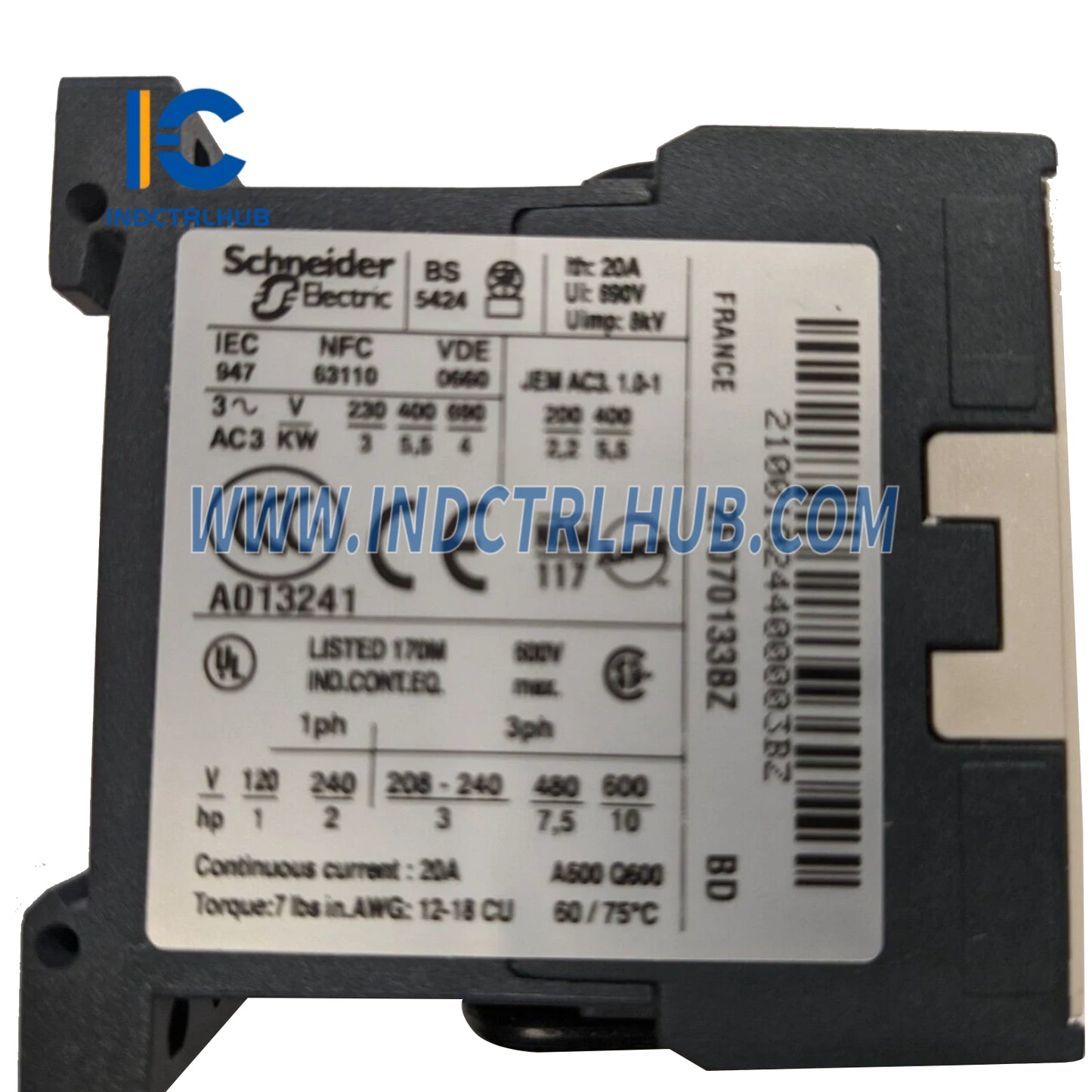

Electrical Characteristics

• Rated Operational Voltage ([Ue]):

• Power circuit: 690 V AC 50/60 Hz

• Signalling circuit: ≤ 690 V AC 50/60 Hz

• Rated Operational Current ([Ie]):

• 12 A (at $<$140°F (60°C)) at ≤ 440 V AC for AC-3 power circuit

• 12 A (at $<$140°F (60°C)) at ≤ 440 V AC for AC-3e power circuit

• 20 A (at $<$140°F (60°C)) at ≤ 690 V AC for AC-1 power circuit

• Motor Power (kW):

• 3 kW at 220-230 V AC 50/60 Hz

• 5.5 kW at 380-415 V AC 50/60 Hz

• 5.5 kW at 440 V AC 50/60 Hz

• 4 kW at 690 V AC 50/60 Hz

• Control Circuit Type: DC standard

• Control Circuit Voltage ([Uc]): 24 V DC

Dimensions and Weight
