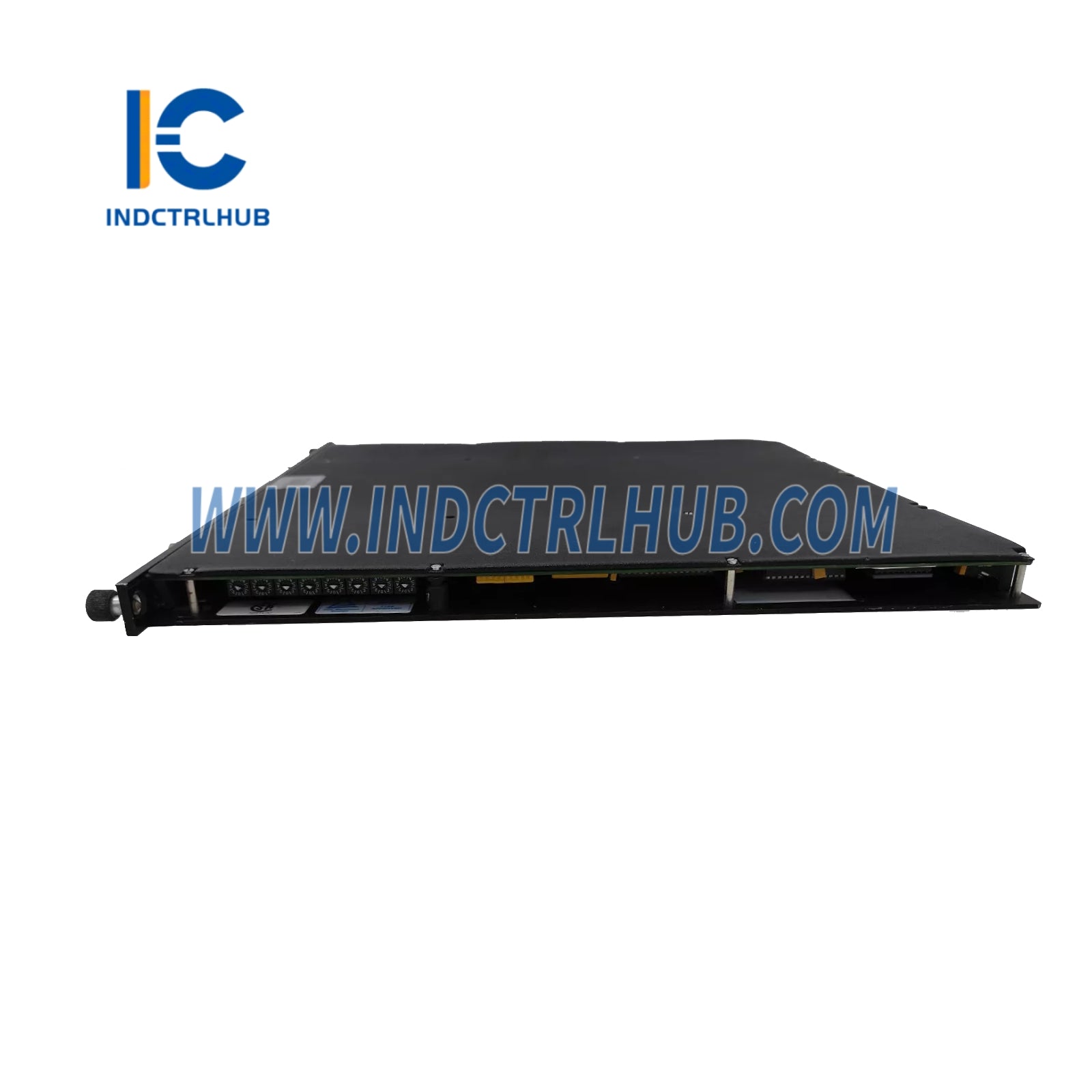

Triconex 4329G Communication Interface Module
Triconex 4329G Communication Interface Module
Manufacturer: Triconex
Product No.: 4329G
Condition:1000 in stock
Product Type: Communication Interface Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
___
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
4329G |
|
Model Type |
Communication Interface Module |
|
Application |
Network communication over Ethernet for Triconex safety systems |
_
_
___
Technical Specifications _ Triconex 4329G
|
Category |
Details |
|---|---|
|
Ethernet Ports |
2 BNC connectors, RG58 50-ohm thin cable |
|
External Transceiver Ports |
2 (15-pin D-sub connectors) |
|
Serial Port |
1 RS-232 compatible |
|
Port Isolation |
500 VDC |
|
Communication Speed |
10 Mbps (for Ethernet ports) |
|
Protocol |
TSAA (TCP(UDP)/IP/802.3) |
_
_
__
Supported Protocol Frame Types
|
Frame Type |
Function |
|---|---|
|
TRICON_DATA (Type 1) |
Basic data exchange |
|
TRICON_DATA_REQ (Type 2) |
Request Tricon data |
|
WRITE_TRICON_DATA (Type 3) |
Write data to Tricon system |
|
WRITE_TRICON_DATA_RSP (Type 4) |
Response to data write |
|
READ_TRICON_CLOCK (Type 5) |
Request for system clock |
|
READ_TRICON_CLOCK_RSP (Type 6) |
Response from system clock request |
|
SET_TRICON_CLOCK (Type 7) |
Set Tricon system clock |
|
SET_TRICON_CLOCK_RSP (Type 8) |
Response from set clock command |
|
READ_TRICON_DATA (Type 11) |
Read data from system |
|
READ_TRICON_RSP (Type 12) |
Response to read data |
_
_
__
Indicators
|
Indicator |
Description |
|---|---|
|
PASS |
Module passed internal diagnostics |
|
FAULT |
Module fault present |
|
ACTIVE |
Module is actively communicating |
|
TX |
Transmit indicator (1 per port) |
|
RX |
Receive indicator (1 per port) |
_
_
