Product Description
Product Overview

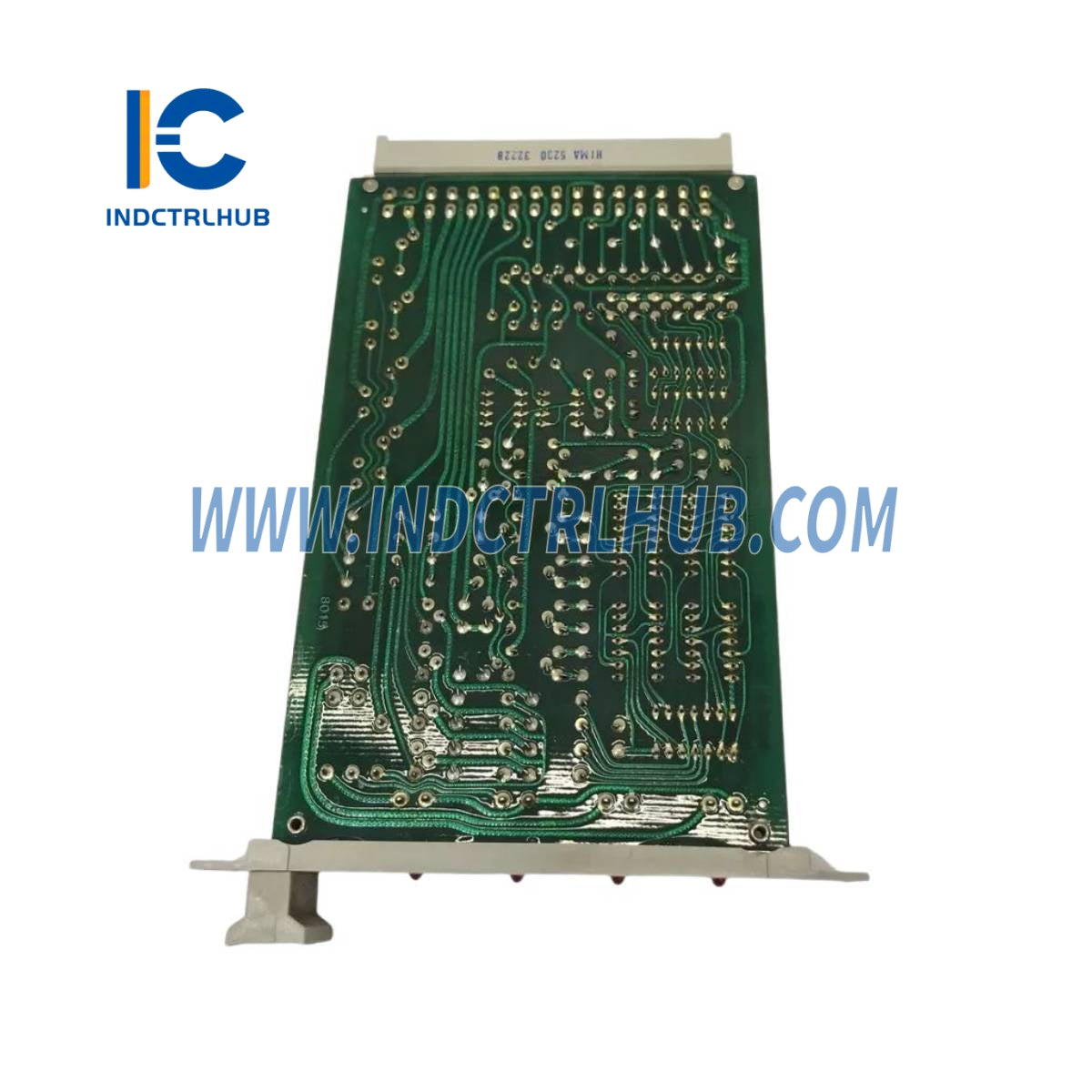

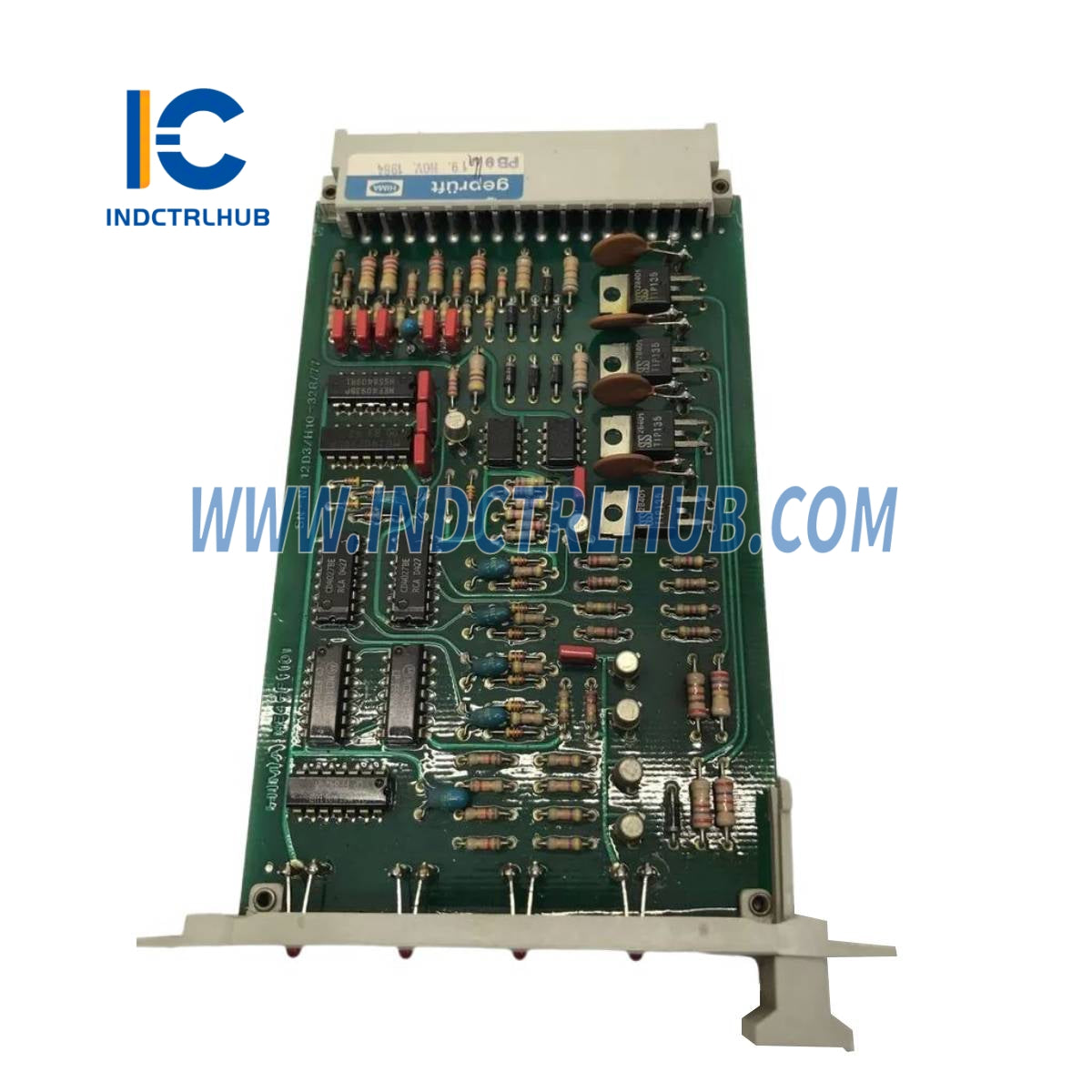

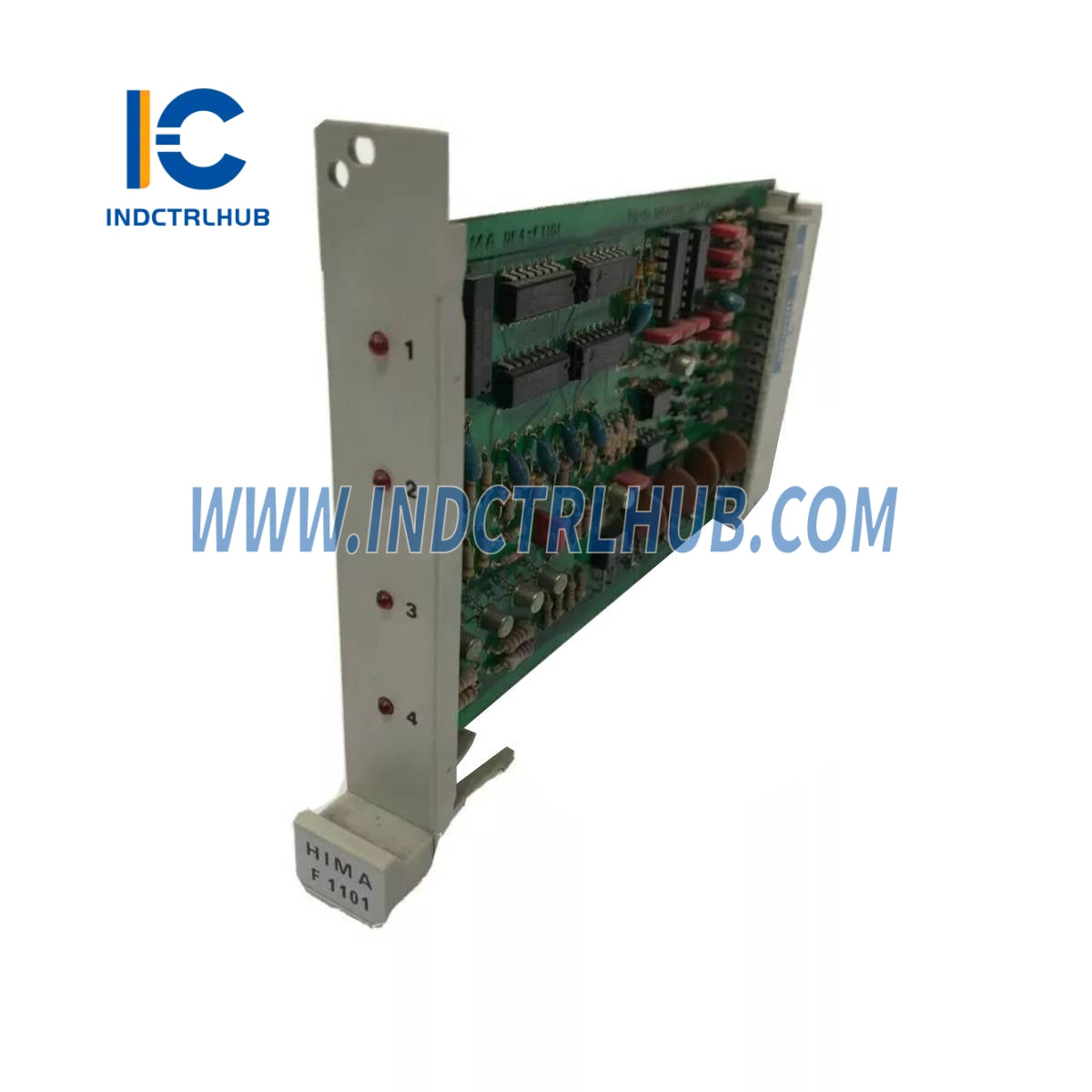

The HIMA F1101 is a Switching Amplifier Module designed for use in HIMA safety-related systems, such as the HIMatrix F60 series. Manufactured by HIMA, this module features four single-channel inputs and relay outputs, engineered to process safety-related signals with high reliability. It is deployed in industrial applications, including oil & gas, chemical processing, and power generation, where it ensures safety integrity levels up to SIL 3 per IEC 61508.
Technical Specifications
The F1101 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | F1101 |
| Manufacturer | HIMA |
| Description | Switching Amplifier Module |
| Series | HIMatrix |
| Number of Channels | 4 |
| Input Signal Type | Single-channel, floating |
| Input Signal Range | 24 V DC to 230 V AC |
| Output Signal Type | Single-channel, relay |
| Output Signal Current | 2 A |
| Response Time | ≤ 2 ms |
| Power Supply | 24 V DC |
| Power Consumption | ≤ 10 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Weight | 0.3 kg (0.66 lbs) |
Additional Details
The F1101 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Amplifies and switches safety-related input signals to relay outputs |
| Mounting | Plugs into HIMatrix system rack |
| Compatibility | HIMA HIMatrix F60 systems |
| Features | High-speed response, safety-certified design |
| Certifications | SIL 3 per IEC 61508 |
