Product Description
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |

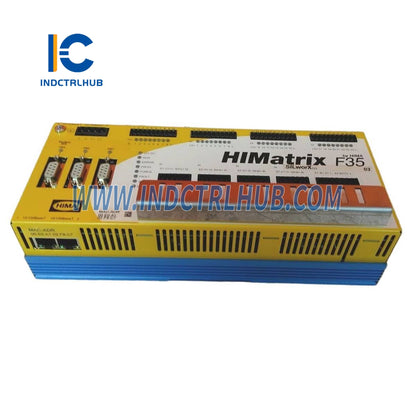

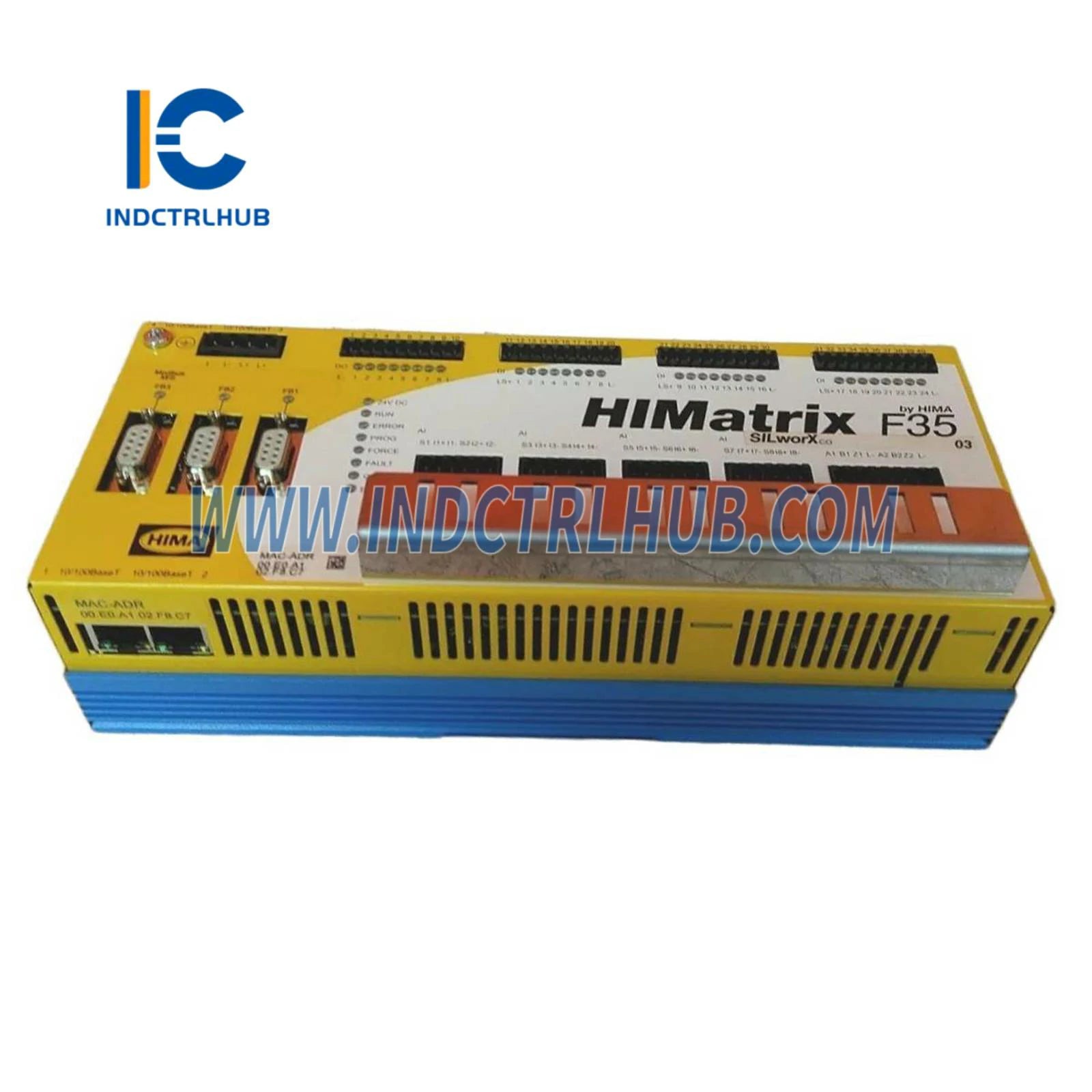

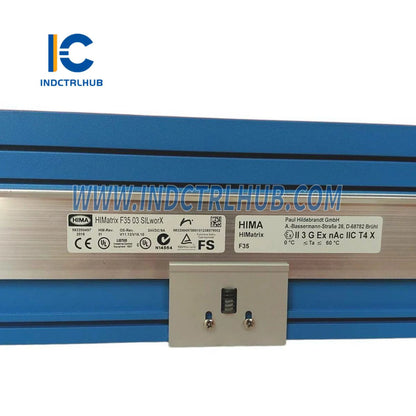

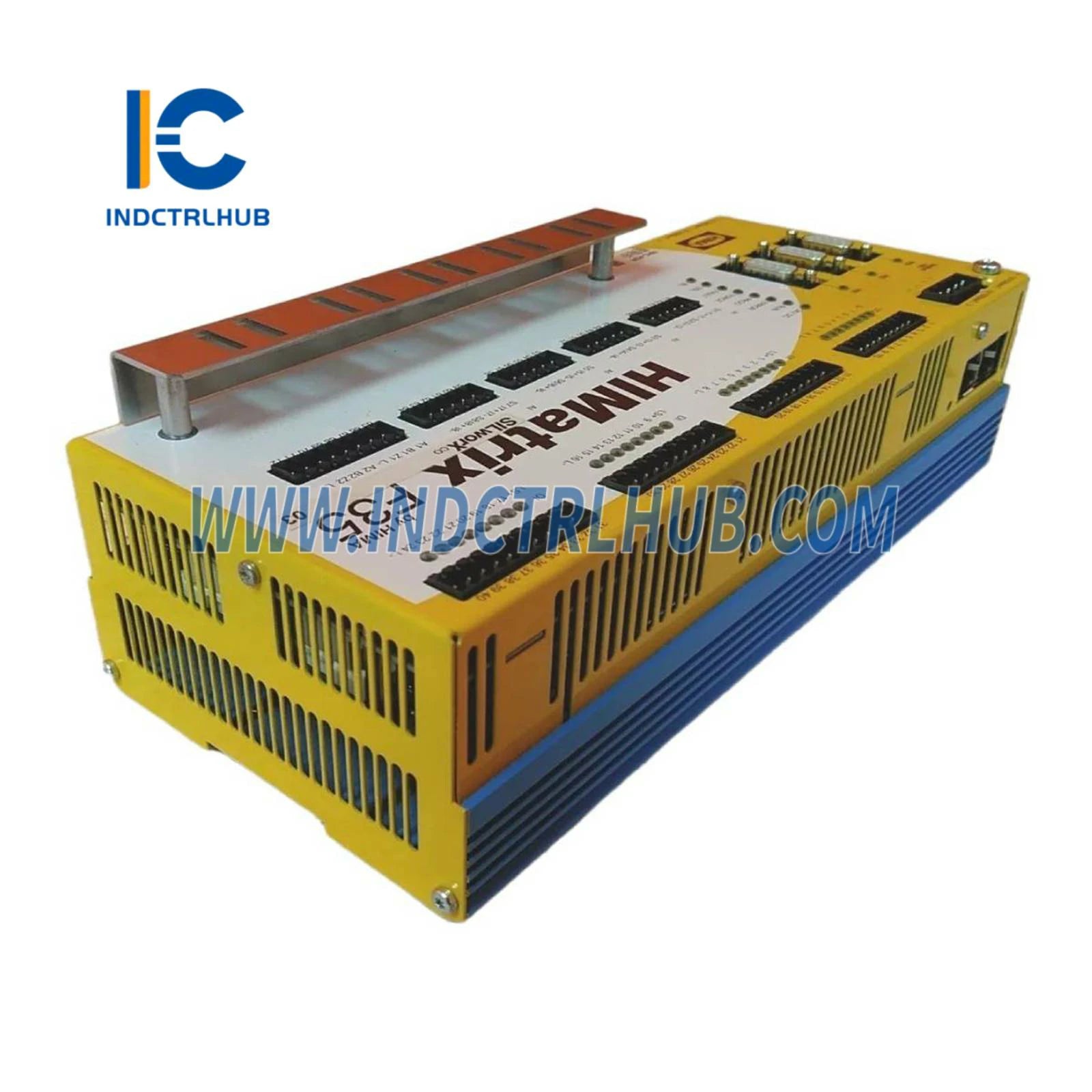

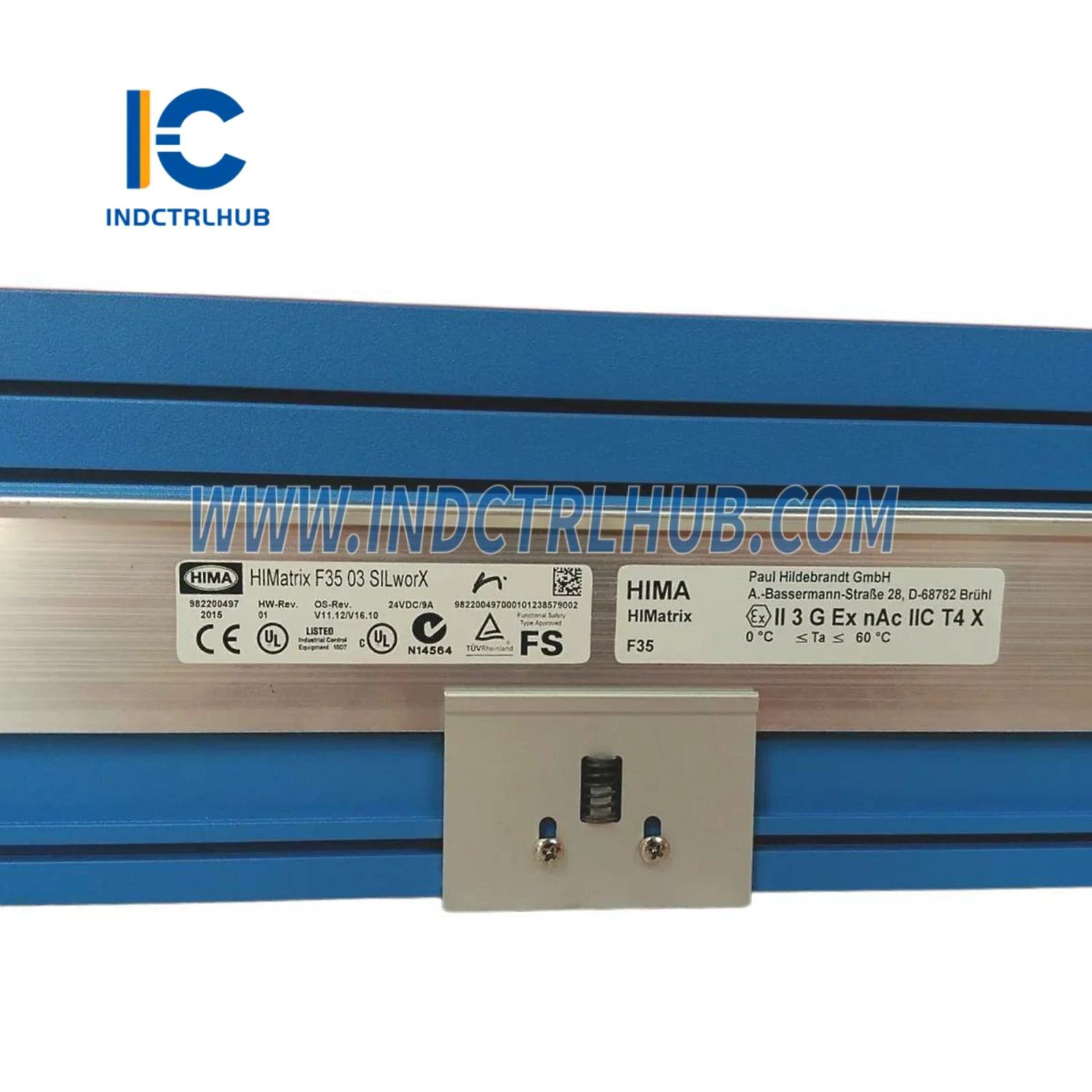

F35 03 |
|
Description |
Safety-Related Controller |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Total Program and Data Memory |
5 MB (less 64 kBytes for CRCs) |
|
Response Time |
≥ 6 ms |
|
Ethernet Interfaces |
4 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch |
|
Fieldbus Interfaces |
3 x 9-pole D-sub (FB1 & FB2 with pluggable submodule, FB3 with RS485 for Modbus or ComUserTask) |
|
Operating Voltage |
24 VDC (-15% to +20%), rPP ≤ 15%, from a power supply unit with safe insulation (IEC 61131-2) |
|
Current Input |
Max. 9 A (with maximum load), Idle: 0.5 A |
|
Fuse (External) |
10 A time-lag (T) |
|
Buffer for Date/Time |
Gold capacitor |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
-40°C to +85°C |
|
Type of Protection |
IP20 |
|
Dimensions (W x H x D) |
257 mm x 114 mm x 97 mm (without plug) |
|
Weight |
Approx. 1.2 kg |
