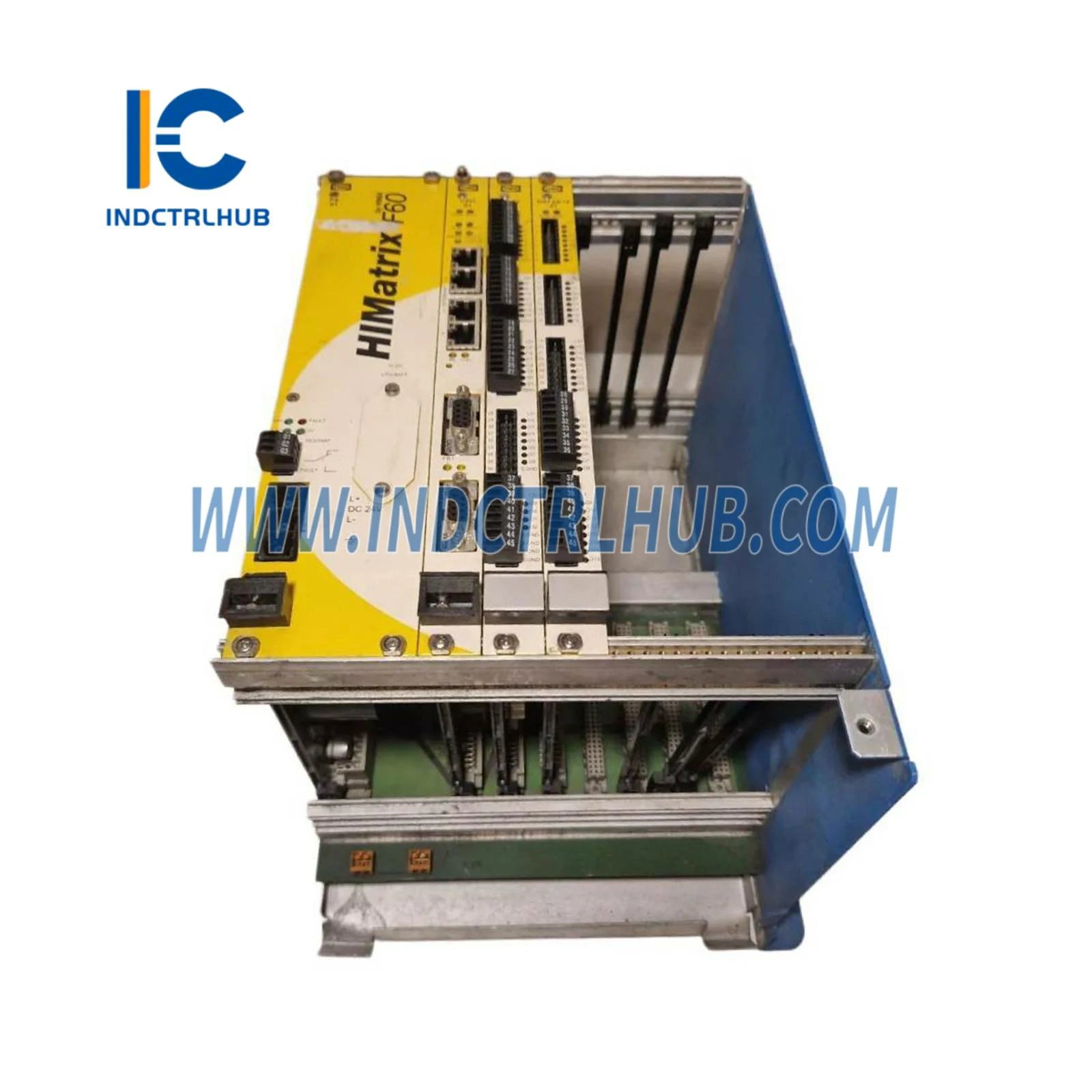

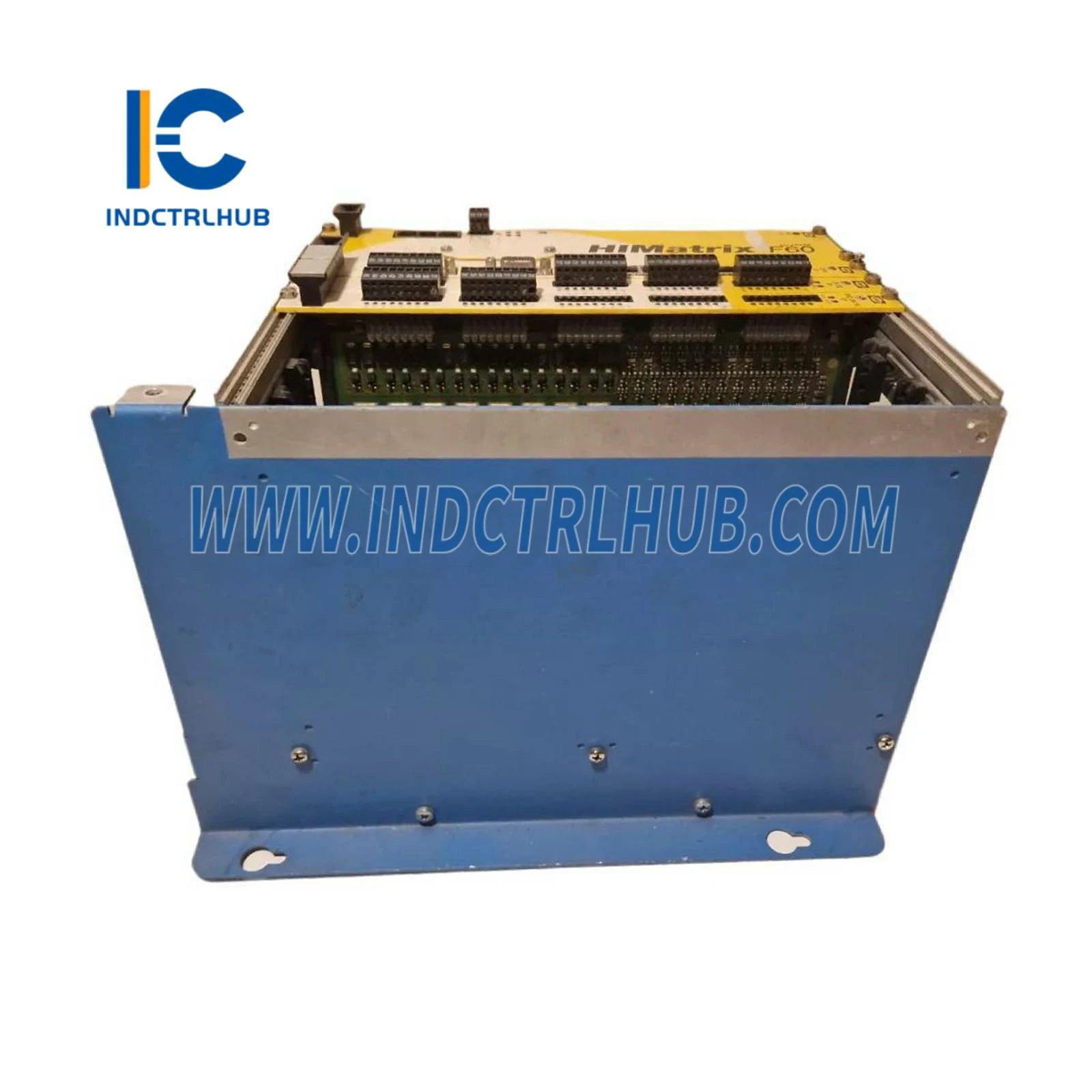

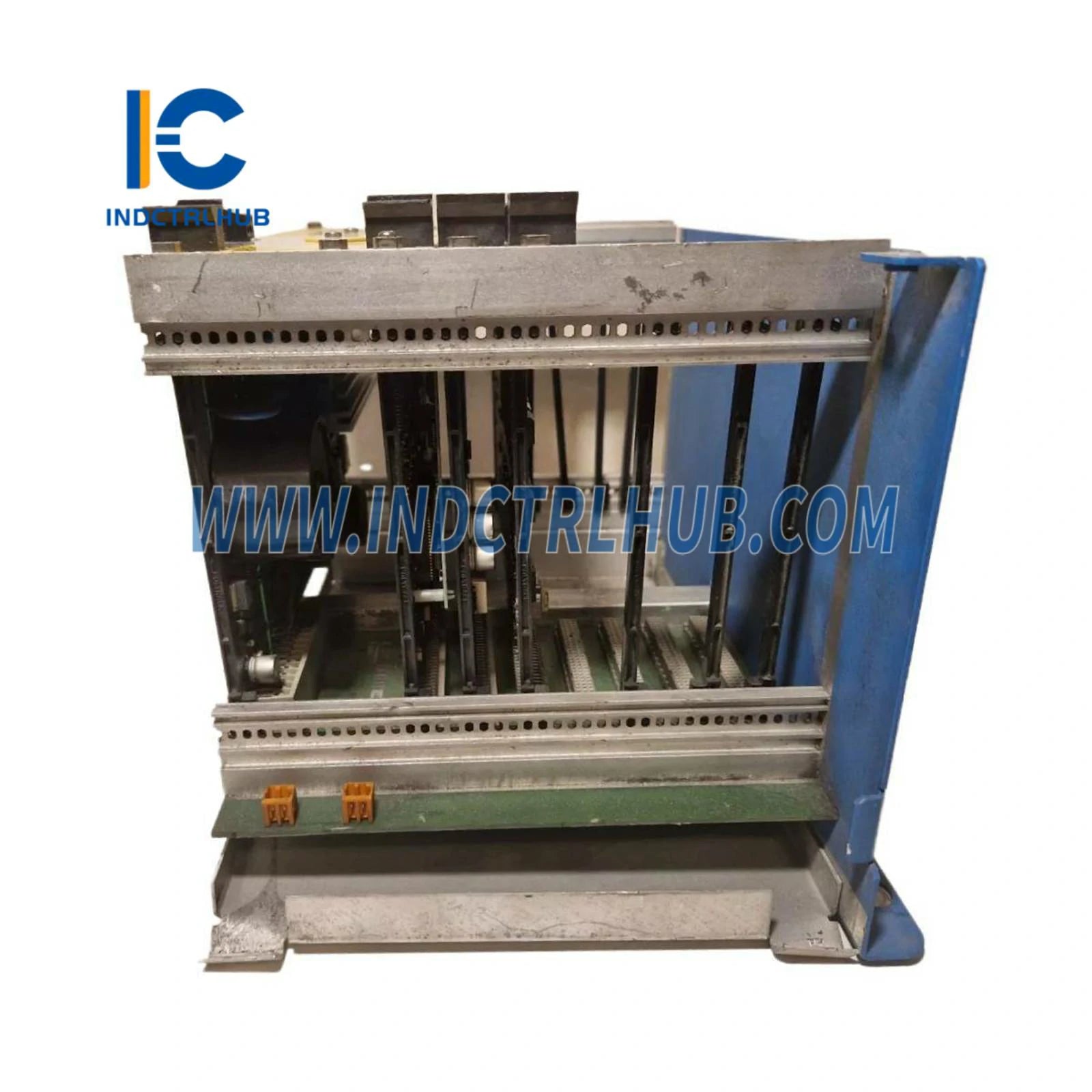

HIMA F60 AI 801 Safety-Related Controller
HIMA F60 AI 801 Safety-Related Controller
Manufacturer: HIMA
Product No.: F60 AI 801
Condition:1000 in stock
Product Type: Safety-Related Controller
Product Origin: Germany
Payment: T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |
F60 AI 801 |
|
Description |
Safety-Related Controller |
Technical Specifications
General Specifications
|
Attribute |
Specification |
|---|---|
|
Operating Voltage |
24 VDC (-15% to +20%), rPP _ 15% |
|
Power Supply Requirement |
Must be from a power supply unit with safe insulation (IEC 61131-2) |
|
Operating Data |
24 VDC / 380 mA, 3.3 VDC / 150 mA |
|
Ambient Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +85 °C |
|
Space Requirement |
6 RU, 4 HP |
|
Weight |
240 g |
Analog Input Specifications
|
Attribute |
Specification |
|---|---|
|
Number of Inputs |
8 unipolar or 4 bipolar (galvanically separated) |
|
Nominal Range |
0 to ±10 V or 0 to +20 mA (with shunt) |
|
Operating Range |
0 to ±10.25 V or 0 to +20.5 mA (with shunt) |
|
Input Resistance |
1 MΩ |
|
Digital Resolution |
12-bit |
|
Source Resistance Input (Input Signal) |
_ 500 Ω |
|
Measurement Accuracy (at 25°C, max.) |
±0.1% of final value |
|
Metrological Accuracy (Full Temperature Range, max.) |
±0.5% of final value |
|
Temperature Coefficient (max.) |
±0.011%/K of final value |
|
Safety-Related Accuracy (max.) |
±1% of final value |
|
Measured Value Refresh |
Once per F60 cycle |
|
Sampling Time |
Approx. 45 µs per channel |
