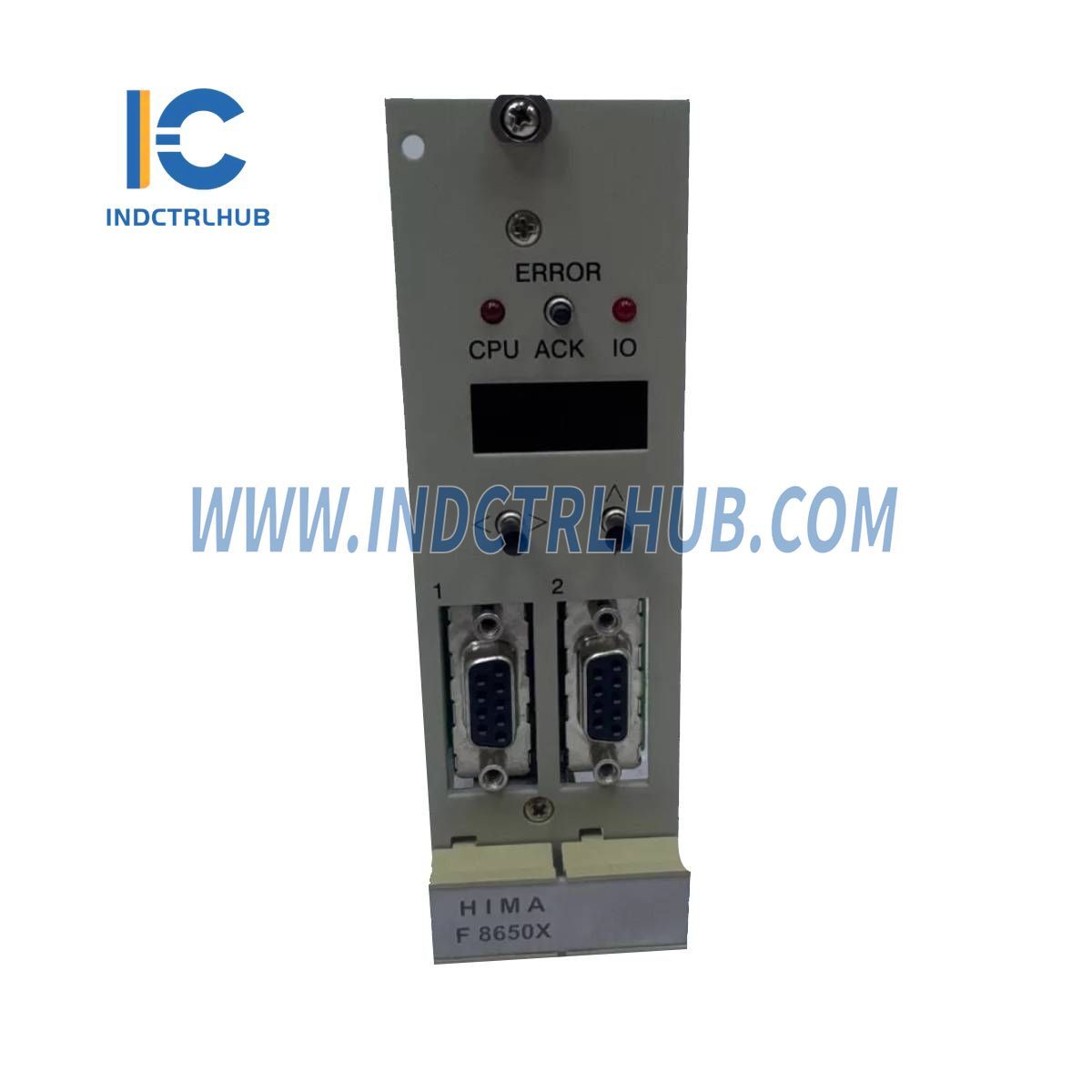

HIMA F8650X Central module

HIMA F8650X Central module

  • Manufacturer: HIMA

  • Product No.: F8650X

  • Condition:1000 in stock

  • Product Type: Central module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer

HIMA

Model/Part Number

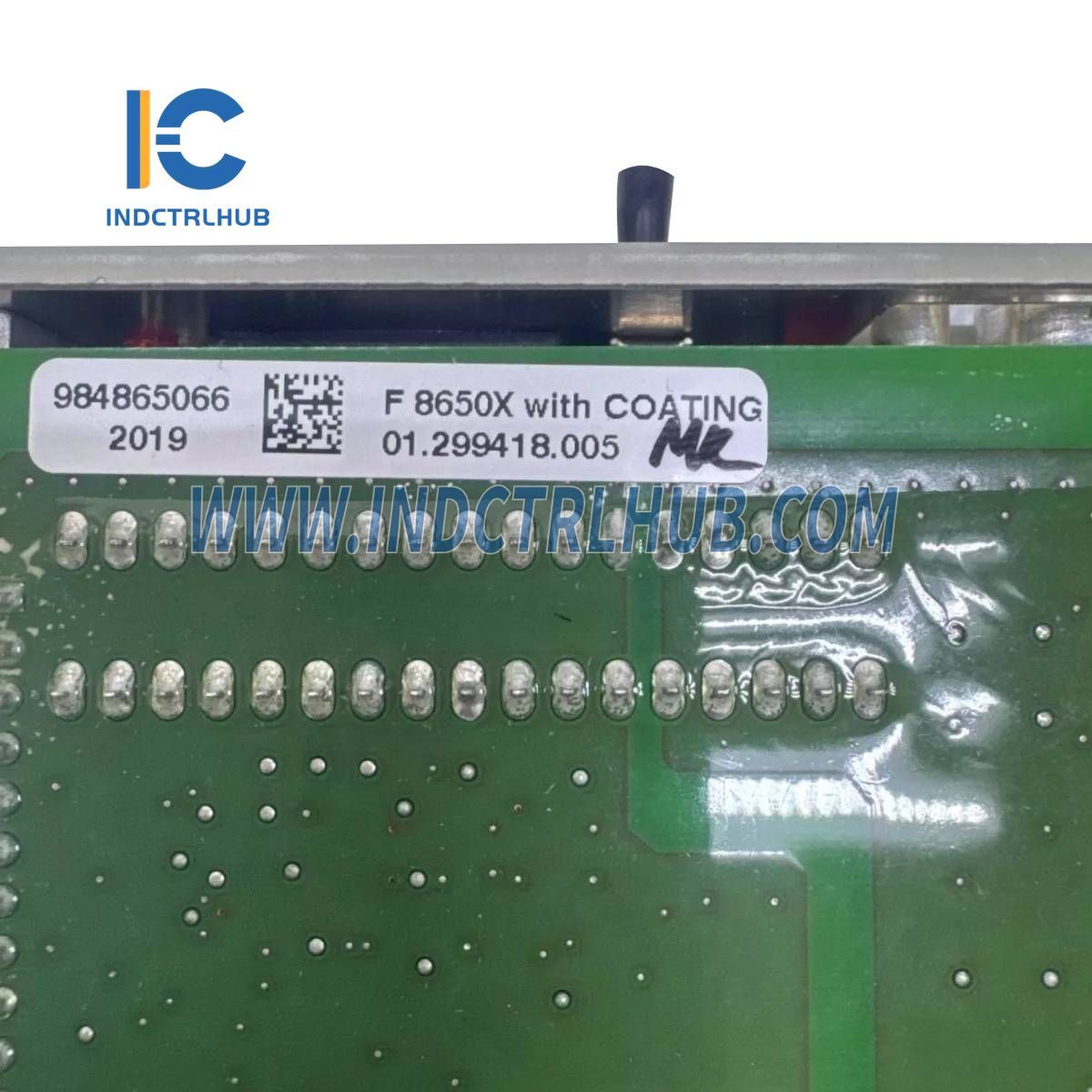

F8650X (984865066)

Description

Central Module

Technical Specifications

Attribute

Specification

Microprocessor

2x INTEL 386EX, 32-bit

Clock Frequency

25 MHz

Memory per Microprocessor


- Operating System

Flash-EPROM 1 MB

- User Program

Flash-EPROM 1 MB (*Utilization depends on OS version)

- Data Storage

SRAM 1 MB (*Utilization depends on OS version)

Interfaces

Two serial RS485 interfaces with electrical isolation

Diagnostic Display

4-digit matrix display with selectable information

Shutdown on Fault

Safety-related watchdog with 24V DC output (loadable up to 500 mA, short-circuit proof)

Construction

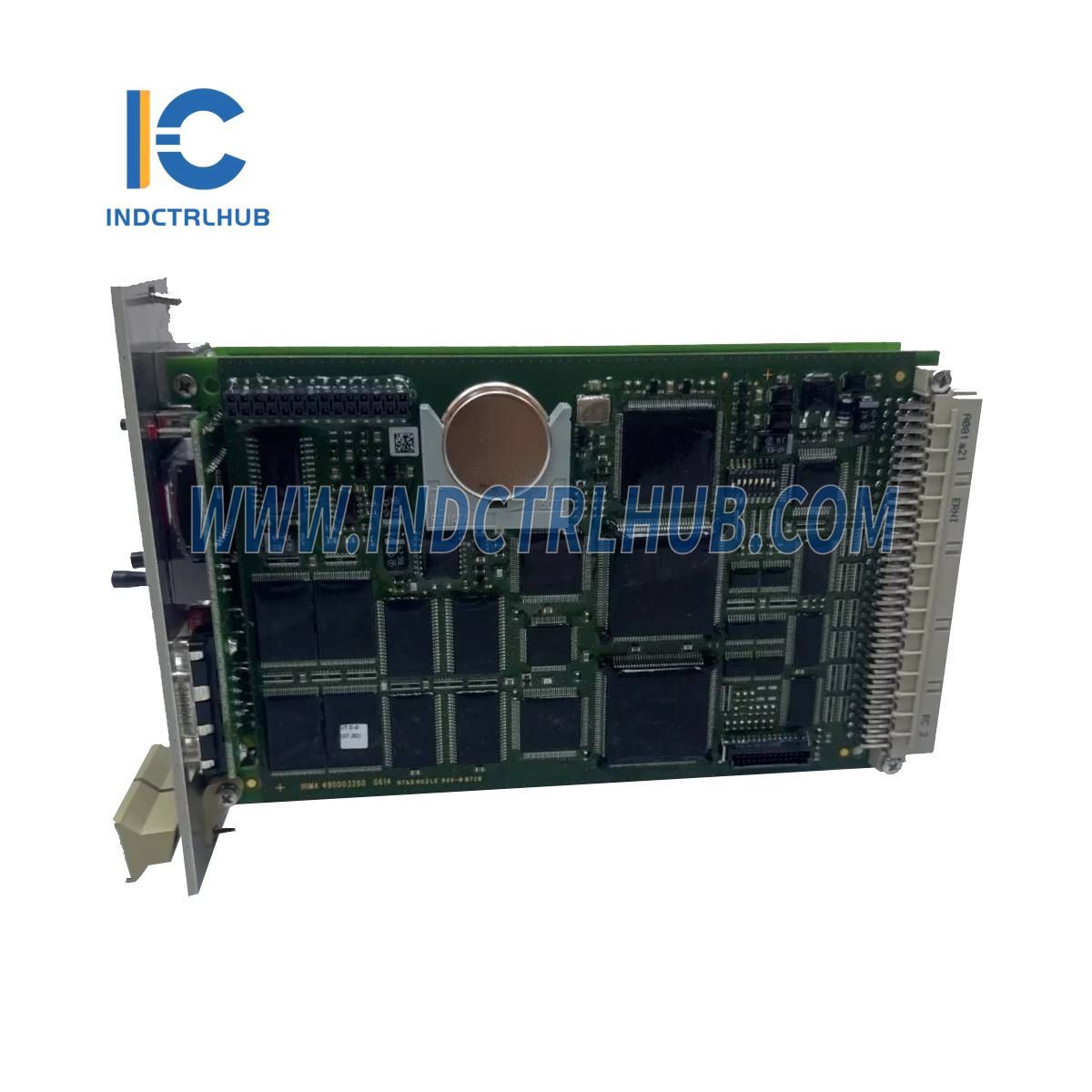

Two European standard PCBs, one PCB for diagnostic display

Space Requirement

8 SU

Operating Data

5V DC, 2A
