Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3500/32M |
|
Model/Part Number |
125720-01 |
|
Model Type |
4-Channel Relay Output Module |
Description

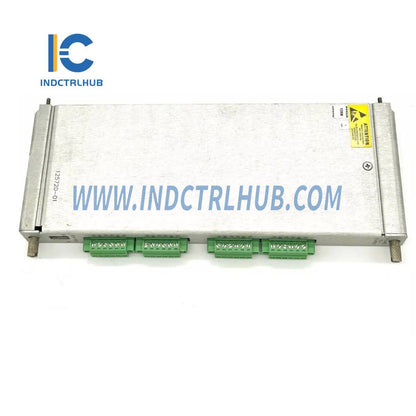

The 4-Channel Relay Module is a full-height module that provides four relay outputs. It can be installed in any of the slots to the right of the Transient Data Interface Module. Each relay output can be independently programmed to perform voting logic.
Environmental Limits
|
Condition |
Range |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
Physical Characteristics
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Main Module |
241 mm x 24.4 mm x 242 mm (9.50 in. x 0.96 in. x 9.52 in.) |
0.7 kg (1.6 lb.) |
|
I/O Module |
241 mm x 24.4 mm x 99.1 mm (9.50 in. x 0.96 in. x 3.90 in.) |
0.4 kg (1.0 lb.) |
Spares
|
Part Number |
Description |
|---|---|
|
125720-01 |
Spare 4-Channel Relay Output Module (available for repair only) |
