Product Description
š¹ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/50-01-00 |
|
Spare Part Numbers |

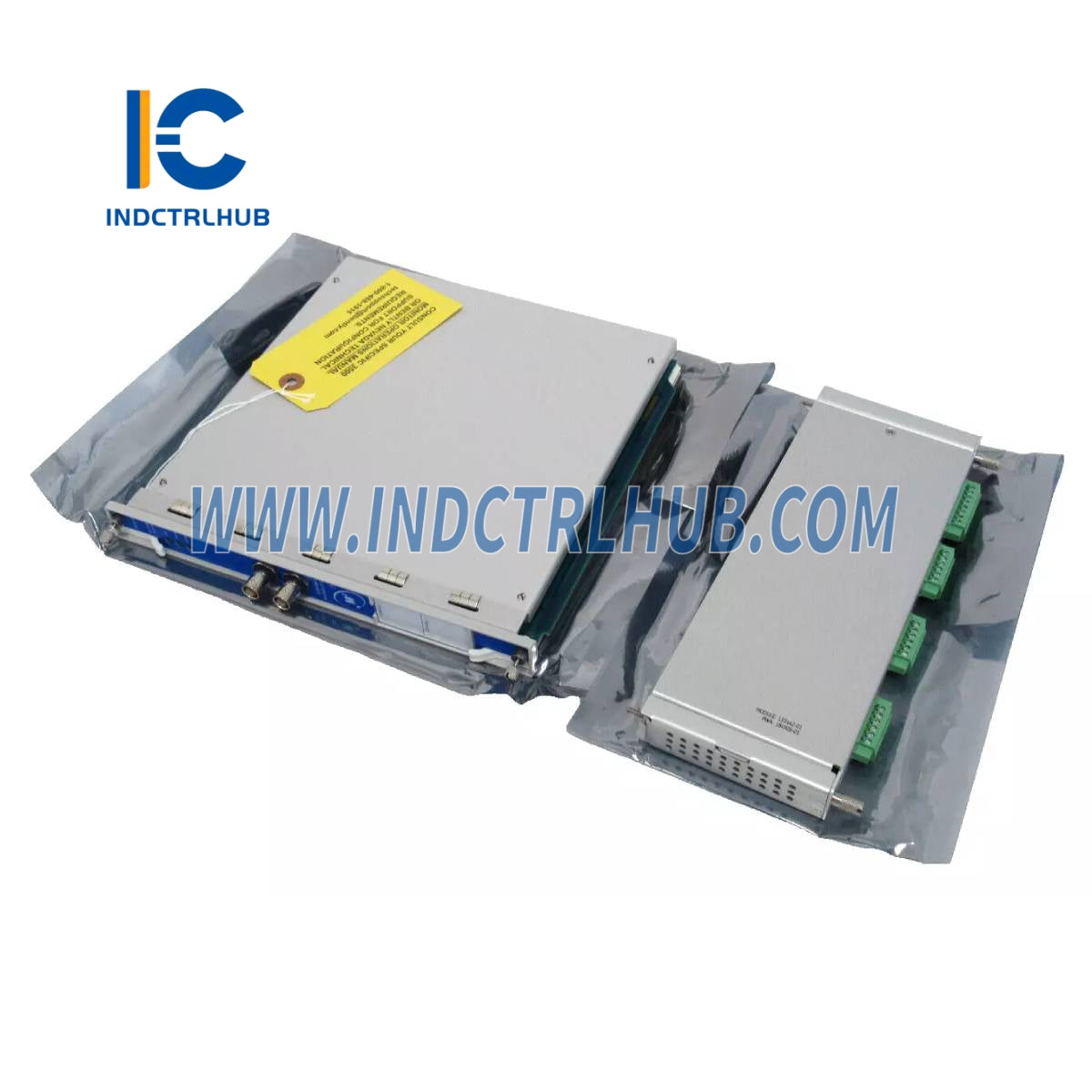

288062-02 (Monitor), 133442-01 (I/O Module) |
|
Description |
3500/50M Tachometer Module |
|
Series |
3500 |
Ā
Ā
š¹ Description

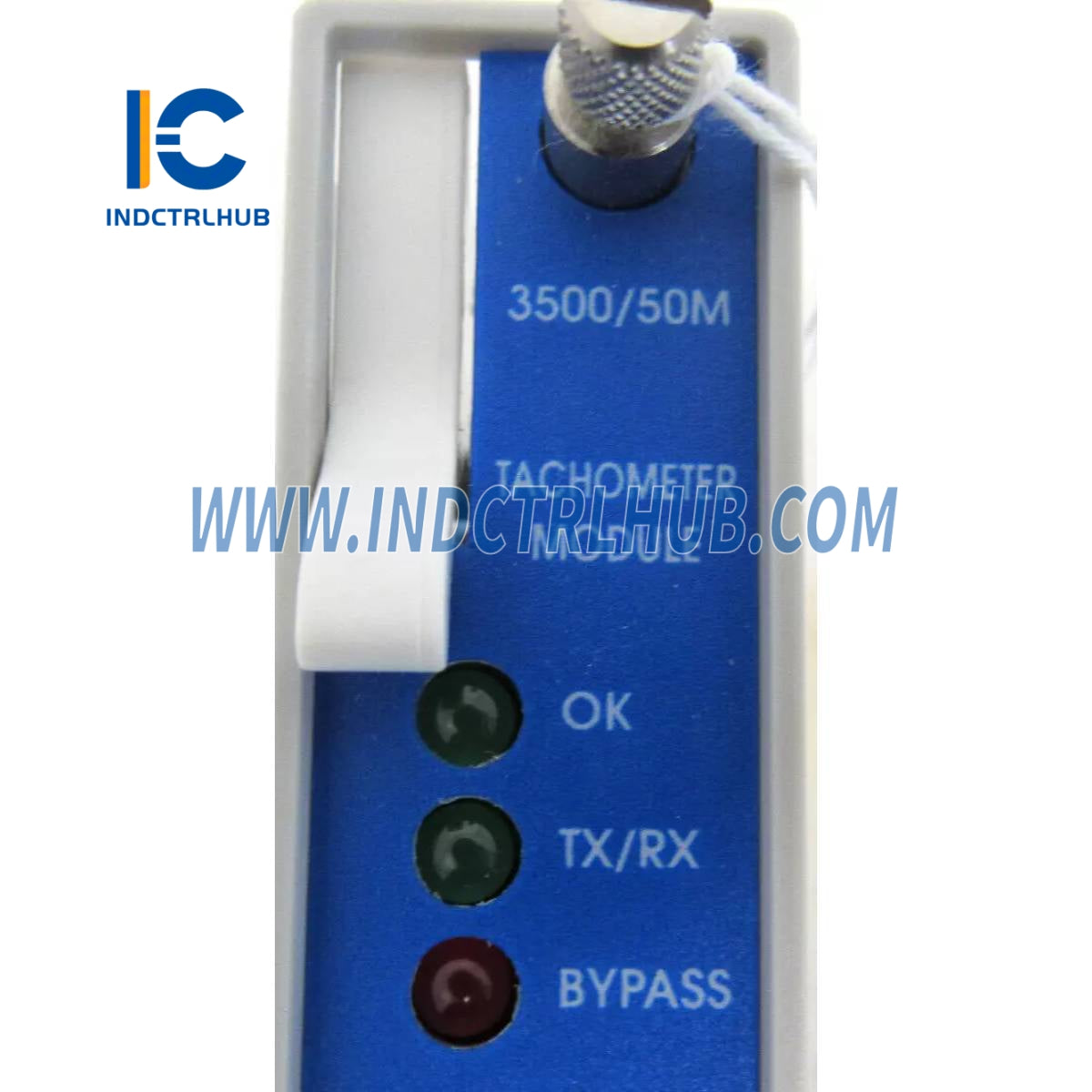

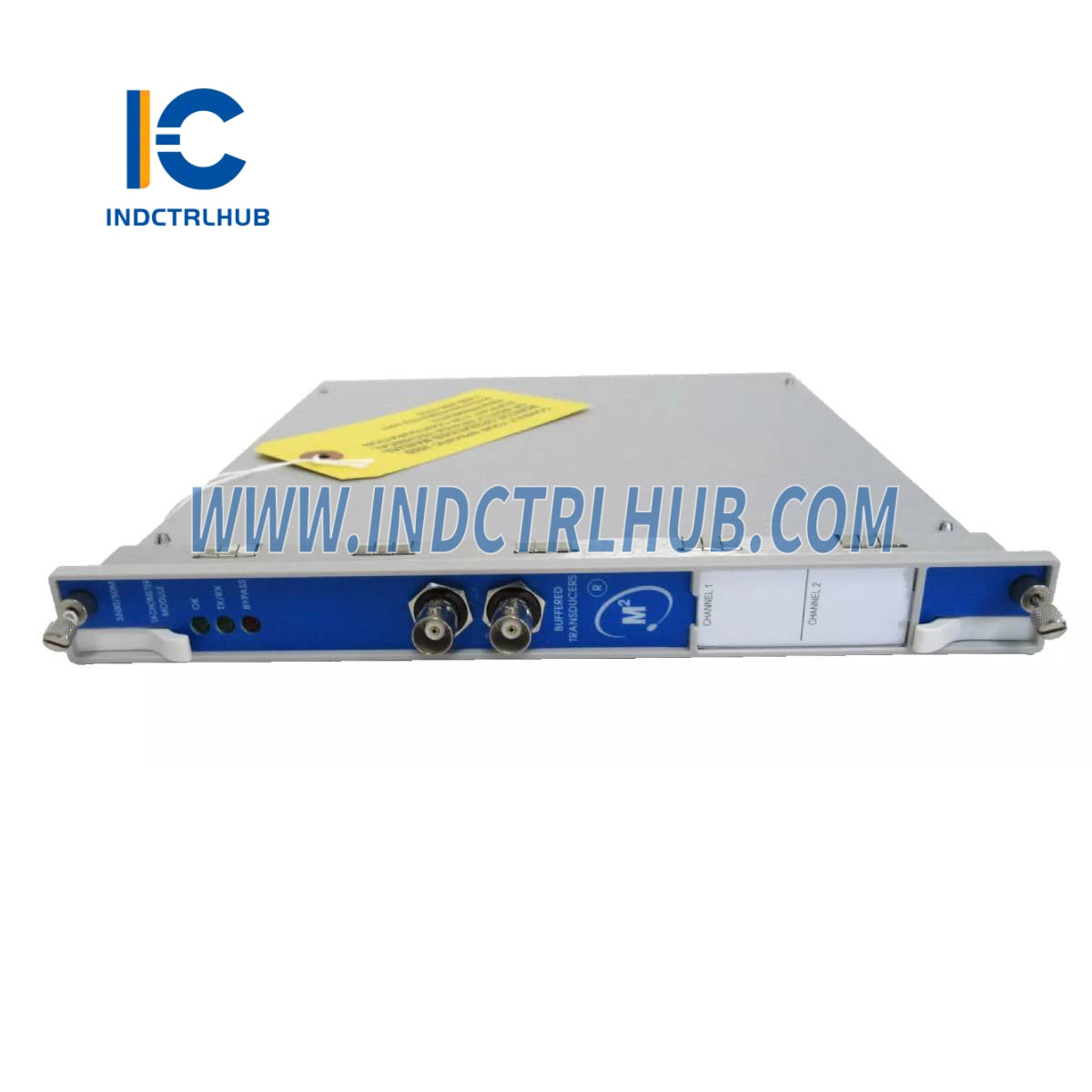

TheĀ 3500/50M Tachometer ModuleĀ is aĀ 2-channelĀ monitoring module that:
Ā
-
Accepts input fromĀ proximity probesĀ orĀ magnetic pickups
-
MonitorsĀ shaft rotative speed,Ā rotor acceleration, andĀ rotor direction
-
Compares measured parameters againstĀ user-programmable alarm thresholds
-
Generates alarms upon threshold violations, providing essential overspeed protection and diagnostics
Ā
Ā
š¹ Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Monitor Module |
241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
0.82 kg (1.8 lb) |
|
I/O Module (non-barrier) |
241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.20 kg (0.44 lb) |
|
I/O Module (barrier) |
241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in) |
0.46 kg (1.01 lb) |
Ā
Ā
š¹ Ordering Information
3500/50-AA-BB
|
Field |
Option |
Description |
|---|---|---|
|
A |
01 |
I/O Module with Internal Terminations |
|
02 |
I/O Module with External Terminations |
|
|
04 |
I/O Module with Internal Barriers and Internal Terminations |
|
|
B |
00 |
None |
|
01 |
cNRTLus (Class 1, Division 2) Approval |
|
|
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) Approval |
Ā
Ā
š¹ Spares
|
Part Number |
Description |
|---|---|
|
288062-02 |
3500/50M Tachometer Module |
|

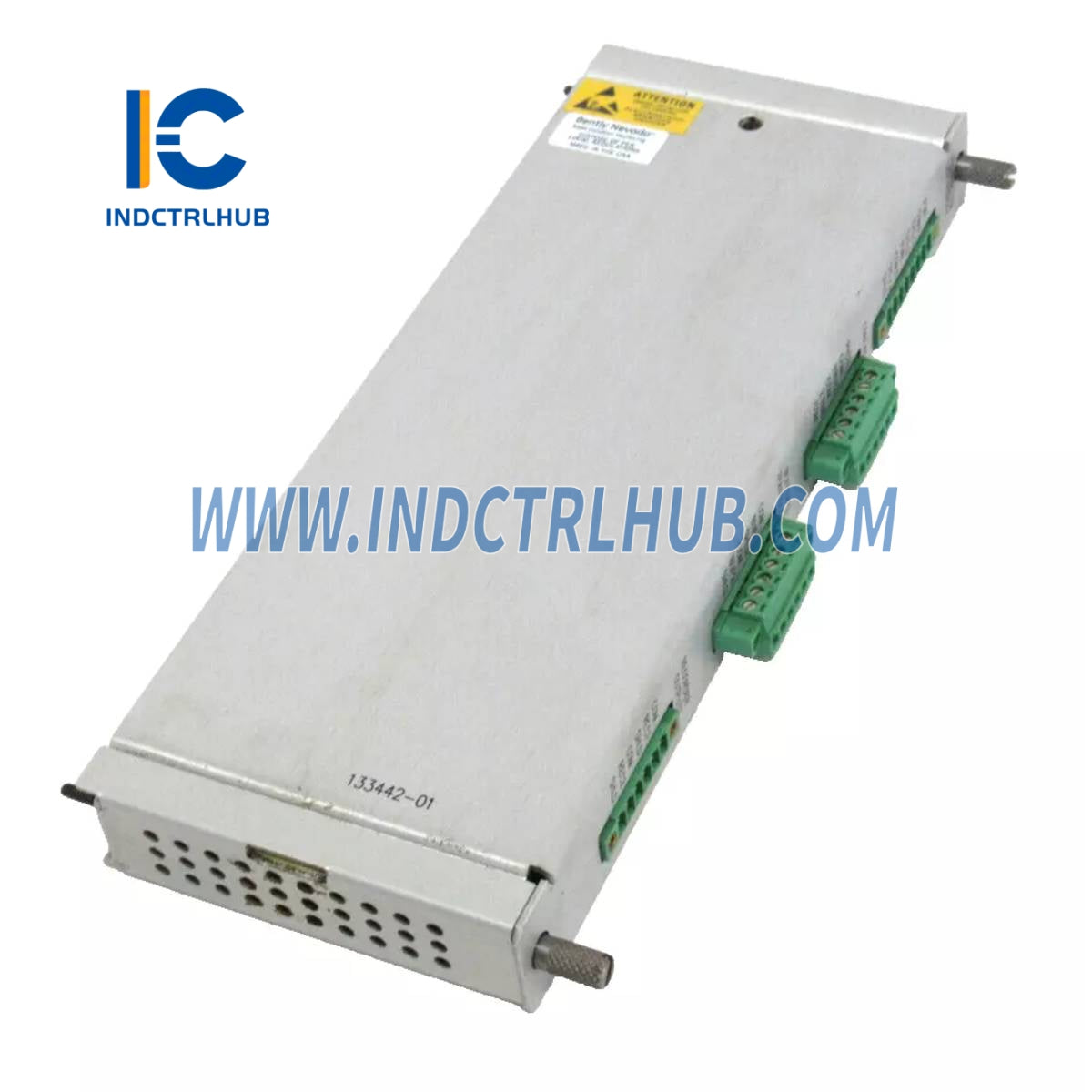

133442-01 |
I/O Module with Internal Terminations |
