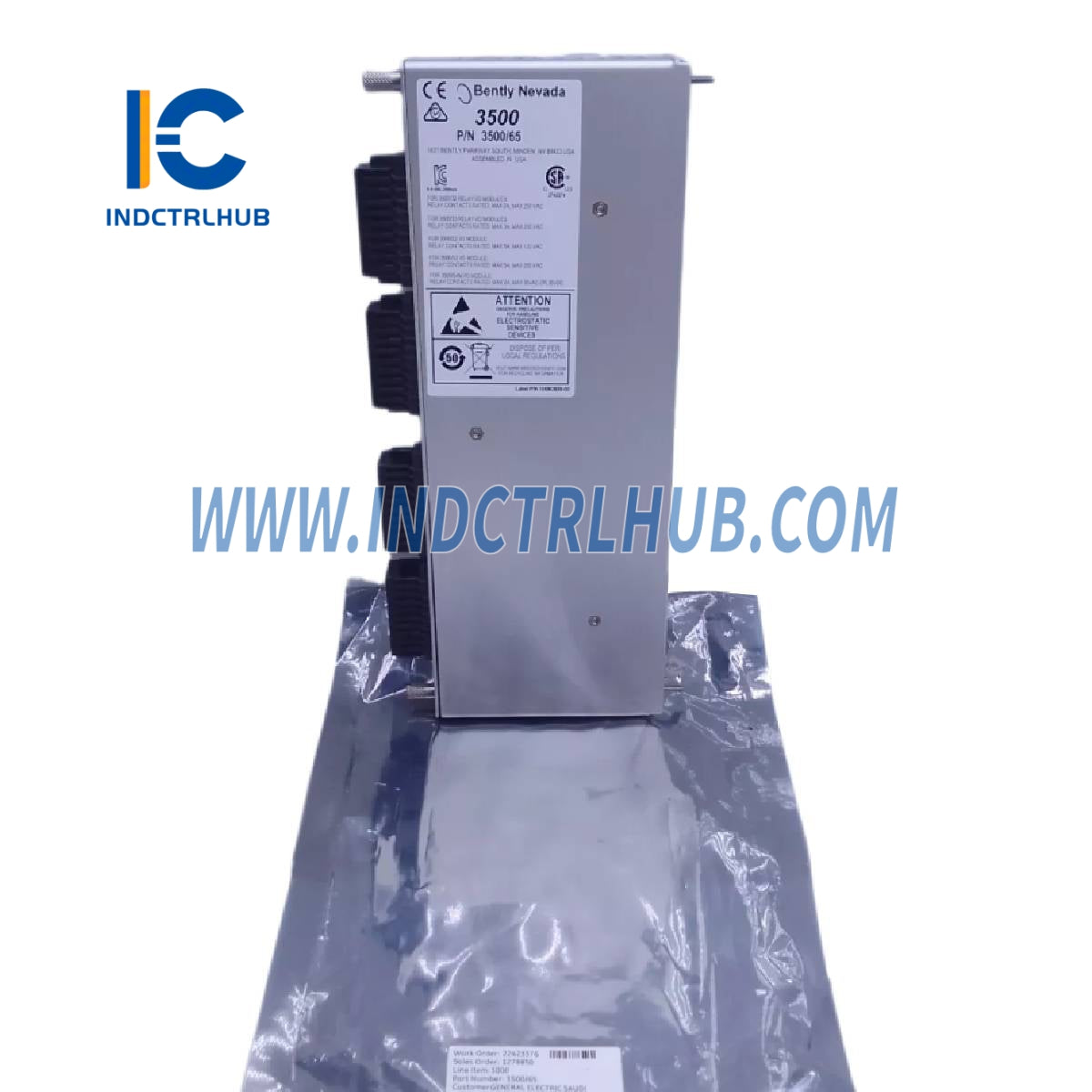

Bently Nevada 3500/65-01-00 145988-02+172103-01 Temperature Monitor
Bently Nevada 3500/65-01-00 145988-02+172103-01 Temperature Monitor
Manufacturer: Bently Nevada
Product No.: 145988-02+172103-01
Condition:1000 in stock
Product Type: Temperature Monitor
Product Origin: USA
Payment: T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/65-01-00 |
|
Spare Part Numbers |
145988-02 (Monitor), 172103-01 (I/O Module) |
|
Description |
3500/65 Temperature Monitor |
|
Series |
3500 |
_
_
__ Description
The_3500/65 Temperature Monitor_is a_16-channel_module that supports:
_
-
RTD (Resistance Temperature Detector)_and_Isolated Tip Thermocouple (TC)_inputs
-
Real-time_temperature condition monitoring
-
Comparison of temperature inputs against_user-programmable alarm setpoints
This monitor is ideal for comprehensive temperature surveillance across rotating or stationary industrial assets.
_
_
__ Specifications
_
Inputs
|
Parameter |
Value |
|---|---|
|
Signal Type |
Accepts 1 to 16 RTD or Isolated Tip Thermocouple signals |
|
Input Impedance |
> 1 MΩ per lead input |
|
Power Consumption |
3 Watts, nominal |
_
_
__ Environmental Limits
|
Condition |
Range |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
_
_
__ Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Main Module |
241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
0.91 kg (2.0 lbs) |
|

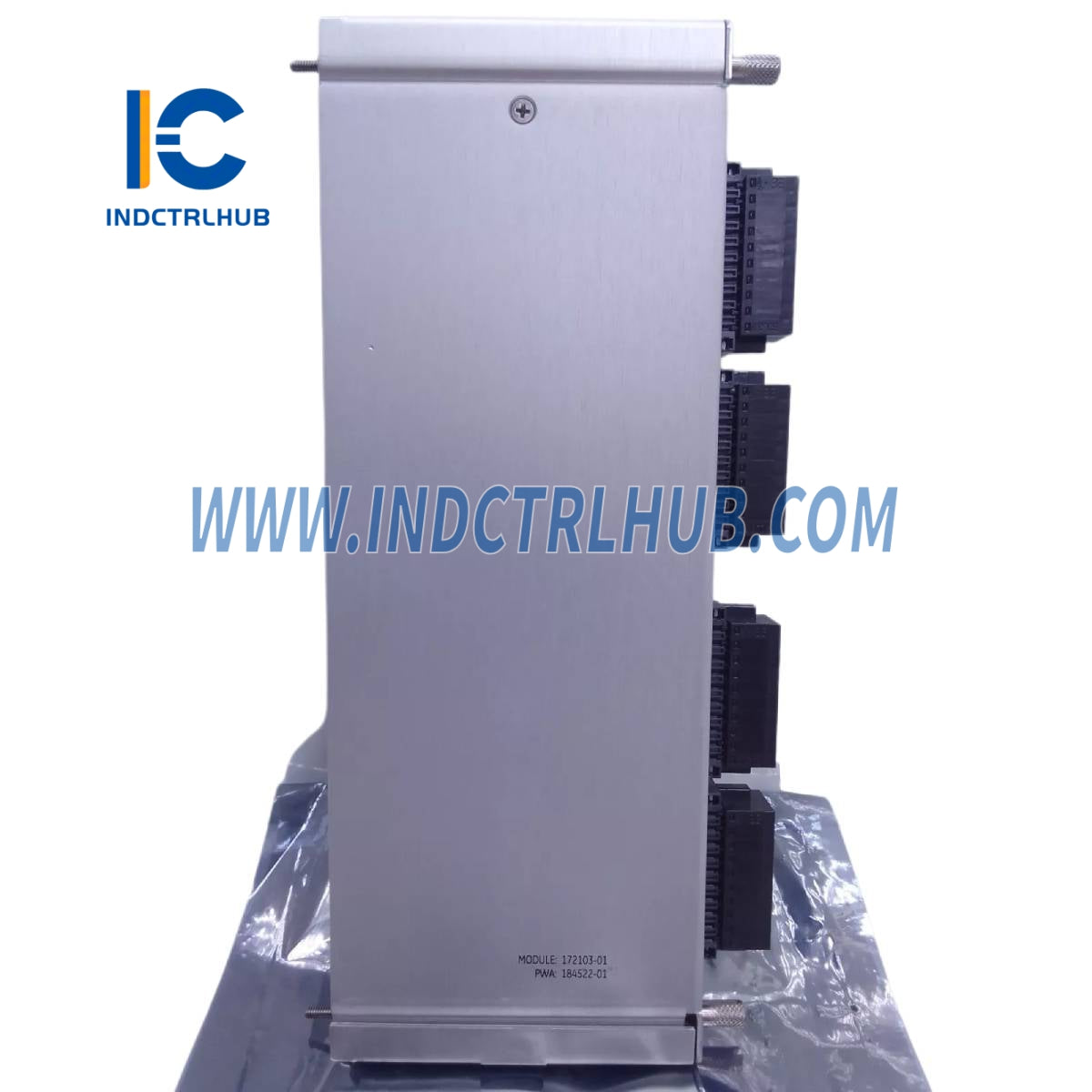

I/O Module |
241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.45 kg (1.0 lb) |
_
_
__ Ordering Information
3500/65-AA-BB
|
Field |
Option |
Description |
|---|---|---|
|
A |
01 |
RTD/Isolated Tip TC with Internal Terminations |
|
02 |
RTD/Isolated Tip TC with External Terminations |
|
|
B |
00 |
None |
|
01 |
CSA/NRTL/C Approval |
|
|
02 |
CSA/ATEX Approval |
_
_
__ Spares
|
Part Number |
Description |
|---|---|
|
145988-02 |
3500/65 Temperature Monitor |
|
172103-01 |
RTD/Isolated Tip TC I/O Module (Internal Terminations) |
_
