Bently Nevada 3500/92-04-01-00 136180-01+136188-02 Communication Gateway
Bently Nevada 3500/92-04-01-00 136180-01+136188-02 Communication Gateway
Manufacturer: Bently Nevada
Product No.: 136180-01+136188-02
Condition:1000 in stock
Product Type: Communication Gateway
Product Origin: USA
Payment: T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/92-04-01-00 |
|
Spare Part Numbers |
136180-01 (Gateway Module), 136188-02 (I/O Module) |
|
Description |
3500/92 Communication Gateway |
|
Series |
3500 |
_
_
__ Description
The_3500/92 Communication Gateway Module_provides robust communication features for Bently Nevada 3500 Series systems. Key functionalities include:
_
-
Comprehensive data sharing_of all rack-monitored values and statuses
-
Integration support_for process control and automation systems
-
Communication via_Ethernet TCP/IP_and_serial ports_(RS232, RS422, RS485)
-
Enables_rack configuration_and_data acquisition_over Ethernet
_
_
__ Environmental Limits
|
Condition |
Specification |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
_
_
__ Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Main Module |
241 x 24.4 x 242 mm (9.50 x 0.96 x 9.52 in) |
0.82 kg (1.8 lb) |
|
I/O Module |
241 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.44 kg (0.96 lb) |
_
_
__ Ordering Information
3500/92-AA-BB-CC
|
Field |
Option |
Description |
|---|---|---|
|
A |
01 |
Modbus RS232/RS422 I/O Module |
|
02 |
Modbus RS485 I/O Module |
|
|
03 |
Ethernet/RS232 Modbus I/O Module |
|
|
04 |
Ethernet/RS485 Modbus I/O Module |
|
|
B |
01 |
Low Memory |
|
C |
00 |
None |
|
01 |
CSA/NRTL/C |
|
|
02 |
CSA/ATEX/IECEx |
_
_
__ Spares
|
Part Number |
Description |
|---|---|
|

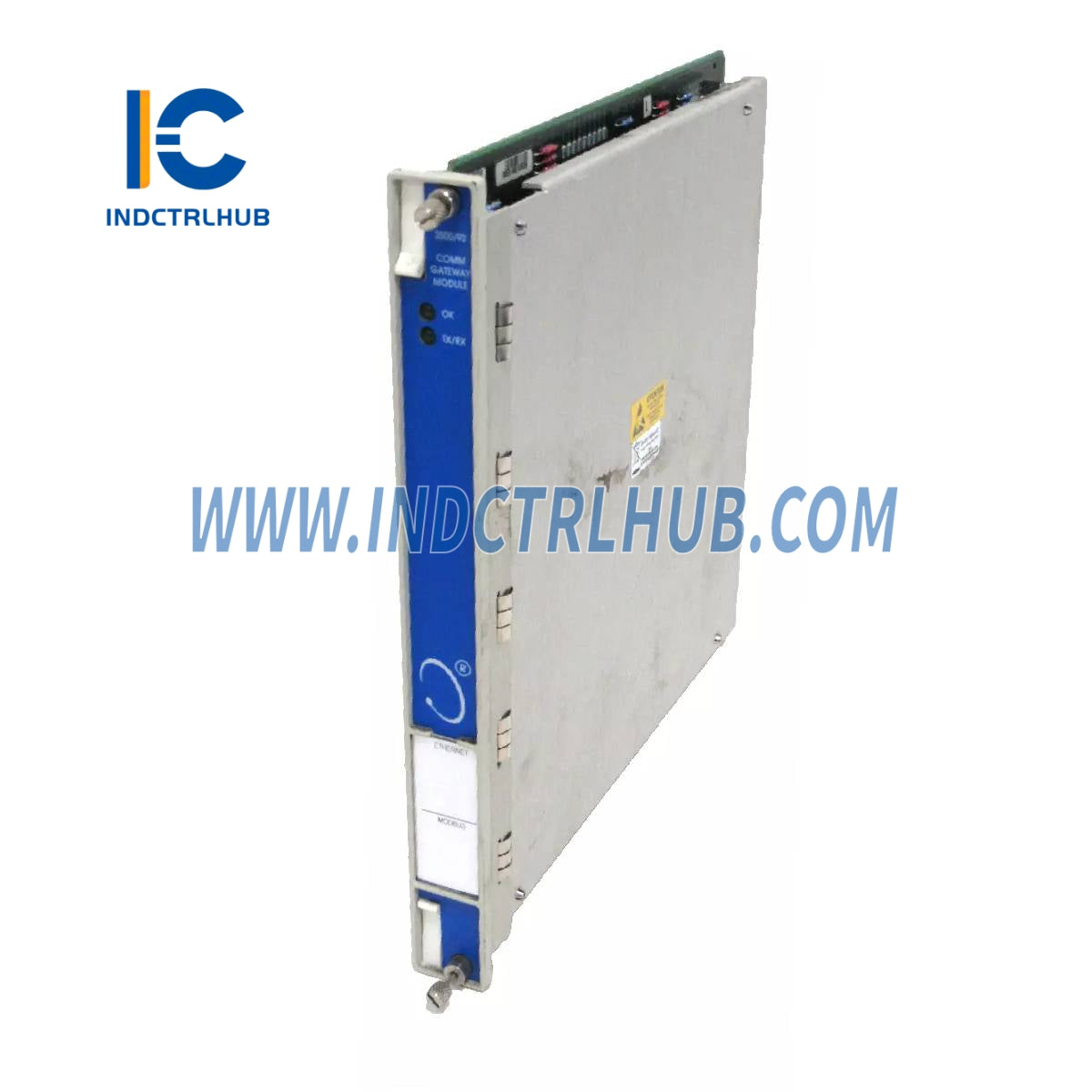

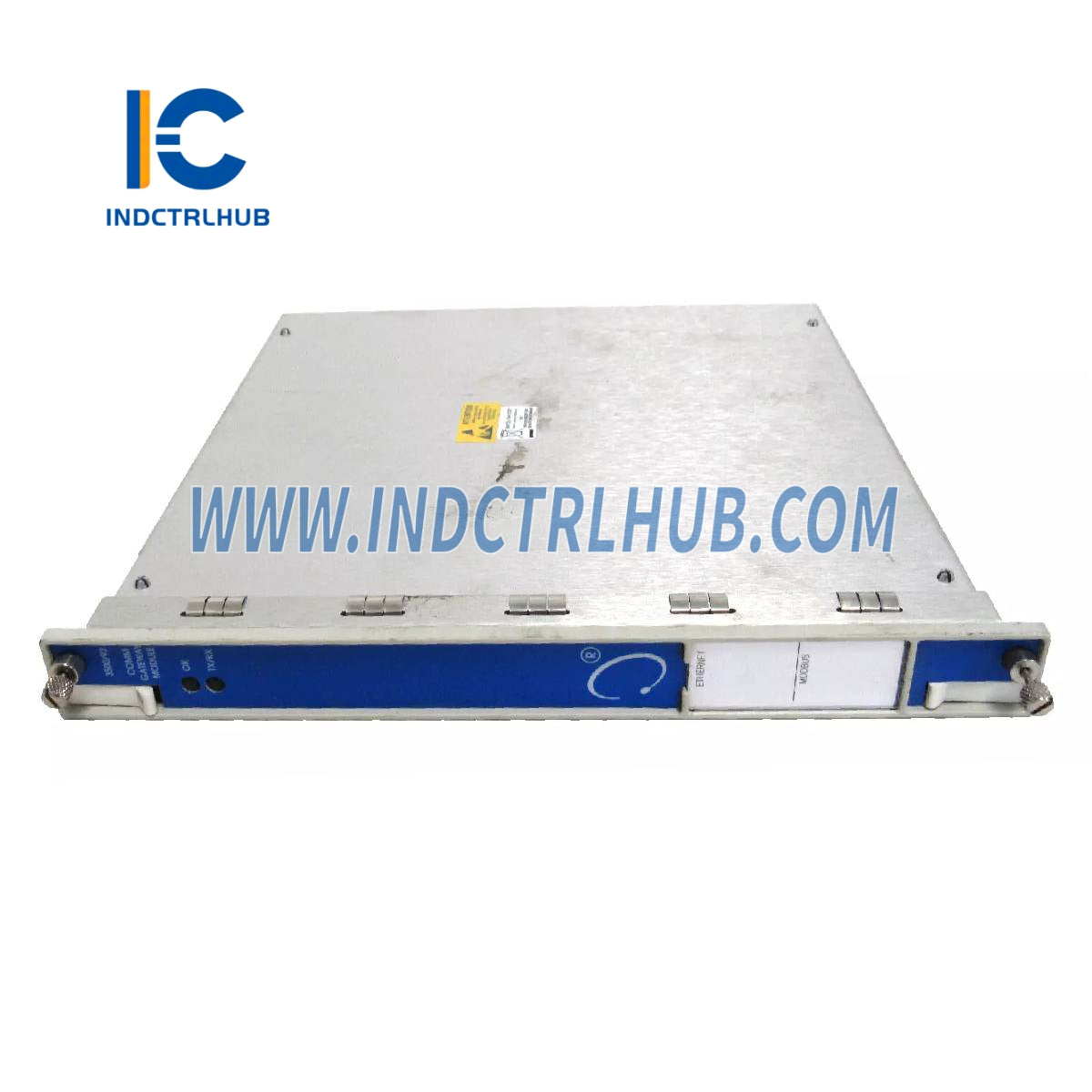

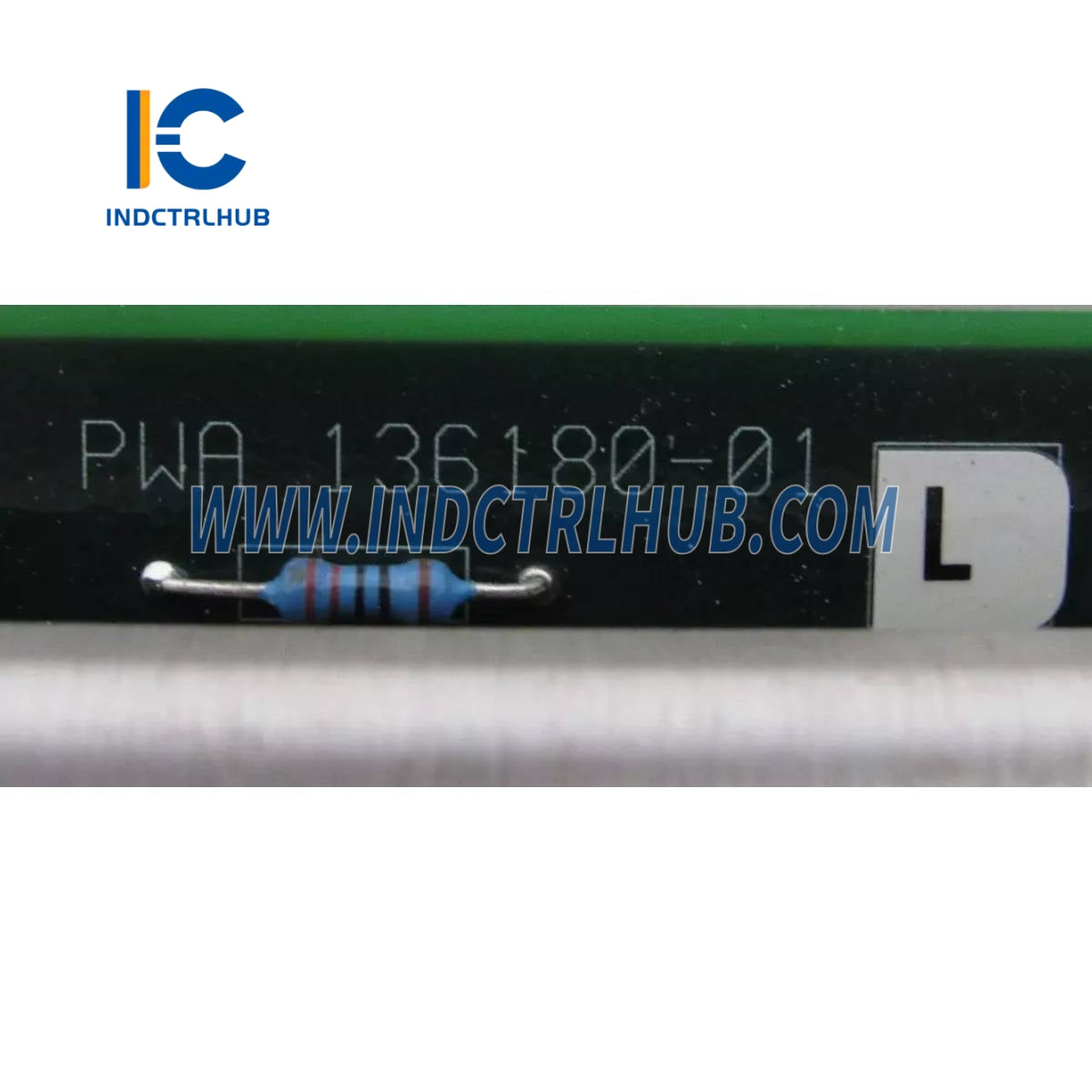

136180-01 |
3500/92 Communication Gateway Module |
|

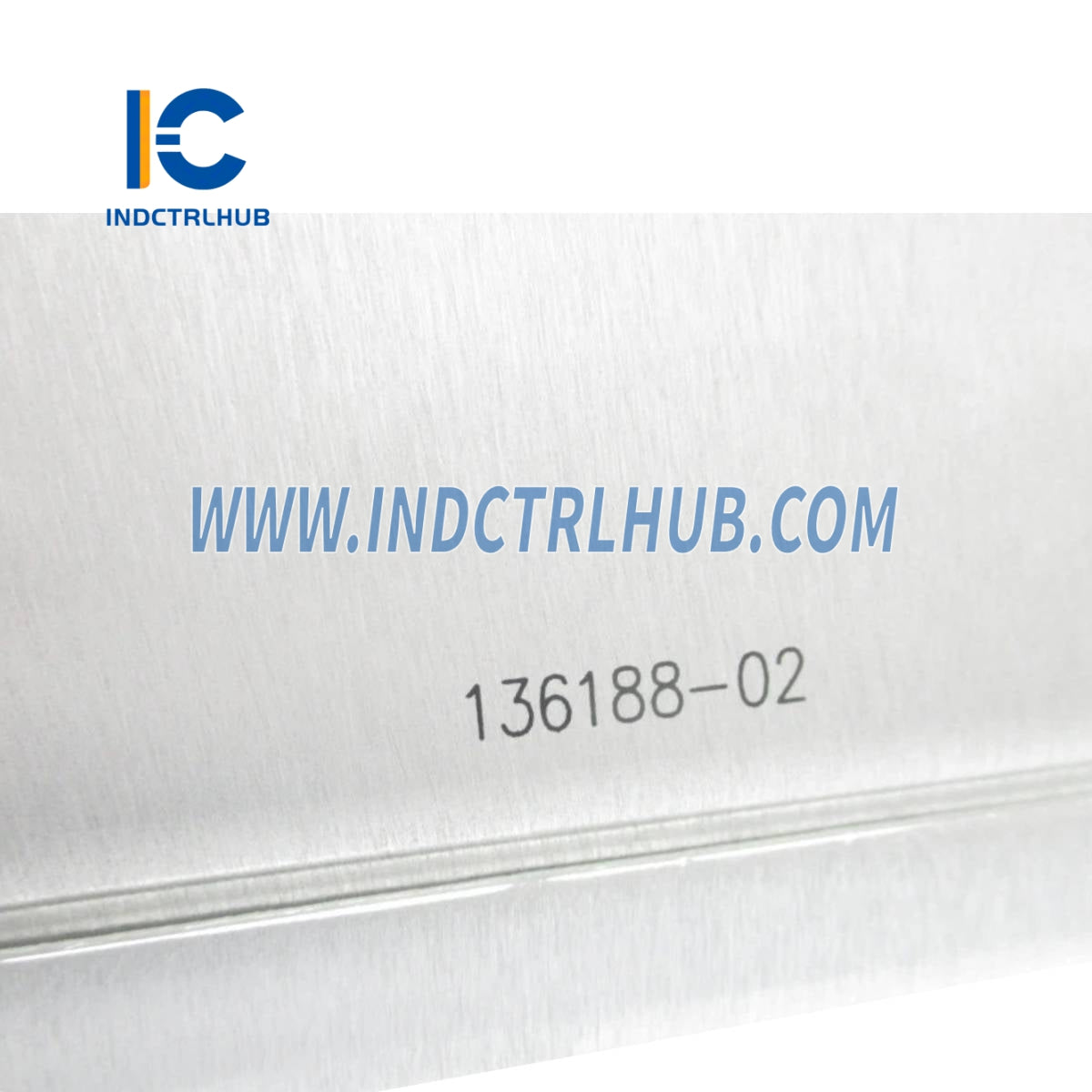

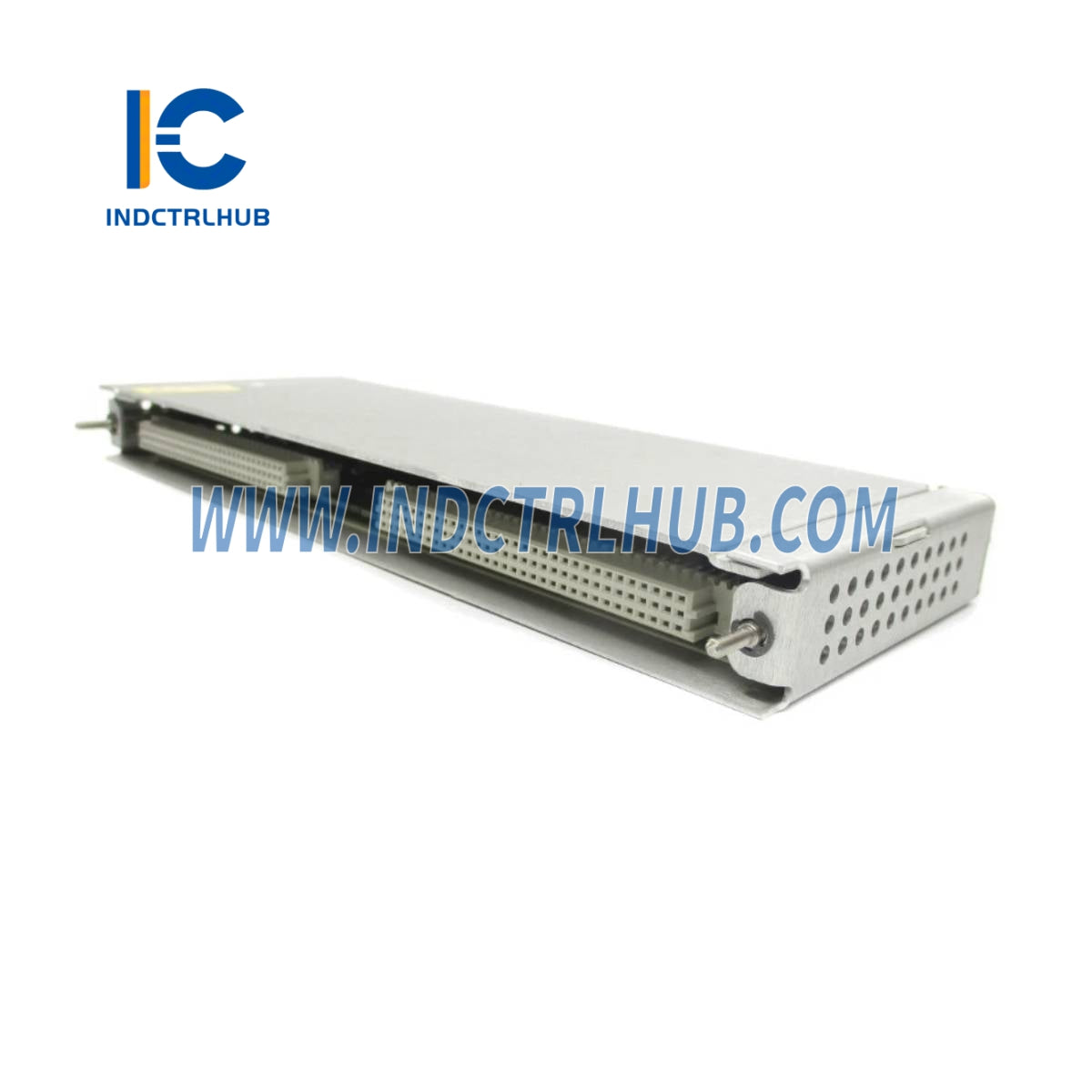

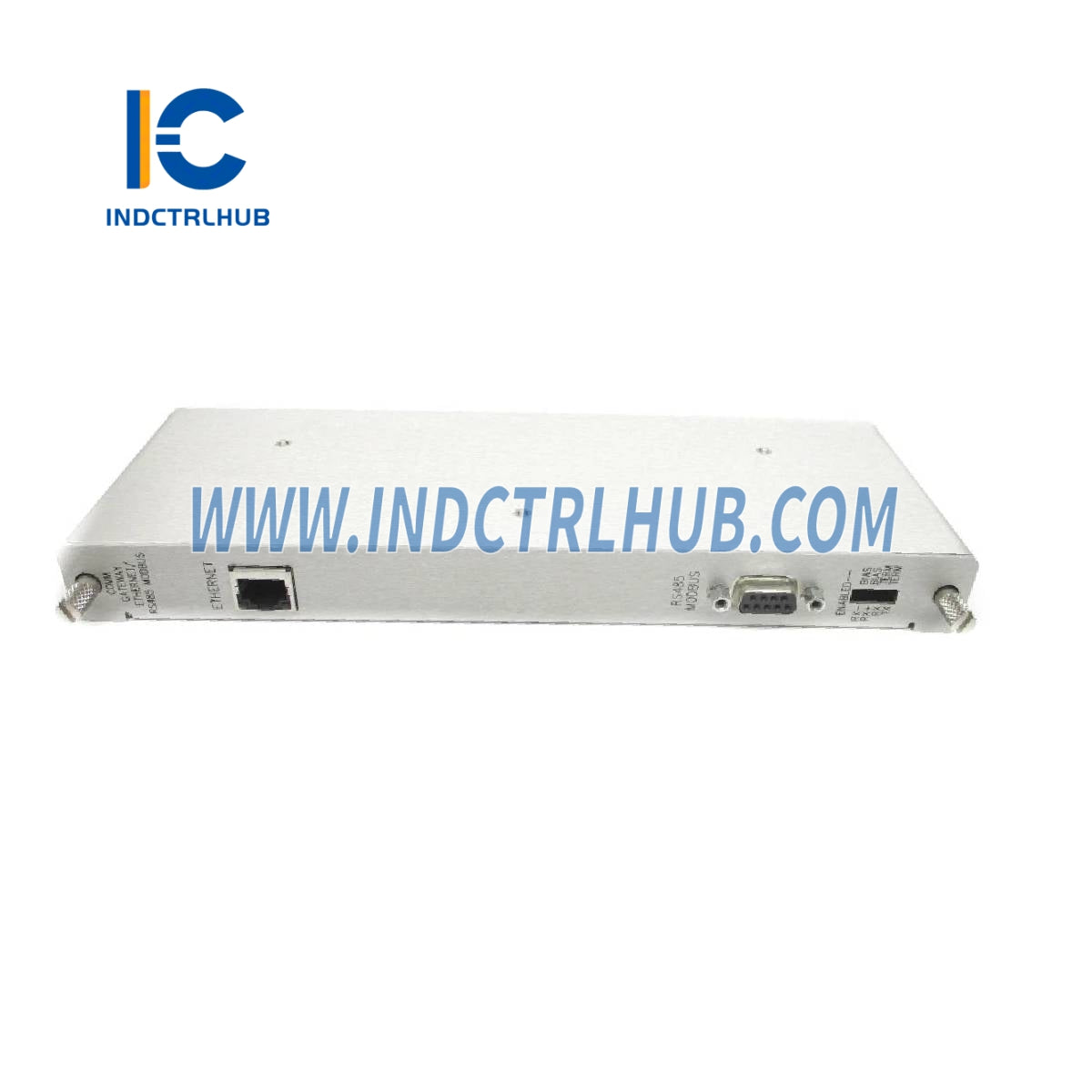

136188-02 |
Ethernet/RS485 Modbus I/O Module |
_
