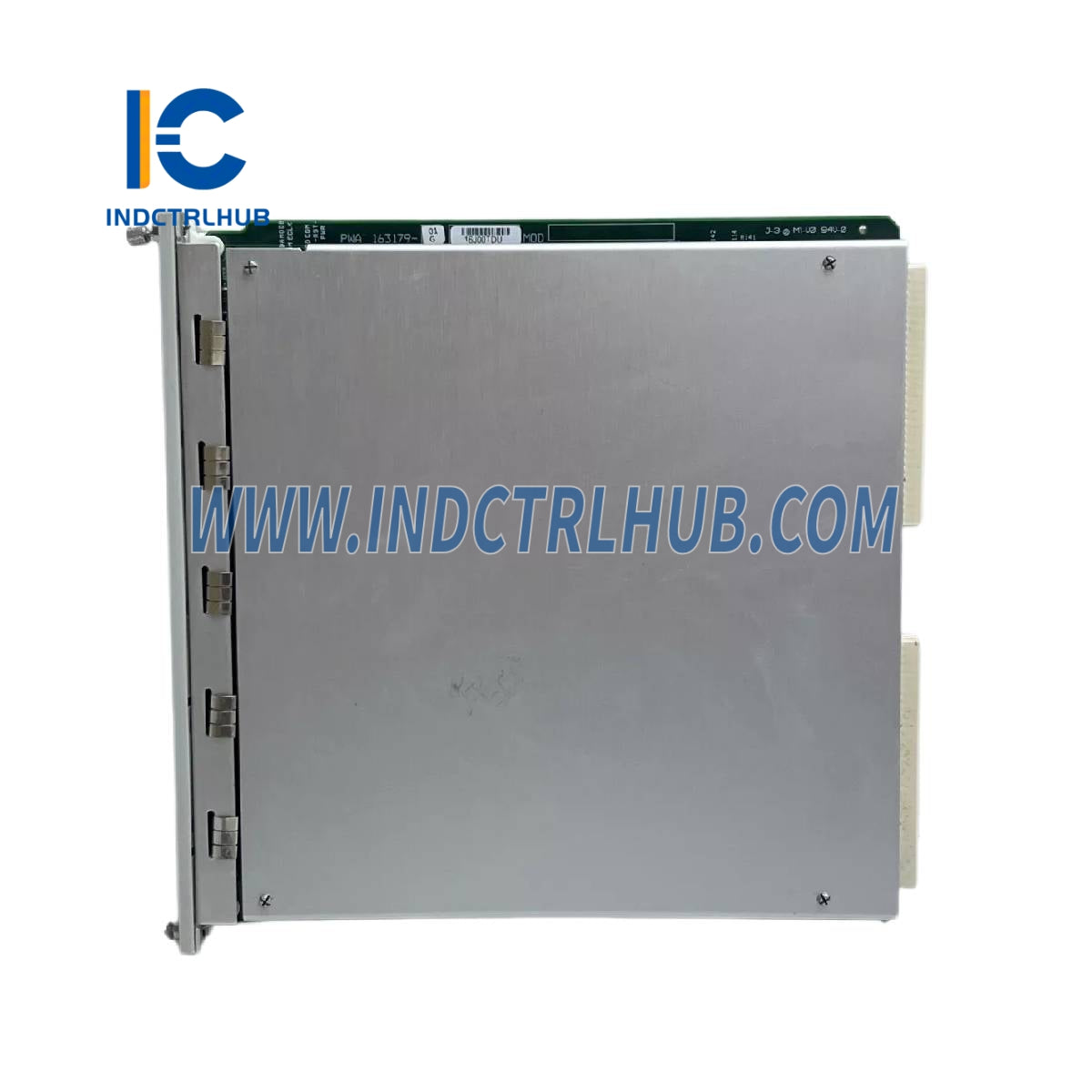

Bently Nevada 3500/61-01-00 163179-01+133819-01 Temperature Module with Recorder Outputs
Bently Nevada 3500/61-01-00 163179-01+133819-01 Temperature Module with Recorder Outputs
Manufacturer: Bently Nevada
Product No.: 163179-01+133819-01
Condition:1000 in stock
Product Type: Temperature Module with Recorder Outputs
Product Origin: USA
Payment: T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
_
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/61-01-00 |
|
Spare Part Numbers |
163179-01 (Monitor), 133819-01 (I/O Module) |
|
Description |
Temperature Module with Recorder Outputs |
|
Series |
3500 |
_
_
__ Description

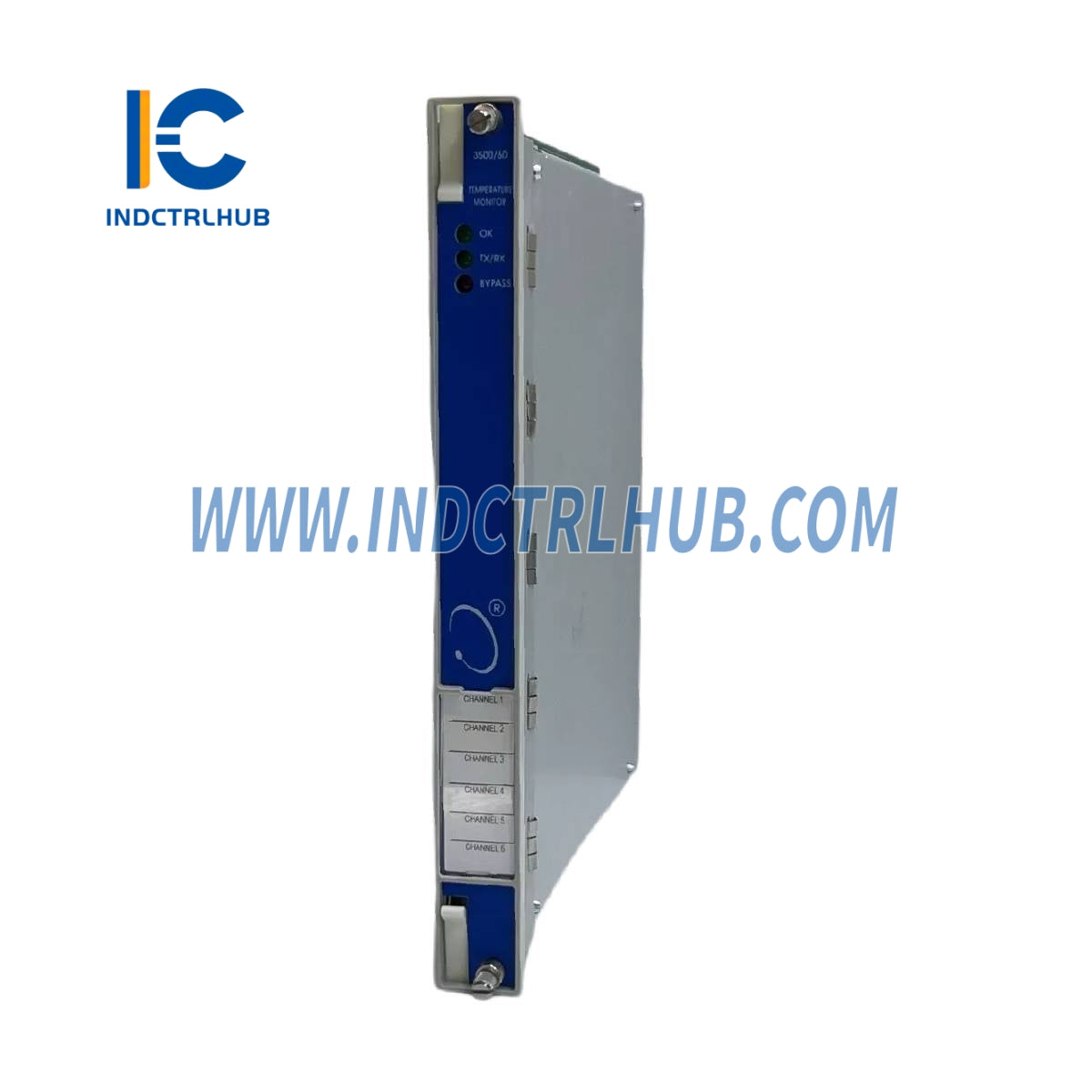

The_Bently Nevada 3500/61 Temperature Monitor:
_
-
Provides_6 channels_of temperature monitoring
-
Accepts inputs from both_RTDs (Resistance Temperature Detectors)_and_TCs (Thermocouples)
-
Conditions and compares temperature readings against_user-programmable alarm thresholds
-
Offers_recorder outputs_for all six channels (feature that differentiates it from the 3500/60)
_
_
__ Specifications
_
Inputs
|
Parameter |
Specification |
|---|---|
|
Input Channels |
1 to 6 RTD or TC signals |
|
Input Impedance |
10 M_ per lead input |
|
Power Consumption |
9 watts nominal (3500/61) |
_
_
__ Environmental Limits
|
Condition |
Specification |
|---|---|
|
Operating Temperature |
-30°C to +65°C (w/ Termination I/O Modules) |
|
0°C to +65°C (w/ Internal Barrier I/O Modules) |
|
|
Storage Temperature |
-40°C to +85°C |
_
_
__ Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Monitor Module |
241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
0.91 kg (2.0 lb) |
|
I/O Module (non-barrier) |
241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.45 kg (1.0 lb) |
|
I/O Module (barrier) |
241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in) |
0.46 kg (1.01 lb) |
_
_
__ Ordering Information
3500/61-AA-BB
|
Field |
Option |
Description |
|---|---|---|
|
A |
01 |
RTD/TC Non-isolated, Internal Terminations |
|
02 |
RTD/TC Non-isolated, External Terminations |
|
|
03 |
TC Isolated, Internal Terminations |
|
|
04 |
TC Isolated, External Terminations |
|
|
05 |
RTD/TC Non-isolated with Internal Barriers |
|
|
B |
00 |
None |
|
01 |
CSA/NRTL/C (Class 1, Division 2) |
|
|
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) |
_
_
__ Spares
|
Part Number |
Description |
|---|---|
|

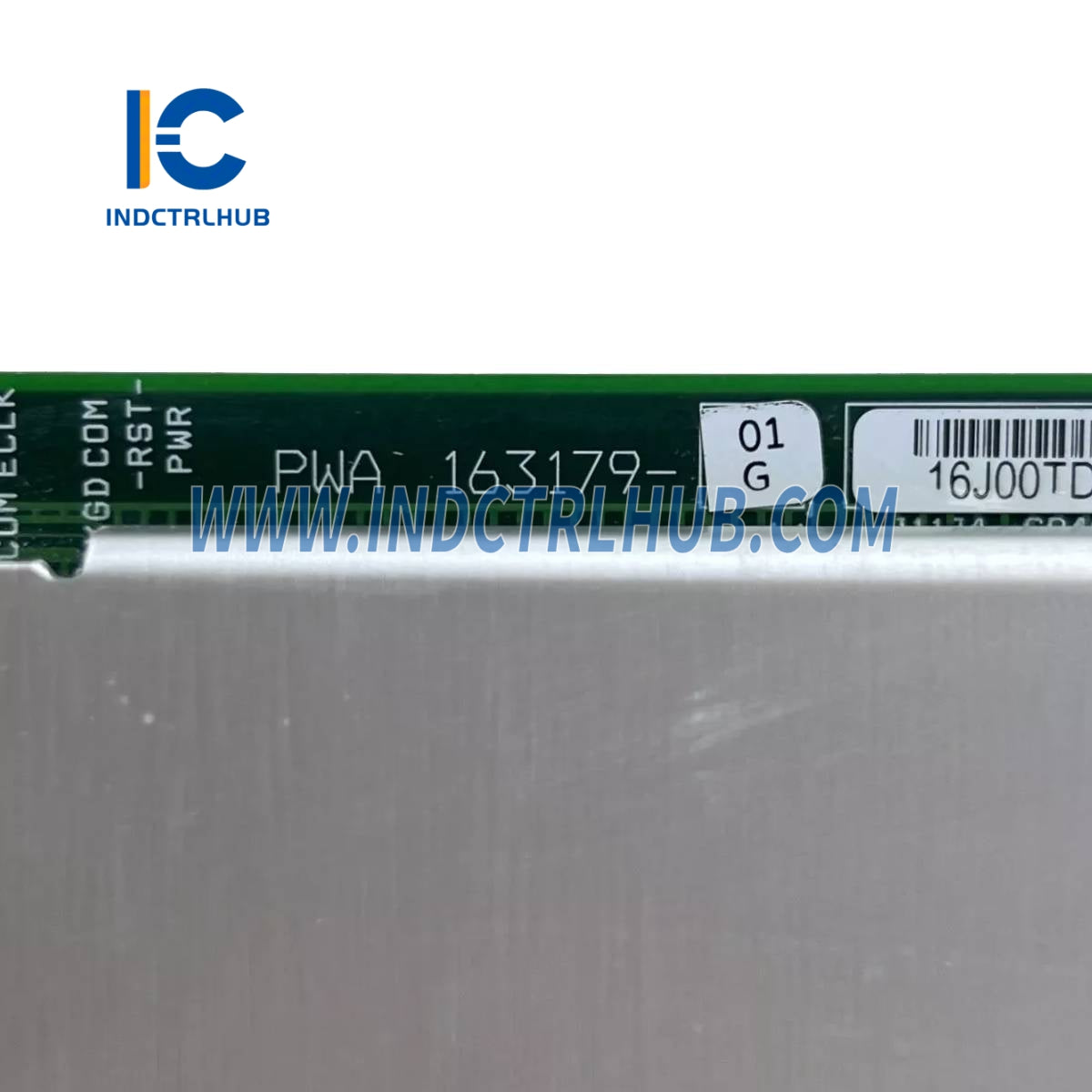

163179-01 |
3500/61 Monitor Module |
|

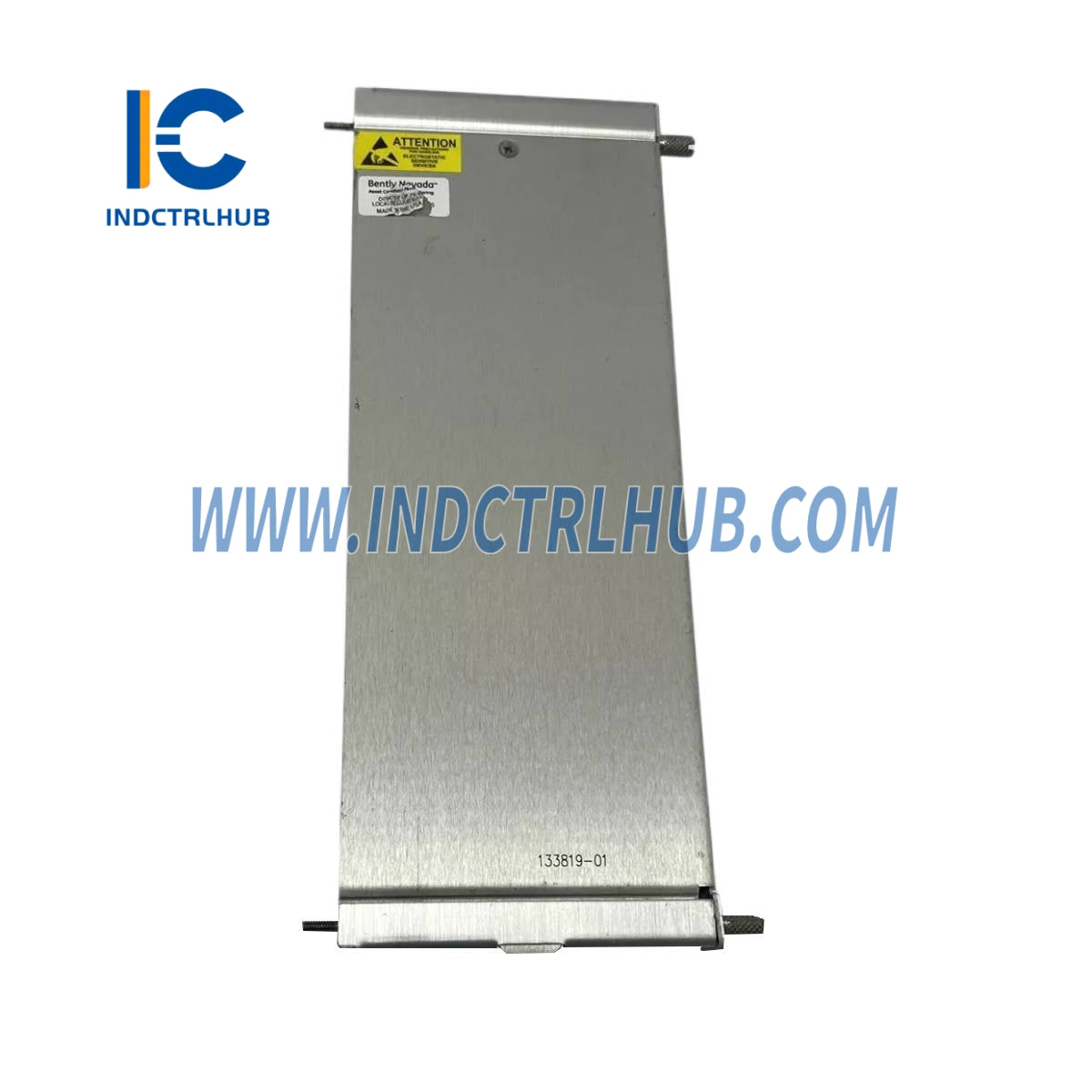

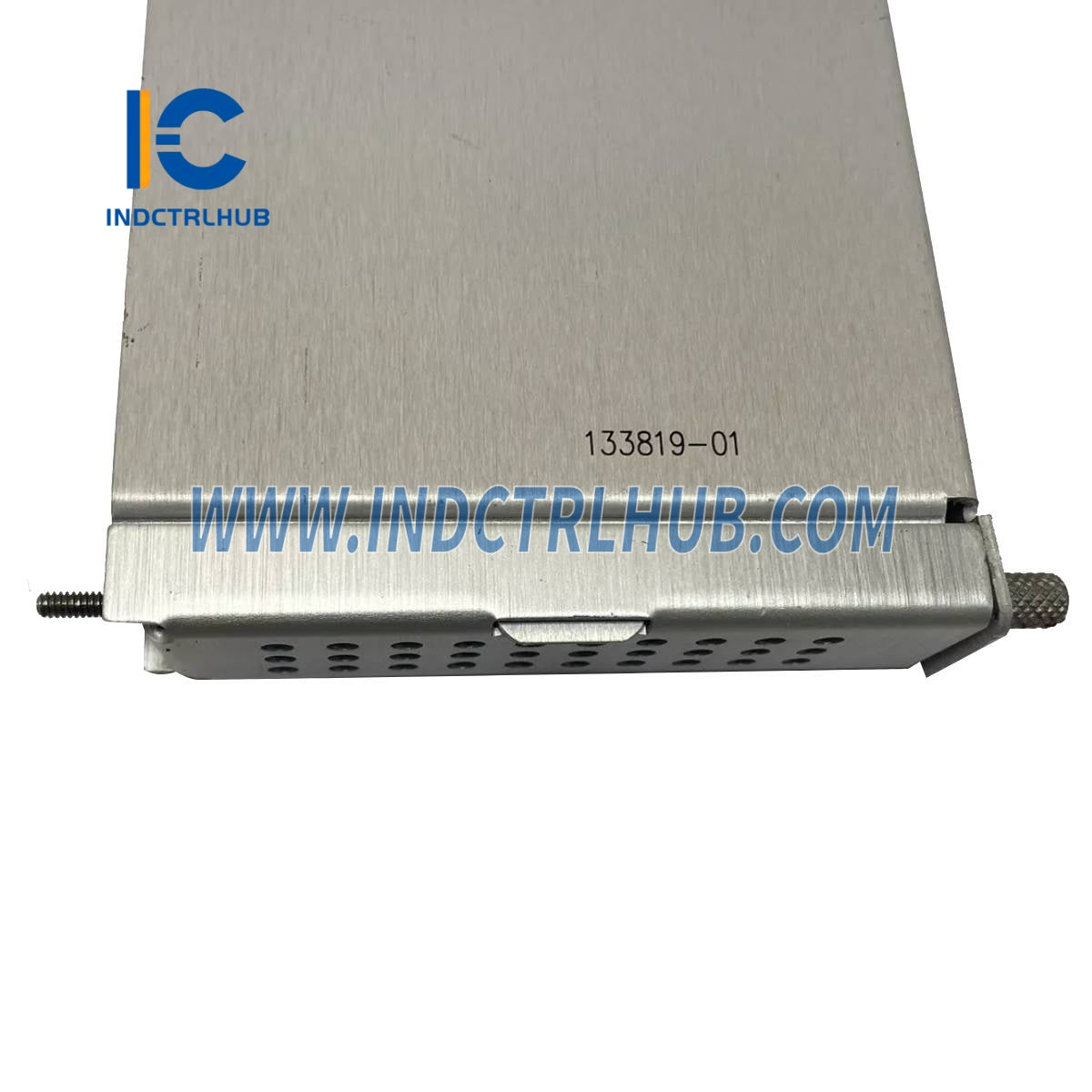

133819-01 |
RTD/TC Non-Isolated I/O Module, Internal Terminations |
|
133827-01 |
RTD/TC Non-Isolated I/O Module, External Terminations |
_
