Product Description
Product Overview

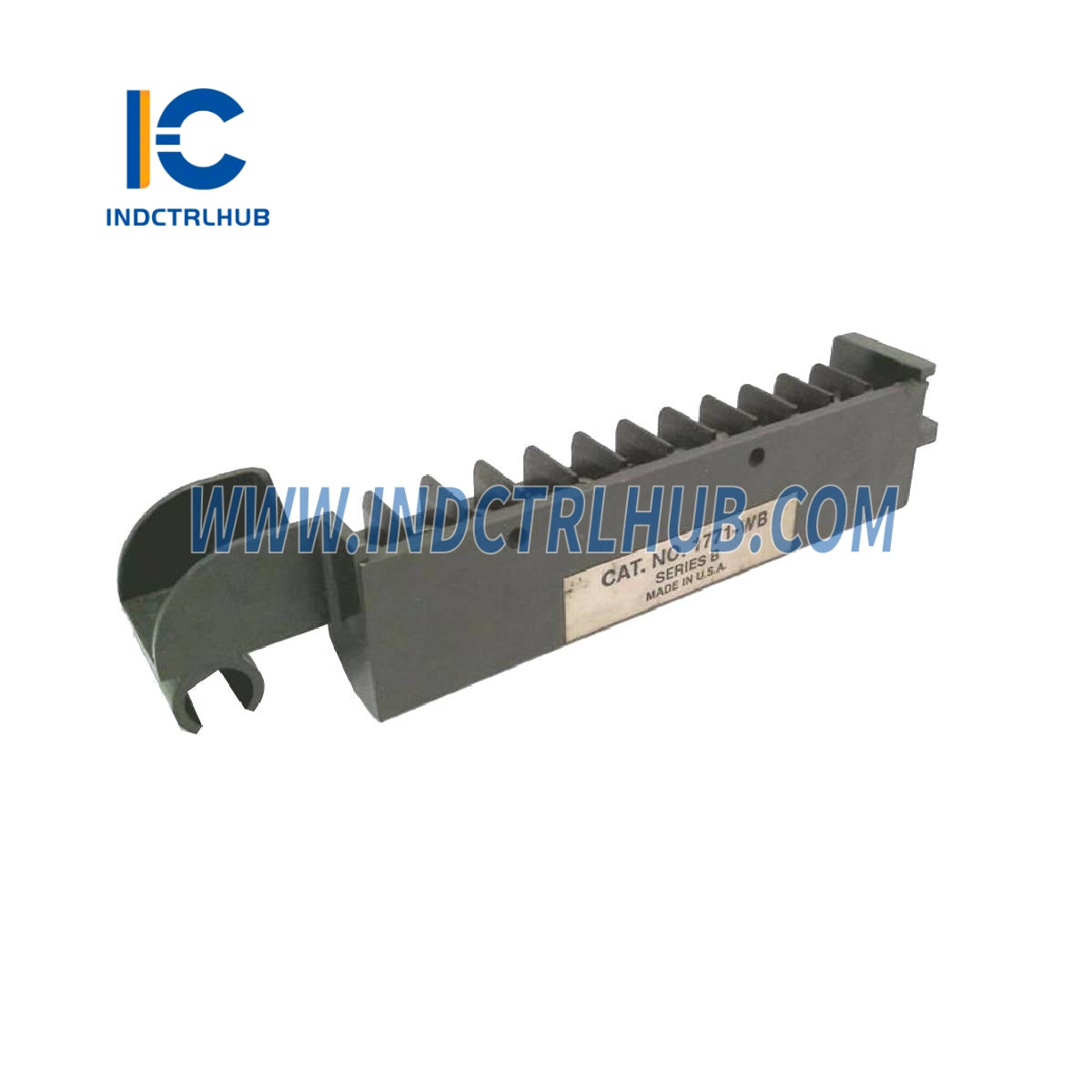

The Allen-Bradley 1771-WB is a 12 Point Terminal Field Wiring Arm designed for the PLC-5 system’s 1771 I/O modules, providing a reliable connection point for field wiring in industrial automation applications. Manufactured by Allen-Bradley, a brand under Rockwell Automation known for its durable control solutions, this wiring arm facilitates the termination of field device wires (e.g., sensors, actuators) to compatible I/O modules within a 1771 chassis. It features 12 screw-clamp terminals for secure connections, supporting wire sizes up to 14 AWG, and includes a hinged design for easy attachment and removal without disrupting wiring. The 1771-WB is commonly used with modules like the 1771-ASB (Remote I/O Adapter) and other analog or discrete I/O modules, enhancing flexibility and maintenance efficiency in legacy PLC-5 installations across industries such as manufacturing and process control.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | PLC-5 (1771) |

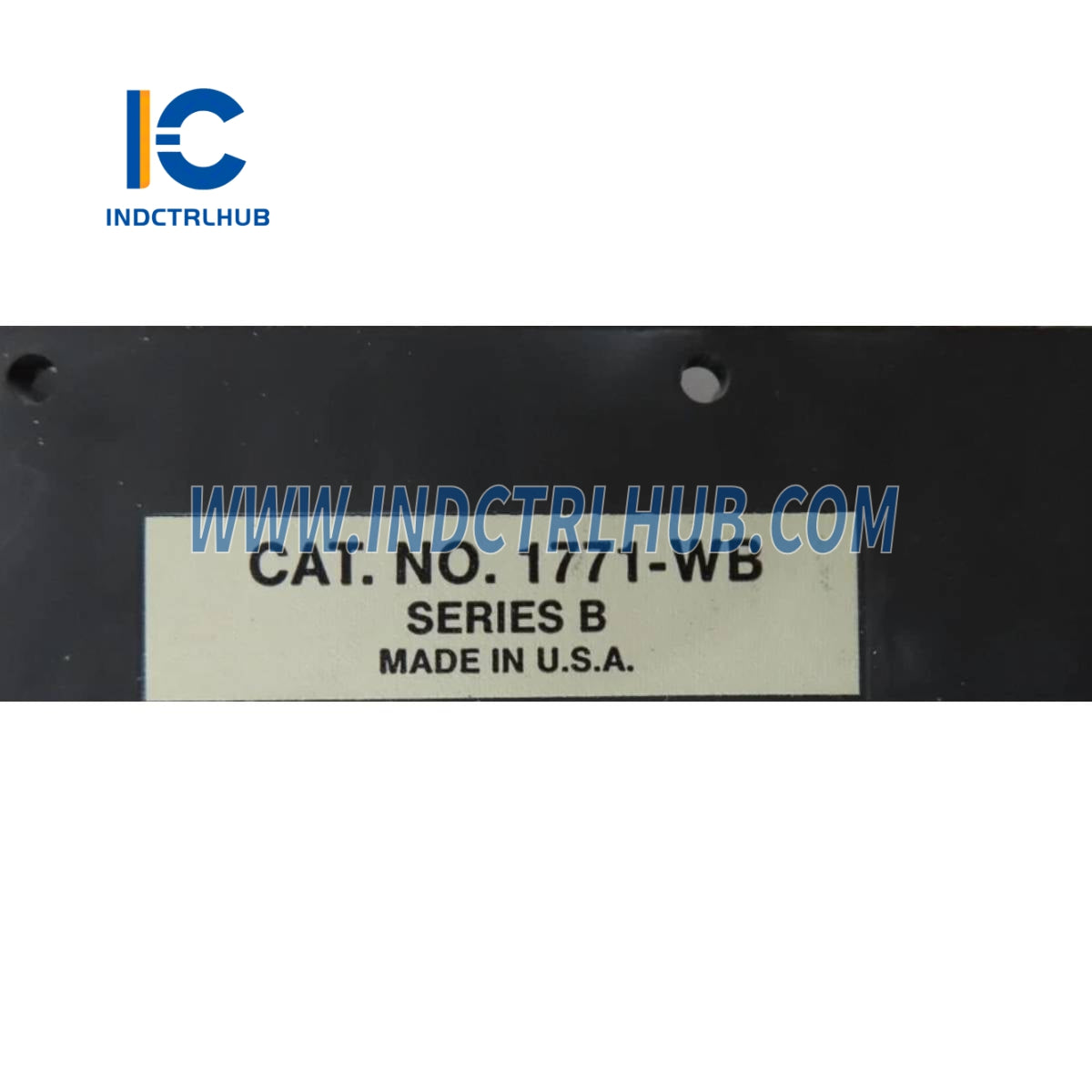

| Model/Part Number | 1771-WB |
| Description | 12 Point Terminal Field Wiring Arm |
| Terminal Count | 12 screw-clamp terminals |
| Wire Size | 22-14 AWG (0.324-2.08 mm²) |
| Terminal Torque | 7-9 lb-in (0.8-1 Nm) |
| Compatibility | 1771 I/O modules (e.g., 1771-ASB, 1771-IA) |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Dimensions | 114 mm H x 25 mm W x 38 mm D (4.5 in x 1.0 in x 1.5 in) |
| Weight | 0.07 kg (0.15 lb) |
