Product Description
__ General Information
|
Manufacturer |
Foxboro |
|---|---|
|
Model/Part Number |

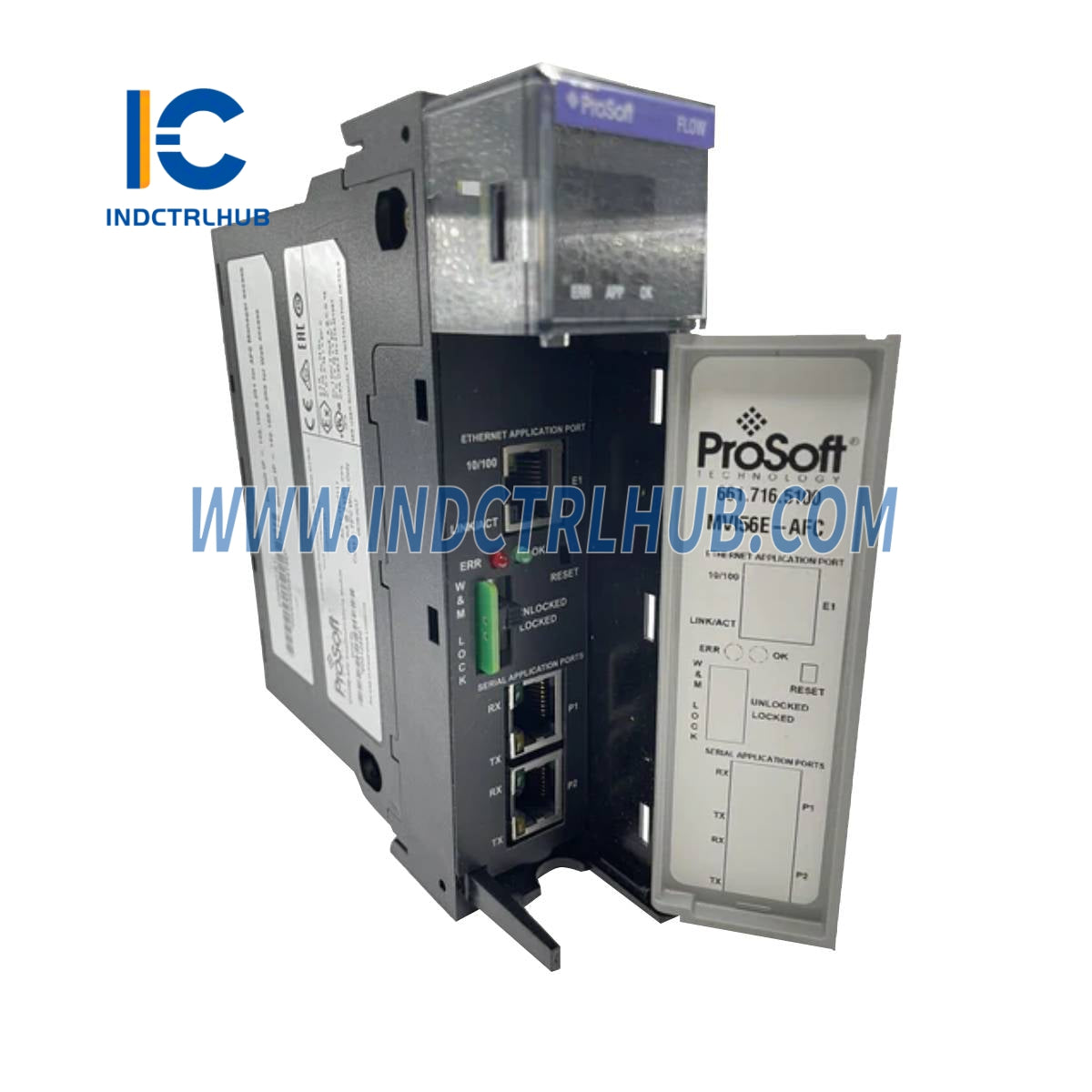

MVI56E-AFC |
|
Description |
Enhanced Liquid & Gas Flow Computer for ControlLogix |
_
_
__ Hardware Specifications
|
Specification |
Description |
|---|---|
|
Backplane Current Load |
800 mA @ 5 VDC3 mA @ 24 VDC |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Shock |
30 g (Operational)50 g (Non-operational) |
|
Vibration |
5 g from 10 Hz to 150 Hz |
|
Relative Humidity |
5% to 95% RH, non-condensing |
|
LED Indicators |
Module Status, Backplane Transfer Status, Application Status, Serial Activity |
|
Ethernet Port |
1x 10/100 Mbps RJ45Auto MDIXLink and Activity LED |
|
Serial Application Ports |
2x RJ45 Ports (P1 & P2)Jumper selectable RS-232, RS-422, RS-485DB-9M with cablesRS-232 handshaking configurable500 V optical isolationFull hardware handshaking |
|
Shipped with Unit |

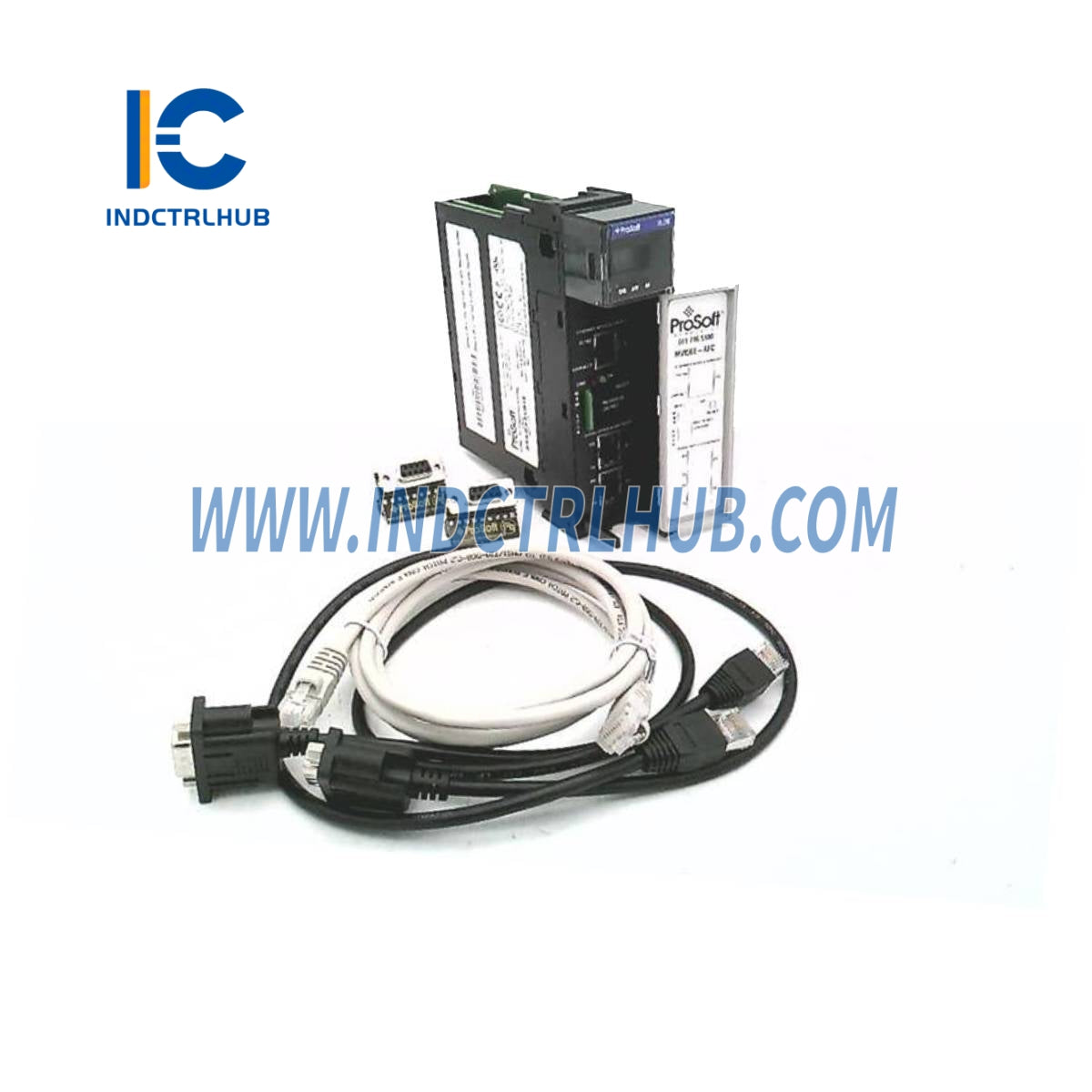

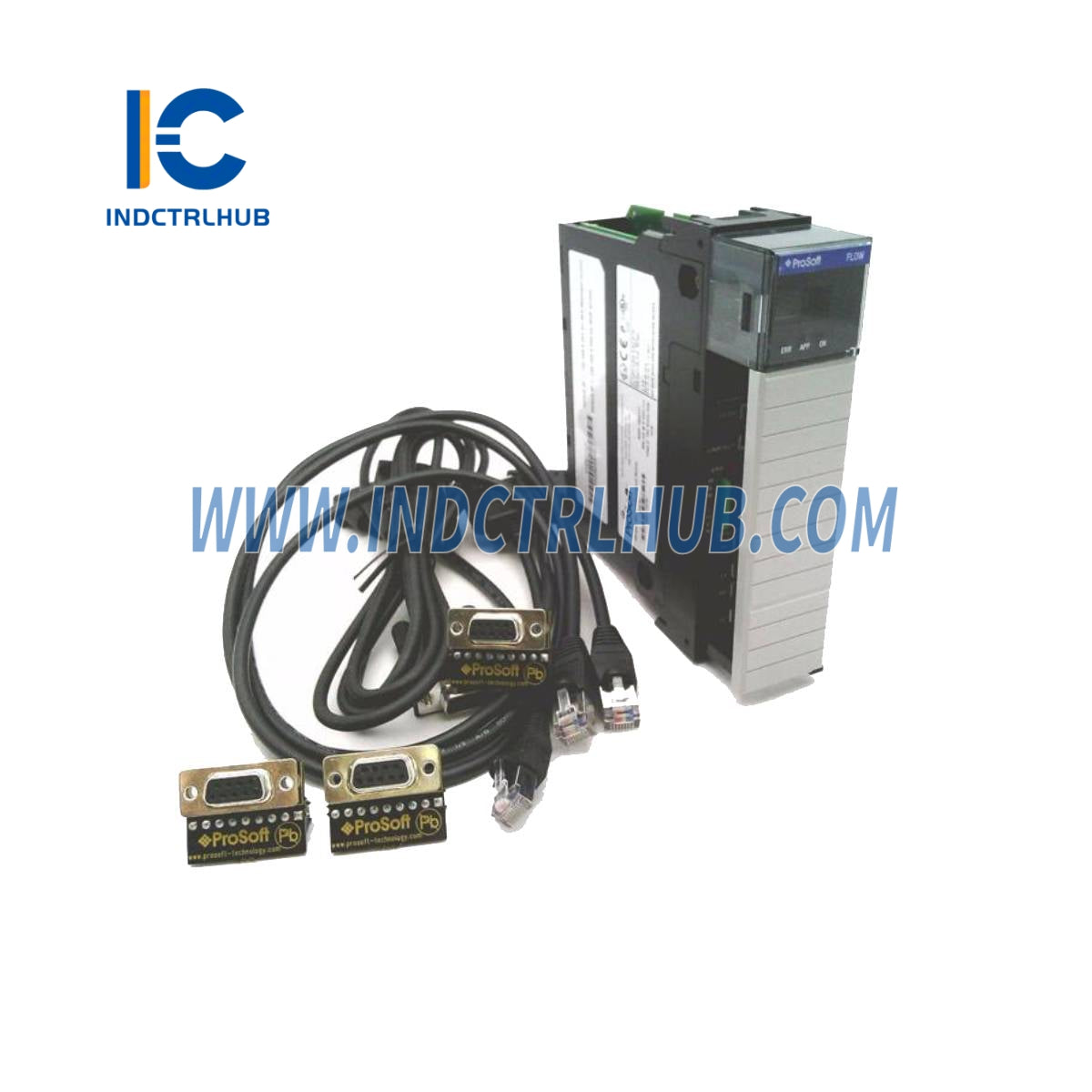

(2) RJ45 to DB-9M cables(1) 6-ft DB-9F to DB-9F null modem cable |
