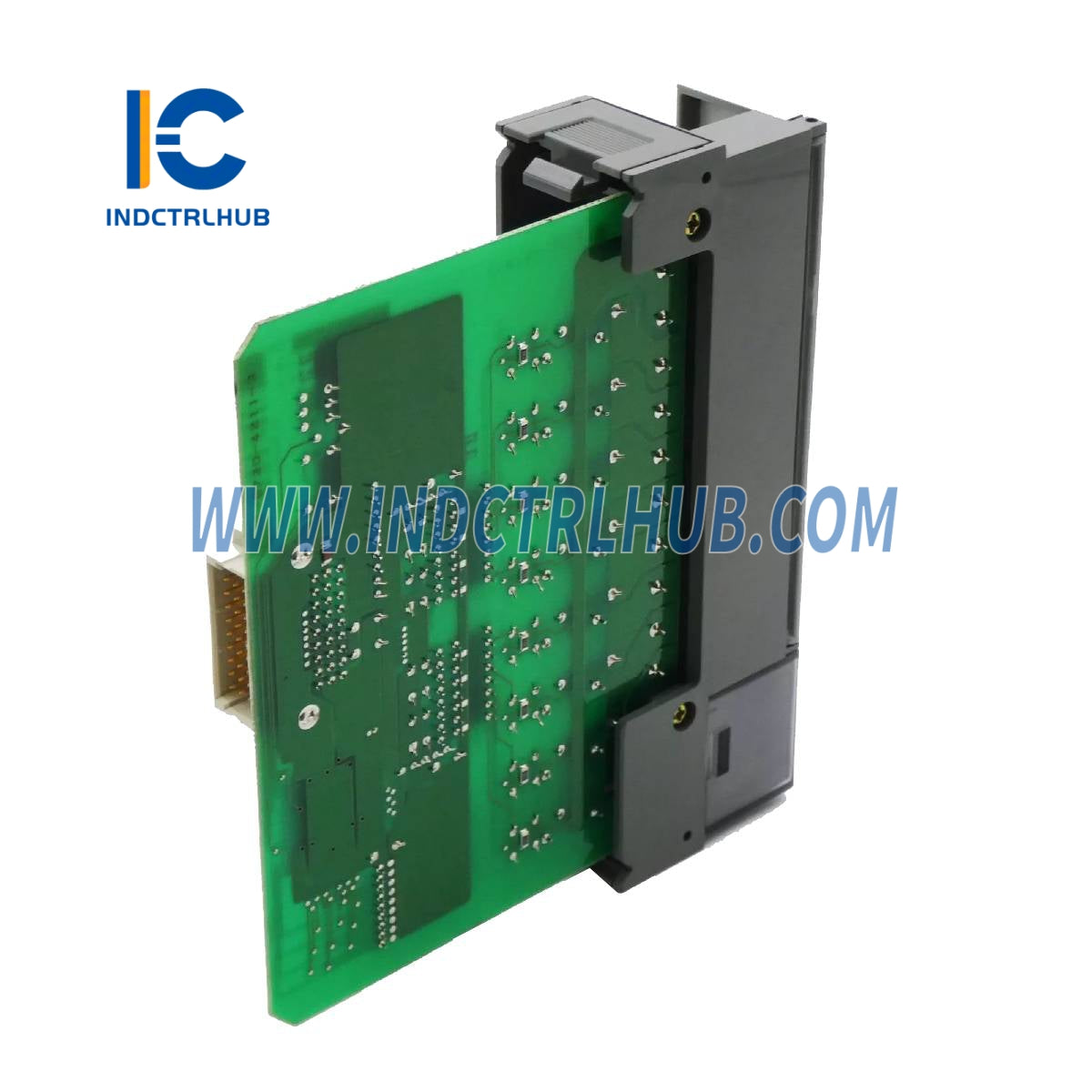

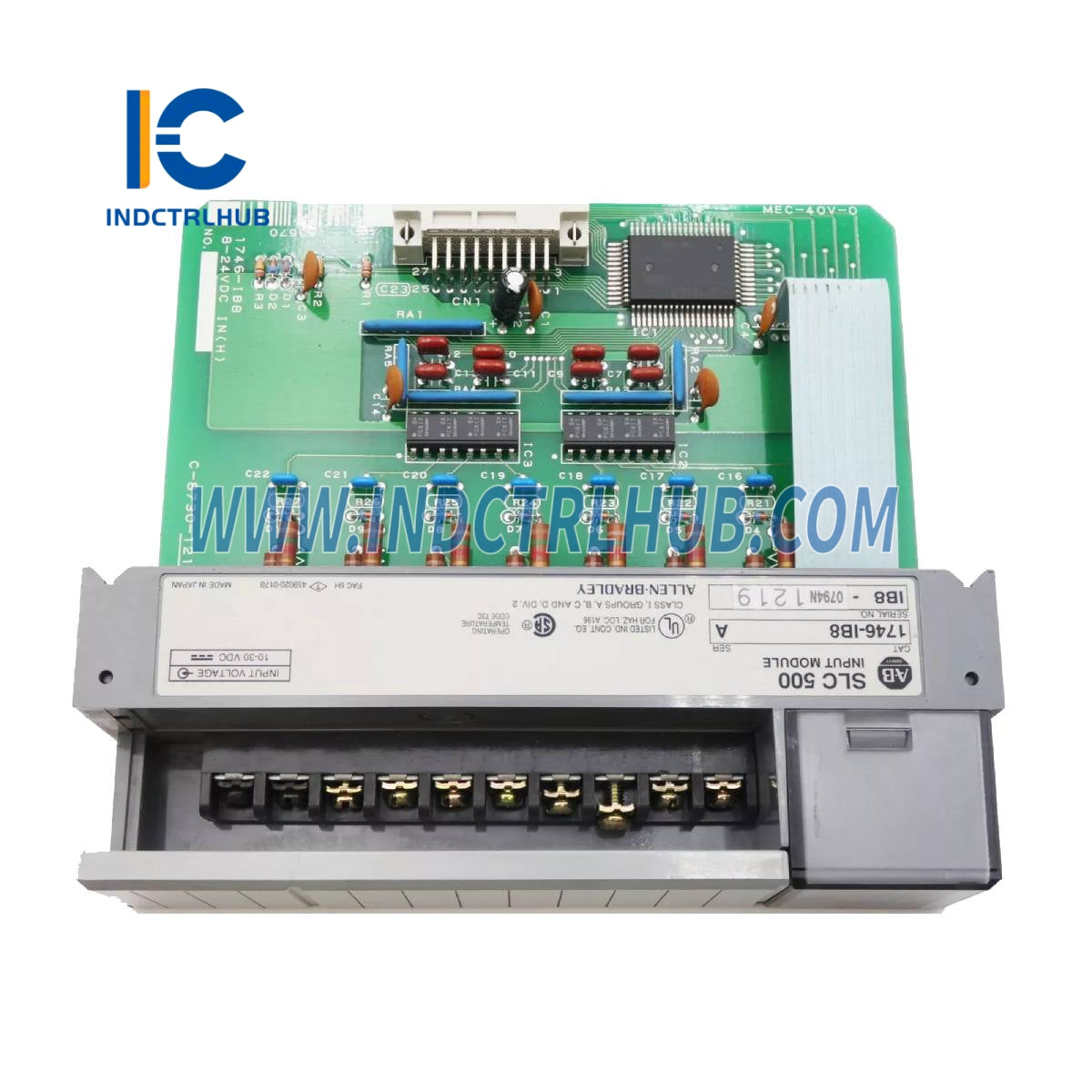

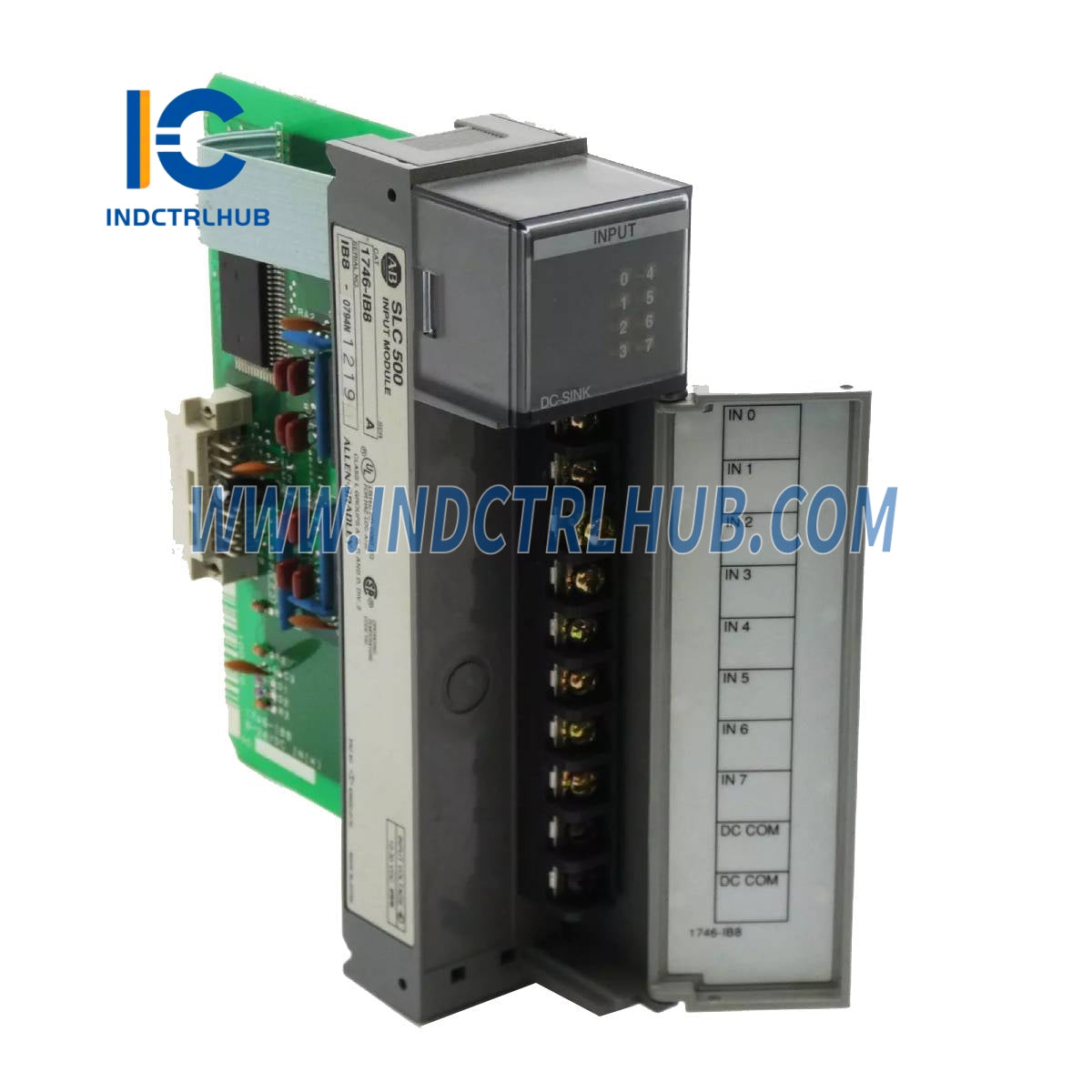

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1746-IB8 |
|
Description |
DC Input Module |
🔹 Electrical Specifications
|
Attribute |
Specification |
|---|---|
|
Voltage Category |
24V DC Signal Input (Sinking) |
|
Number of Inputs |
8 |
|
Points per Common |
8 |
|
Operating Voltage Range |
10…30V DC (Sinking) |
|
Backplane Current Consumption |
5V DC: 0.050 A 24V DC: 0.0 A |
|
Signal Delay (Max.) |
On: 8 ms Off: 8 ms |
|
Off-State Voltage (Max.) |
5.0V DC |
|
Off-State Current (Max.) |
1 mA |
|
Input Current (Nominal) |
8 mA @ 24V DC |
|
Inrush Current (Max.) |
1.6 A |
|
Inrush Current Time Duration (Max.) |
0.5 ms |
