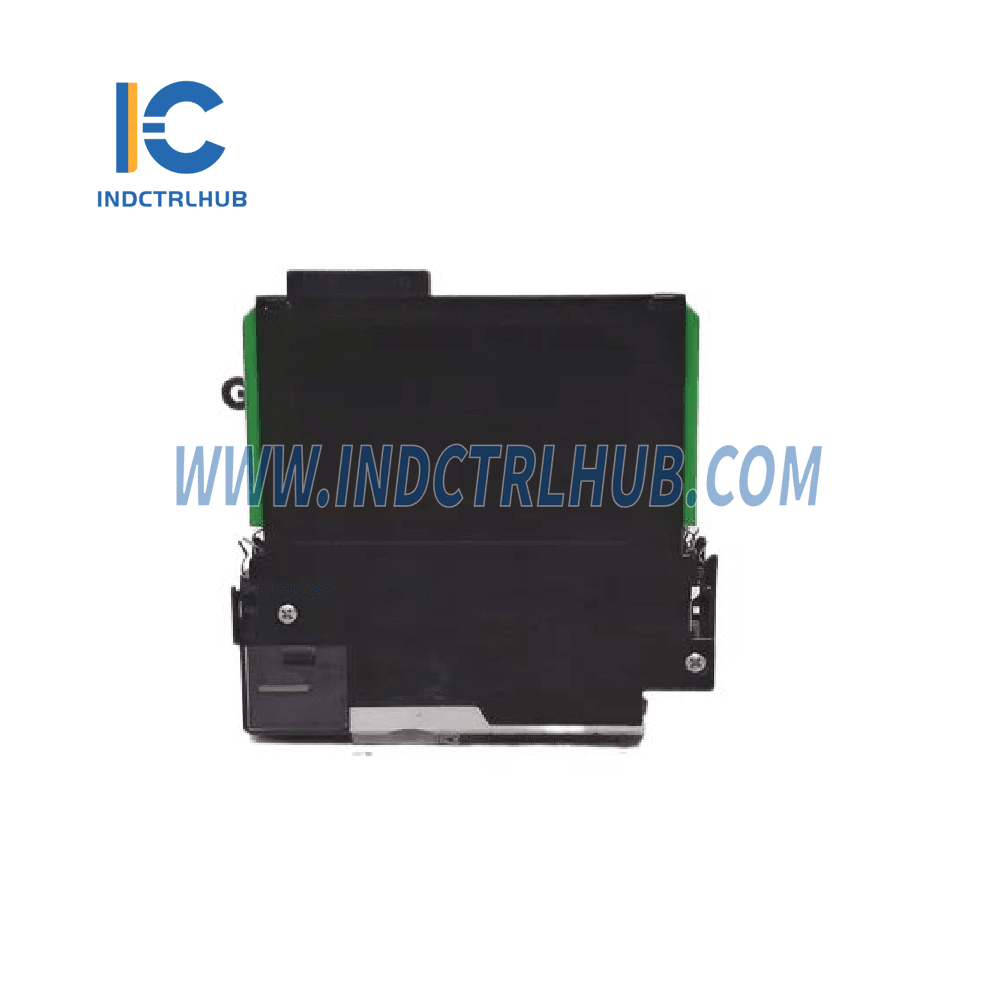

Allen-Bradley 1756-L75/B ControlLogix Processor Module

Allen-Bradley 1756-L75/B ControlLogix Processor Module

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-L75/B

  • Condition:1000 in stock

  • Product Type: Processor Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 250g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Allen-Bradley 1756-L75 ControlLogix Processor Module

Manufacturer: Allen-Bradley
Model/Part Number: 1756-L75
Description: The ControlLogix 5570 Processor is part of the Allen-Bradley ControlLogix family, providing scalable memory, I/O, and enhanced performance for industrial automation.


Technical Specifications

Attribute Description 1756-L75
User Memory The memory available for program and data storage. 32 MB
I/O Memory The memory dedicated to I/O processing. 0.98 MB
Optional Non-Volatile Memory Non-volatile memory for backup and storage. 1 GB (1784-SD1)
Digital I/O Max Maximum number of digital I/O points the module can handle. 128,000
Analog I/O Max Maximum number of analog I/O points the module can handle. 4,000
Total I/O Max Total number of I/O points (digital and analog). 128,000
Energy Storage Module Energy storage options for power backup and security. 1756-ESMCAP/1756-ESMCAPK
Current Draw @ 1.2V DC Power consumption from the 1.2V DC supply. 5 mA
Current Draw @ 5.1V DC Power consumption from the 5.1V DC supply. 800 mA
Power Dissipation The amount of power the module dissipates as heat. 2.5 W
Thermal Dissipation Heat output from the module. 8.5 BTU/hr
USB Port A temporary port for local programming. USB 2.0, Full Speed
Weight The weight of the module for installation and handling. 0.25 kg (0.55 lb)
Slot Width The width of the module in the chassis. 1 Slot
Module Location The slot where the module is installed in the chassis. Chassis-based, any slot
Chassis Compatibility Compatible chassis for module installation. 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
Power Supply (Standard) Standard power supply compatibility. 1756-PA50, 1756-PA72, 1756-PB50, 1756-PB72
Power Supply (Redundant) Redundant power supply compatibility. 1756-PA75R, 1756-PB75R, 1756-PSCA2

Environmental Specifications

Attribute Operating Non-operating
Temperature 0°C to 60°C -40°C to 85°C
Humidity 5% to 95% (Non-condensing) N/A
Vibration 2 g @ 10-500 Hz N/A
Shock 30 g (Operating) 50 g (Non-operating)
Corrosive Atmosphere Meets ASTM B845-97 Method H for accelerated test Severity Level G3 (Airborne Contaminants)
