Product Description
Product Overview

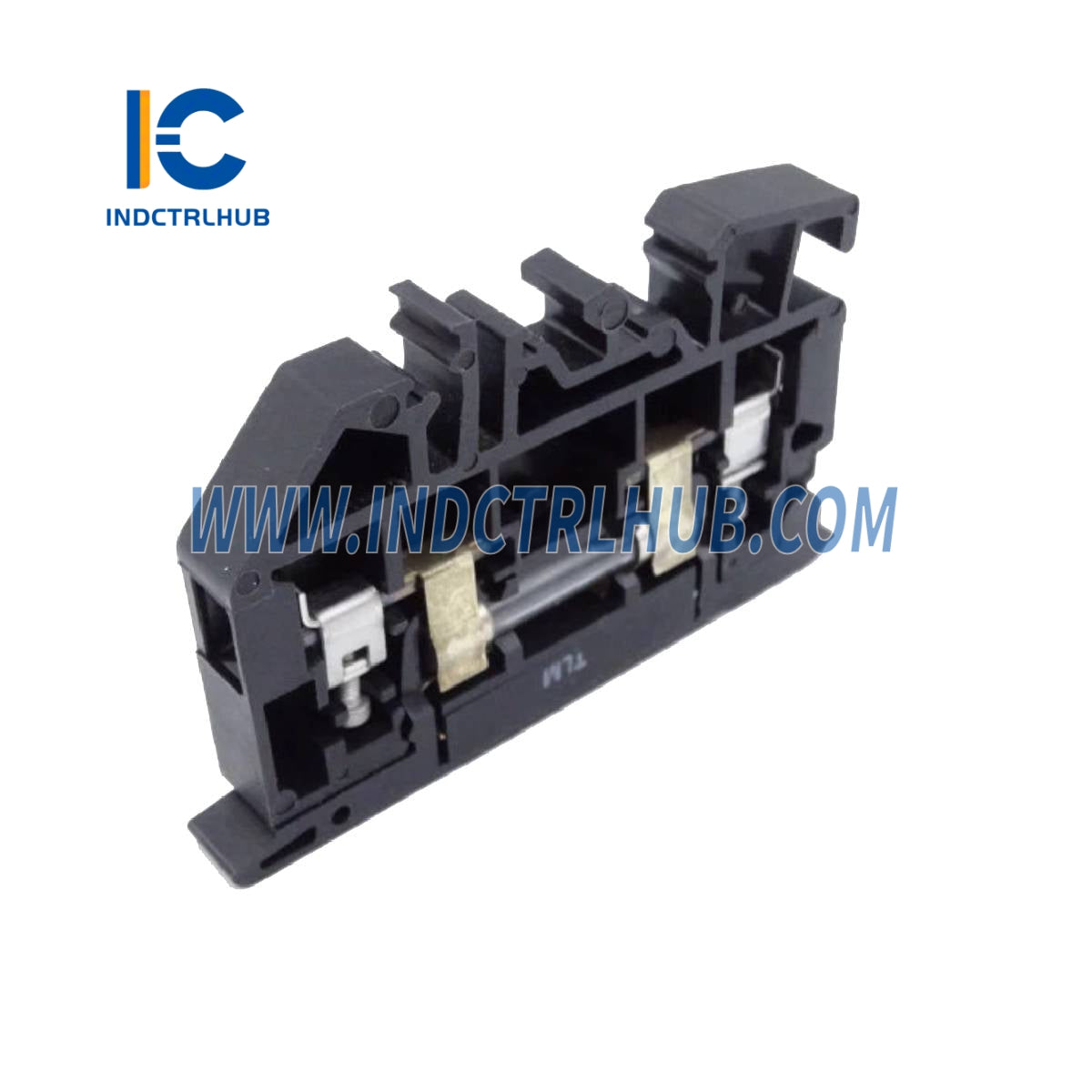

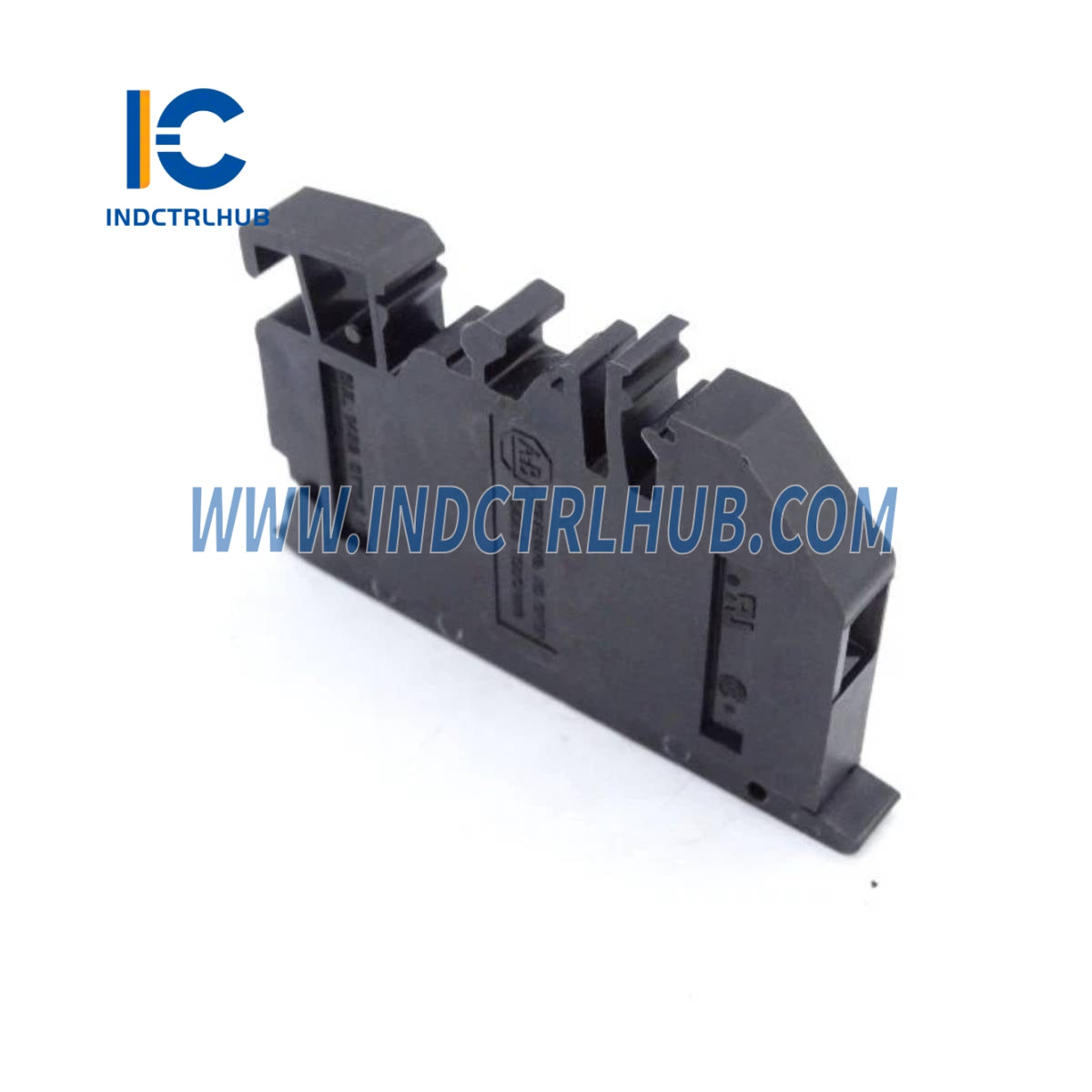

The Allen-Bradley 1492-H is a Terminal Block Fuse Holder designed for industrial automation applications within Rockwell Automation systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module is part of the 1492 series of high-density, finger-safe terminal blocks. It provides a secure and accessible means to integrate fuse protection into control circuits, offering blown fuse indication options for troubleshooting. It is built for reliability and safety in environments such as manufacturing, process control, and industrial machinery.
Technical Specifications
The 1492-H has the following specifications based on supplier data from Rockwell Automation and Radwell:
| Item | Specification |
|---|---|
| Model/Part Number | 1492-H |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Terminal Block Fuse Holder |
| Series | 1492 |
| Voltage Rating | 500 V AC/DC |
| Current Rating | 15 A |
| Wire Size | #30 - #12 AWG (0.05 - 4 mm²) |
| Fuse Type | 5 x 20 mm |
| Dimensions | 9.1 x 81.3 x 47 mm (0.36 x 3.20 x 1.85 in) |
| Operating Temperature | -50°C to 120°C (-58°F to 248°F) |
| Weight | 0.03 kg (0.07 lbs) |
Additional Details
The 1492-H includes the following additional information based on supplier documentation:
| Category | Details |
|---|---|
| Function | Provides fuse protection and termination for control circuits |
| Mounting | 35 mm DIN rail |
| Connectivity | Screw terminals |
| Features | Finger-safe design, optional blown fuse indicators (neon or LED), single-pole configuration |
| Certifications | UL Recognized, CSA Certified, CE, IEC 60947-7-3 |
