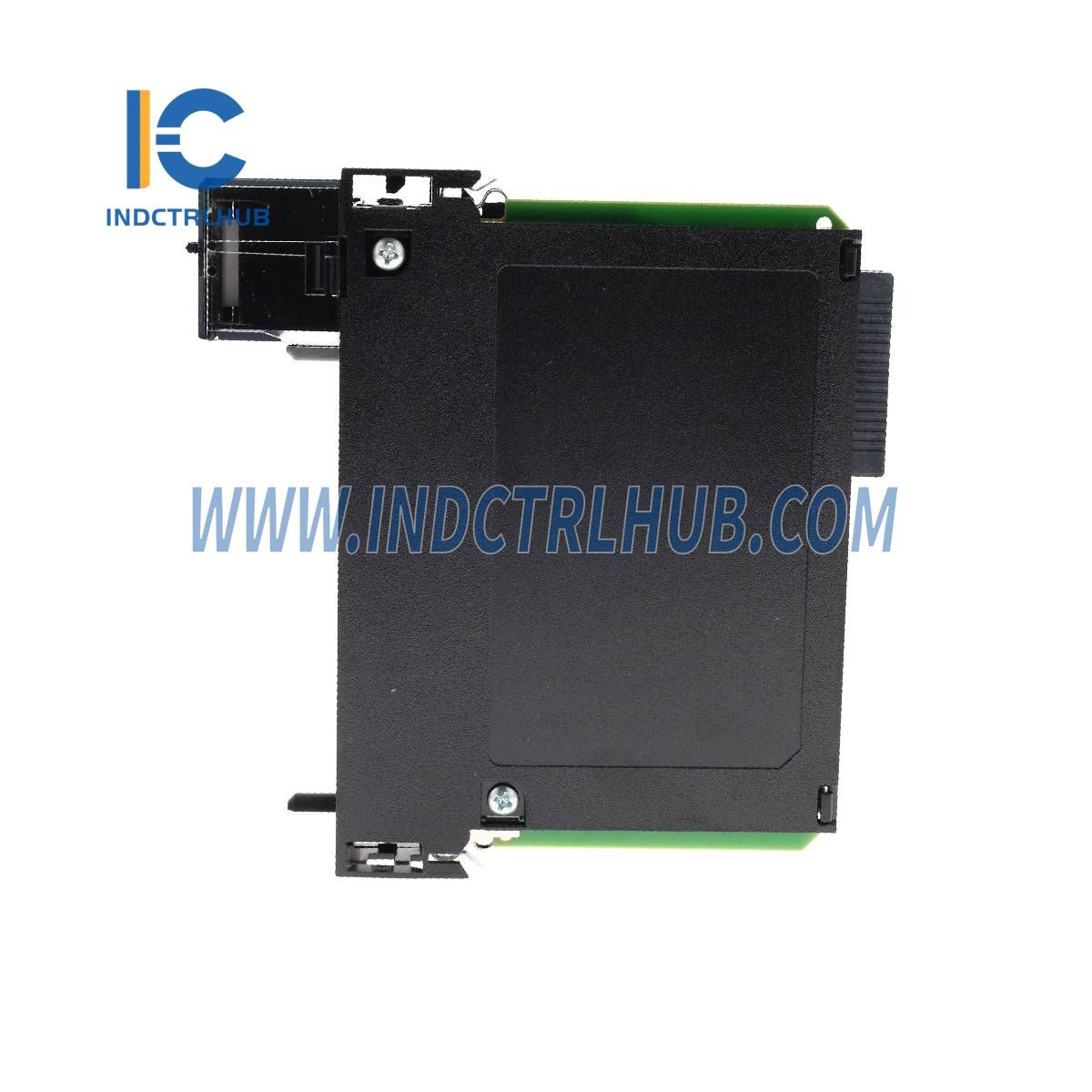

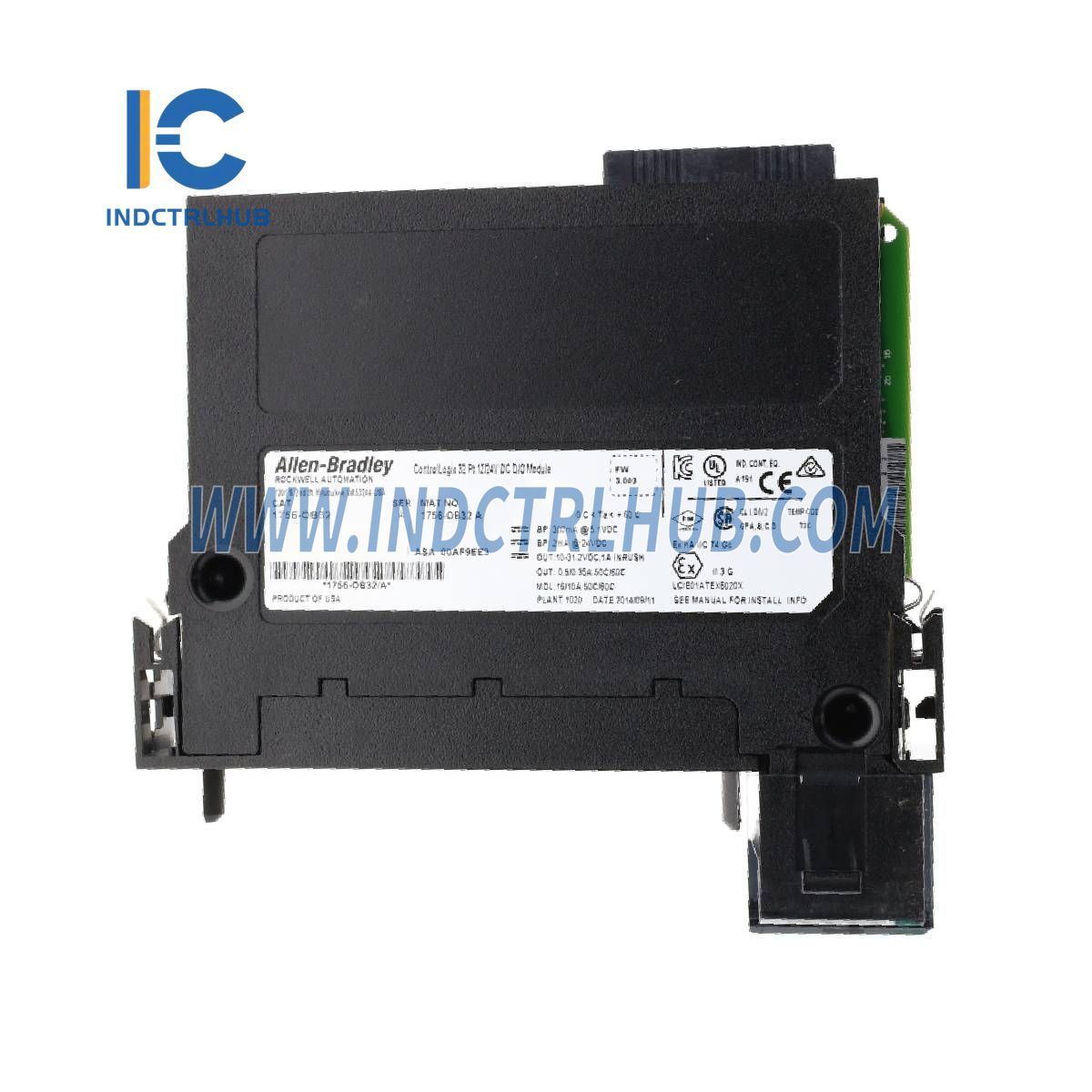

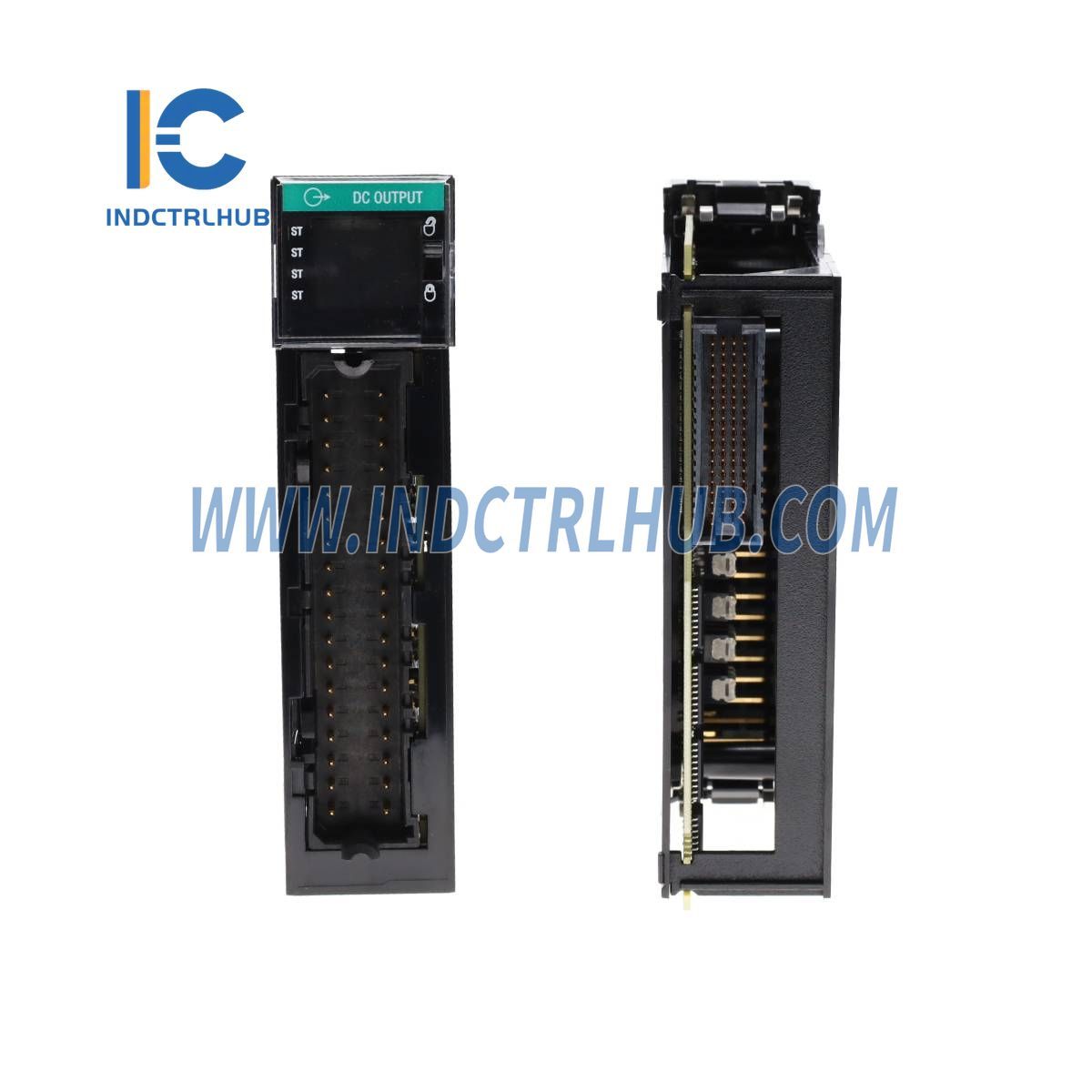

Allen-Bradley 1756-OB32 DC Digital I/O Modules

Allen-Bradley 1756-OB32 DC Digital I/O Modules

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-OB32

  • Condition:1000 in stock

  • Product Type: DC Digital I/O Modules

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details: Allen-Bradley 1756-OB32 DC Digital I/O Module

Manufacturer Model/Part Number Description
Allen-Bradley 1756-OB32 DC Digital I/O Module

Technical Specifications

Attribute 1756-OB32 / 1756-OB32K 1756-OB32XT
Outputs 32 (16 points/group) 32 (16 points/group)
Voltage Category 12/24V DC source 12/24V DC source
Operating Voltage Range 10…31.2V DC 10…31.2V DC
Output Delay Time Off to On: 60 µs nom/1 ms max On to Off: 200 µs nom/1 ms max Same
Current Draw @ 5.1V 300 mA 300 mA
Current Draw @ 24V 2 mA 2 mA
Total Backplane Power 1.58 W 1.58 W
Power Dissipation (max) 4.8 W @ 60°C (140°F) 4.8 W @ 60°C (140°F)
Thermal Dissipation 16.37 BTU/hr 16.37 BTU/hr
Off-state Leakage Current (max per point) 0.5 mA 0.5 mA
On-state Voltage Drop (max) 200 mV DC @ 0.5 A 200 mV DC @ 0.5 A
Current per Point (max) 0.5 A @ 50°C (122°F), 0.35 A @ 60°C (140°F) Same
Current per Module (max) 16 A @ 50°C (122°F), 10 A @ 60°C (140°F) Same
Surge Current per Point (max) 1 A for 10 ms, repeatable every 2s @ 60°C (140°F) Same
Load Current (min) 3 mA per point 3 mA per point
Scheduled Outputs Synchronization within 16.7 µs max, reference to Coordinated System Time Same
Fault Mode States per Point Hold last state, On or Off (default Off) Same
Program Mode States per Point Hold last state, On or Off (default Off) Same
Isolation Voltage 250V continuous (outputs to backplane) / 125V continuous (outputs group-to-group) Same
Module Keying Electronic, software configurable Same
Fusing Not protected (fused IFM optional) Same
Removable Terminal Block (RTB) 1756-TBCH, 1756-TBS6H 1756-TBCHXT, 1756-TBS6HXT
RTB Keying User-defined mechanical Same
Slot Width 1 1
Wire Category Category 1 Category 1
Wire Size 22–14 AWG (single), 22–16 AWG (double) Same
Terminal Block Torque 0.5 N•m (4.4 lb•in) Same
Enclosure Type None (open-style) None (open-style)
Temperature Code T4 T4

Environmental Specifications

Attribute 1756-OB32 / 1756-OB32K 1756-OB32XT
Operating Temperature 0…60°C (32…140°F) 0…60°C (32…140°F)
Non-operating Temperature -40…+85°C (-40…+185°F) -40…+85°C (-40…+185°F)
Relative Humidity 5…95% non-condensing 5…95% non-condensing
Conformal Coating Yes (K or XT models) Yes
Corrosive Atmosphere Rating ASTM B845-97, ANSI/ISA 71.04–2013 Severity Level G3 ASTM B845-97, IEC 60721-3-3:2019 Severity Level CX
Vibration Resistance 2 g @ 10…500 Hz 2 g @ 10…500 Hz
Shock Resistance (Operating) 30 g 30 g
Shock Resistance (Non-operating) 50 g 50 g
Electromagnetic Emissions Compliance IEC 61000-6-4 IEC 61000-6-4
Electrostatic Discharge (ESD) Immunity IEC 61000-4-2 (6 kV contact, 8 kV air) Same
Radiated RF Immunity IEC 61000-4-3 (10V/m) Same
EFT/B Immunity IEC 61000-4-4 (±4 kV at 5 kHz) Same
Surge Immunity IEC 61000-4-5 (±1 kV line-line, ±2 kV line-earth) Same
Conducted RF Immunity IEC 61000-4-6 (10V rms, 150 kHz…80 MHz) Same
