Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

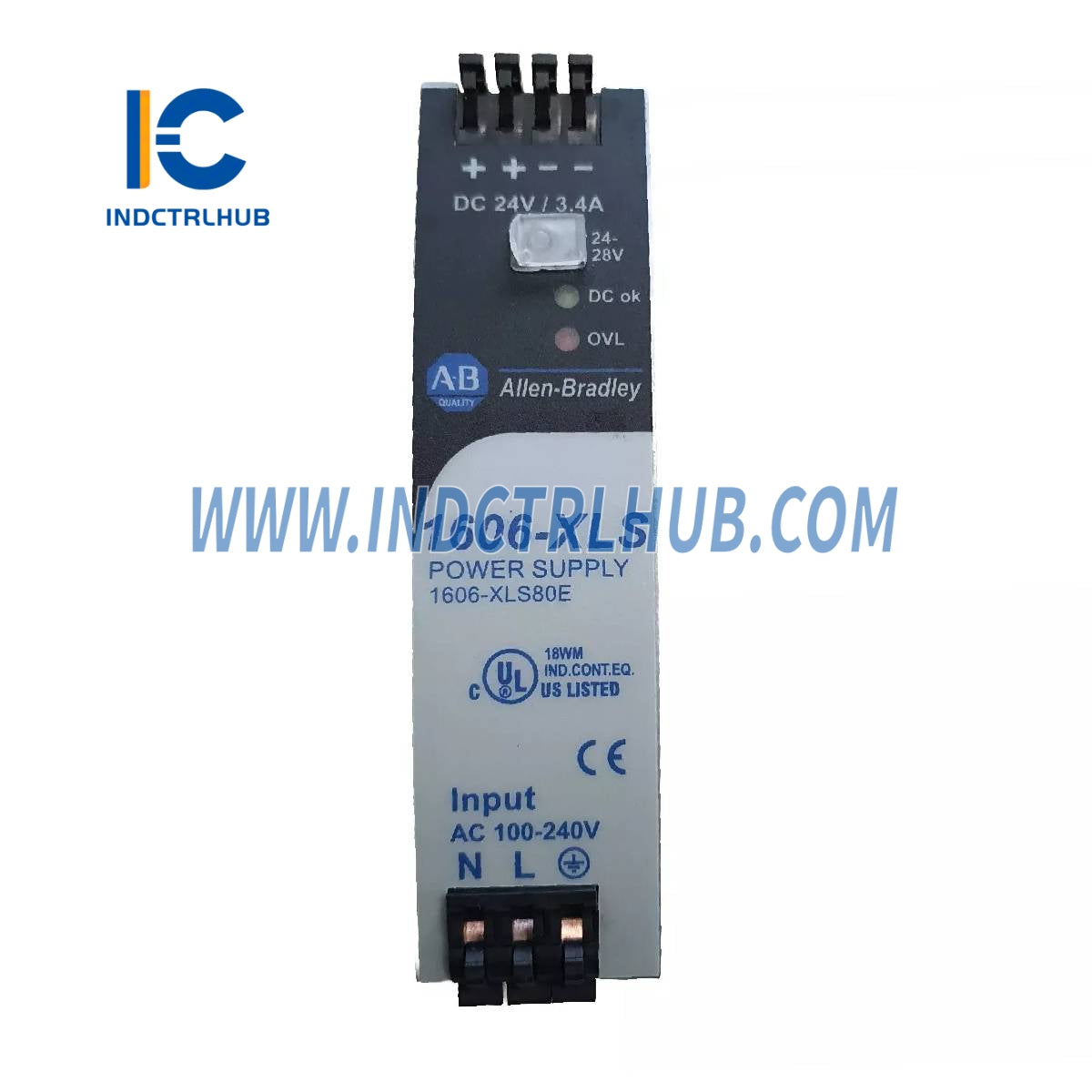

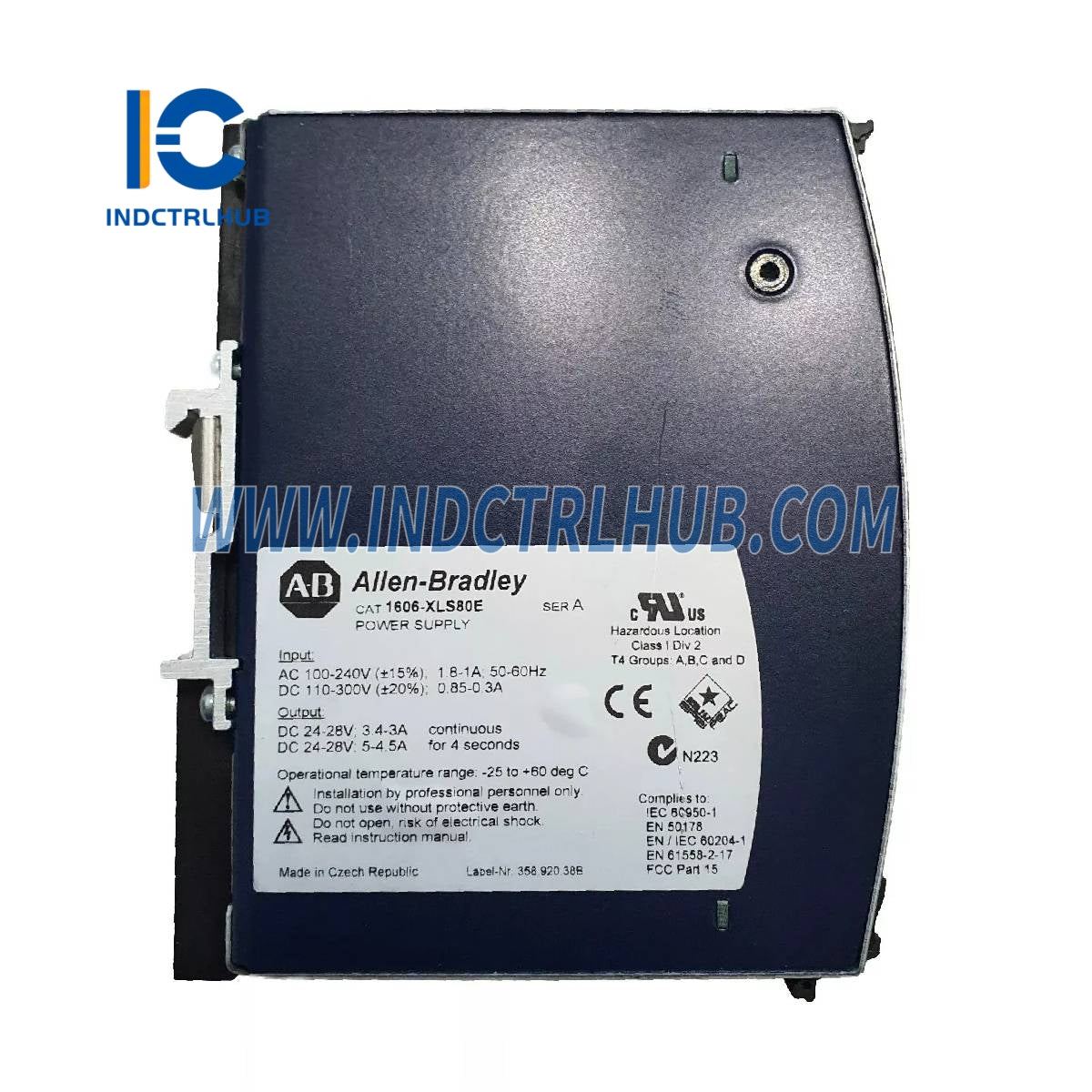

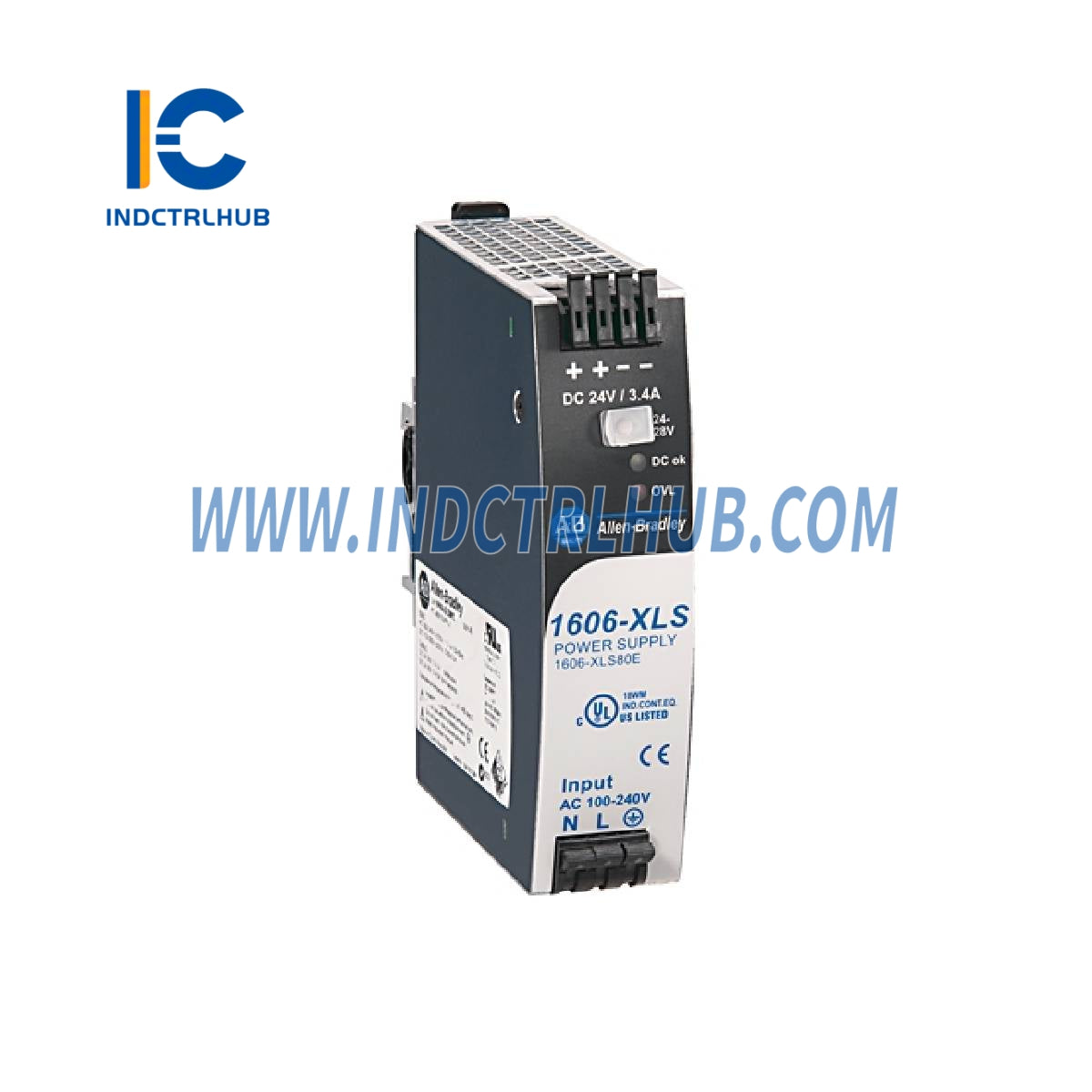

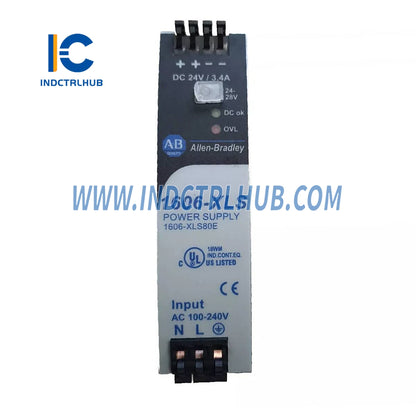

1606-XLS80E |
|
Description |
80W DIN Rail Power Supply, 24V DC output |
🔹 Input Specifications
|
Parameter |
Value |
|---|---|
|
AC Input Voltage |
100-240V ±15% |
|
Line Frequency |
50-60Hz ±6% |
|
AC Input Current |
1.42A at 120V AC / 0.82A at 230V AC |
|
Power Factor |
0.53 at 120V AC / 0.47 at 230V AC |
|
AC Inrush Current |
5A peak at 120V AC / 10A peak at 230V AC |
|
DC Input Voltage |
110-300V (-20% / +25%) |
|
DC Input Current |
0.8A at 110V DC / 0.29A at 300V DC |
🔹 Output Specifications
|
Parameter |
Value |
|---|---|
|
Output Voltage (Preset) |
DC 24V (Adjustable 24-28V) |
|
Output Current |
3.4A continuous (24V) 5A for ~4s (24V) |
|
Output Power |
80W continuous (24V) 120W for ~4s (24V) |
|
Output Ripple |
<50mVpp (20Hz to 20MHz) |
🔹 Performance & Reliability
|
Parameter |
Value |
|---|---|
|
Efficiency |
88.7% at 120V AC / 90.0% at 230V AC |
|
Power Losses |
10.4W at 120V AC / 9.1W at 230V AC |
|
Hold-Up Time |
41ms at 120V AC / 174ms at 230V AC |
🔹 Environmental & Safety Specifications
|
Parameter |
Value |
|---|---|
|
Operational Temperature |
-25°C to +70°C |
|
Output De-rating (Temperature) |
2W/°C from 60°C to 70°C |
🔹 Mechanical & Installation
|
Parameter |
Value |
|---|---|
|
Dimensions (W x H x D) |
32 x 124 x 102 mm |
|
Weight |
440g (0.97 lb) |
|
DIN Rail Mounting |
35mm DIN-rail (EN 60715 or EN 50022, 7.5mm or 15mm height) |
