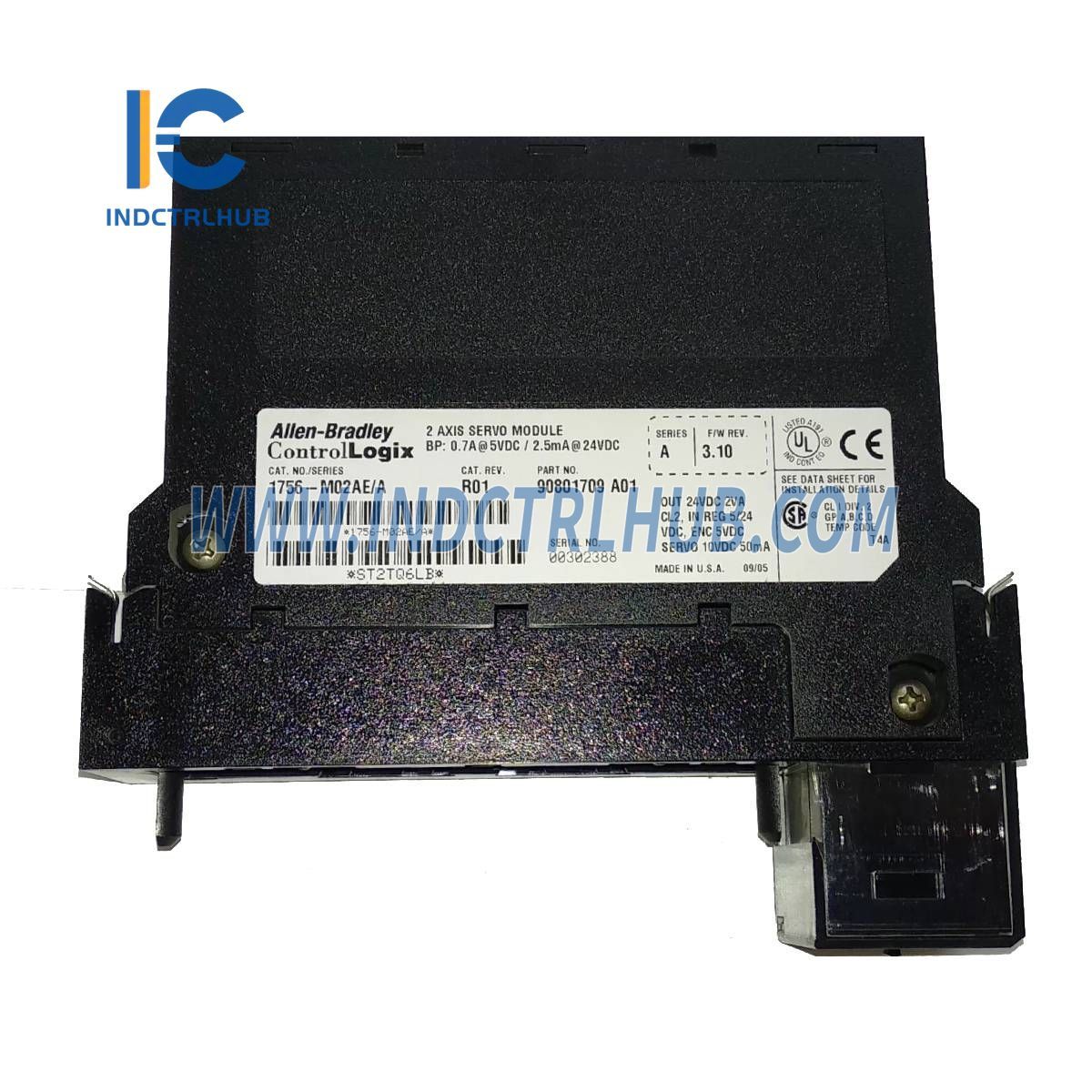

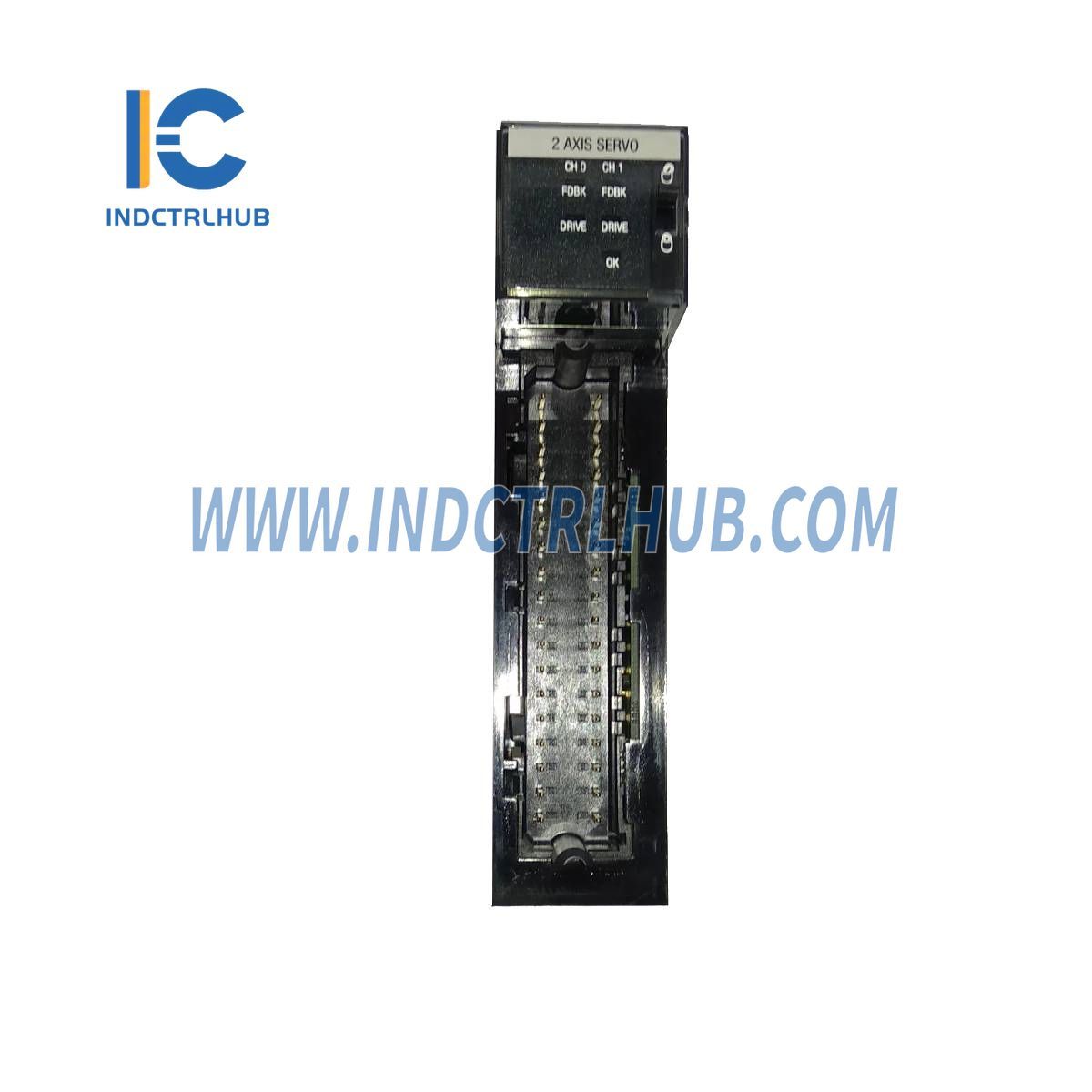

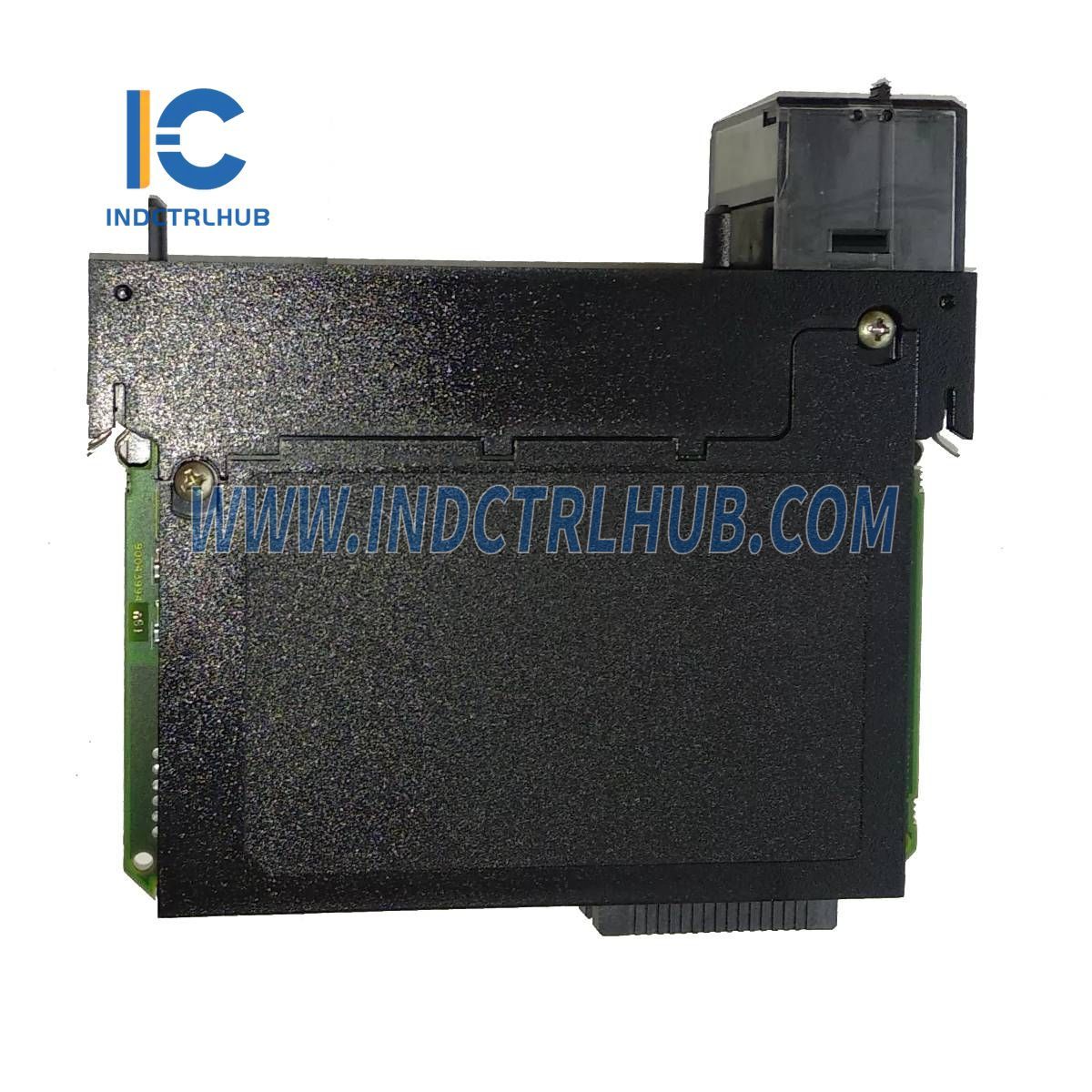

Allen-Bradley 1756-MO2AE/A ControlLogix 5580 Controller

Allen-Bradley 1756-MO2AE/A ControlLogix 5580 Controller

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-MO2AE/A

  • Condition:1000 in stock

  • Product Type: ControlLogix 5580 Controller

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Allen-Bradley 1756-MO2AE/A ControlLogix 5580 Controller

Product Overview

The Allen-Bradley 1756-MO2AE/A is a high-performance ControlLogix 5580 Controller designed for motion control applications in industrial automation. This module provides precise control of servo drives, encoders, and feedback devices, ensuring accurate motion execution in manufacturing and process control environments.

Technical Specifications

Environmental Conditions

Attribute 1756-M02AE, 1756-M02AEK 1756-M02AS, 1756-M02ASK 1756-HYD02, 1756-HYD02K
Operating Temperature 0…60 °C (32…140 °F)
Storage Temperature -40…85 °C (-40…185 °F)
Surrounding Air Temp, Max 60 °C (140 °F)
EFT/B Immunity IEC 61000-4-4: ±1 kV at 5 kHz on shielded signal ports
Surge Transient Immunity IEC 61000-4-5: ±1 kV line-earth (CM) on shielded signal ports
Conducted RF Immunity IEC 61000-4-6: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Enclosure Type Rating None (open-style)

Electrical Ratings

Voltage & Current Ratings 1756-M02AE/M02AEK 1756-M02AS/M02ASK 1756-HYD02/HYD02K
Backplane Power 5.1V DC, 700 mA max.; 24V DC, 2.5 mA max.
Input Registration 5/24V DC, 2 mA Registration 5V DC, 5 mA; 24V DC, 5 mA Registration 5V DC, 5 mA; 24V DC, 5 mA
Encoder Input 5V DC, 80 mA SSI - 5V DC, 30 mA LDT - 5V DC, 30 mA
Output (Servo) ±10V DC, 50 mA ±10V, 2 mA ±10V, 2 mA
Other Outputs 24V DC, 2VA, CL2 (Relay) SSI - 5.5V DC, 50 mA LDT - 5.5V DC, 50 mA

Isolation & Wiring

Attribute Specifications
Isolation Voltage 30V (continuous), Basic insulation type, Inputs to Backplane. No isolation between individual field outputs and inputs.
Wire Size (1756-TBCH, 1756-TBS6H) 0.33…2.1 mm² (22…14 AWG) solid or stranded shielded copper wire, rated at 105 °C (221 °F)
Terminal Block Torque 0.5 Nm (4.4 pound-inches)
Pilot Duty Rating (Relay Output) 24V DC, 2VA
North American Temperature Code T4A





                    Check below popular items for more information in Industrial Control Hub
Brand Description Price (USD) Stock Link
ALLEN-BRADLEY 1746-IV16 SLC 16-Point Digital Input Module Gram 500–1500 280 1746-IV16 Digital Input
ALLEN-BRADLEY 1606-XLE480E XLE Power Supply 480W 24VDC 20A 500–1500 480 1606-XLE480E Power Supply
ALLEN-BRADLEY 1746-IO12DC Combination Input/Output Module 500–1500 620 1746-IO12DC I/O Module
ALLEN-BRADLEY 2097-V34PR5 Kinetix 300 Servo Drive 0–871 820 2097-V34PR5 Servo Drive
ALLEN-BRADLEY 1794-TB32 Flex I/O Terminal Base Units 500–1500 360 1794-TB32 Terminall Base
ALLEN-BRADLEY 1747-DCM SLC 500 Direct Communication Module 0–729 320 1747-DCM Communication Module
ALLEN-BRADLEY 1756SC-IF8H ControlLogix HART Analog Input Module 1357–2357 620 1756SC-IF8H Analog Input
View full details

Product Description

Allen-Bradley 1756-MO2AE/A ControlLogix 5580 Controller

Product Overview

The Allen-Bradley 1756-MO2AE/A is a high-performance ControlLogix 5580 Controller designed for motion control applications in industrial automation. This module provides precise control of servo drives, encoders, and feedback devices, ensuring accurate motion execution in manufacturing and process control environments.

Technical Specifications

Environmental Conditions

Attribute 1756-M02AE, 1756-M02AEK 1756-M02AS, 1756-M02ASK 1756-HYD02, 1756-HYD02K
Operating Temperature 0…60 °C (32…140 °F)
Storage Temperature -40…85 °C (-40…185 °F)
Surrounding Air Temp, Max 60 °C (140 °F)
EFT/B Immunity IEC 61000-4-4: ±1 kV at 5 kHz on shielded signal ports
Surge Transient Immunity IEC 61000-4-5: ±1 kV line-earth (CM) on shielded signal ports
Conducted RF Immunity IEC 61000-4-6: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Enclosure Type Rating None (open-style)

Electrical Ratings

Voltage & Current Ratings 1756-M02AE/M02AEK 1756-M02AS/M02ASK 1756-HYD02/HYD02K
Backplane Power 5.1V DC, 700 mA max.; 24V DC, 2.5 mA max.
Input Registration 5/24V DC, 2 mA Registration 5V DC, 5 mA; 24V DC, 5 mA Registration 5V DC, 5 mA; 24V DC, 5 mA
Encoder Input 5V DC, 80 mA SSI - 5V DC, 30 mA LDT - 5V DC, 30 mA
Output (Servo) ±10V DC, 50 mA ±10V, 2 mA ±10V, 2 mA
Other Outputs 24V DC, 2VA, CL2 (Relay) SSI - 5.5V DC, 50 mA LDT - 5.5V DC, 50 mA

Isolation & Wiring

Attribute Specifications
Isolation Voltage 30V (continuous), Basic insulation type, Inputs to Backplane. No isolation between individual field outputs and inputs.
Wire Size (1756-TBCH, 1756-TBS6H) 0.33…2.1 mm² (22…14 AWG) solid or stranded shielded copper wire, rated at 105 °C (221 °F)
Terminal Block Torque 0.5 Nm (4.4 pound-inches)
Pilot Duty Rating (Relay Output) 24V DC, 2VA
North American Temperature Code T4A
