Product Description
Product Details

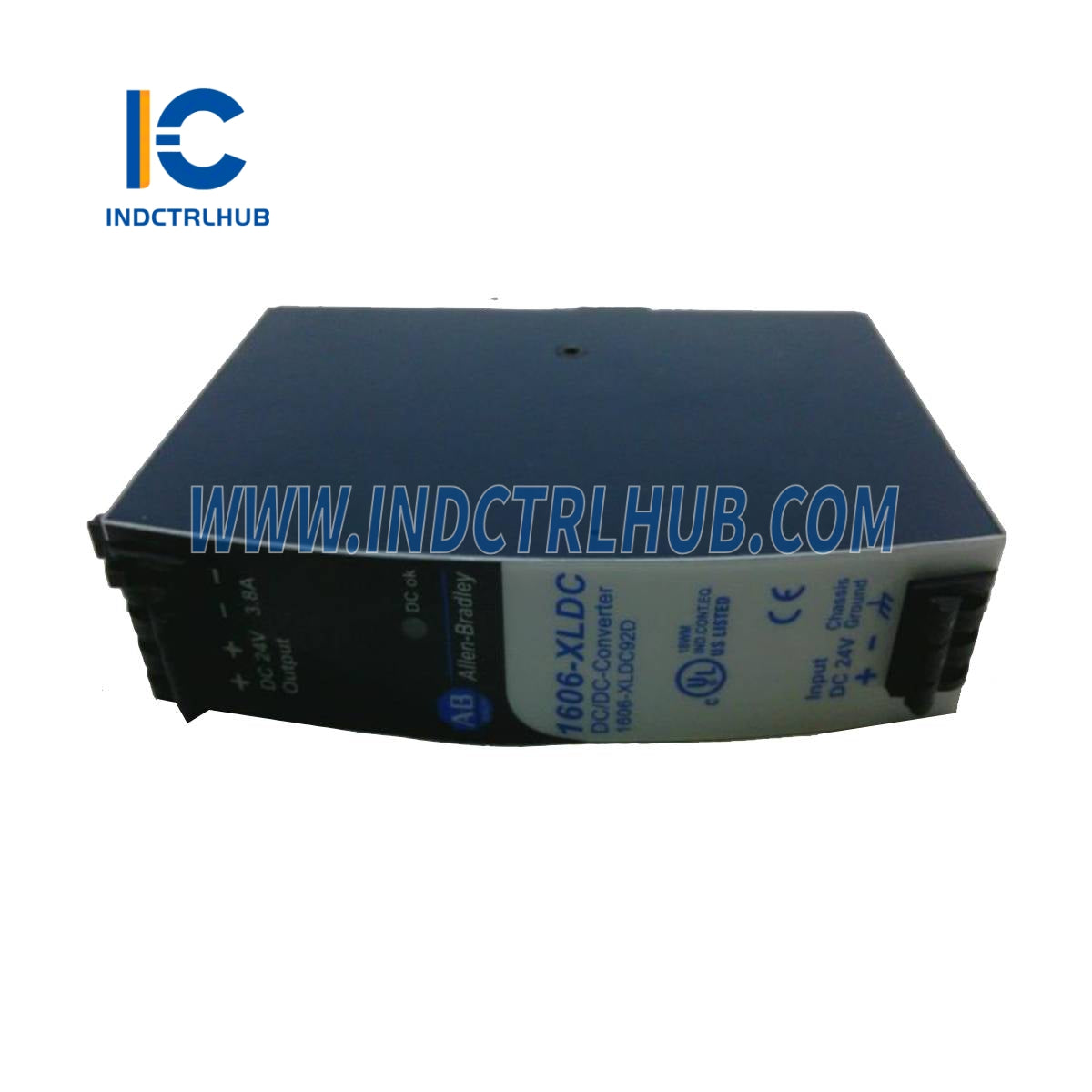

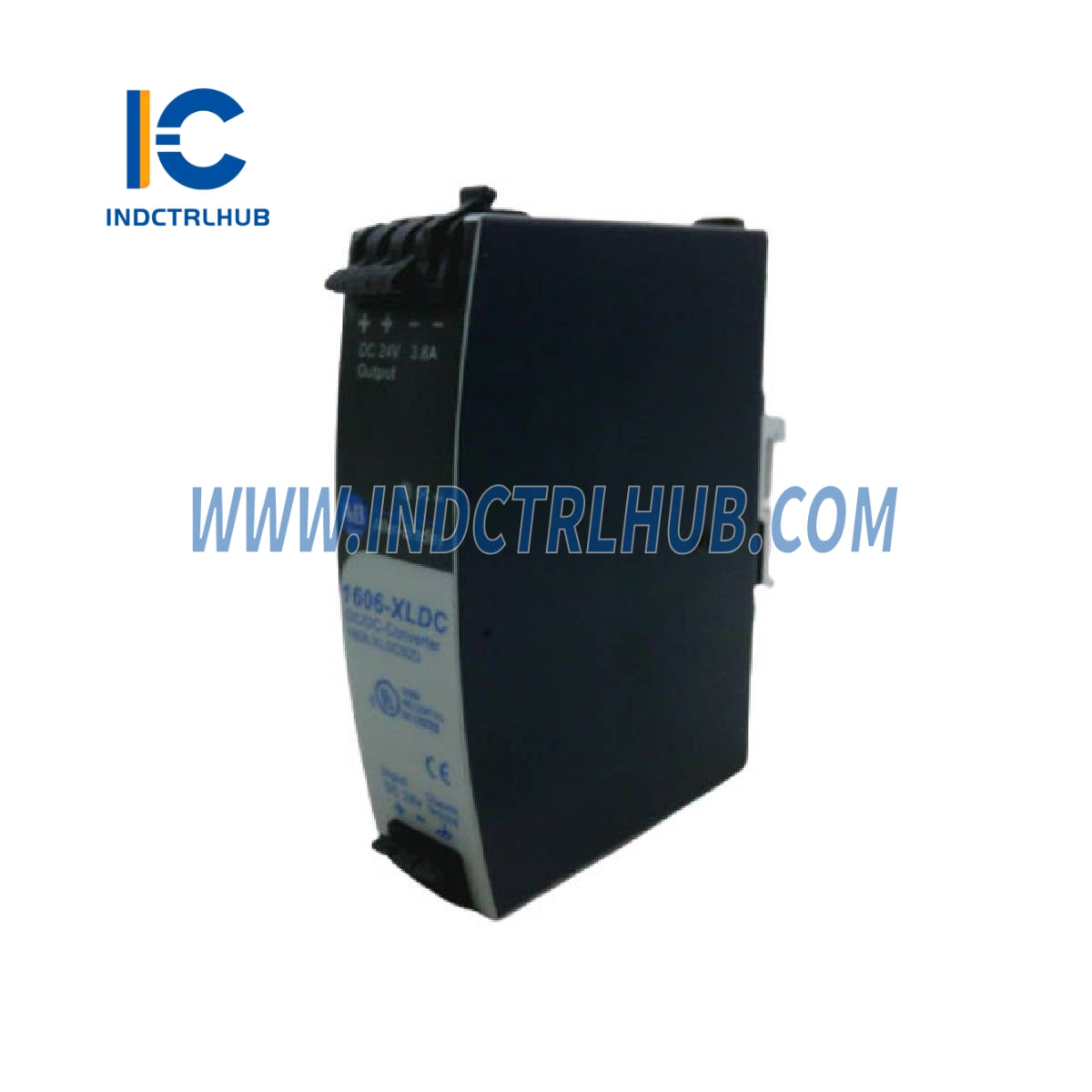

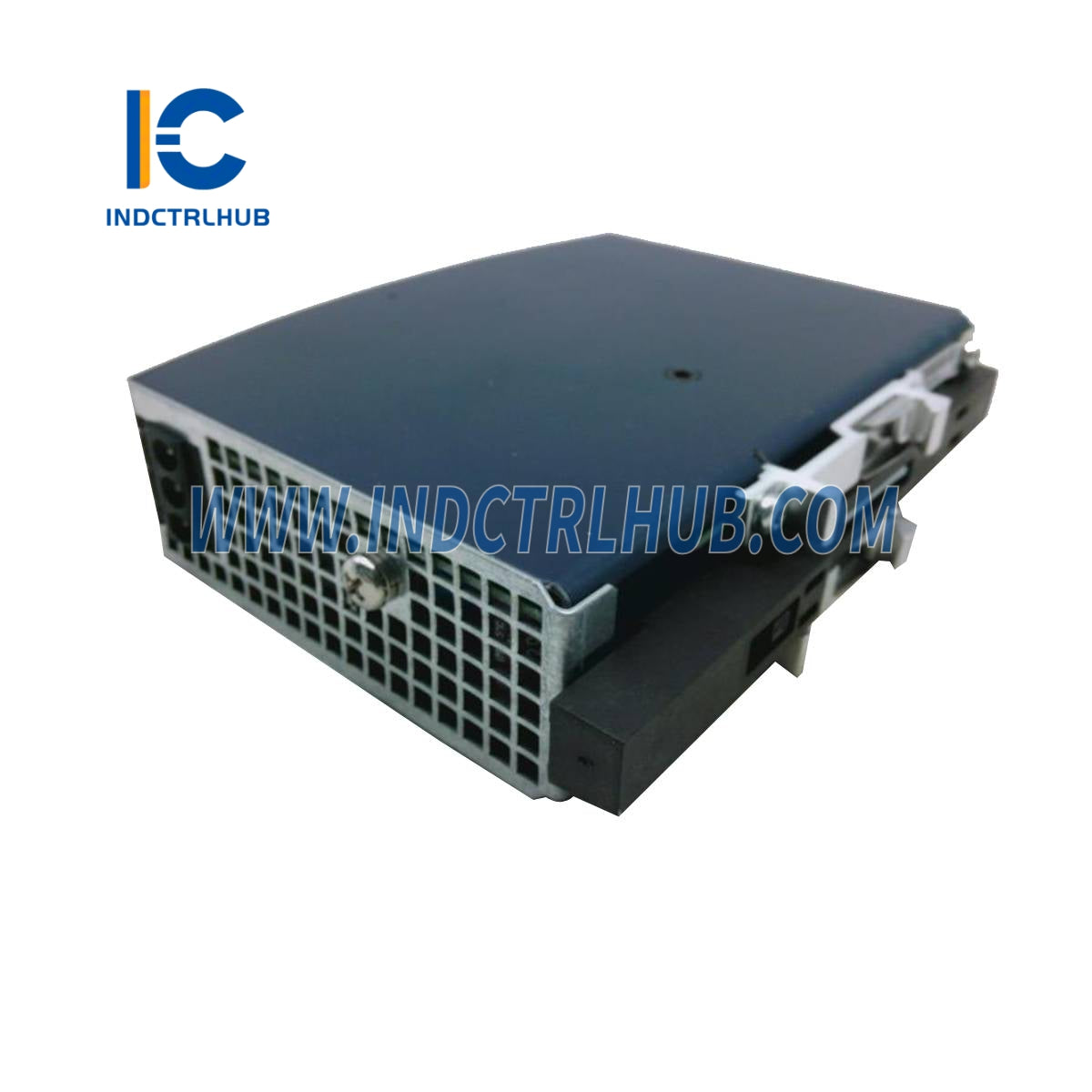

Manufacturer: Allen-Bradley
Model/Part Number: 1606-XLDC92D
Description: DC/DC-Converter Instruction Manual
Technical Specifications
Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Output Voltage |
Nominal: DC 24V |
|
Factory Setting |
Typical: 24.1V |
|
Output Current |
Nominal: 3.8A |
|
Output Power |
Nominal: 92W |
|
Output Ripple |
Max. 50mVpp |
|
Input Voltage |
Nominal: DC 24V |
|
Input Voltage Range |
14 – 32.4V DC |
|
Input Current |
Typical: 5.5A |
|
Efficiency |
Typical: 90.3% |
|
Power Losses |
Typical: 9.9W |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature Range |
-25°C to +70°C |
|
Output Derating |
0W/°C (from +60°C to +70°C) |
|
Storage Temperature Range |
-40°C to +85°C |
|
Humidity |
5 - 95% r.H. (per IEC 60068-2-30) |
|
Vibration |
2g (per IEC 60068-2-6) |
|
Shock |
30g (6ms), 20g (11ms) (per IEC 60068-2-27) |
|
Degree of Pollution |
EN 50178, Pollution Degree 2 |
|
Degree of Protection |
EN 60529, IP20 |
Protection Features
|
Parameter |
Specification |
|---|---|
|
Over-temperature Protection (OTP) |
Yes |
|
Output Over-voltage Protection (OVP) |
Max. 32V DC |
|
Parallel Use |
Not supported |
|
Serial Use |
Not supported |
Mechanical Specifications
|
Parameter |
Specification |
|---|---|
|
Dimensions (W x H x D) |
32 x 124 x 102 mm |
|
Weight |
Max. 410g |
