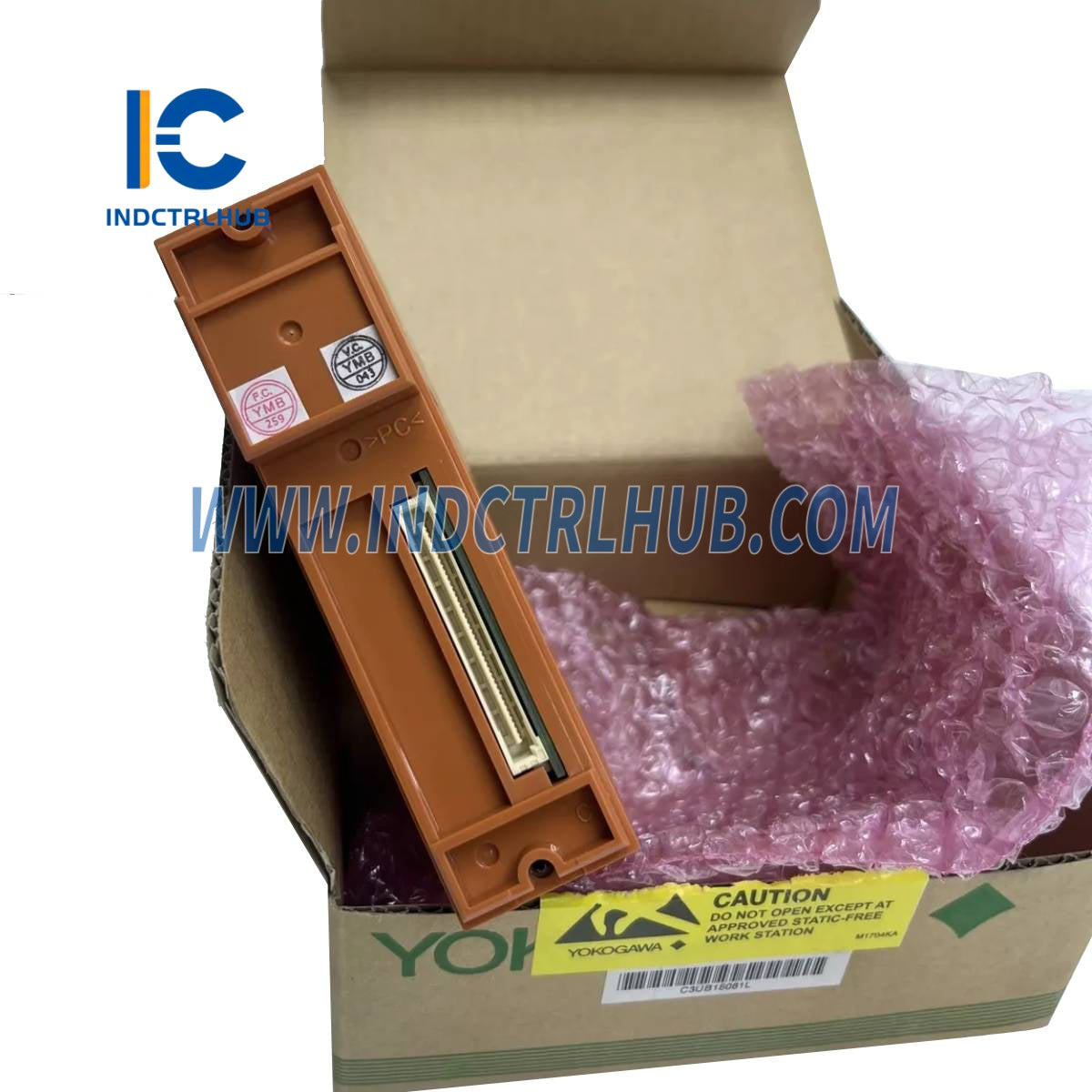

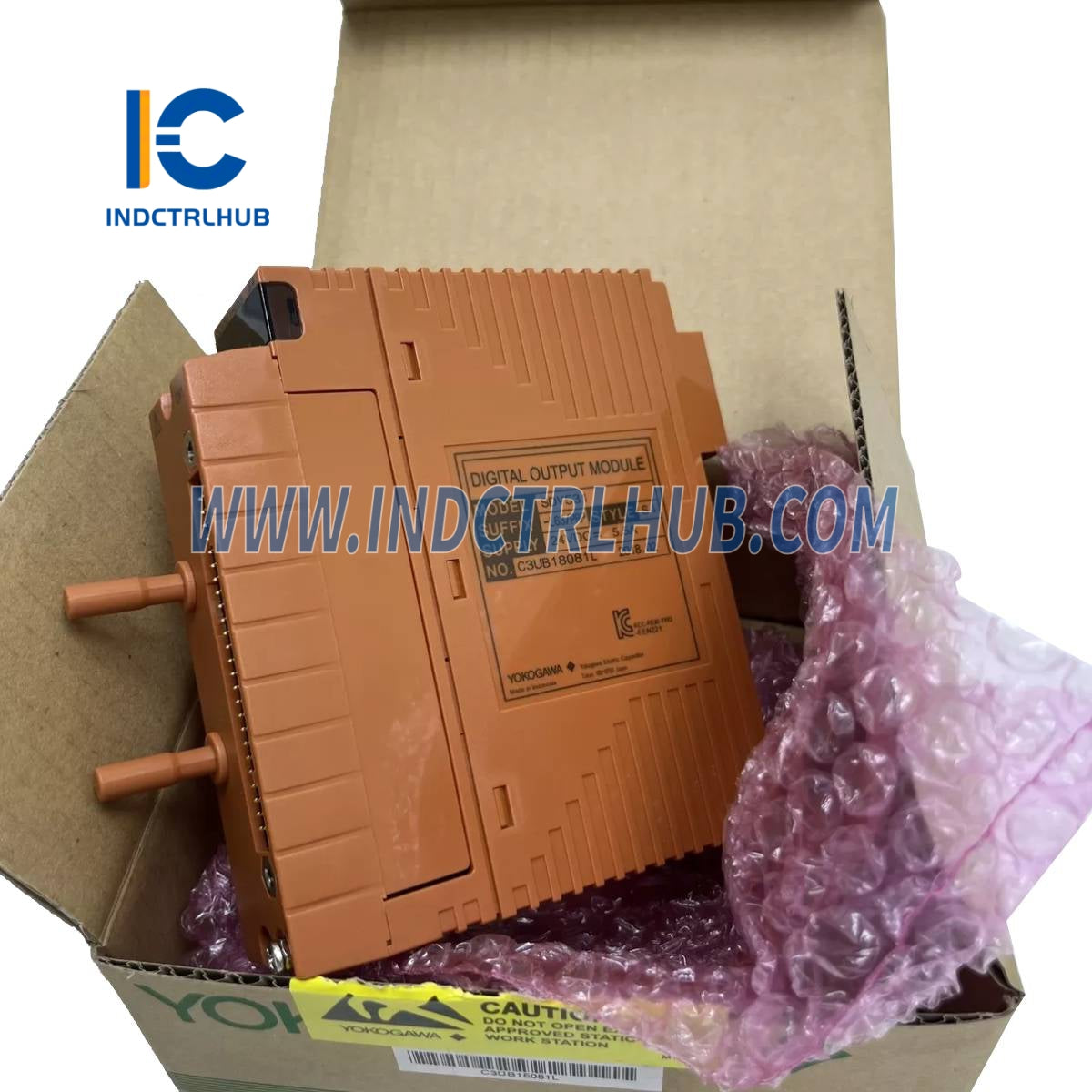

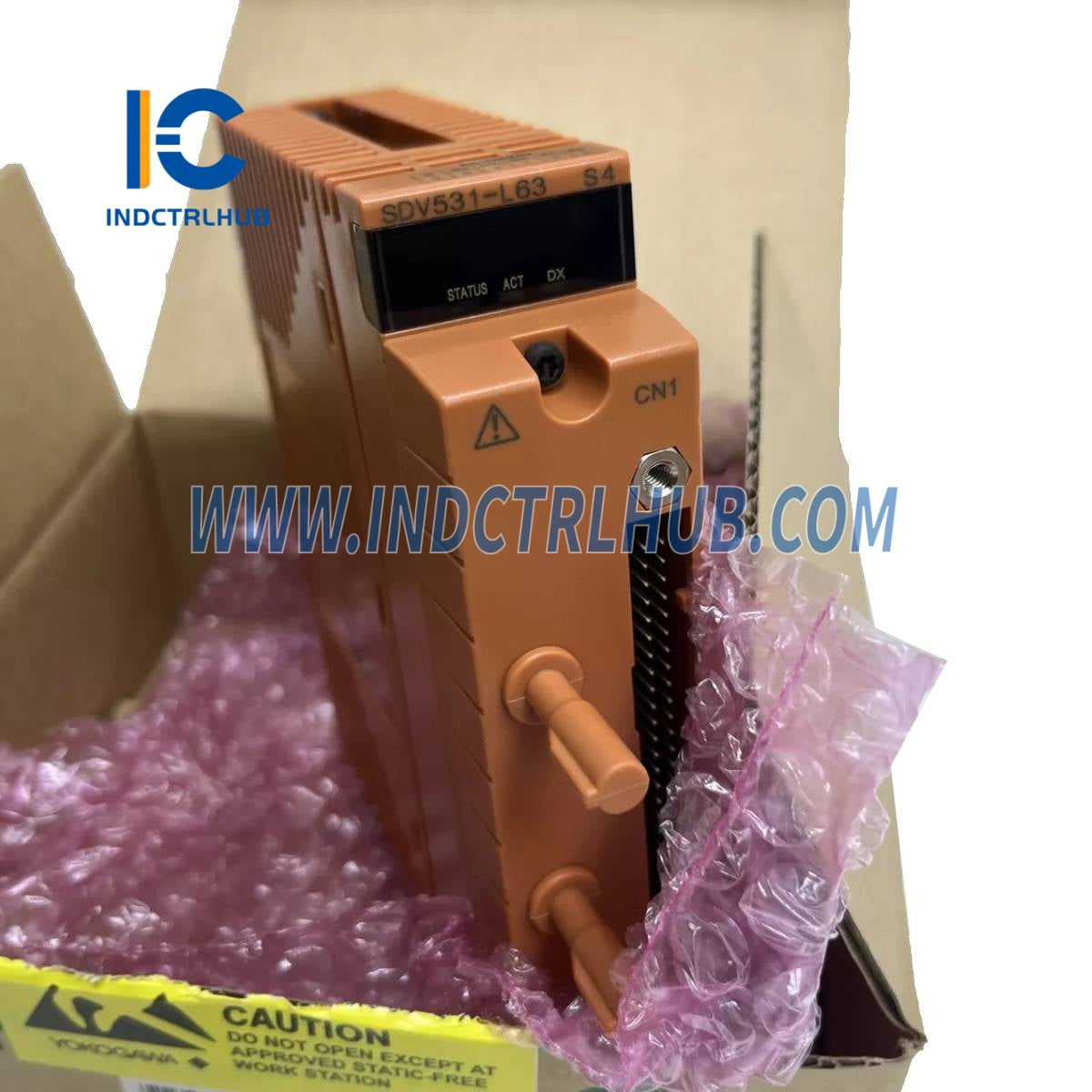

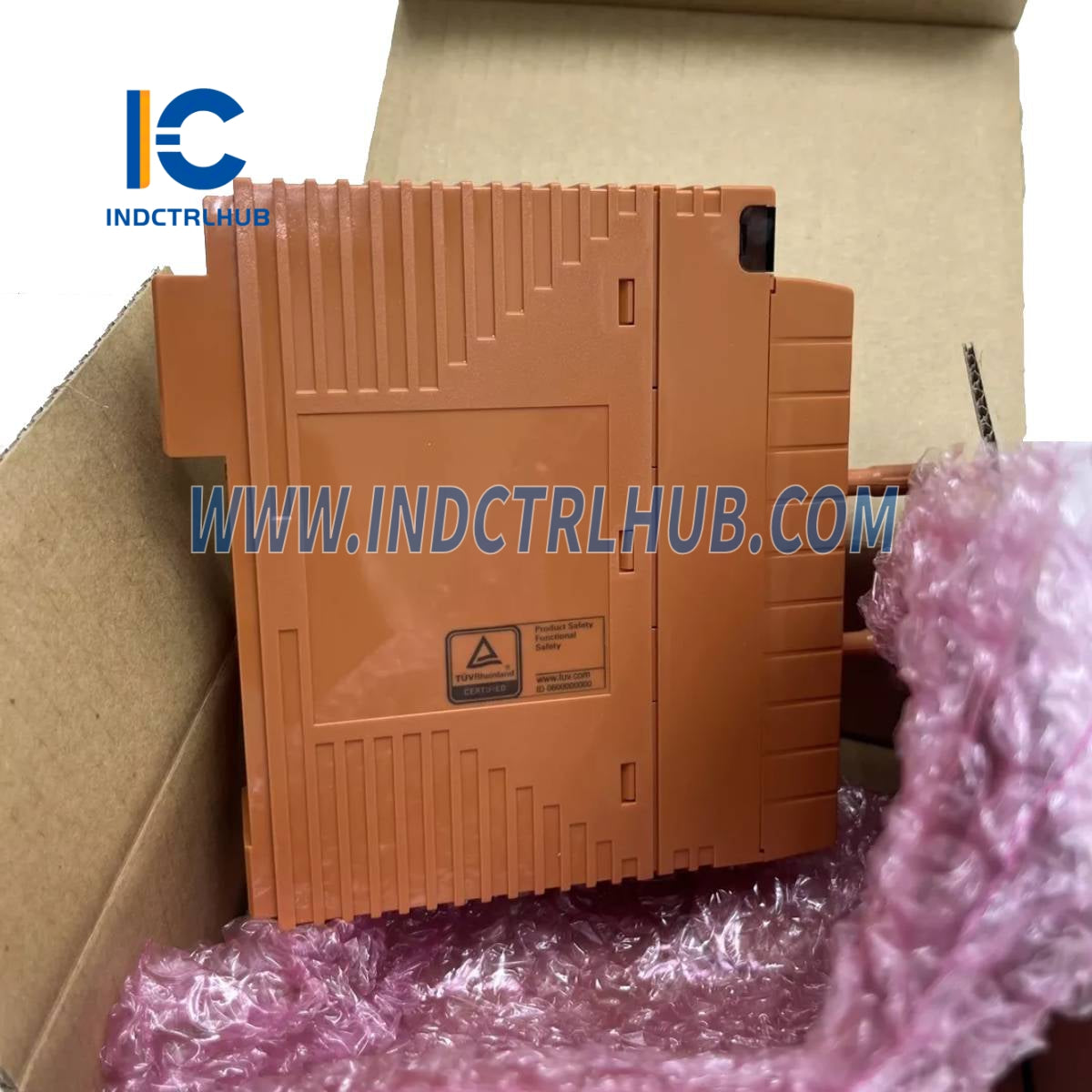

Yokogawa SDV531-L63 8-Channel Digital Output Module
Yokogawa SDV531-L63 8-Channel Digital Output Module
Manufacturer: Yokogawa
Product No.: SDV531-L63
Condition:1000 in stock
Product Type: 8-Channel Digital Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SDV531-L63 |
|
Description |
8-Channel Digital Output Module (24 V DC, Module Isolation, Long Distance Type) |
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
SDV531 |
|
Output Channels |
8 channels, with module isolation |
|
Output Voltage |
24 V DC |
|
Output Voltage Drop |
_ 1 V |
|
External Power Supply Rating |
24 V DC, 5 A minimum |
|
External Power Supply Range |
24 V DC +20% / _10% |
|
Maximum Leak Current (OFF) |
1.6 mA |
|
Output Format |
Current source |
|
Maximum Load Current |
0.6 A/output line (Max. 4.8 A for total 8 outputs) |
|
Minimum Load Current |
35 mA |
|
Load Resistance Range |
40 to 685 _ |
|
Output Response Time |
_ 30 ms |
|
Withstand Voltage |
2 kV AC (1 min) between output signals and system (negative lines collectively) |
|
Current Consumption |
Max. 280 mA (5 V DC), Max. 140 mA (24 V DC) |
|
Weight |
~0.28 kg (pressure clamp or MIL cable)~0.34 kg (with interface adapter) |
|
External Connections |
Pressure clamp terminal, MIL cable, or signal cable (AKB331, AKB651) |
_
_
__ Model Configuration
|
Model |
Description |
|---|---|
|
SDV531 |
Digital Output Module (8-ch, 24 V DC, Module Isolation) |
_
Suffix Codes Breakdown (SDV531-L63)
|
Suffix |
Meaning |
|---|---|
|
-L |
Long Distance Type |
|
6 |
With signal cable interface adapter, no explosion protection |
|
3 |
With ISA Standard G3, temperature range: _20 to 70 °C |
_
_
__ Optional Accessories (Option Codes)
|
Option Code |
Description |
|---|---|
|
/B4S00 |
Terminal block, no surge absorber (Model: STB4S-00) |
|
/B4S10 |
Terminal block, with surge absorber (Model: STB4S-10) |
|
/B4D00 |
Dual-redundant terminal block, no surge absorber (Model: STB4D-00) |
|
/B4D10 |
Dual-redundant terminal block, with surge absorber (Model: STB4D-10) |
|
/PRP |
Prevention pin of false insertion |
|
/CCC01 |
MIL cable connector cover for flat ribbon cable (Model: SCCC01) |
|
/CCC02 |
MIL cable connector cover for discrete wire (Model: SCCC02) |
_
