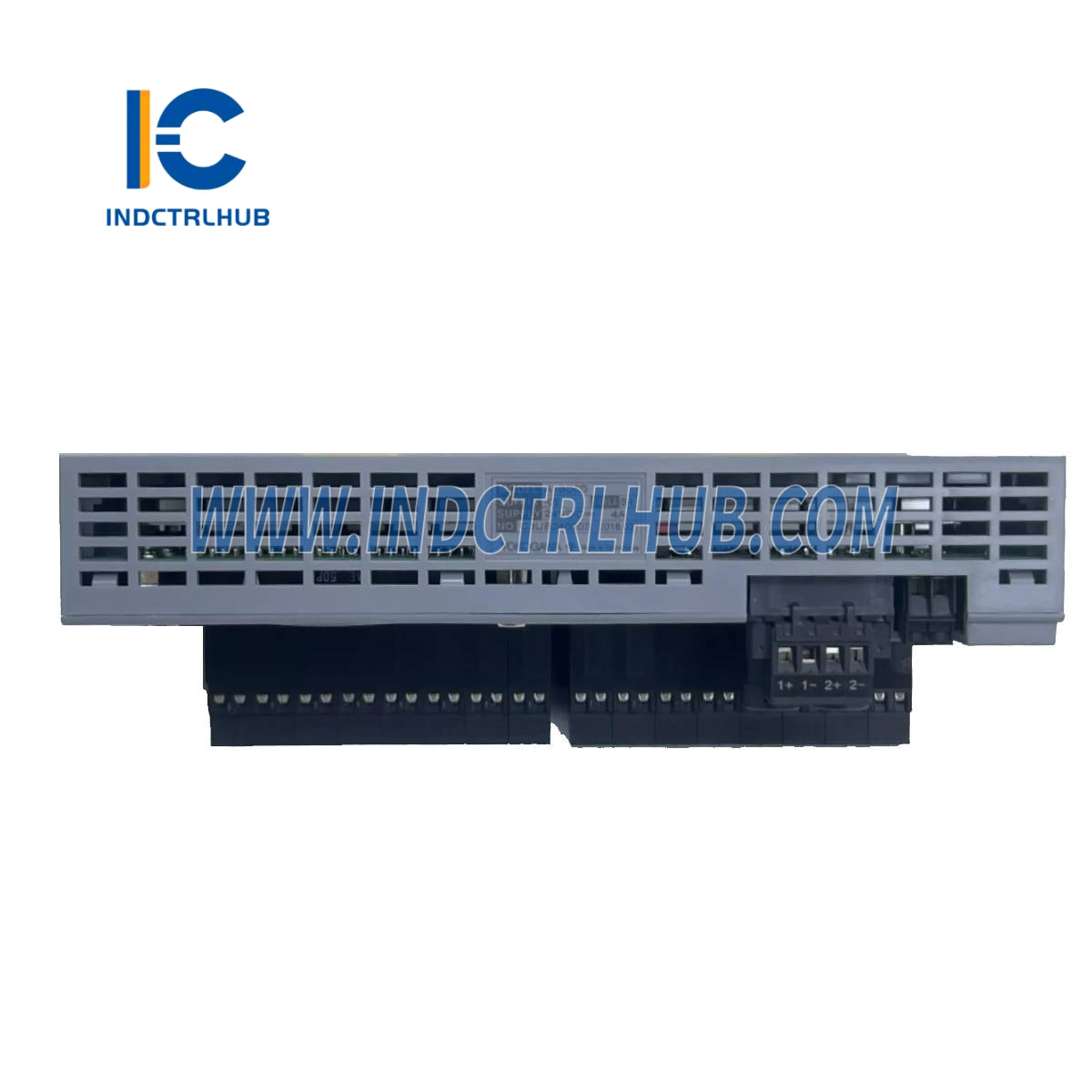

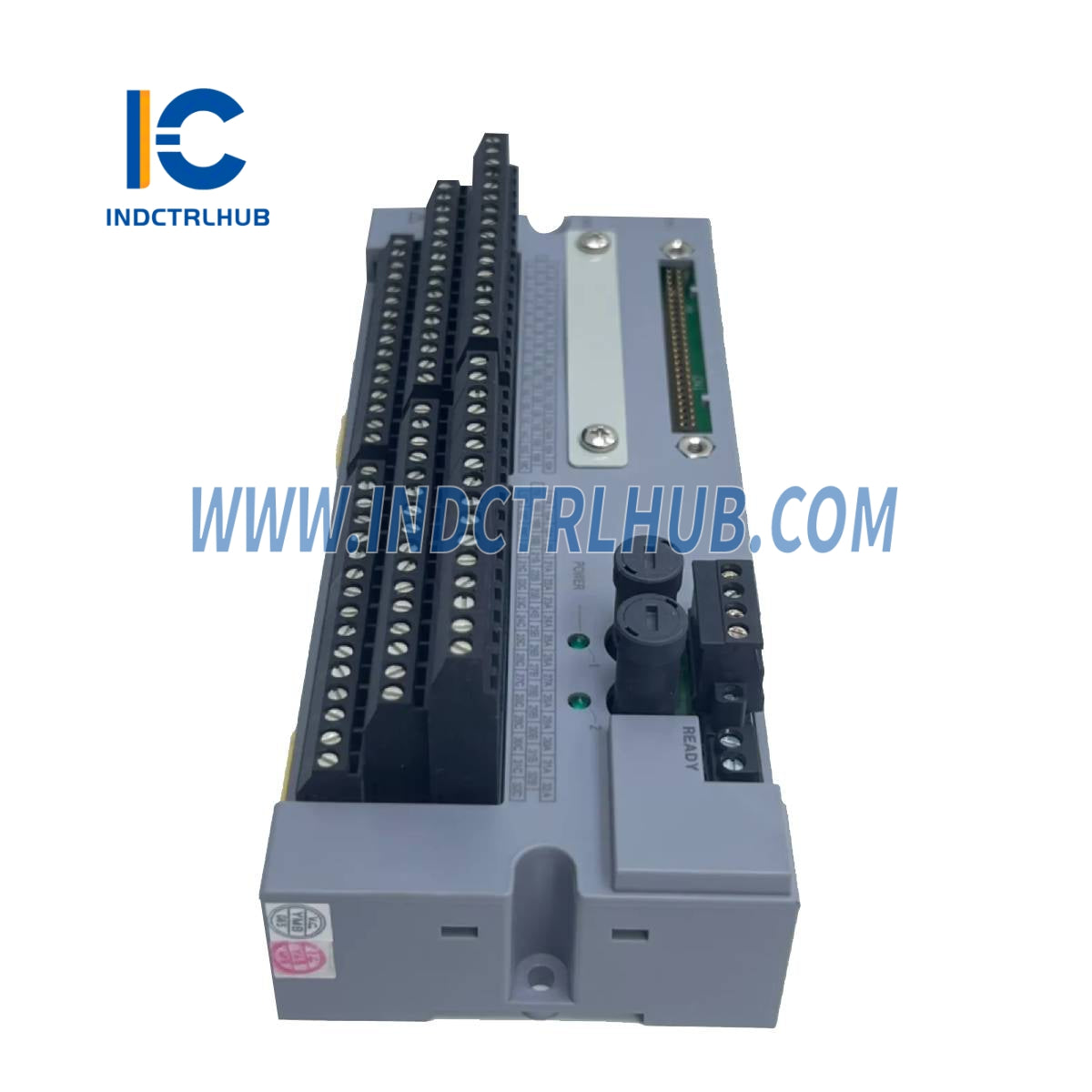

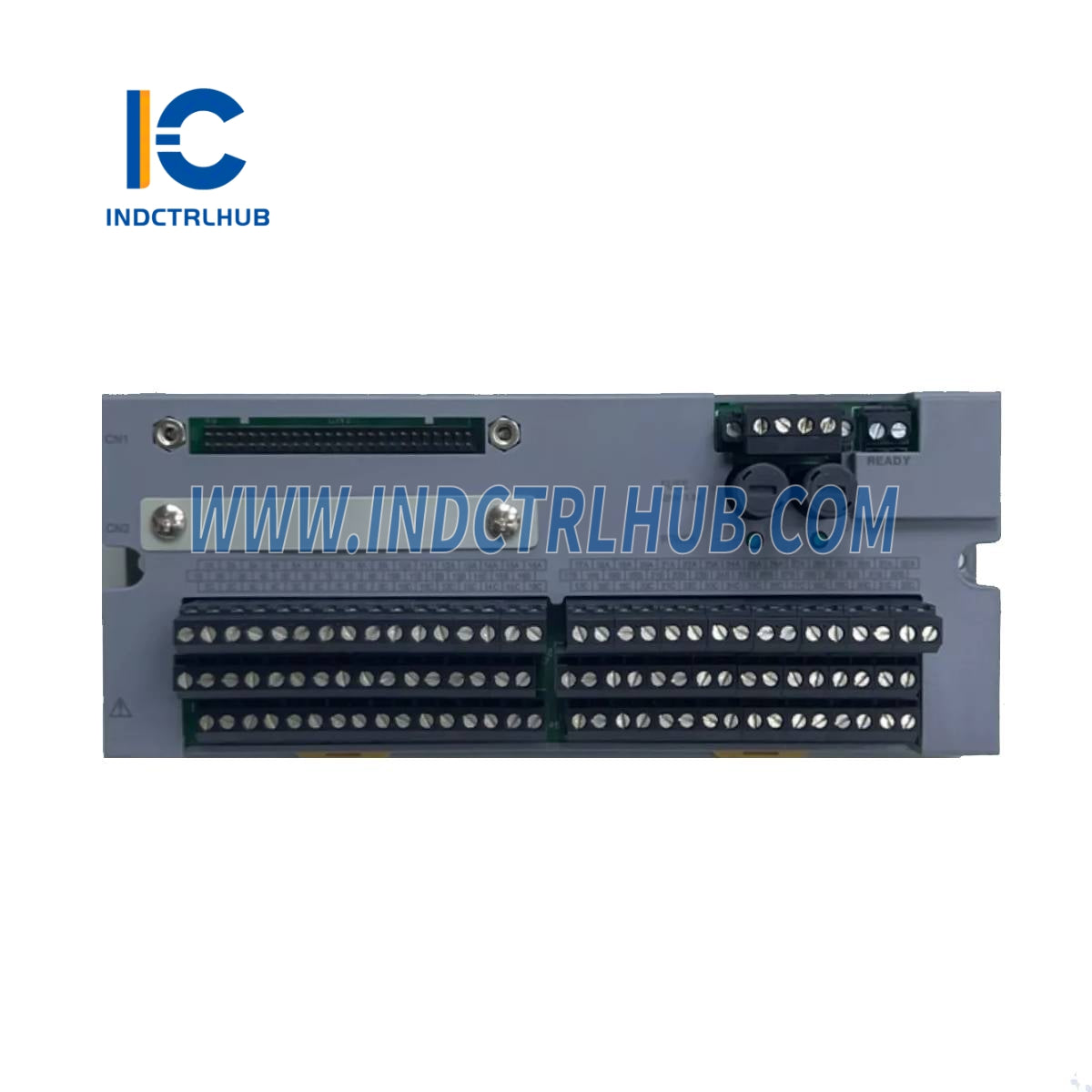

Yokogawa A1BD5D-05 Terminal Board for Digital Signals
Yokogawa A1BD5D-05 Terminal Board for Digital Signals
Manufacturer: Yokogawa
Product No.: A1BD5D-05
Condition:1000 in stock
Product Type: Terminal Board for Digital Signals
Product Origin: Japan
Payment: T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
A1BD5D-05 |
|
Description |
Terminal Board for Digital Signals (32-channel, single/dual-redundant) DIN rail mount type |
_
_
__ Specifications
|
Category |
Details |
|---|---|
|
Application |
For digital signals (supports both single and dual-redundant modules) |
|
Number of Points |
32 points _ 1 channel |
|
Terminal Type |
Pressure clamp |
|
Compatible Modules |
ADV151, ADV551, ADV161 (*2), ADV561 (*2) |
|
Connection Adapters |
ATD5A |
|
Connection Cables |
AKB331 (for ADV151/551), AKB337 (for ADV161/561) |
|
Mounting |
DIN rail mount |
|
Weight |
Approx. 0.70 kg |
|
Insulation Resistance |
_ 10 MΩ at 500 V DC |
|
Withstanding Voltage |
2.0 kV AC for 1 minute (*5) |
_
_

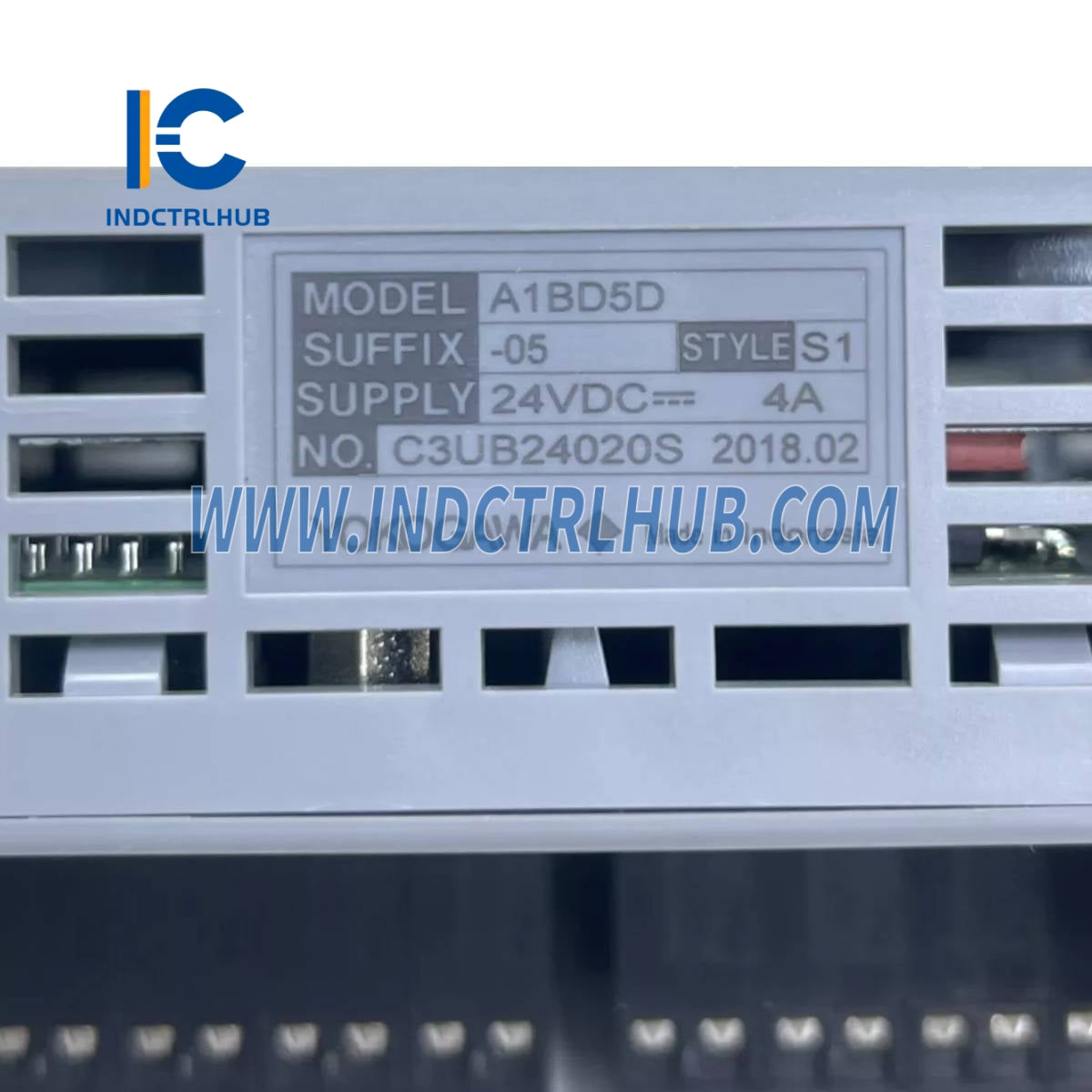

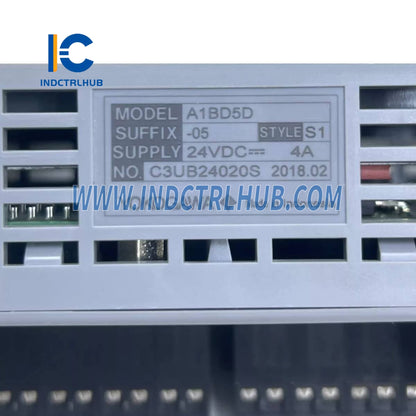

__ Suffix Code Breakdown (Model: A1BD5D-05)
|
Suffix Code |
Meaning |
|---|---|
|
-0 |
Always 0 (standard placeholder) |
|
5 |
Basic type,_no explosion protection |
_
_
