Product Description
Product Details
| Manufacturer |
YOKOGAWA |
| Model/Part Number |
AFV10D-F1 |
| Model Type |
Duplexed Field Control Unit |

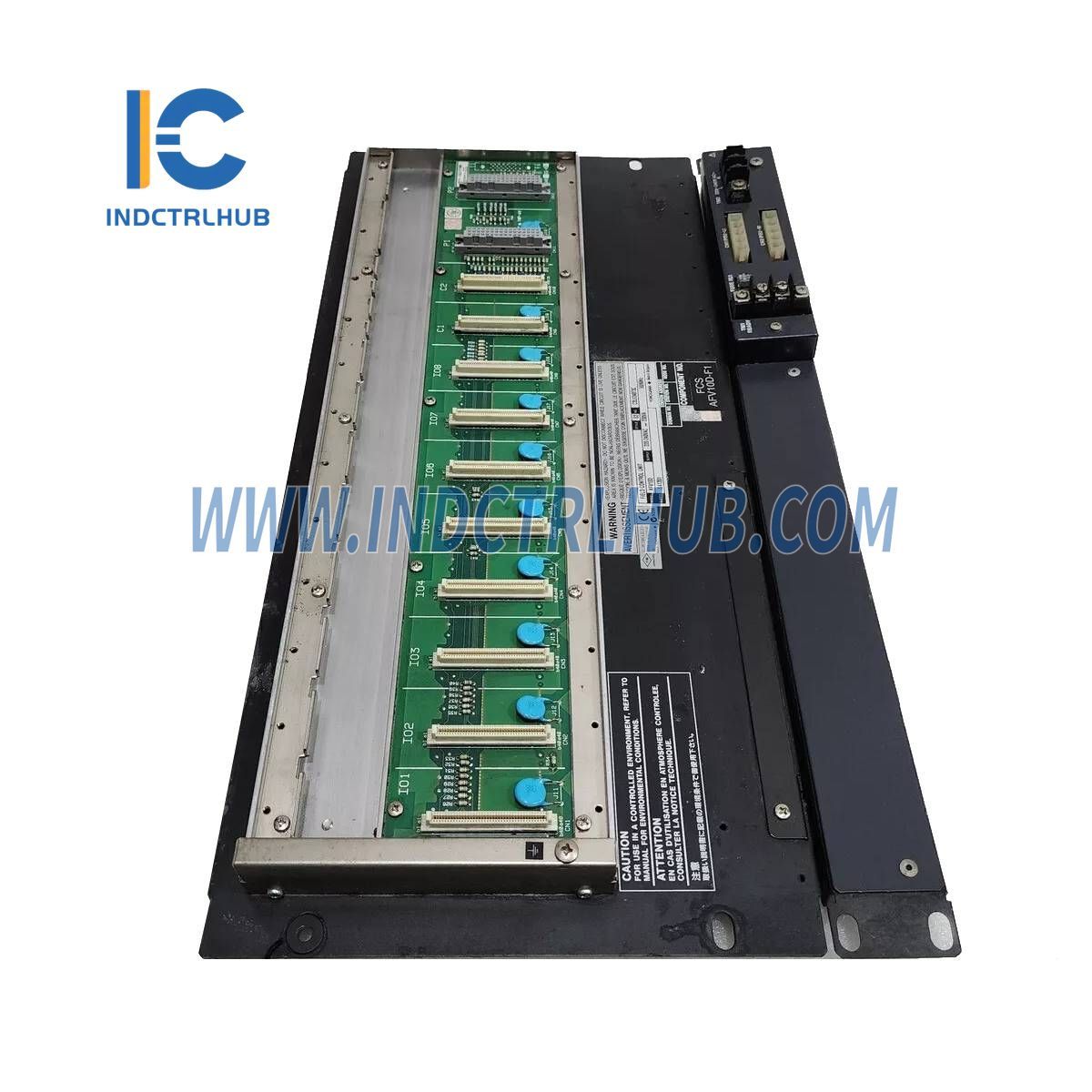

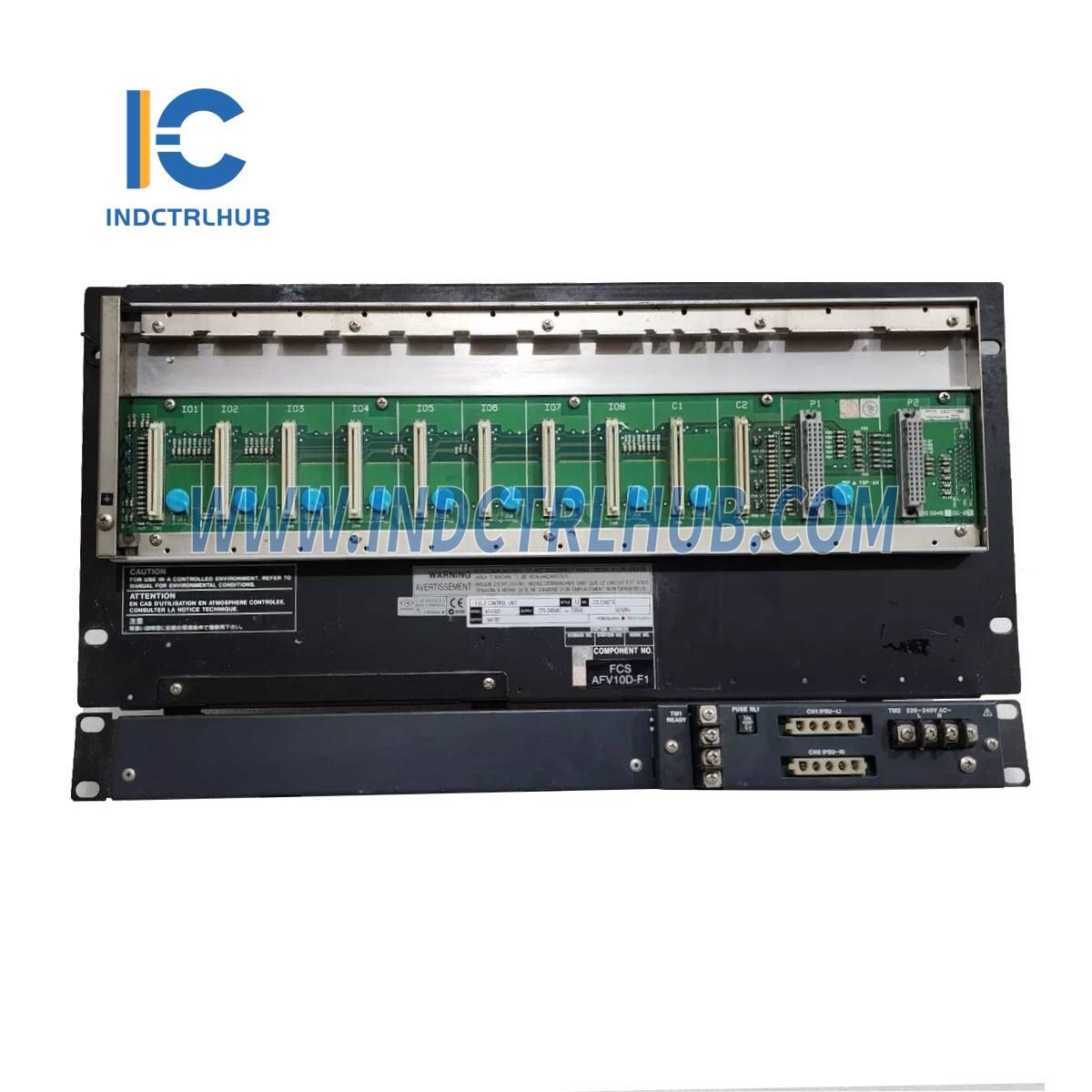

General Overview
The AFV10D-F1 is a Duplexed Field Control Unit designed for Vnet/IP and FIO applications, with a 19-inch rack-mountable type. It provides a reliable, dual-redundant configuration ideal for high-availability systems. For more details, please refer to the GS for AFV30S, AFV30D Field Control Unit, and others in the same family.
Key Specifications
| Processor |
VR5432 (133 MHz) |
| Main Memory Capacity |
32 Mbyte |
| Battery Backup for Main Memory |
Max. 72 hours |
| Battery Recharge Time |
Min. 48 hours |
| Memory Protection During Power Failure |
Battery-backed memory protection |
| FCU Status Contact Output |
2 terminals (NC, C) |
| Contact Points during FCU Failure |
Open during failure |
| Contact Rating |
30 V DC, max. 0.3 A |
Communication Interface
| Vnet/IP Communication Speed |
1 Gbps Full Duplex |
| Max. Distance (Between AFV10 and Layer 2 Switch) |
100 m |
| Cable |
CAT5e (or better), UTP |
| Connector |
RJ45 |
| Transmission |
1000BASE-T compliance |
Power Consumption
| Power Supply |
Power Consumption |
| 100-120 VAC |
200 VA |
| 220-240 VAC |
230 VA |
| 24 V DC |
5.5 A |
Weight
| Model |
Weight |
| AFV10S |
Approx. 7 kg |
| AFV10D |
Approx. 8 kg |
Suffix Codes and Options
| Description |
Model |
Suffix Codes |
| Standard type |
Dual-Redundant Vnet/IP, Dual-Redundant power supply |
Always 1 |
| Power Supply Options |
100-120 V AC, 220-240 V AC, 24 V DC |
2, 9 |
| Basic Type |
No explosion protection |
- |
| ISA Standard G3 Option |
LFS1500 Control Function for Field Control Station |
- |
| Explosion Protection |
Manual selection of /ATDOC option to follow ATEX Directive |
- |
