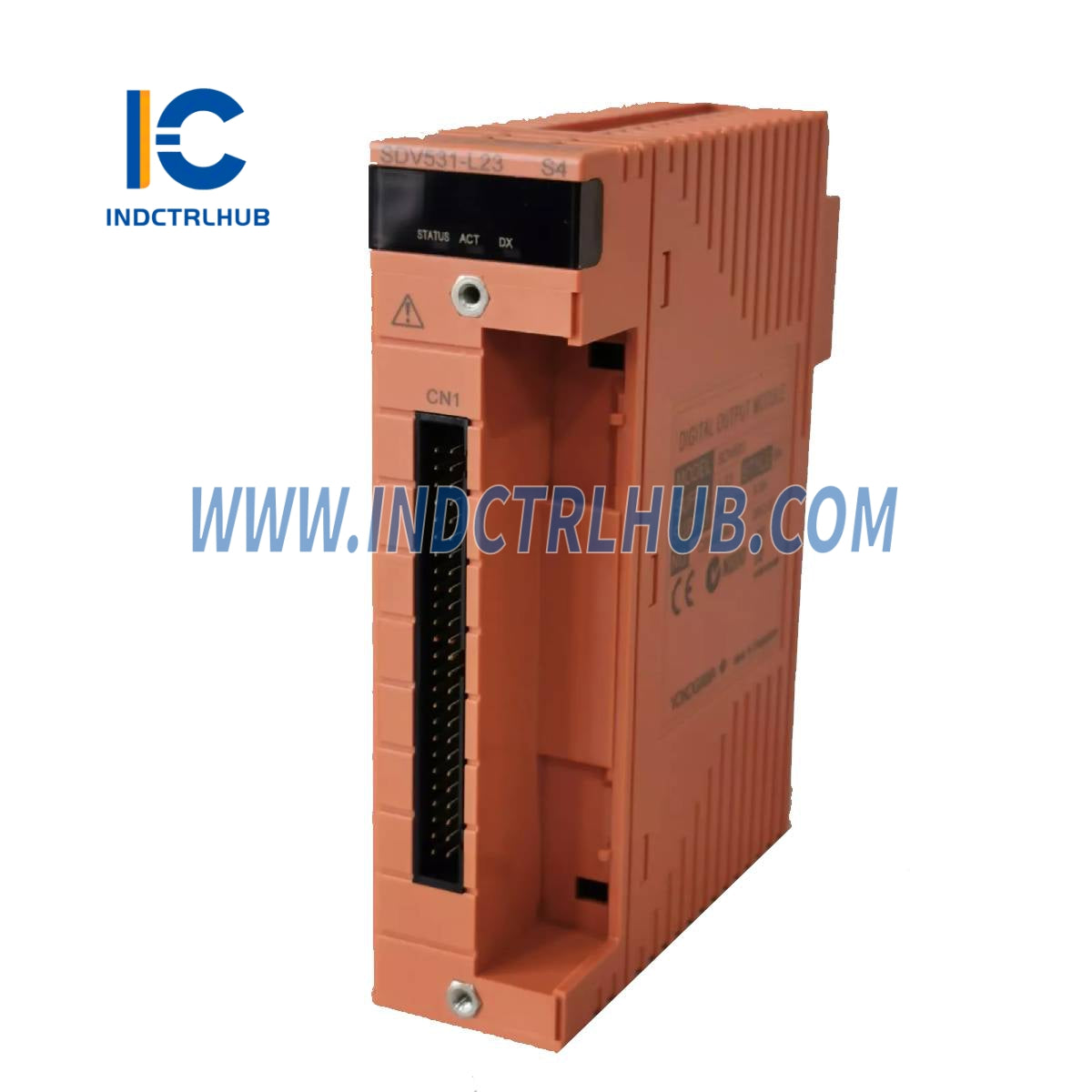

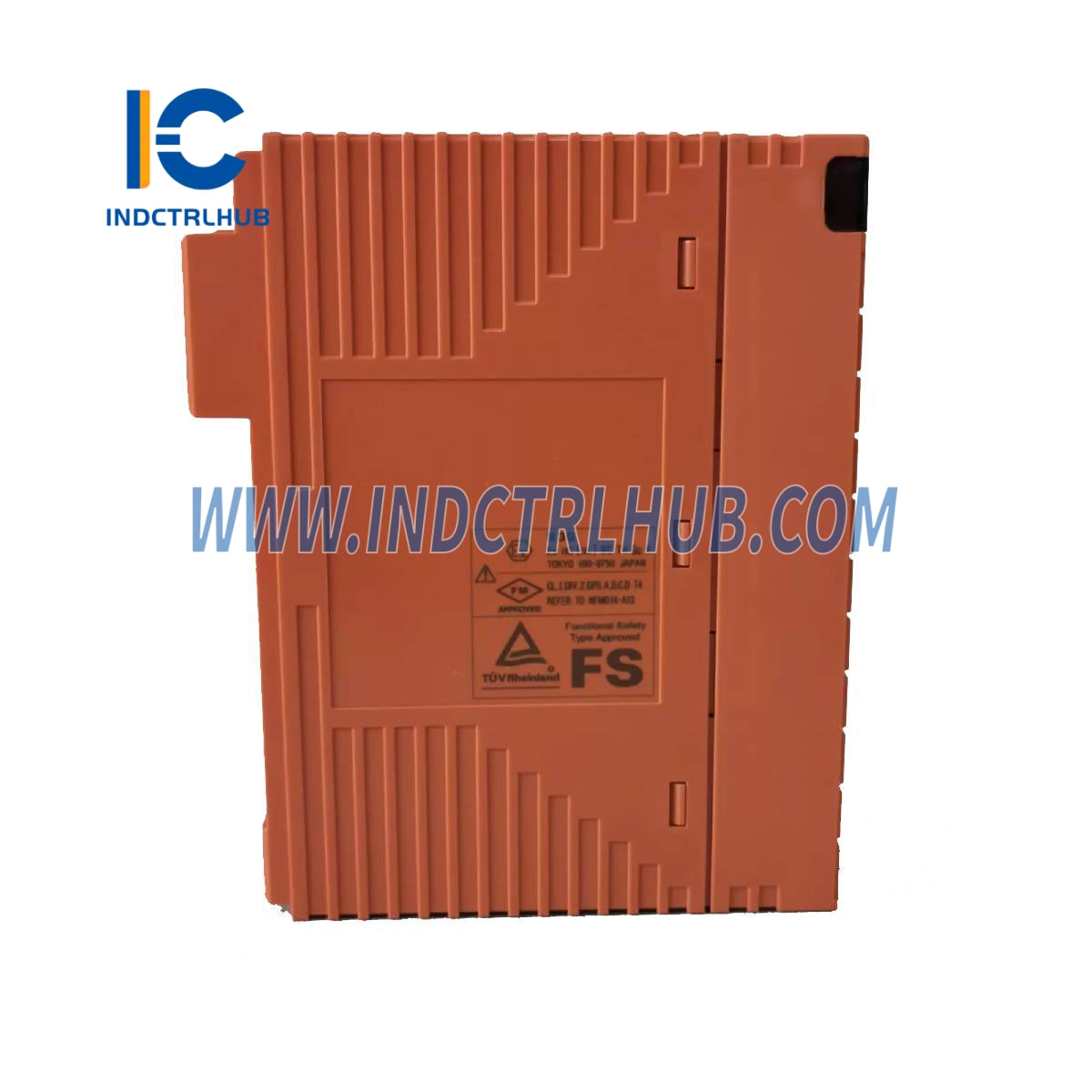

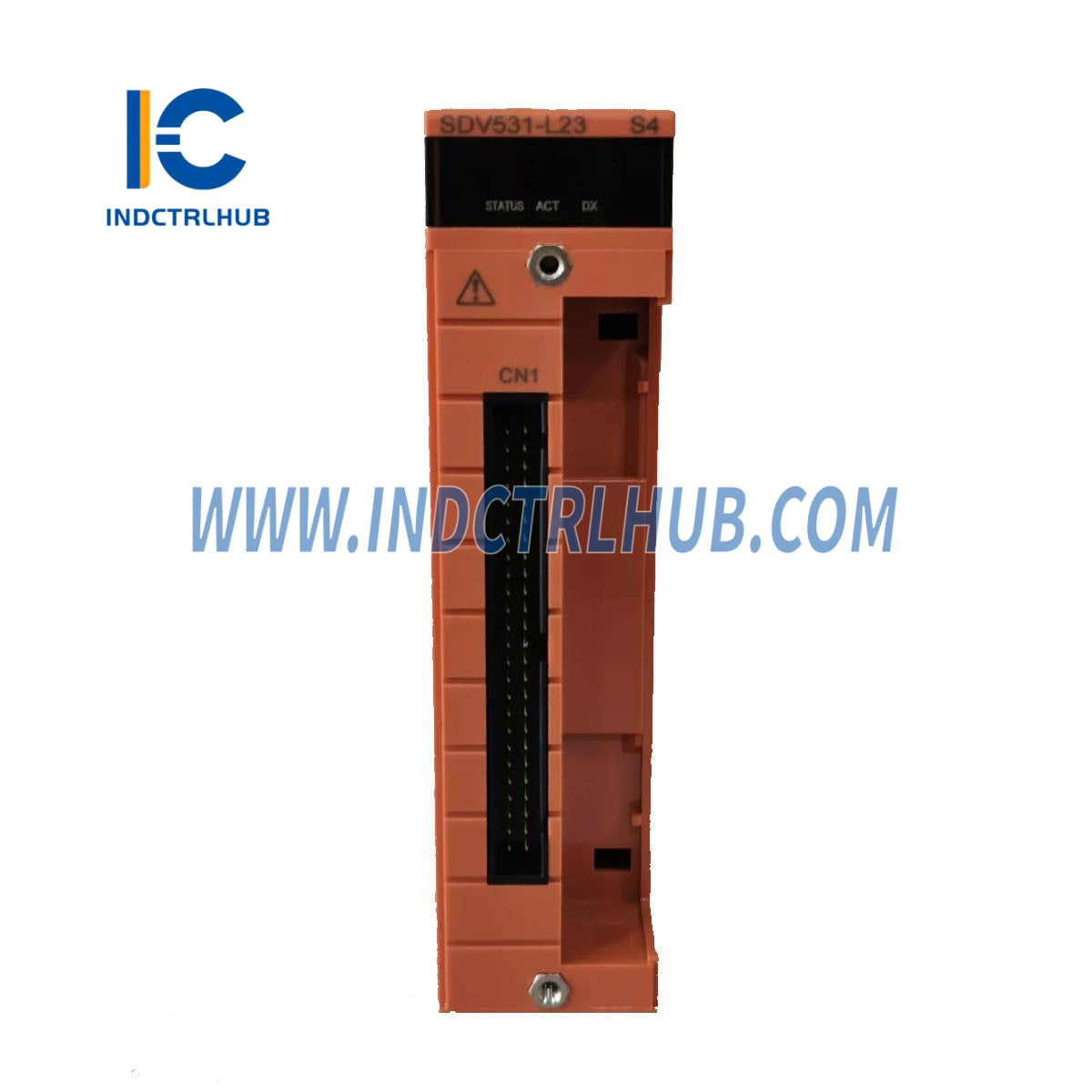

Yokogawa SDV531-L23 8-Channel Digital Output Module
Yokogawa SDV531-L23 8-Channel Digital Output Module
Manufacturer: Yokogawa
Product No.: SDV531-L23
Condition:1000 in stock
Product Type: 8-Channel Digital Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SDV531-L23 |
|
Description |
8-Channel Digital Output Module (24 V DC, Module Isolation, Long Distance Type) |
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
SDV531 |
|
Output Channels |
8 channels, with module isolation |
|
Output Voltage |
24 V DC |
|
Output Voltage Drop |
_ 1 V |
|
External Power Supply Rating |
24 V DC, minimum 5 A |
|
External Power Supply Range |
24 V DC +20% / _10% |
|
Max Leak Current (Output OFF) |
1.6 mA |
|
Output Format |
Current source |
|
Max Load Current |
0.6 A per output line (max 4.8 A total for 8 outputs) |
|
Min Load Current |
35 mA |
|
Load Resistance Range |
40 to 685 _ |
|
Output Response Time |
_ 30 ms |
|
Withstand Voltage |
2 kV AC for 1 minute (between output signals and system, with negative lines common) |
|
Current Consumption |
280 mA max (5 V DC), 140 mA max (24 V DC) |
|
Weight |
Approx. 0.28 kg (pressure clamp or MIL cable)Approx. 0.34 kg (with adapter) |
|
External Connections |
Pressure clamp terminal, MIL cable, or signal cable (AKB331 / AKB651) |
_
_
__ Model Configuration
|
Model |
Description |
|---|---|
|
SDV531 |
Digital Output Module (8-channel, 24 V DC, Module Isolation) |
_
Suffix Codes Breakdown
|
Suffix |
Meaning |
|---|---|
|
-L |
Long Distance Type |
|
2 |
Signal cable interface adapter (no explosion protection) |
|
3 |
With ISA Standard G3 (_20 to 70 °C temperature rating) |
_
_
__ Optional Accessories (Option Codes)
|
Code |
Description |
|---|---|
|
/B4S00 |
Pressure clamp terminal block (no surge absorber) _ Model STB4S-00 |
|
/B4S10 |
Pressure clamp terminal block (with surge absorber) _ Model STB4S-10 |
|
/B4D00 |
Dual-redundant pressure clamp terminal block (no surge absorber) _ STB4D-00 |
|
/B4D10 |
Dual-redundant pressure clamp terminal block (with surge absorber) _ STB4D-10 |
|
/PRP |
Prevention pin for false insertion |
|
/CCC01 |
Connector cover for MIL cable (flat ribbon cable) _ Model SCCC01 |
|
/CCC02 |
Connector cover for MIL cable (discrete wire) _ Model SCCC02 |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | CP451-10-S2 Processor Module for Distributed Control Systems | 1786_2786 | 210 | CP451-10-S2 Processor Module |
| YOKOGAWA | SSC60D-F2542 Safety Control Unit for ProSafe-RS Systems | 13500_14500 | 630 | SSC60D-F2542 Safety Control Unit |
| YOKOGAWA | AFV10D-F1 Duplexed Field Control Unit for Redundant Operation | 3786_4786 | 870 | AFV10D-F1 Field Control Unit |
| YOKOGAWA | ADV561-P50 64-Channel Digital Output Module for Industrial Applications | 643_1643 | 320 | ADV561-P50 Digital Output Module |
| YOKOGAWA | AAI143-H53/A4S00 Analog Input Module with HART Communication | 1000_2000 | 740 | AAI143-H53/A4S00 Analog Input Module |
| YOKOGAWA | ASR133-S00/SR3S0 8-Channel RTD/Potentiometer Input Module | 429_1429 | 510 | ASR133-S00/SR3S0 RTD Input Module |
| YOKOGAWA | A1BD5D-05 Terminal Board for Digital Signals in DCS | 571_1571 | 290 | A1BD5D-05 Terminal Board |
