YOKOGAWA SCP451-11 Processor Module

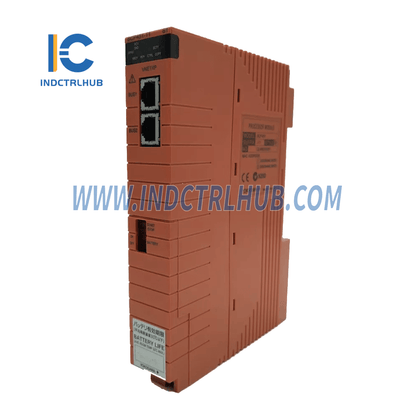

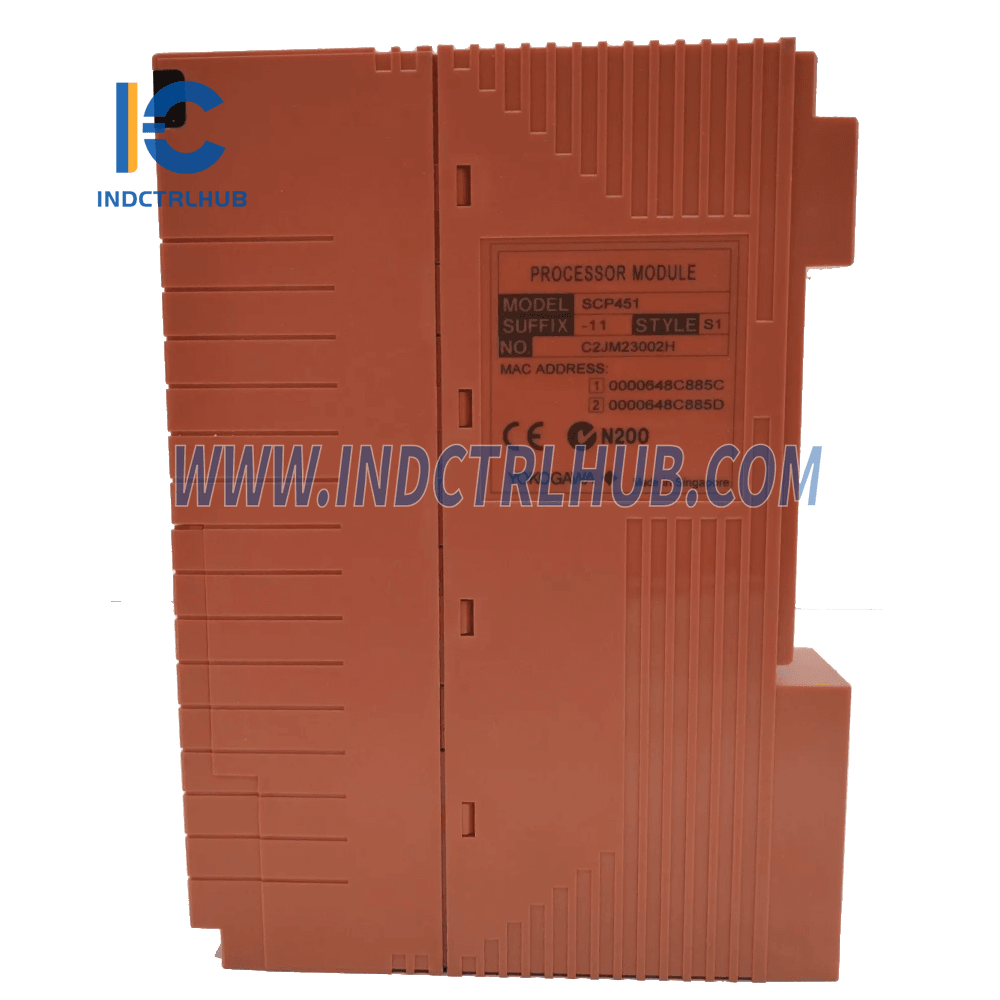

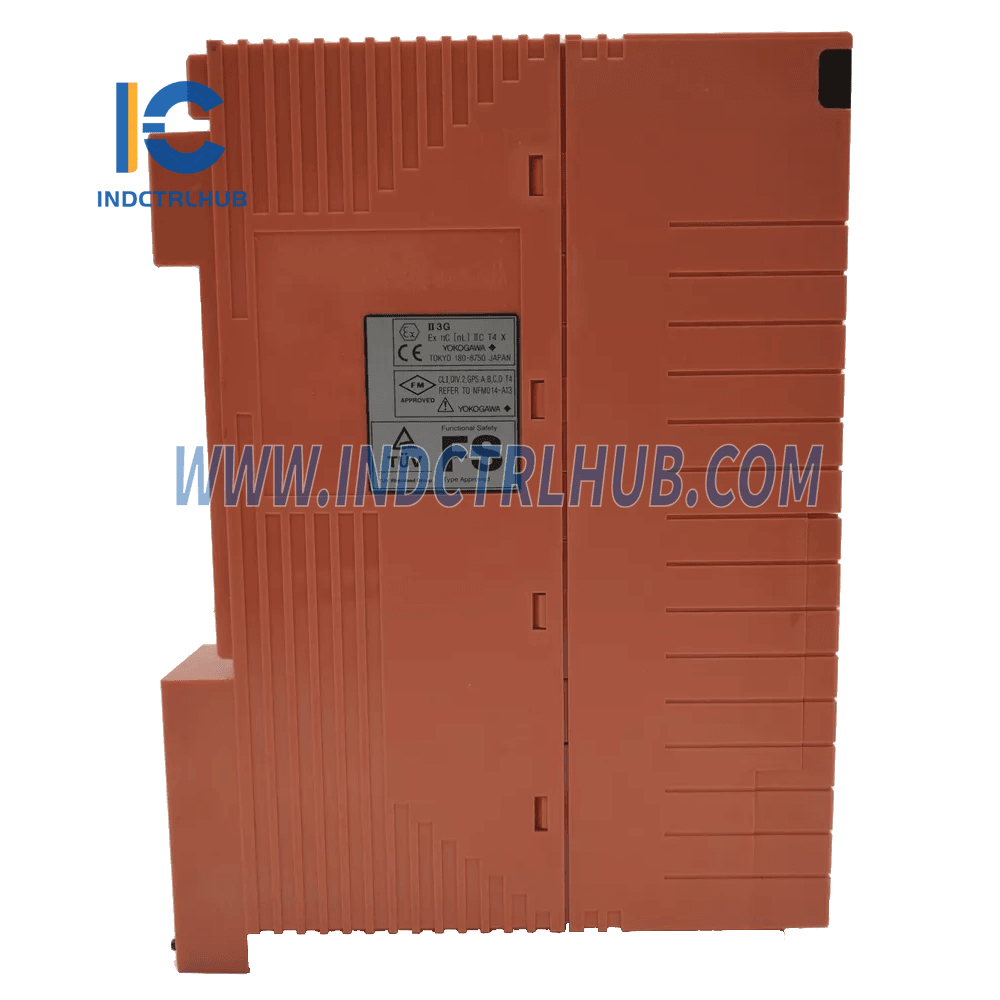

Yokogawa SCP451-11 Processor Module

Manufacturer: Yokogawa
Model/Part Number: SCP451-11
Description: The SCP451-11 is a high-performance processor module from the ProSafe-RS Safety Control Unit series, designed for industrial safety control applications. It supports various configurations for safety-critical environments, with redundancy features and robust environmental protection. The module integrates seamlessly into a 19-inch rack-mounted setup, offering enhanced safety and compliance with international standards.

Model and Suffix Codes

Safety Control Unit Description

• Model: SSC50S (Safety Control Unit for Vnet/IP, Rack Mountable Type)

  • Suffix Codes:
    • -S: Standard Type (-20 to 40 °C, with ISA Standard G3)
    • -F: Wide-range temperature (-20 to 70 °C) type (with Fan unit and ISA Standard G3)
    • 2: Dual-redundant power supply
    • 5: No explosion protection
    • E: Explosion protection
    • 1: 100-120 V AC power supply
    • 2: 220-240 V AC power supply
    • 4: 24 V DC power supply
    • 3: CFS1100 Safety Control Function License (for R3: R3.02.31 or later)
    • 4: Without Safety Control Function License (for R4.01.31 or later)
    • /ATDOC: Explosion Protection Manual (for use in potentially explosive atmospheres)

  Note: The system requires a keyed metallic cabinet for installation to comply with safety, EMC conformity, and explosion protection standards.

Duplexed Safety Control Unit Description

• Model: SSC50D (Duplexed Safety Control Unit for Vnet/IP, Rack Mountable Type)

  • Suffix Codes:
    • -S: Standard Type (-20 to 40 °C, with ISA Standard G3)
    • -F: Wide-range temperature (-20 to 70 °C) type (with Fan unit and ISA Standard G3)
    • 2: Dual-redundant power supply
    • 5: No explosion protection
    • E: Explosion protection
    • 1: 100-120 V AC power supply
    • 2: 220-240 V AC power supply
    • 4: 24 V DC power supply
    • 3: CFS1100 Safety Control Function License (for R3: R3.02.31 or later)
    • 4: Without Safety Control Function License (for R4.01.31 or later)
    • /ATDOC: Explosion Protection Manual (for use in potentially explosive atmospheres)
