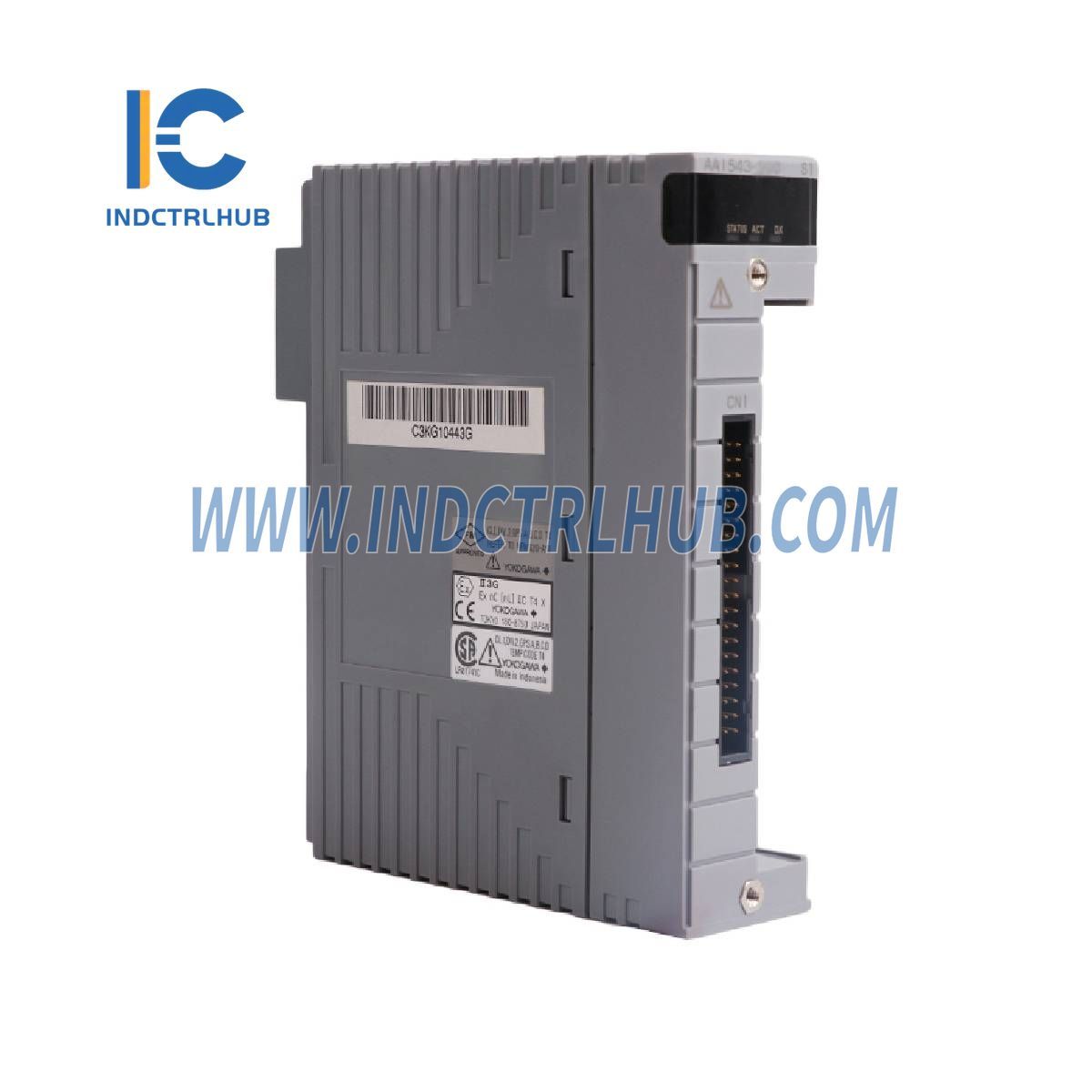

Yokogawa AAI543-H50/K4A00 Analog Output Module (Current Output)
Yokogawa AAI543-H50/K4A00 Analog Output Module (Current Output)
Manufacturer: Yokogawa
Product No.: AAI543-H50/K4A00
Condition:1000 in stock
Product Type: Analog Output Module (Current Output)
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |
AAI543-H50-K4A00 |
|
Product Description |
Analog Output Module (Current Output, 16-channel, Isolated)_with HART communication, designed for dual-redundant configurations. |
Specifications
Output Characteristics
|
Parameter |
Value |
|---|---|
|
Number of Output Channels |
16, isolated |
|
Output Signal |
4 to 20 mA |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit-Open Detection |
Less than 0.65 mA |
|
Accuracy |
±48 µA |
|
Drift due to Ambient Temperature Change |
±16 µA per 10°C |
|
Data Update Period |
10 ms |
|
Withstanding Voltage |
1500 V AC_(between output and system) for 1 minute |
Electrical & Communication
|
Parameter |
Value |
|---|---|
|
Maximum Current Consumption |
230 mA (5V DC), 540 mA (24V DC) |
|
External Communication |
Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
|
HART Communication |
Available |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Weight |
0.4 kg |
Models and Suffix Codes
|
Model |
Description |
|---|---|
|
AAI543 |
Analog Output Module (4 to 20 mA, 16-channel, Isolated) |
Suffix Codes
|
Code |
Description |
|---|---|
|
-S |
Standard type |
|
-H |
With digital communication (HART protocol) |
|
5 |
Standard switch-over response in redundant configuration (no explosion protection) |
|
6 |
Fast switch-over response in redundant configuration (no explosion protection) |
|
E |
Standard switch-over response in redundant configuration (with explosion protection) |
|
F |
Fast switch-over response in redundant configuration (with explosion protection) |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
|
3 |
With ISA Standard G3 & temperature (-20 to 70°C) option |
Optional Features
|
Option Code |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter_(For AEA4D Terminal Board) |
|
/A4S00 |
Pressure Clamp Terminal Block_(ATA4S-00) |
|
/A4S10 |
Pressure Clamp Terminal Block with Surge Absorber_(ATA4S-10) |
|
/A4D00 |
Dual Pressure Clamp Terminal Block_(ATA4D-00) |
|
/A4D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber_(ATA4D-10) |
|
/CCC01 |
Connector Cover for MIL Cable_(ACCC01) |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | NFDV161-P50 S2 Digital Input Module | 1071-2071 | 525 | NFDV161-P50 S2 Digital Input Module |
| YOKOGAWA | ADV551-32DO Digital Output Module | 500-695 | 925 | ADV551-32DO Digital Output Module |
| YOKOGAWA | AAI143-S53/K4A00 Analog Input Module | 1643-2643 | 635 | AAI143-S53/K4A00 Analog Input Module |
| YOKOGAWA | NFAI841-S00 Analog I/O Module | 643-1643 | 121 | NFAI841-S00 Analog I/O Module |
| YOKOGAWA | AAI143-H53/A4D00 Analog Input Module | 1000-2000 | 955 | AAI143-H53/A4D00 Analog Input Module |
| YOKOGAWA | ANB10D-425/CU2 Node Unit | 3071-4071 | 420 | ANB10D-425/CU2 Node Unit |
| YOKOGAWA | F3AD08-6R High-Resolution Analog Input Module | 1215-2215 | 731 | F3AD08-6R Analog Input Module |
