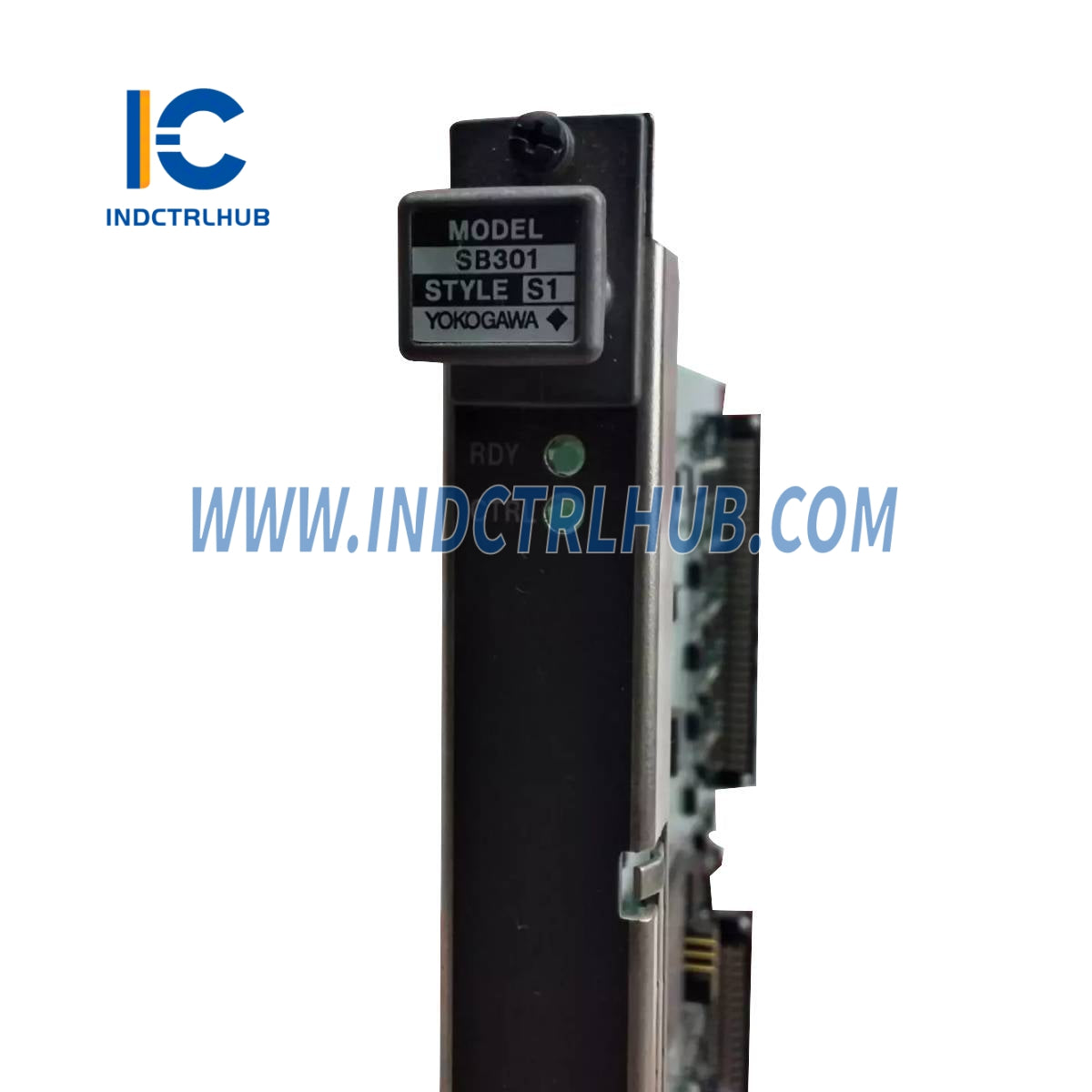

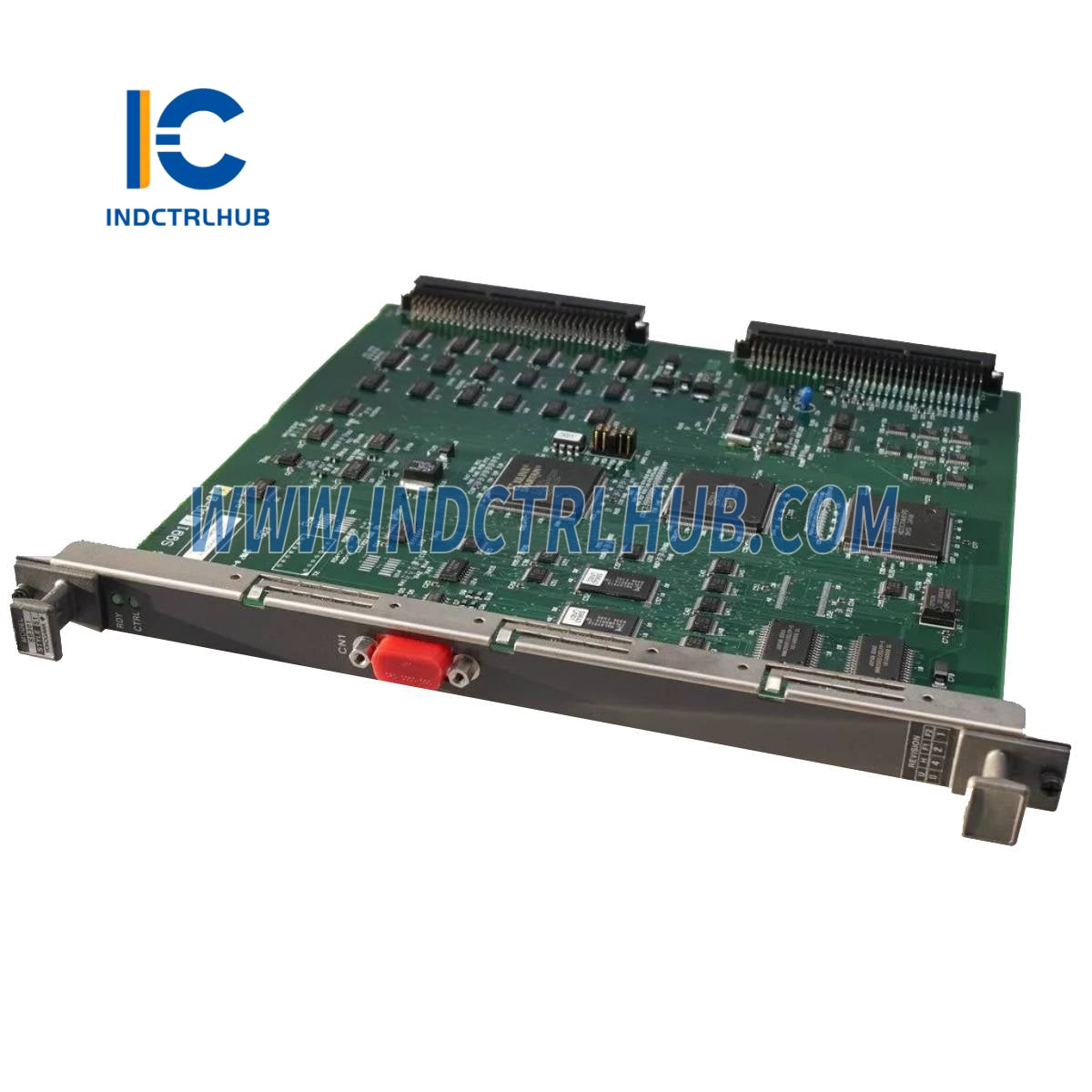

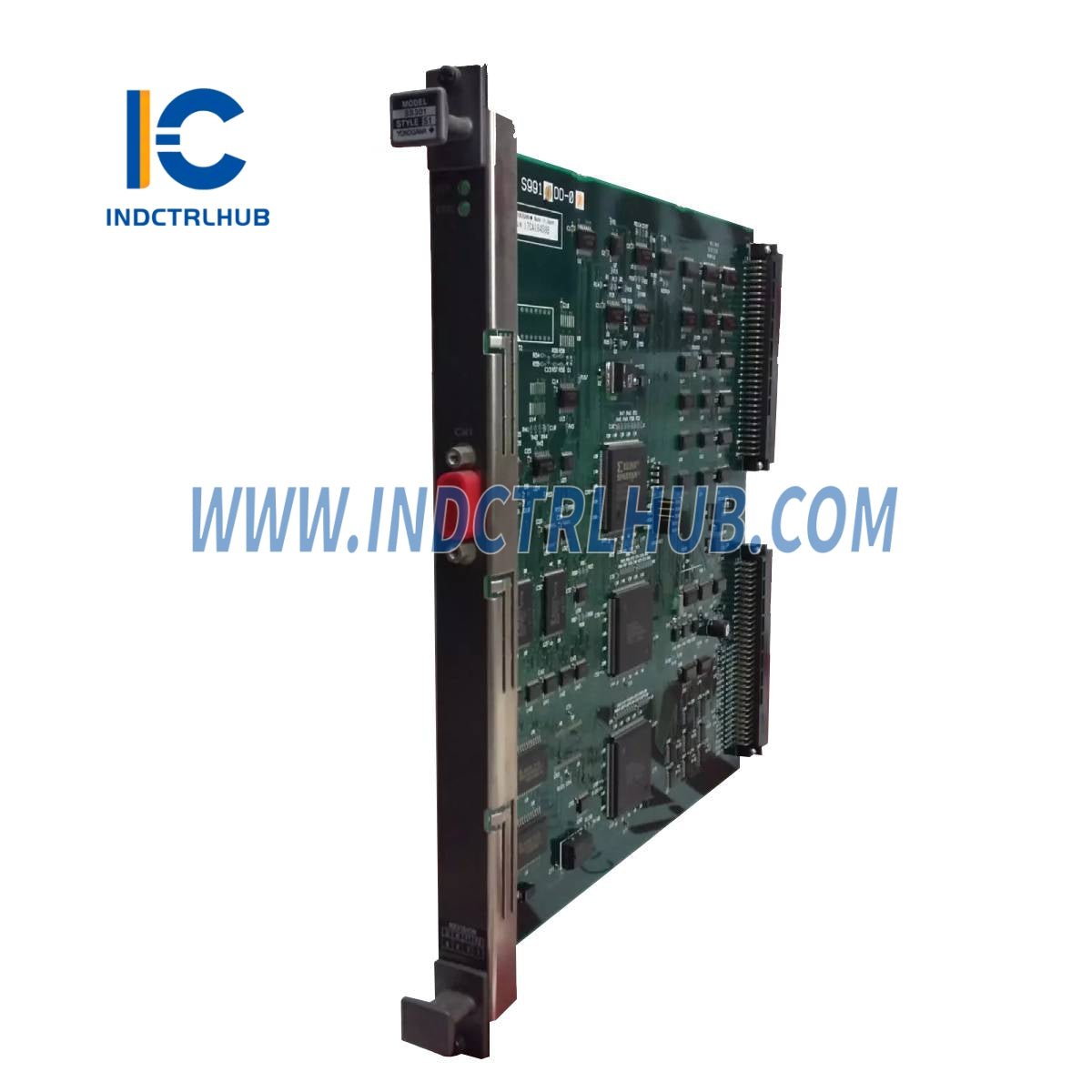

Yokogawa SB301 ESB Bus Interface Card
Yokogawa SB301 ESB Bus Interface Card
Manufacturer: Yokogawa
Product No.: SB301
Condition:1000 in stock
Product Type: ESB Bus Interface Card
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | SB301 |
| Description | ESB Bus Interface Card designed for Yokogawa CENTUM series Distributed Control Systems, facilitating communication between Field Control Stations and I/O modules via the ESB bus |
| Key Features | High-speed ESB bus communication, supports CENTUM CS 3000 and VP, reliable data transfer, compact design, seamless integration with FCS |
Technical Specifications
| Specification | Details |
|---|---|
| Model | SB301 |
| Product Type | ESB Bus Interface Card |
| Series | CENTUM (CS 3000, VP) |
| Communication Bus | Extended Serial Backplane (ESB) bus |
| Power Supply | 24 VDC (via FCS backplane) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approx. 0.2-0.4 kg (0.44-0.88 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | ESB bus for I/O module communication, integrates with CENTUM Field Control Station (FCS) |
Functional Features
| Feature | Details |
|---|---|
| Data Transfer | Enables high-speed, reliable communication between FCS and I/O modules |
| Compatibility | Supports CENTUM CS 3000 and VP systems |
| Reliability | Ensures stable bus communication in industrial environments |
| Installation | Compact card for easy integration into FCS hardware |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | SB301 |
| Configuration | Standard type for ESB bus interface |
