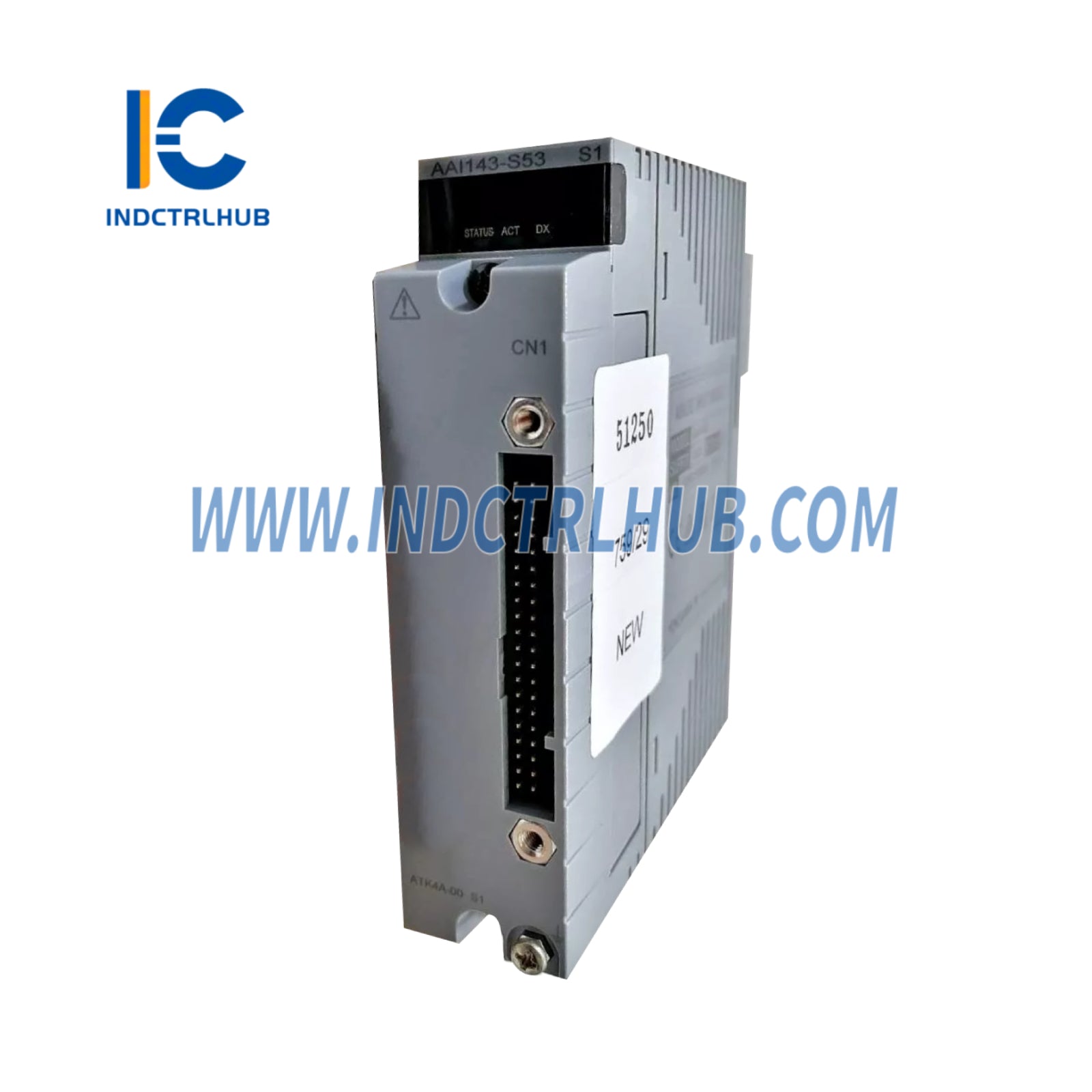

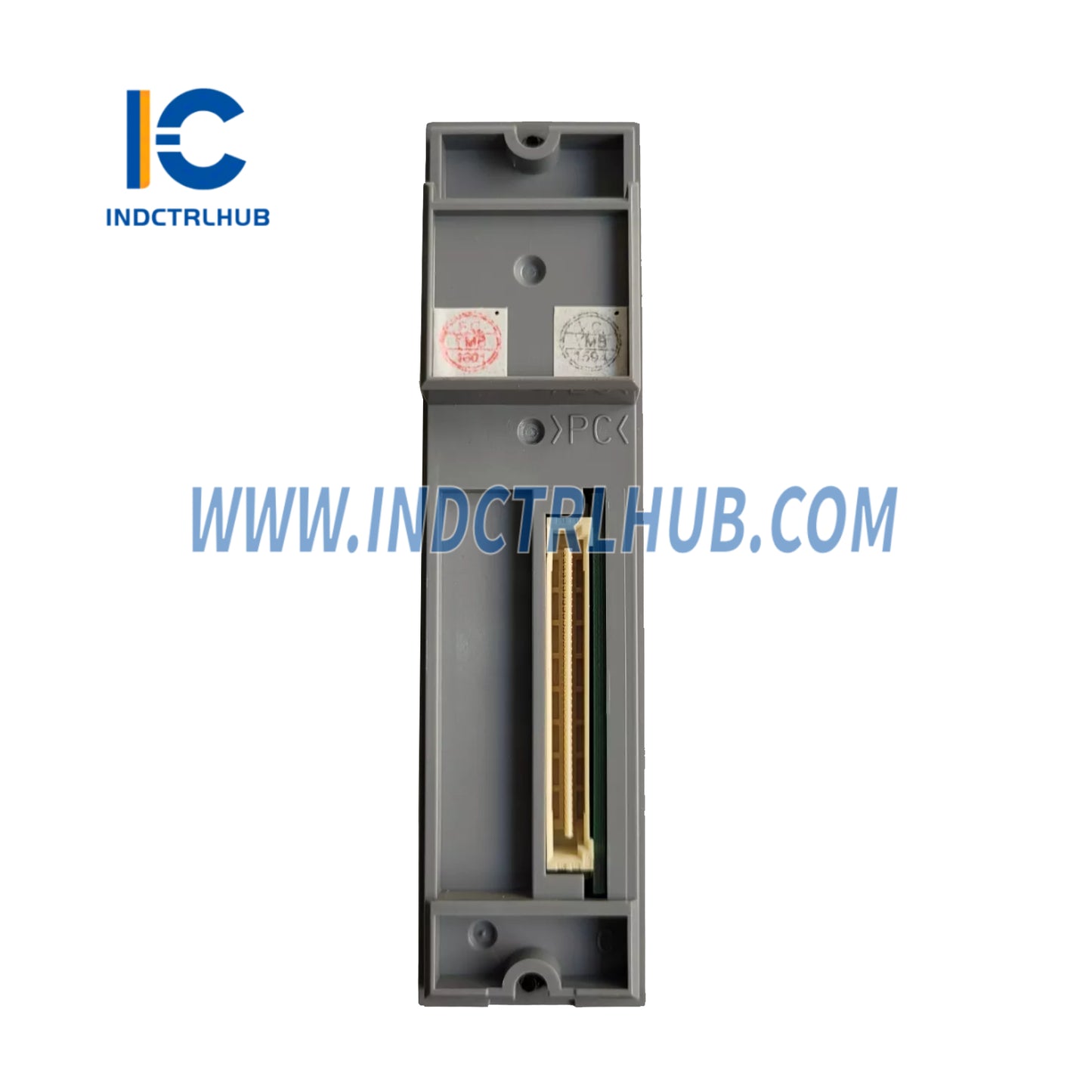

Yokogawa AAI143-S53/A4S00 Analog Input Module

Yokogawa AAI143-S53/A4S00 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAI143-S53/A4S00

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

  • The Yokogawa AAI143-S53A4S00 is an Analog Input Module designed to handle 16 isolated inputs of 4 to 20 mA signals. It supports dual-redundant configuration and includes a pressure clamp terminal block, making it a reliable and flexible solution for industrial applications requiring precise current input measurement.

Technical Specifications

  • The AAI143-S53A4S00 Analog Input Module has the following specifications:
Item Specification
Model AAI143 (*1)
Number of Input Channels 16, isolated
Input Signal 4 to 20 mA
Allowable Input Current 24 mA
Withstanding Voltage Between input and system: 1500 V AC, for 1 minute (*4)
Input Resistance Power ON: 270 Ω (20 mA) to 350 Ω (4 mA) (*2)
Power OFF: 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA)
25.5 V or less (at 0 mA)
(Output current limit: 25 mA) (*5)
Setting of 2-wire or 4-wire Transmitter For each channel by setting pin
Drift Due to Ambient Temperature Change ±16 µA/10 °C
Maximum Current Consumption 230 mA (5 V DC)
540 mA (24 V DC)
Weight 0.3 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication (*3) Available

Model and Suffix/Option Codes

The AAI143-S53A4S00 includes the following configuration details:

Category Details
Model AAI143 Analog Input Module (4 to 20 mA, 16-channel, Isolated)
Suffix Codes
  • -S: Standard type
  • 5: With no explosion protection
  • 3: With ISA Standard G3 option and temperature (-20 to 70 °C) option
Option Code
  • /A4S00: With Pressure Clamp Terminal Block [Model: ATA4S-00]
