Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV151-P60/B5S00 ATB5S-00 |
|
Description |
32-channel Digital Input Module (24 V DC, with pushbutton input and status display, standard environment) + Pressure Clamp Terminal Block |
🔹 Product Overview

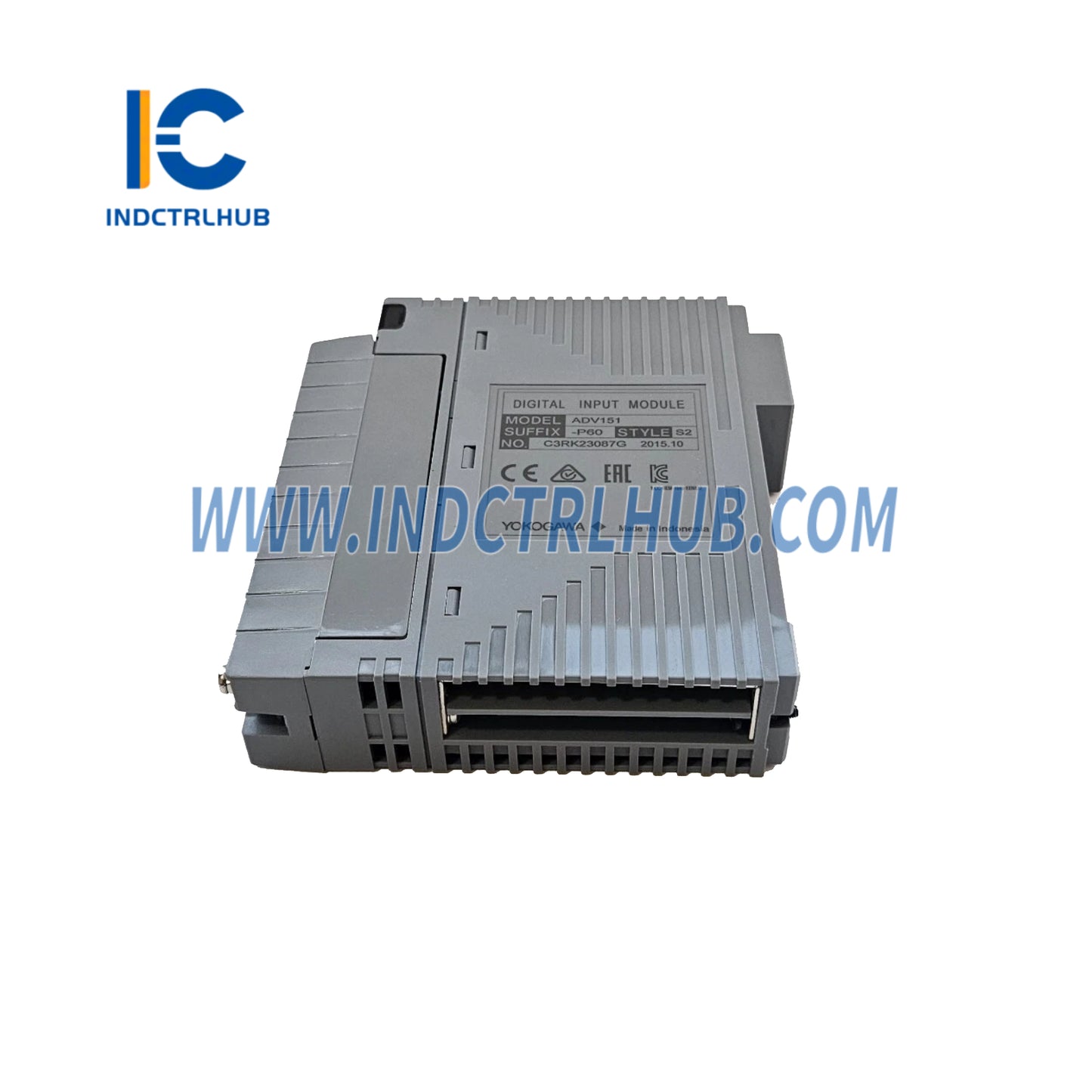

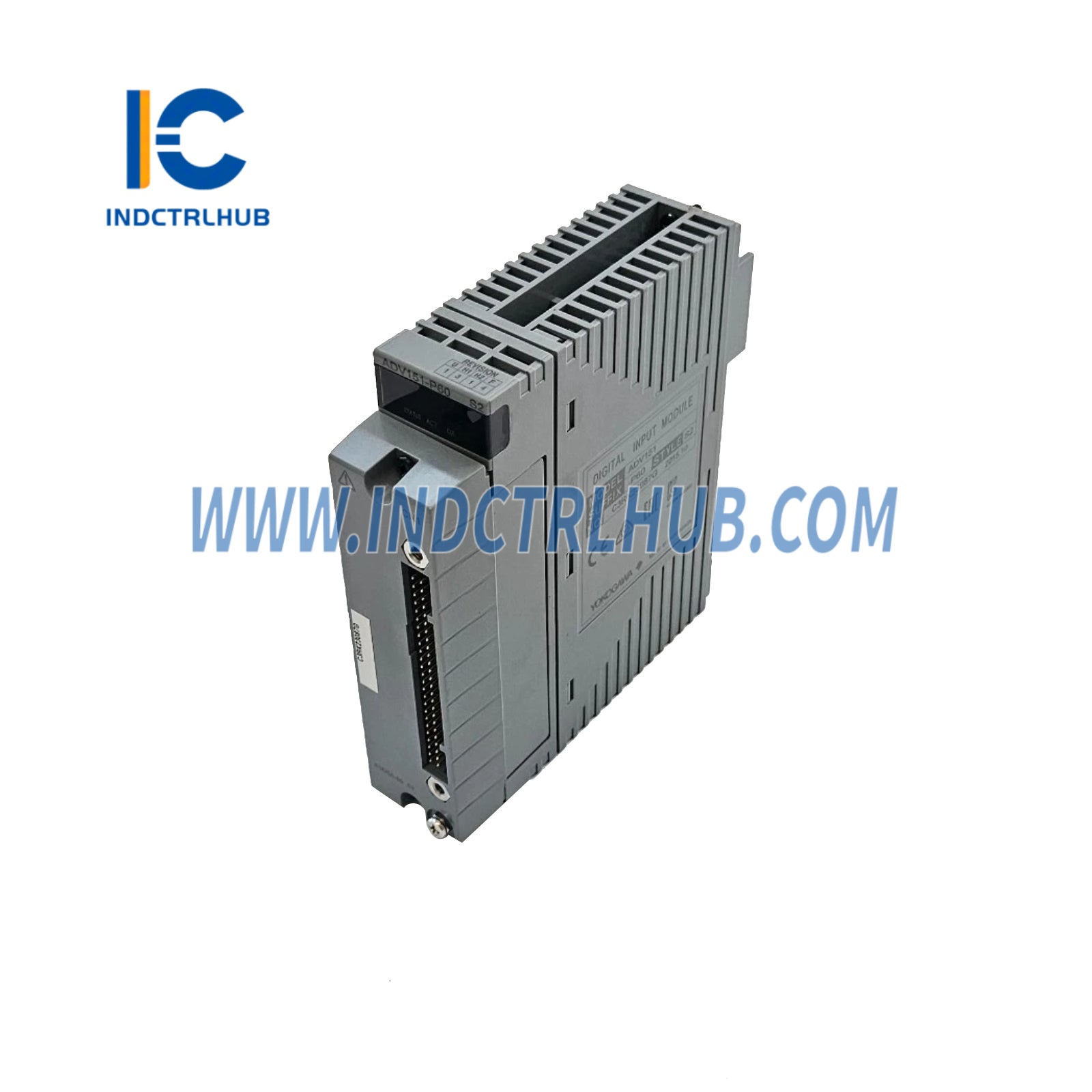

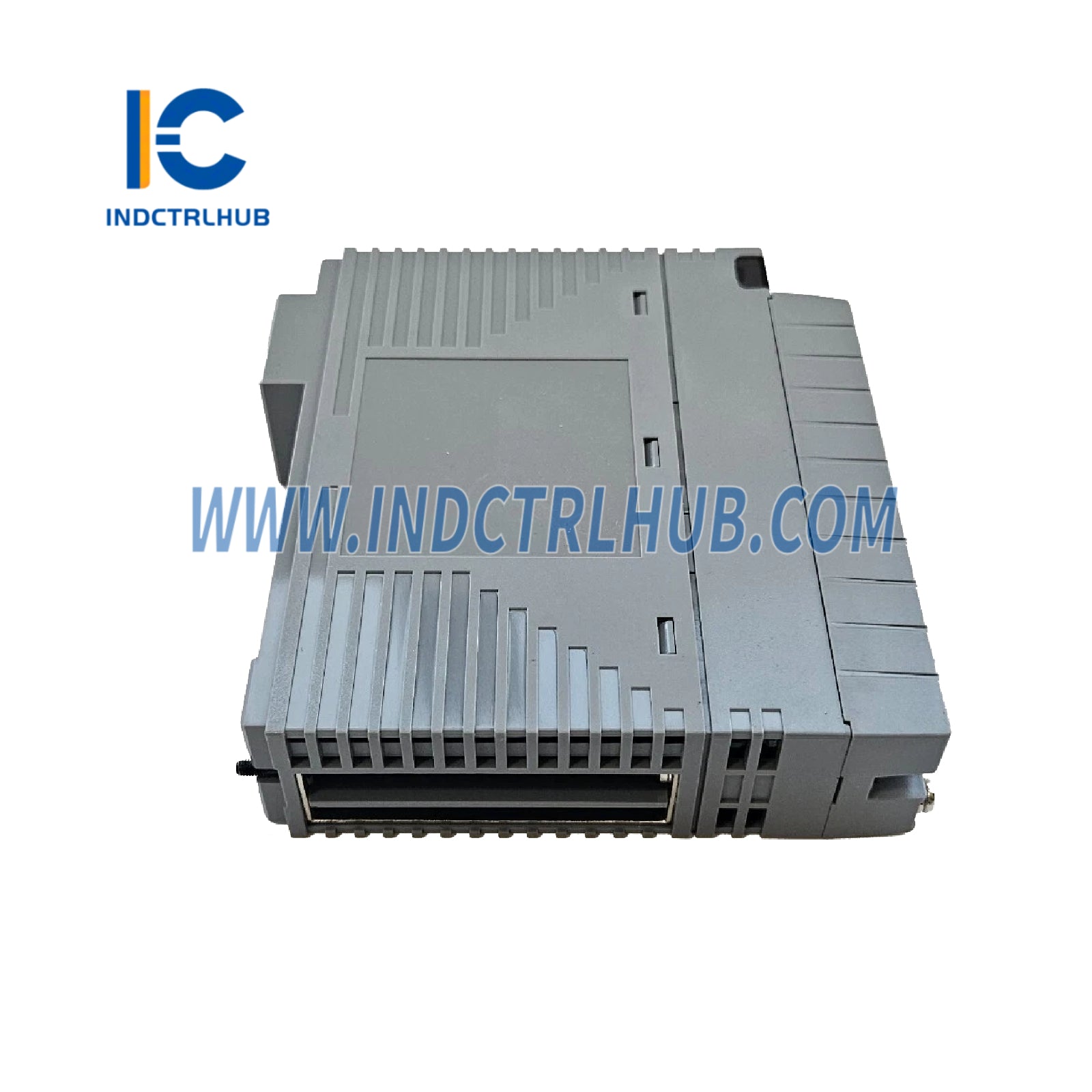

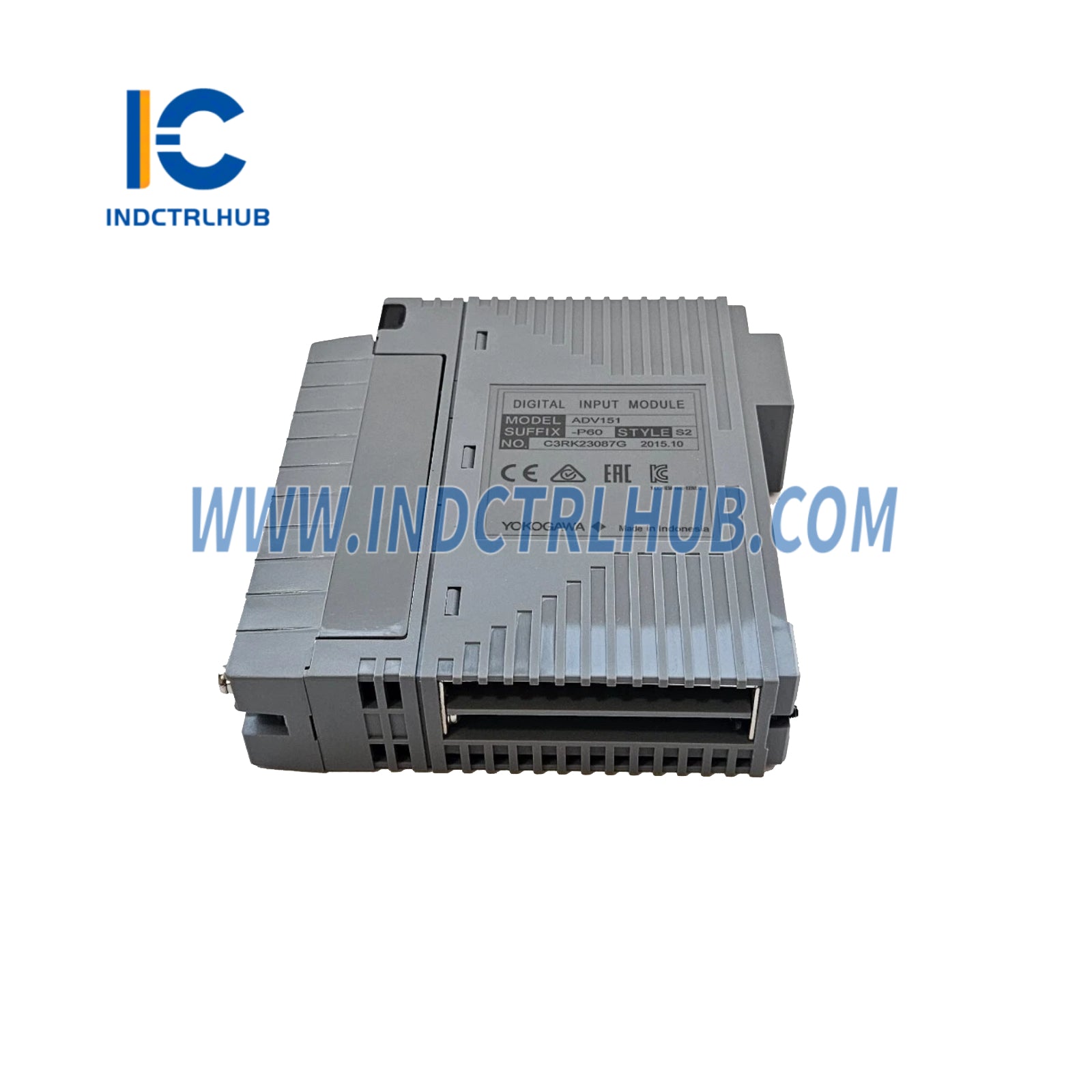

The ADV151-P60/B5S00 is a 32-channel isolated digital input module that processes 24 V DC ON/OFF signals. This model includes pushbutton input capability and a status display, making it suitable for applications requiring both input monitoring and manual operator interaction. It comes bundled with the ATB5S-00 Pressure Clamp Terminal Block for wiring ease.
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
ADV151 |
|
Input Channels |
32 |
|
Input Signal Type |
24 V DC (sink/source compatible) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (typical) |
4.1 mA ±20% per channel |
|
Max Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
2 kV AC (input to system), 500 V AC between commons (per 16 ch) |
|
Status Input Function |
Supported |
|
Pushbutton Input Function |
Supported |
|
SOE Input Function |
Not supported (no “-E” suffix) |
|
Input Response Time |
8 ms or less |
|
Min ON Detection Time |
20 ms (for pushbutton input) |
|
Max ON/OFF Cycle |
25 Hz (for pushbutton input) |
|
Max Current Consumption |
500 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
Pressure Clamp Terminal (ATB5S-00) |
🔹 Suffix & Option Code Breakdown
Suffix Codes in ADV151-P60
|
Code |
Meaning |
|---|---|
|
P |
Pushbutton input enabled |
|
6 |
With status display, no explosion protection |
|
0 |
Basic type |
Option Code in /B5S00
|
Code |
Description |
|---|---|
|
/B5S00 |
Pressure Clamp Terminal Block for Digital Input [Model: ATB5S-00] |
