Product Description
Product Overview

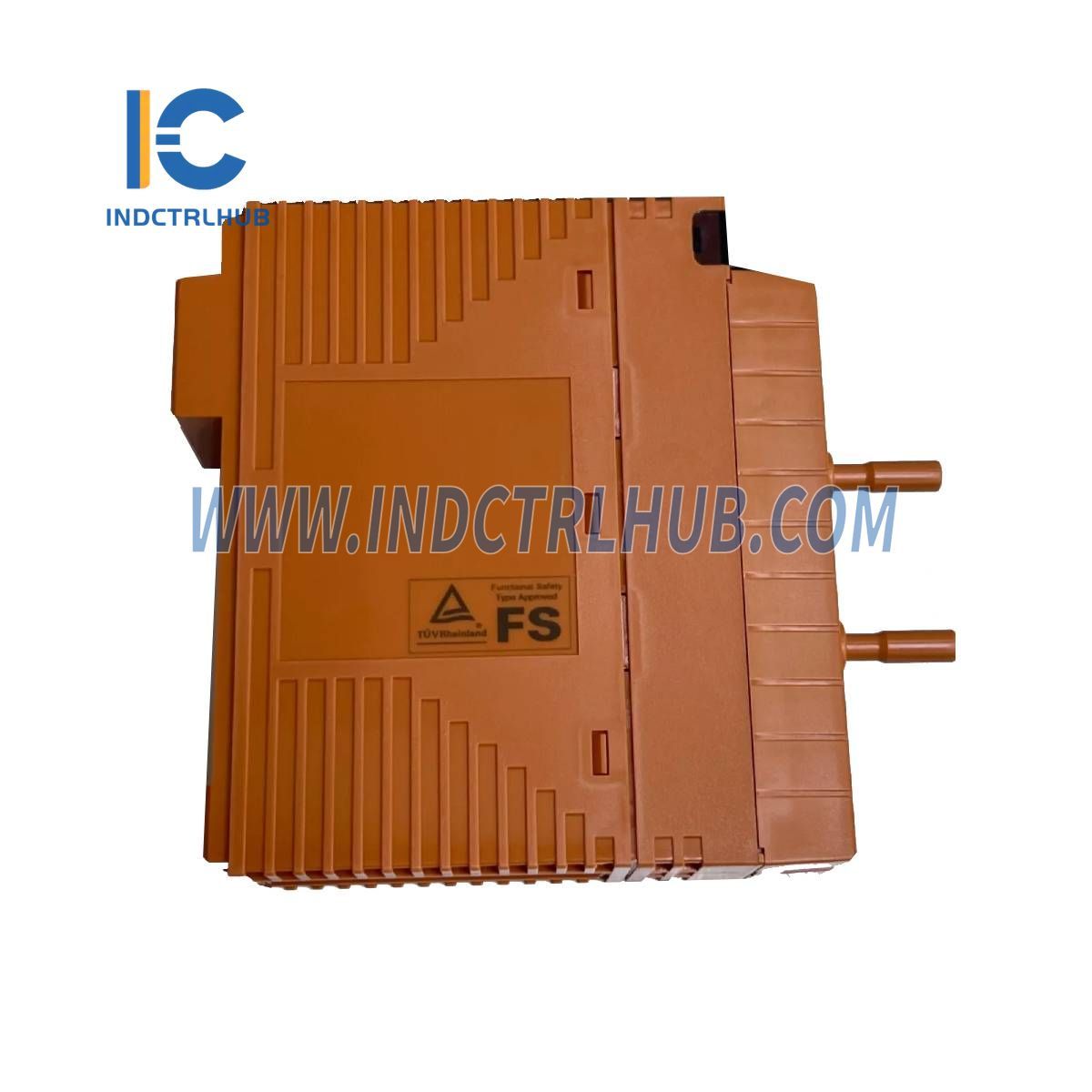

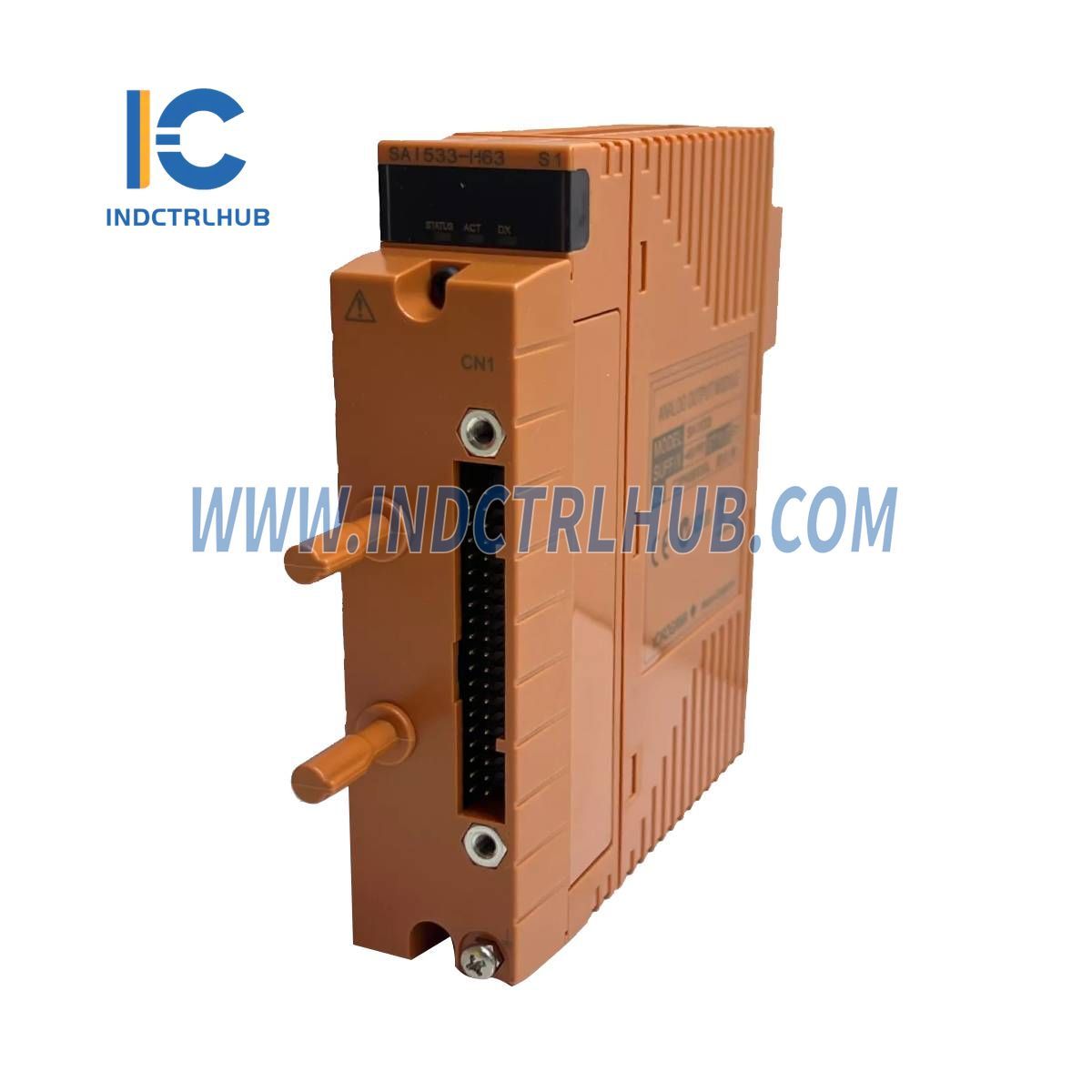

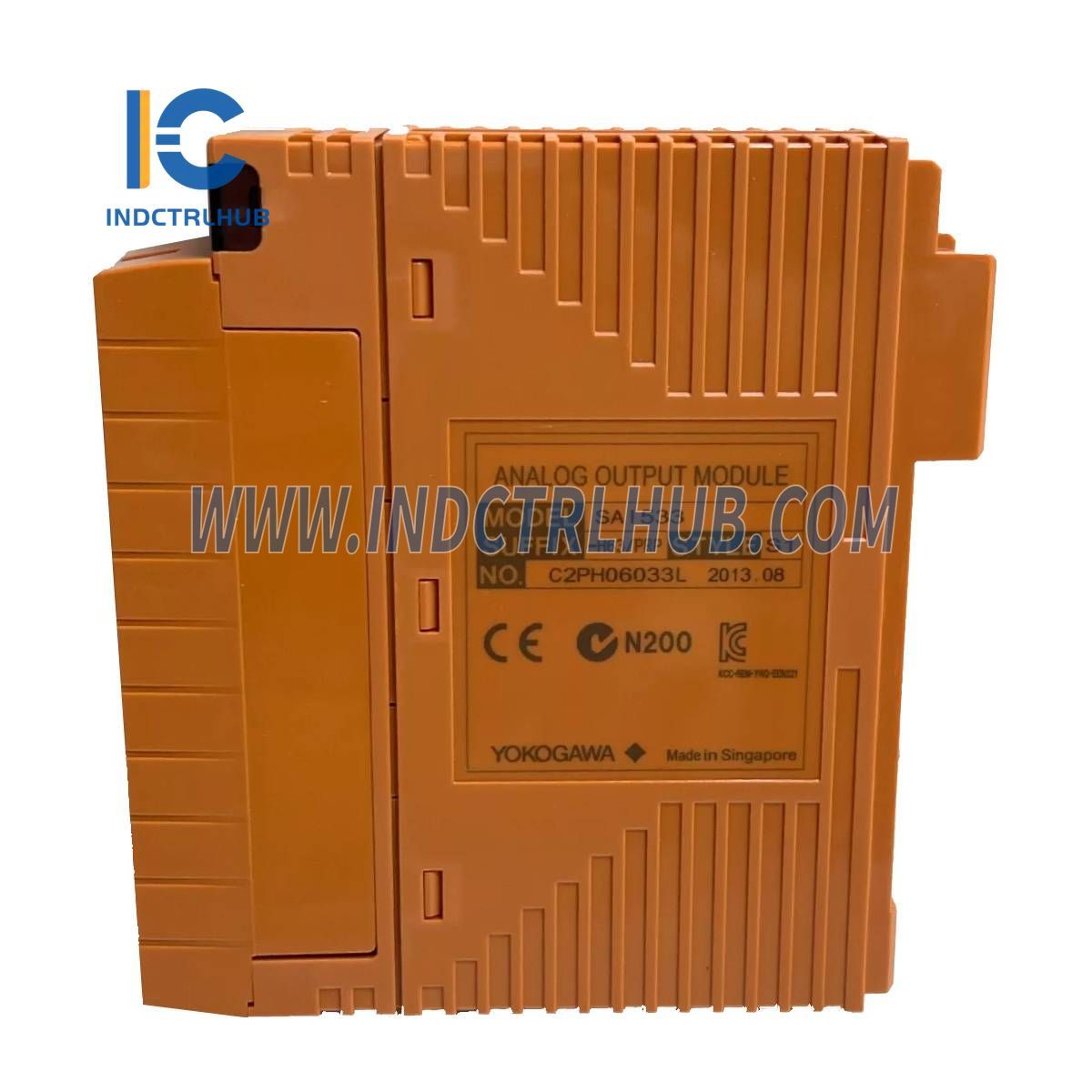

The Yokogawa SAI533-H63/PRP is an Analog Output Module designed to deliver reliable 4 to 20 mA current signals to field devices. This module, identified by the model number SAI533, supports dual-redundant configurations, ensuring enhanced operational stability. It is engineered for precision and durability, making it suitable for a range of industrial applications.
Technical Information
| Specification | Details |
|---|---|
| Number of output channels | 8 channels, module isolation |
| Rated output range | 4 to 20 mA |
| Maximum range of guaranteed precision | 1.25 to 23 mA |
| Output range | 1.25 to 23 mA |
| Allowable load resistance @ rated range | 230 to 600 Ω |
| Accuracy | ±48 µA |
| Data update frequency | 40 ms |
| Temperature drift | ±16 µA/10 ºC |
| Withstand voltage | 1.5 kV AC between output signal and system for 1 minute |
| Maximum current consumption | 5 V system: 320 mA 24 V system: 300 mA |
Physical Characteristics
- Weight:
- Approx. 0.26 kg (with pressure clamp terminal block or MIL cable)
- Approx. 0.33 kg (with signal cable interface adapter)
Connectivity Options
- External connection methods:
- Pressure clamp terminal
- MIL cable
- Dedicated signal cable
- Support PST: Available (KS1)
Model Variants and Features
- Model: SAI533 Analog Output Module (4 to 20 mA, 8 channels, module isolation)
- Suffix Codes:
- -H: With HART communication
- 5: For pressure clamp terminal block or MIL cable with no explosion protection
- 6: With signal cable interface adapter and no explosion protection
- E: For pressure clamp terminal block or MIL cable with explosion protection
- F: With signal cable interface adapter and explosion protection
- 3: With ISA Standard G3 and temperature range (-20 to 70 ºC)
- Option Codes:
- /A4S00: With pressure clamp terminal block for analog [Model: STA4S-00]
- /A4S10: With pressure clamp terminal block for analog (with surge absorber) [Model: STA4S-10]
- /A4D00: With dual-redundant pressure clamp terminal block for analog [Model: STA4D-00]
- /A4D10: With dual-redundant pressure clamp terminal block for analog (with surge absorber) [Model: STA4D-10]
- /PRP: With prevention pin of false insertion
- /CCC01: With connector cover for MIL cable (for flat ribbon cable) [Model: SCCC01]
