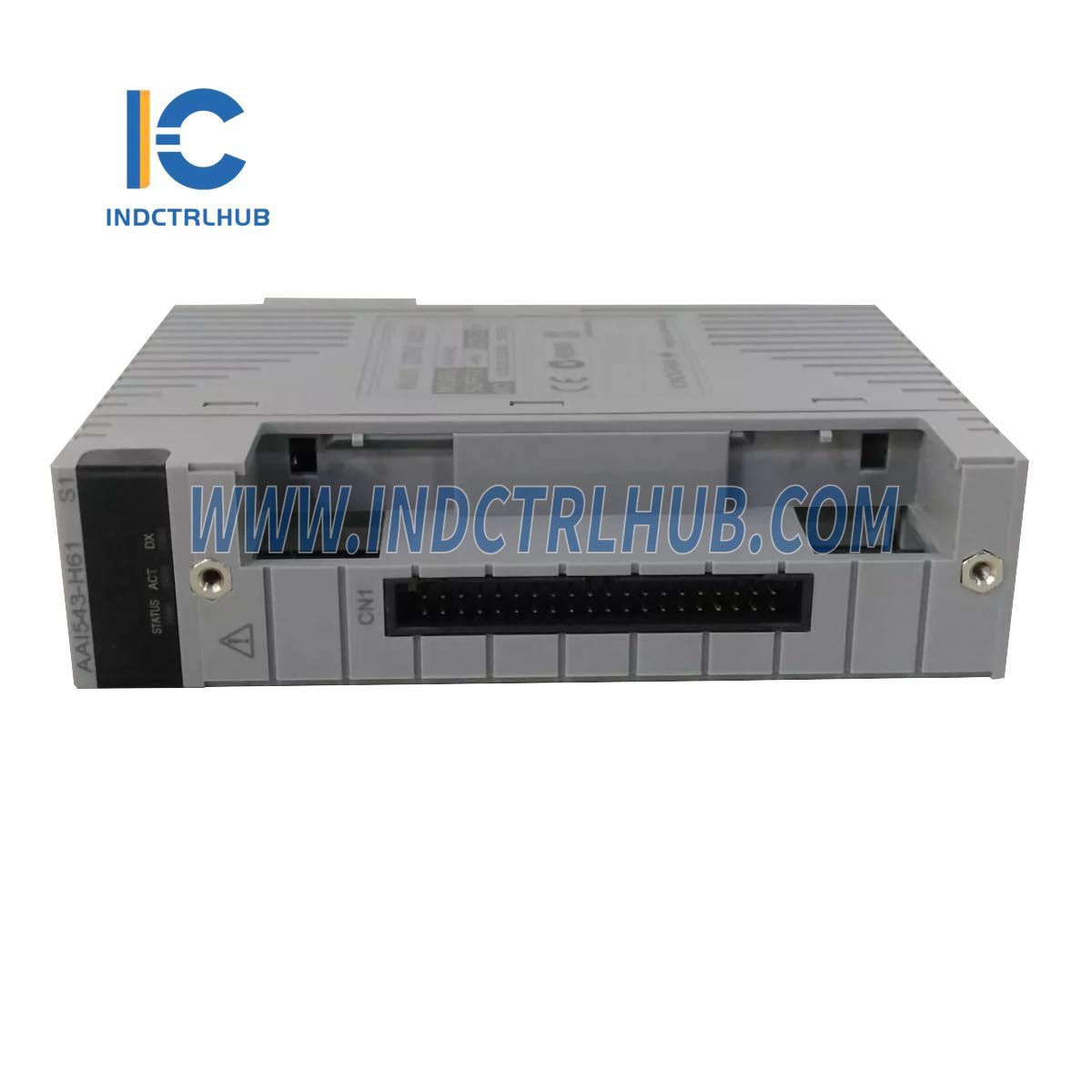

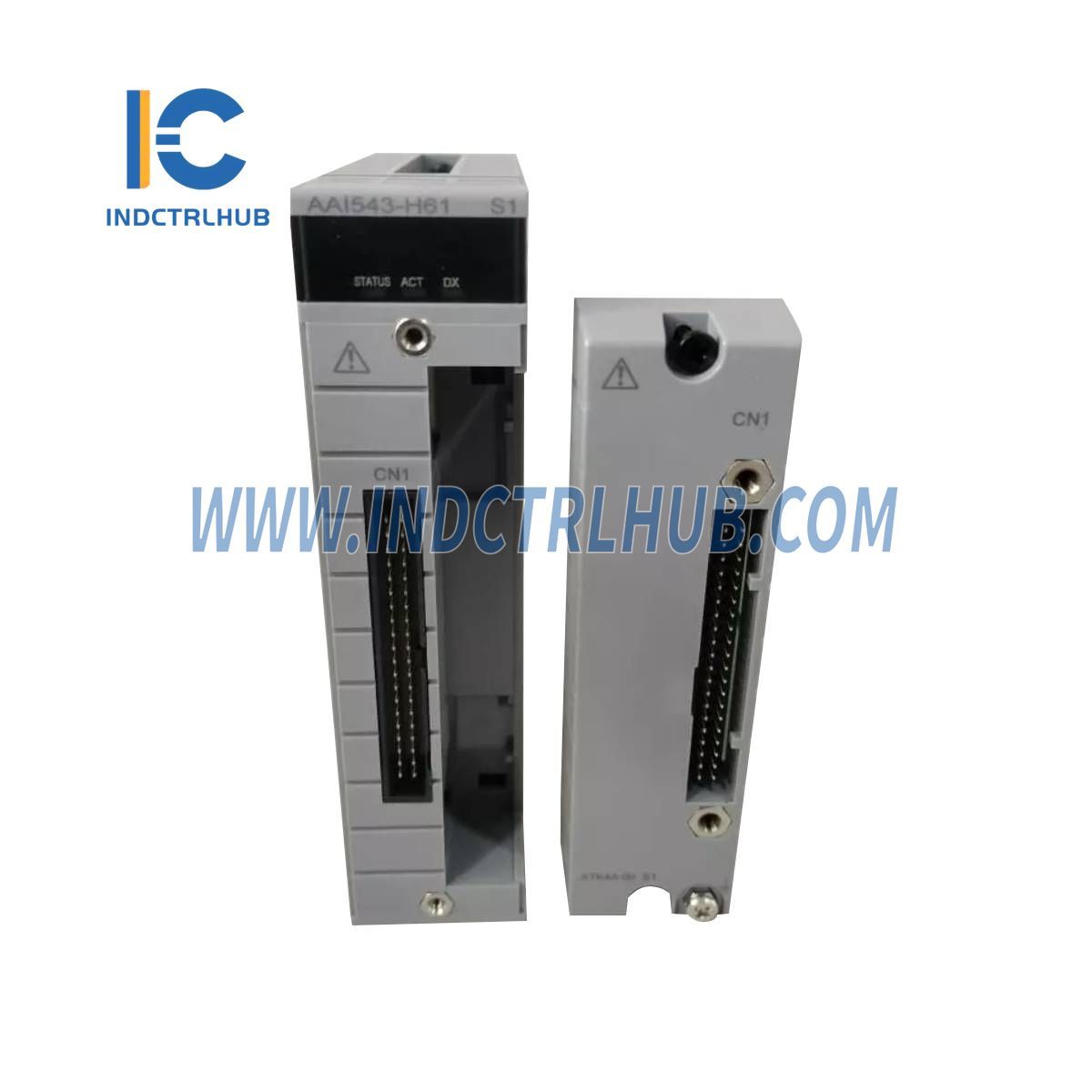

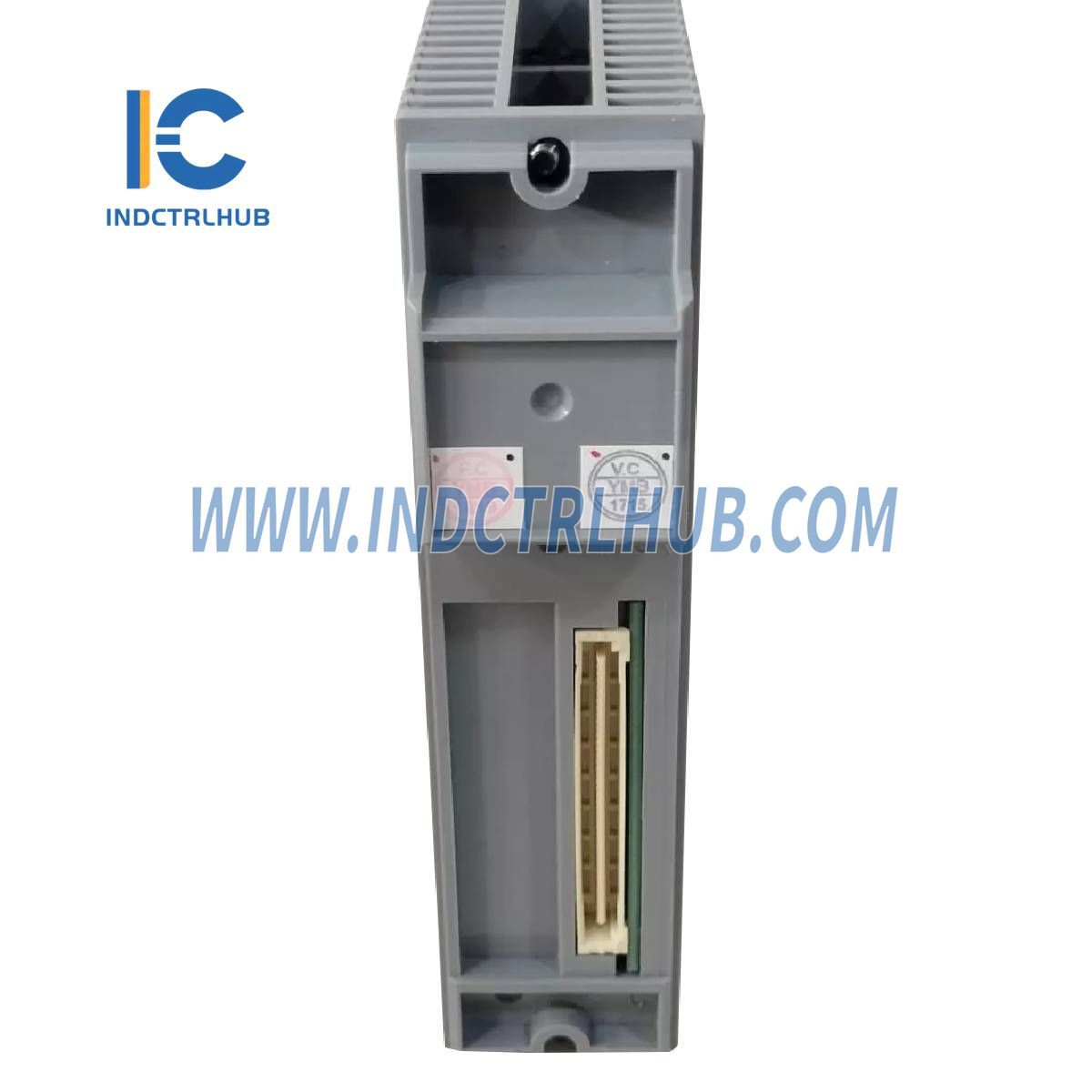

Yokogawa AAI543-H61/K4A00 Analog Output Module
Yokogawa AAI543-H61/K4A00 Analog Output Module
Manufacturer: Yokogawa
Product No.: AAI543-H61/K4A00
Condition:1000 in stock
Product Type: Analog Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | AAI543-H61/K4A00 |
| Description | Analog Output Module (4 to 20 mA, 16-channel, Isolated) |
General Overview
The AAI543-H61/K4A00 is an Analog Output Module that provides 16 isolated output channels in the range of 4 to 20 mA. It is used for current output applications in FIO (Field I/O) and can be used in dual-redundant configurations. The module can be installed in ESB bus node units (ANB10S/D, ANB11S/D), ER bus node units (ANR10S/D), and field control units like AFV30S, AFV30D, and more.
Key Specifications
| Specification | Details |
|---|---|
| Number of Output Channels | 16, isolated, with standard or fast switch-over response in redundant configuration |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | 1500 V AC, for 1 minute |
| Allowable Load Resistance | 0 to 750 _ |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Drift due to Ambient Temperature | ±16 µA/10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Weight | 0.4 kg |
| External Communication | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| HART Communication | Available |
Suffix Codes and Options
| Suffix Code | Description |
|---|---|
| -S | Standard type |
| -H | With digital communication (HART protocol) |
| -5 | Standard switch-over response in redundant configuration, no explosion protection |
| -6 | Fast switch-over response in redundant configuration, no explosion protection |
| -E | Standard switch-over response, explosion protection |
| -F | Fast switch-over response, explosion protection |
| -0 | Basic type |
| -1 | With ISA Standard G3 option |
| -3 | With ISA Standard G3 option and temperature (-20 to 70 °C) option |
Option Codes
| Option Code | Description |
|---|---|
| /K4A00 | With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00] |
| /A4S00 | With Pressure Clamp Terminal Block [Model: ATA4S-00] |
| /A4S10 | With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10] |
| /A4D00 | With Dual Pressure Clamp Terminal Block [Model: ATA4D-00] |
| /A4D10 | With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10] |
| /CCC01 | With Connector Cover for MIL Cable [Model: ACCC01] |
