Product Description

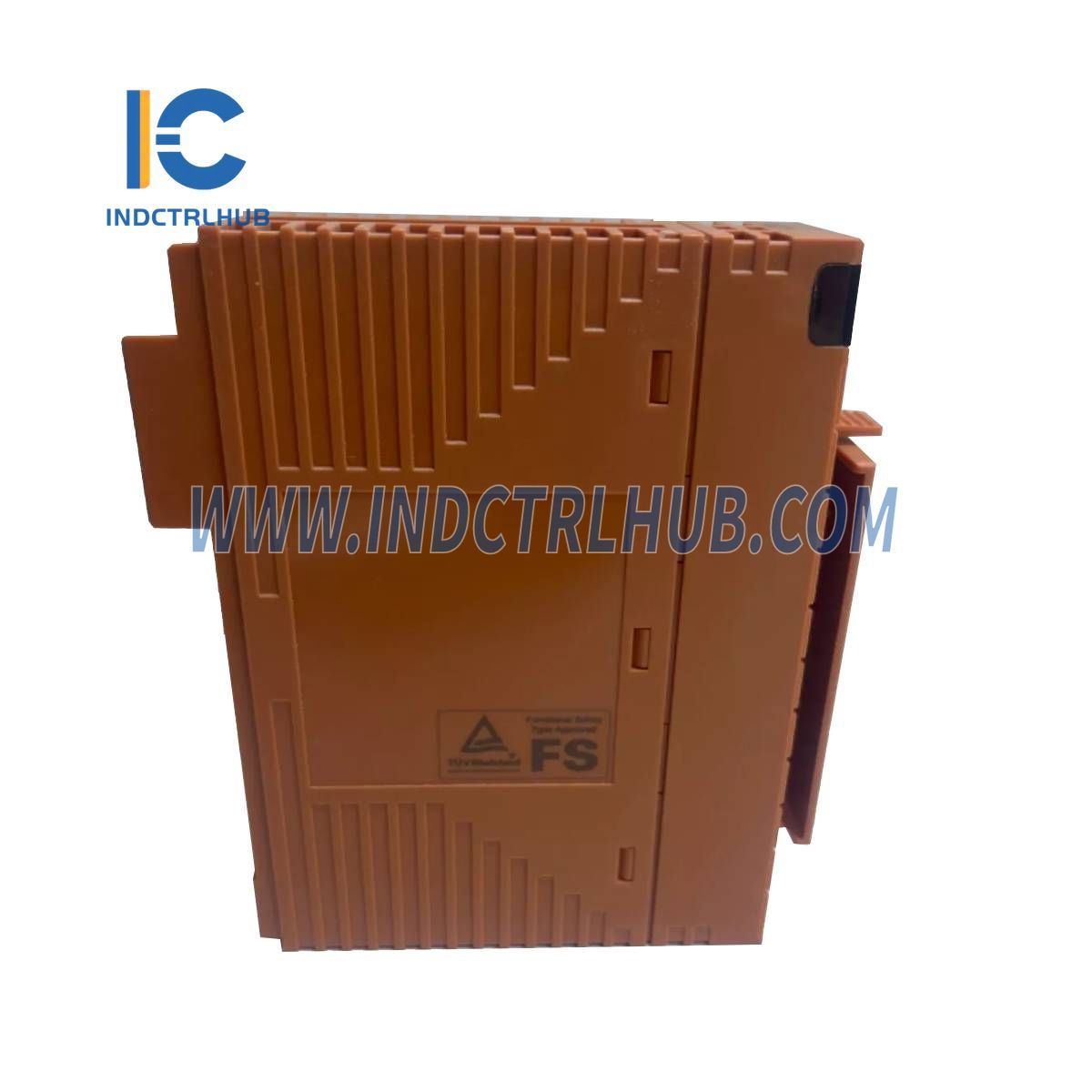

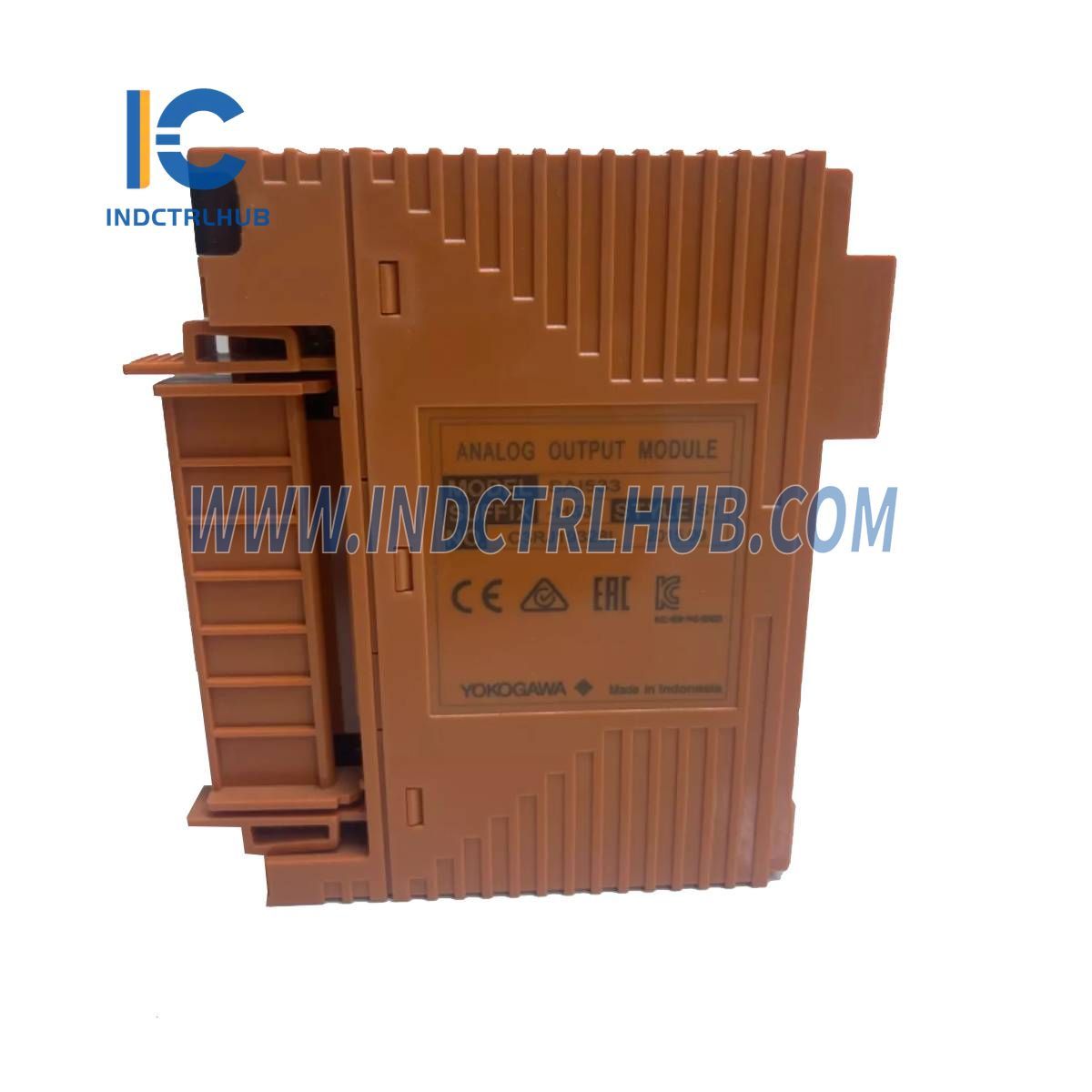

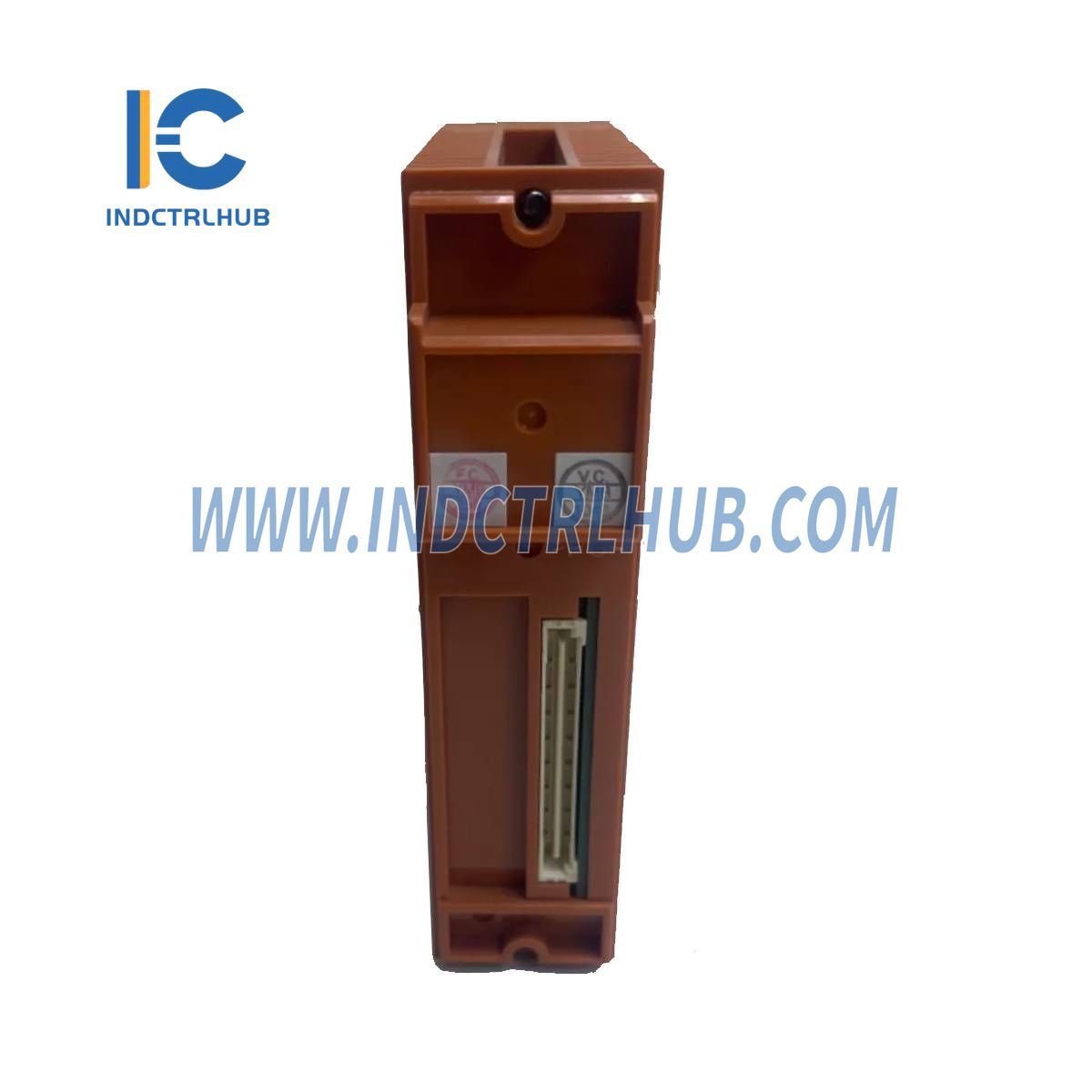

Product Information: Yokogawa SAI533-H53/A4D00 Analog Output Module
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | SAI533-H53/A4D00 |
| Description | Analog Output Module (4 to 20 mA, 8 channels, module isolation) |
Key Specifications
- Number of Output Channels: 8 channels, module isolation
- Rated Output Range: 4 to 20 mA
- Maximum Range of Guaranteed Precision: 1.25 to 23 mA
- Allowable Load Resistance (at rated range): 230 to 600 Ω
- Accuracy: ±48 µA
- Data Update Frequency: 40 ms
- Temperature Drift: ±16 µA/10 ºC
- Withstand Voltage: 1.5 kV AC between output signal and system for 1 minute
-
Maximum Current Consumption:
- 5 V system: 320 mA
- 24 V system: 300 mA
-
Weight:
- Approx. 0.26 kg (For pressure clamp terminal block or MIL cable)
- Approx. 0.33 kg (With signal cable interface adapter)
-
External Connection:
- Pressure clamp terminal
- MIL cable
- Dedicated signal cable
- Support: PST (KS1)
Description
The SAI533-H53/A4D00 Analog Output Module is designed for providing 4-20 mA current output signals to the field with 8 isolated output channels. It offers high precision and is ideal for applications requiring dual redundancy. The module supports HART communication and includes various mounting options for flexible integration with different systems.
Suffix & Option Codes
-
Suffix Codes:
- -H: With HART communication
- 5: For pressure clamp terminal block or MIL cable (no explosion protection)
- 6: With signal cable interface adapter (no explosion protection)
- E: For pressure clamp terminal block or MIL cable (with explosion protection)
- F: With signal cable interface adapter (with explosion protection)
- 3: With ISA Standard G3 and temperature (-20 to 70 ºC)
-
Option Codes:
- /A4S00: With pressure clamp terminal block for analog
- /A4S10: With pressure clamp terminal block (with surge absorber)
- /A4D00: With dual-redundant pressure clamp terminal block for analog
- /A4D10: With dual-redundant pressure clamp terminal block (with surge absorber)
- /PRP: With prevention pin of false insertion
- /CCC01: With connector cover for MIL cable (for flat ribbon cable)
