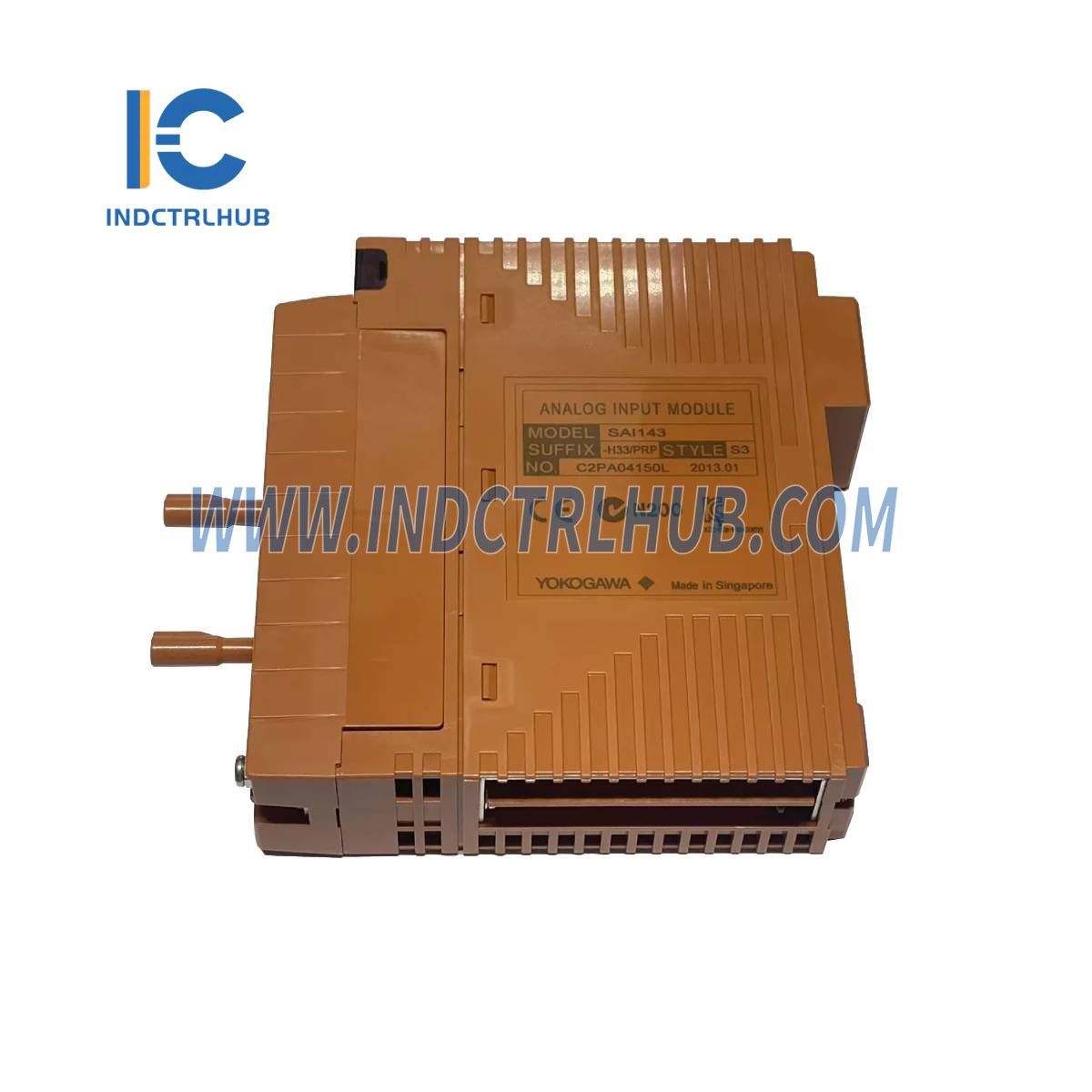

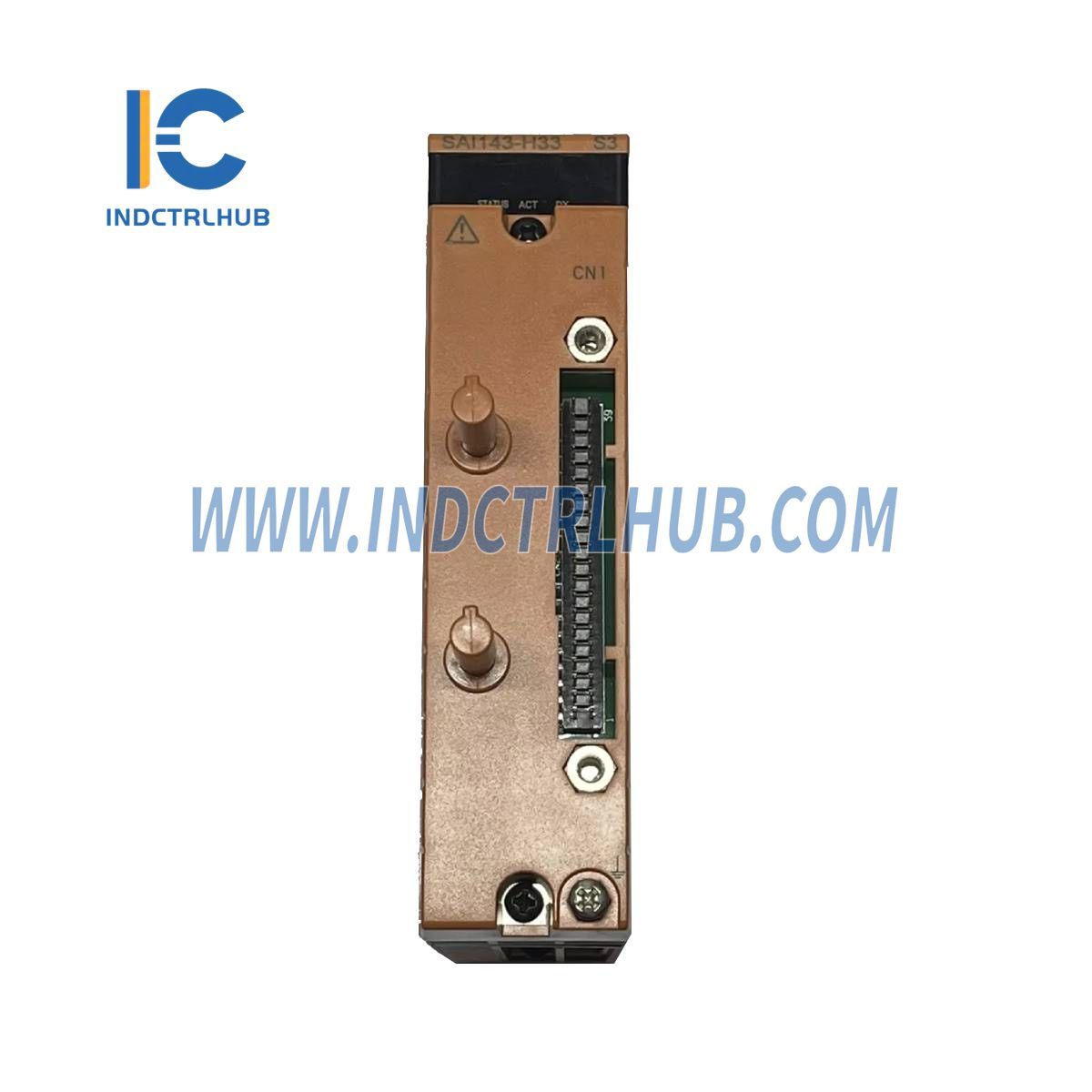

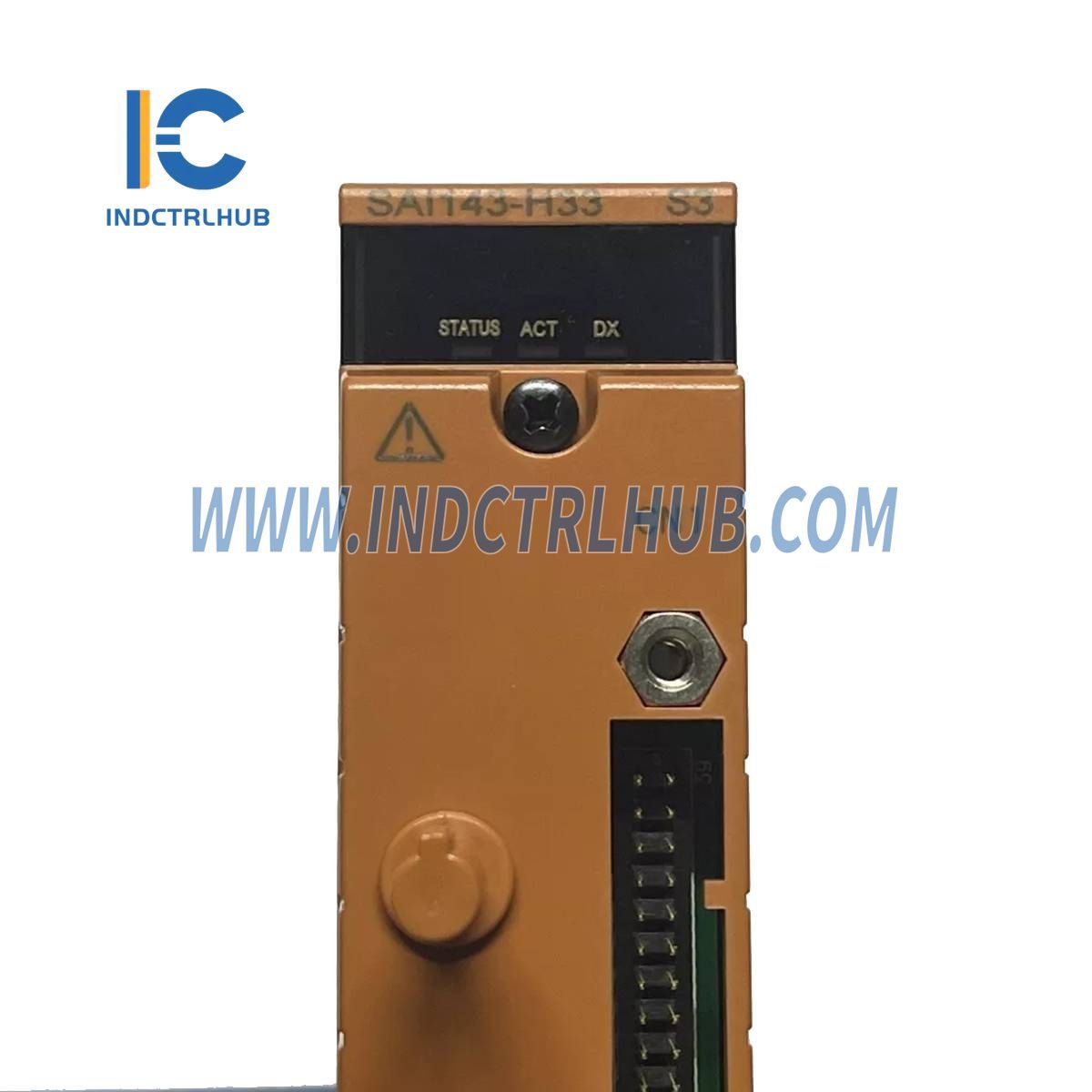

Yokogawa SAI143-H33 Analog Input Module
Yokogawa SAI143-H33 Analog Input Module
Manufacturer: Yokogawa
Product No.: SAI143-H33
Condition:1000 in stock
Product Type: Analog Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 390g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
The Yokogawa SAI143-H33 is an Analog Input Module designed to process 4 to 20 mA signals from the field across 16 isolated channels. It supports HART communication and can be configured for dual-redundant operation, making it a robust and versatile solution for industrial control systems requiring precise current input measurement.
Technical Specifications
The SAI143-H33 Analog Input Module has the following specifications:
| Item | Specification |
|---|---|
| Model | SAI143 (*1) |
| Number of Input Channels | 16 channels, module isolation (*5) |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance During Power-ON | 250 Ω + Current value Voltage drop in the input protection circuit inside the module (*6) |
| Input Impedance During Power-OFF | 500 kΩ minimum |
| Rated Accuracy | SAI143-H: ±16 µA (Input range 0.05 to 23 mA) (*3) (*4) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA/10 °C |
| Transmitter Power Supply | 16.15 V minimum (at 20 mA) 26.4 V maximum (at 0 mA) (Output current limit: 25 mA) |
| 2/4-Wire Setting | Individual channel setting, changed by setting pins |
| Withstand Voltage | 1.5 kV AC between input signal and system for 1 minute (*2) |
| Maximum Current Consumption | 5 V system: 320 mA 24 V system: 550 mA |
| Weight | Approx. 0.34 kg (For pressure clamp terminal block or MIL cable) Approx. 0.39 kg (With signal cable interface adapter) |
| External Connection | Pressure clamp terminal, MIL cable, Dedicated signal cable |
| Support PRM | Available (SAI143-H) |
| Transmitter Power Supply ON/OFF Function (*7) | Available in 2-wire setting, for all 16 channels at the same time |
Model and Suffix/Option Codes
The SAI143-H33 includes the following configuration details:
| Category | Details |
|---|---|
| Model | SAI143 Analog Input Module (4 to 20 mA, 16 channels, module isolation) |
| Suffix Codes |
|
_
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | NFSB100-S0/SBT01 SB Bus Repeat Module | 643-1643 | 923 | NFSB100-S0/SBT01 SB Bus Module |
| YOKOGAWA | FLXA21 2-Wire Dual Channel Transmitter | 2643-3643 | 185 | FLXA21 Transmitter/Analyzer |
| YOKOGAWA | AFV10D-S41211 Duplexed Field Control Unit | 5400-6400 | 541 | AFV10D-S41211 Field Control Unit |
| YOKOGAWA | A2SDV105-S000 Digital Input Adaptor | 929-1929 | 753 | A2SDV105-S000 Digital Input Adaptor |
| YOKOGAWA | FX1006 6-Channel Paperless Recorder | 571-1571 | 231 | FX1006 Paperless Recorder |
| YOKOGAWA | AAP135-S53/K4A00 Pulse Input Module | 500-1429 | 185 | AAP135-S53/K4A00 Pulse Input Module |
| YOKOGAWA | GP10 Paperless Recorder | 2857-3857 | 208 | GP10 Paperless Recorder |
