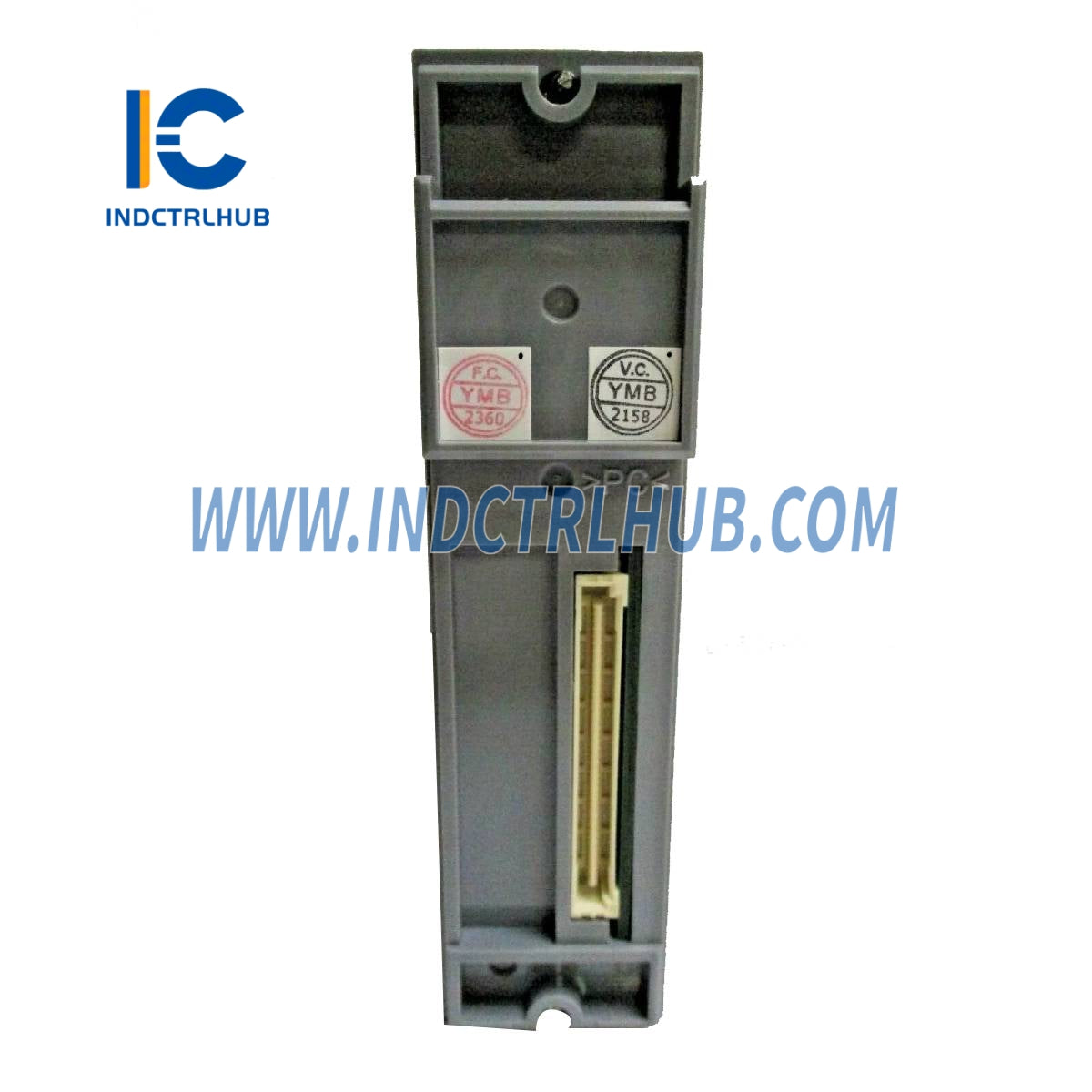

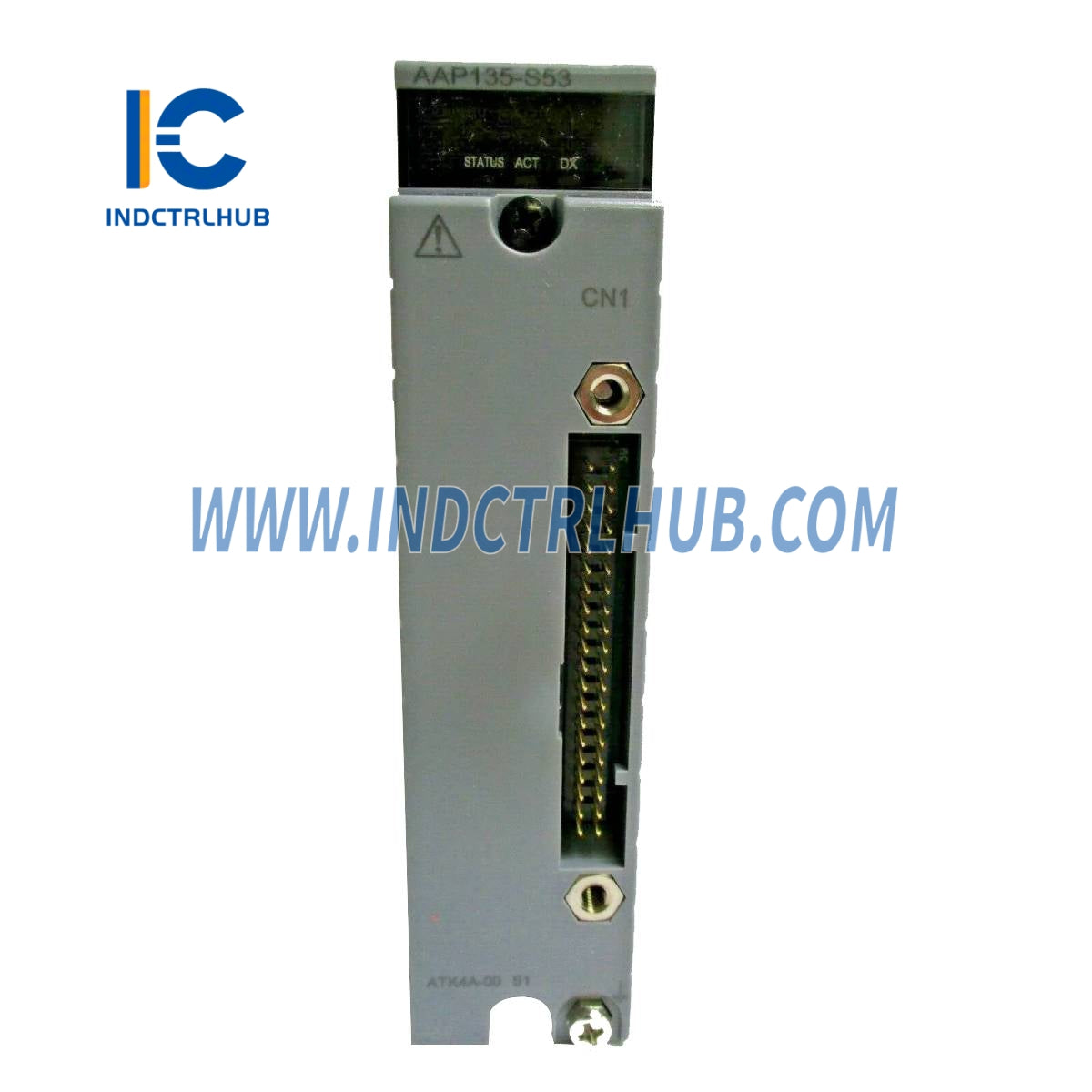

Yokogawa AAP135-S53/K4A00 Pulse Input Module
Yokogawa AAP135-S53/K4A00 Pulse Input Module
Manufacturer: Yokogawa
Product No.: AAP135-S53/K4A00
Condition:1000 in stock
Product Type: Pulse Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAP135-S53/K4A00 |
|
Description |
Pulse Input Module (8-channel, Isolated Channels, Pulse Count 0 to 10 kHz) |
_
_
__ Description Summary
The_AAP135-S53/K4A00_is an 8-channel_Pulse Input Module_capable of receiving_contact ON/OFF,_voltage pulse, and_current pulse_signals. Each channel is_electrically isolated, and the unit is suitable for_dual-redundant configurations. This specific model includes the_ISA G3 and temperature (-20 to 70°C) option_and is equipped with a_KS cable interface adapter_(ATK4A-00).
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Input Channels |
8 (individually isolated) |
|
Input Signal Types |
2-wire: Contact ON/OFF, voltage pulse, current pulse3-wire: Voltage pulse |
|
Input Frequency Range |
0 to 10 kHz |
|
Minimum Pulse Width |
40 µs |
|
Withstanding Voltage |
500 V AC (1 min) between channels and between input/system |
|
Input Signal Levels |
Voltage/Current Pulse:VH: 3_24 V DCVL: -1_8 V DCSwing _ 3 V |
|
Contact Input:Open _ 100 k_, Close _ 200 _ |
|
|
Contact Capacity |
15 V DC 15 mA min (with 12 V supply)30 V DC 30 mA min (with 24 V supply) |
|
Signal Source Resistance |
_ 1 k_ |
|
Selectable Shunt Resistance |
None / 200 _ / 500 _ / 1000 _ |
|
Pull-up Resistance |
68 k_ (for 12 V or 24 V DC) |
|
Transmitter Power Supply |
Selectable 12 V DC or 24 V DC |
|
Transmitter Current Limit |
12 V: 40 mA ±10%24 V: 30 mA ±10% |
|
Filter Function |
Chattering filter can be enabled |
|
Data Update Period |
2 ms |
|
Maximum Current Consumption |
300 mA (5 V DC), 400 mA (24 V DC) |
|
Weight |
Approx. 0.3 kg |
|
External Connection |
Pressure clamp terminal, KS cable, MIL connector cable |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | CP461-50 Processor Module for CENTUM VP Control Systems | 500_1000 | 780 | CP461-50 Processor Module |
| YOKOGAWA | ADV151-P60/D5A00 32-Channel Digital Input Module with Terminal Block | 571_1571 | 360 | ADV151-P60/D5A00 Digital Input Module |
| YOKOGAWA | YNT512D Bus Repeater Module for Network Extension | 1786_2786 | 620 | YNT512D Bus Repeater Module |
| YOKOGAWA | NFBU200-S10 Base Module for Control System Integration | 1214_2214 | 440 | NFBU200-S10 Base Module |
| YOKOGAWA | NFDV551-P10 S2 24V DC Digital Output Module for DCS | 571_1571 | 810 | NFDV551-P10 S2 Digital Output Module |
| YOKOGAWA | AFV30D-S41152 Duplexed Field Control Unit for Redundant Systems | 5214_6214 | 290 | AFV30D-S41152 Field Control Unit |
| YOKOGAWA | AFV30D-S41251 Duplexed Field Control Unit for High Availability | 5214_6214 | 670 | AFV30D-S41251 Field Control Unit |
_
__ Model and Suffix Code Breakdown
|
Model |
AAP135__ Pulse Input Module (8-channel, 0 to 10 kHz, Isolated) |
|---|---|
|
-S |
Standard type |
|
5 |
With no explosion protection |
|
3 |
With ISA Standard G3 option and wide temperature range (-20 to 70 °C) |
|
/K4A00 |
With KS Cable Interface Adapter [Model: ATK4A-00] |
_
_
__ Optional Accessories (Included: /K4A00)
|
Option Code |
Description |
|---|---|
|
/13A00 |
KS Cable Interface Adapter [ATI3A-00] |
|
/K4A00 |
KS Cable Interface Adapter [ATK4A-00]_(included with this model) |
|
/13S00 |
Pressure Clamp Terminal Block for Pulse Input [ATI3S-00] |
|
/13S10 |
Pressure Clamp Terminal Block with Surge Absorber [ATI3S-10] |
|
/13D00 |
Dual Pressure Clamp Terminal Block [ATI3D-00] |
|
/13D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber [ATI3D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [ACCC01] |
