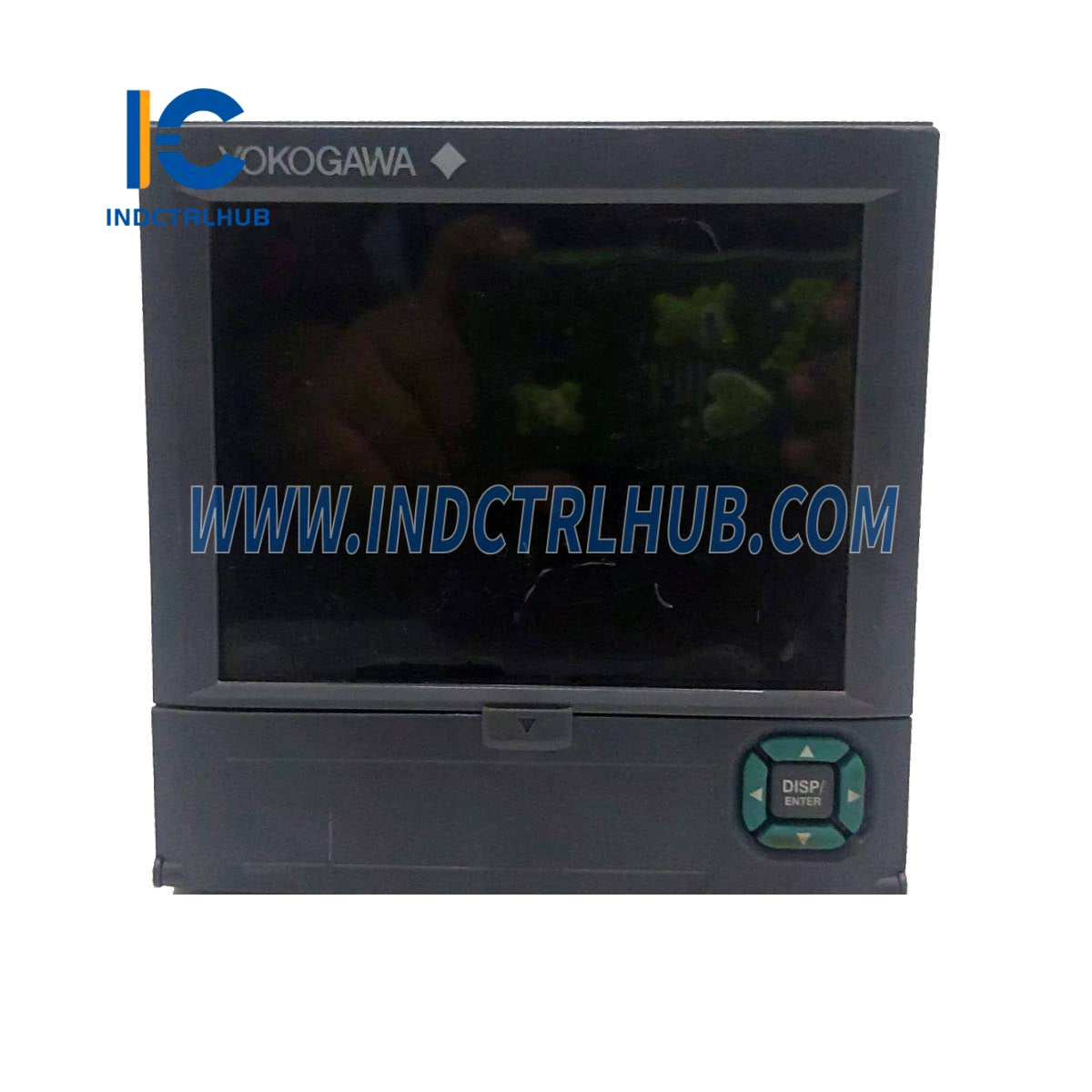

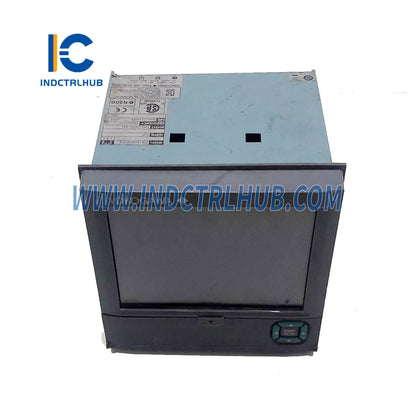

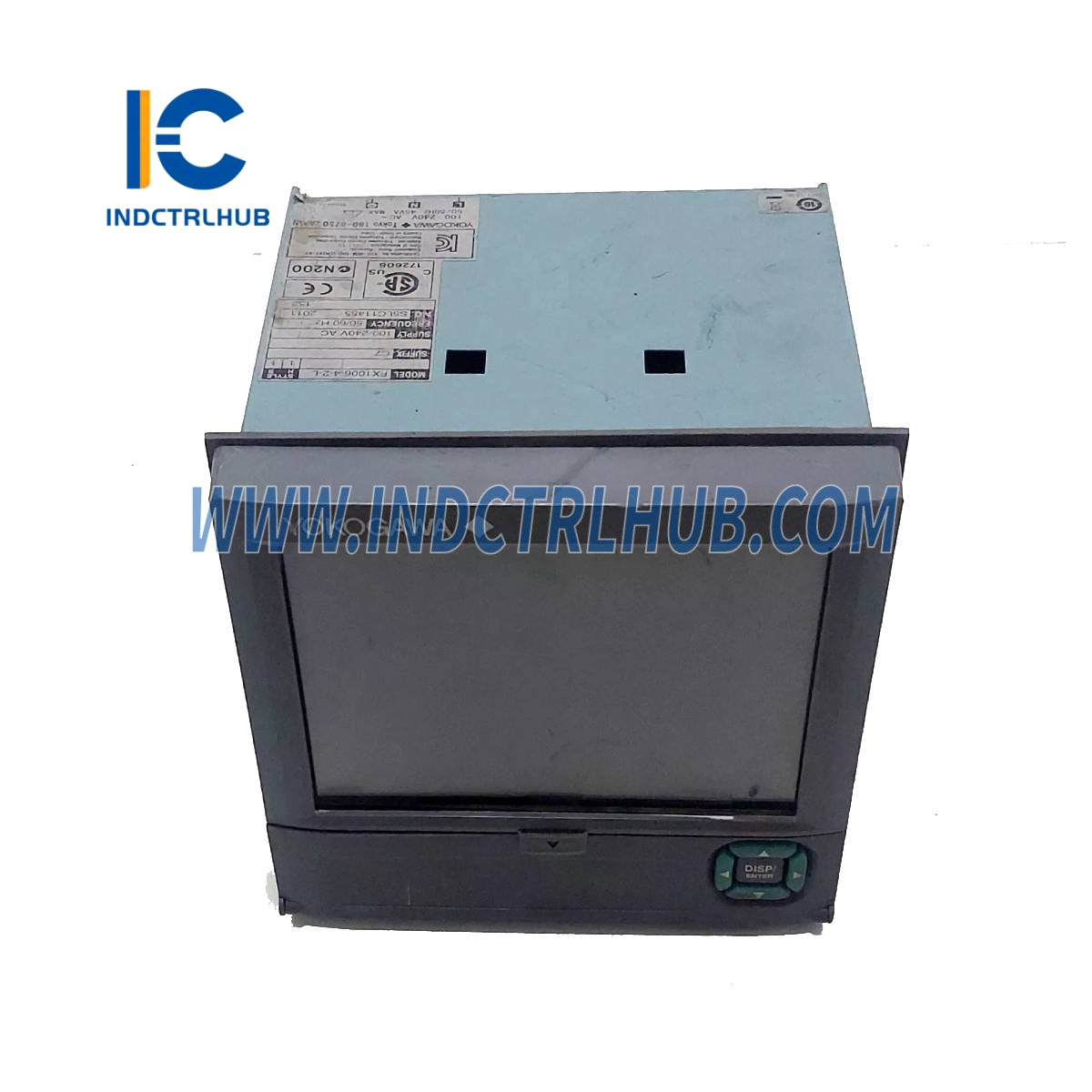

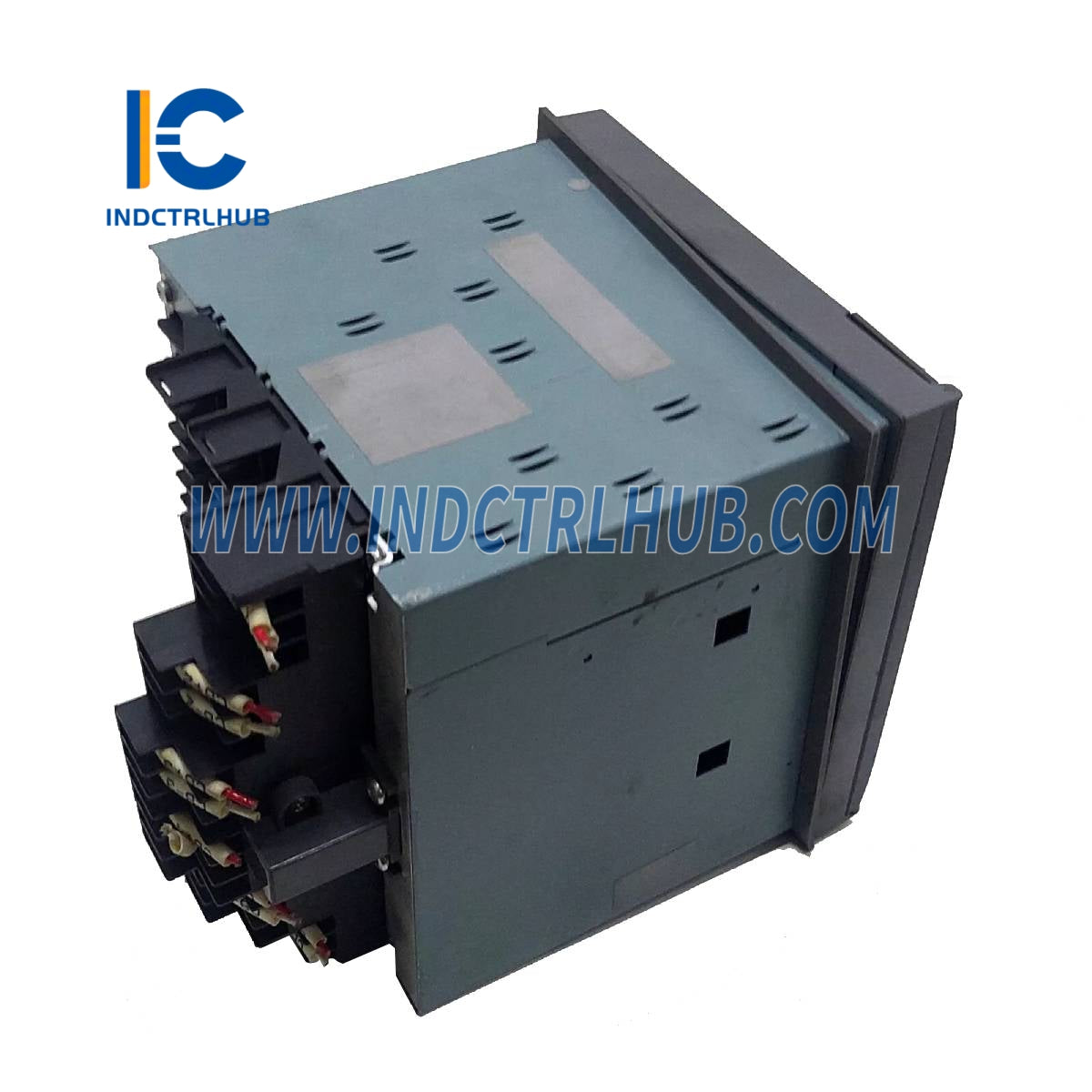

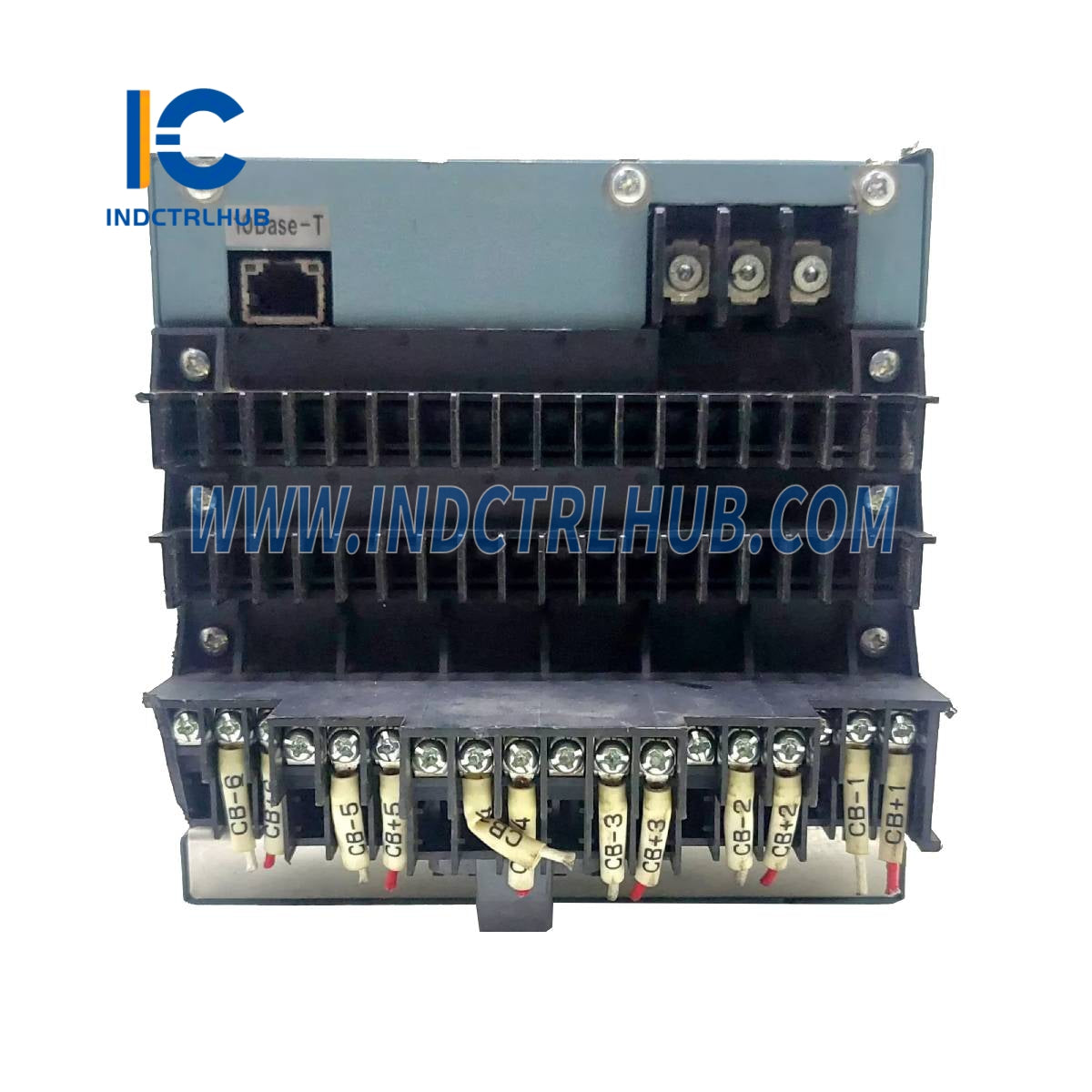

Yokogawa FX1006 6-channel Paperless Recorder
Yokogawa FX1006 6-channel Paperless Recorder
Manufacturer: Yokogawa
Product No.: FX1006
Condition:1000 in stock
Product Type: 6-channel Paperless Recorder
Product Origin: Japan
Payment: T/T, Western Union
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
FX1006 |
|
Description |
6-channel Paperless Recorder |
_
_
__ General Specifications
|
Item |
Description |
|---|---|
|
Mounting |
Flush panel mounting (vertical plane) |
|
Mounting Angle |
Inclined backward up to 30° from horizontal plane |
|
Allowable Panel Thickness |
2 to 26 mm |
|
Material |
Case: Metal plateBezel & Display Cover: Polycarbonate |
|
Color |
Case: Grayish blue green (Munsell 2.0B5.0/1.7)Bezel: Charcoal gray light |
|
Front Panel Protection |
IEC529-IP65 (water/dustproof, not for side-by-side mounting) |
|
Dimensions |
144 (W) _ 144 (H) _ 161.7 (D) mm |
|
Weight |
Approx. 1.3 kg (FX1002__X1006, excluding options) |
_
_
__ Power Supply
|
Rated Supply Voltage |
100 to 240 VAC |
|---|---|
|
Voltage Range |
90 to 264 VAC |
|
Rated Frequency |
50/60 Hz |
|
Power Consumption |
See below: |
|
Supply Voltage |
LCD Backlight |
Normal |
Maximum |
|---|---|---|---|
|
100 VAC |
Off |
10 VA |
35 VA |
|
240 VAC |
Off |
15 VA |
45 VA |
_
_
__ Model Information
|
Model Code |
Channels |
Measurement Interval |
|---|---|---|
|
FX1006 |
6 |
1 second |
_
_
__ Available Suffix Codes and Options
|
Category |
Code |
Description |
|---|---|---|
|
External Storage |
-0 |
No CF/SD card |
|
-4 |
CF card slot + 512MB media |
|
|
-7 |
SD card slot + 1GB media |
|
|
Language |
-2 |
Multilingual (including English, Japanese, etc.) |
|
Withstanding Voltage |
-H |
1000 VAC (50/60 Hz) |
|
-L |
400 VAC (50/60 Hz) |
|
|
Options |
/A1_/A4A |
Alarm outputs (2 to 12 points, C or A contact) |
|
/C2_/C7 |
Communication (RS-232, RS-422A/485, Ethernet) |
|
|
/F1 |
FAIL/Status output |
|
|
/M1 |
Mathematical/report functions |
|
|
/N2, /N3F |
RTD input options |
|
|
/P1 |
24 VDC/AC power supply |
|
|
/R1 |
Remote control (8 points) |
|
|
/TPS2, /TPS4 |
24 VDC transmitter power supply (2 or 4 loops) |
|
|
/USB1 |
USB interface (1 port) |
|
|
/PM1 |
Pulse input 3 pts, remote control 5 pts (w/ Math functions) |
|
|
/CC1 |
Calibration correction function |
|
|
/LG1 |
Log scale |
|
|
/PWR1, /PWR5 |
Power monitor (1A or 5A, with math functions) |
_
