Product Description
Product Overview

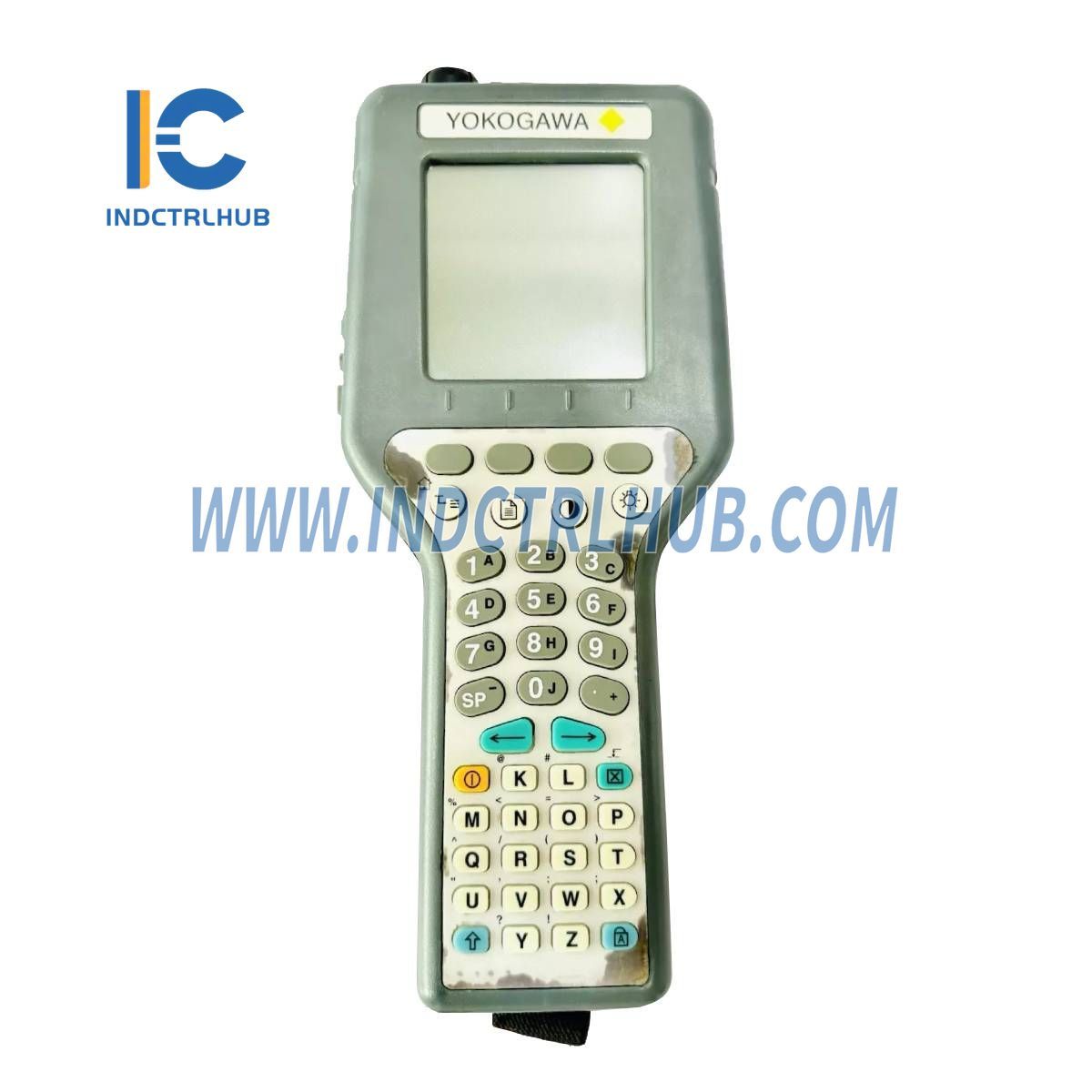

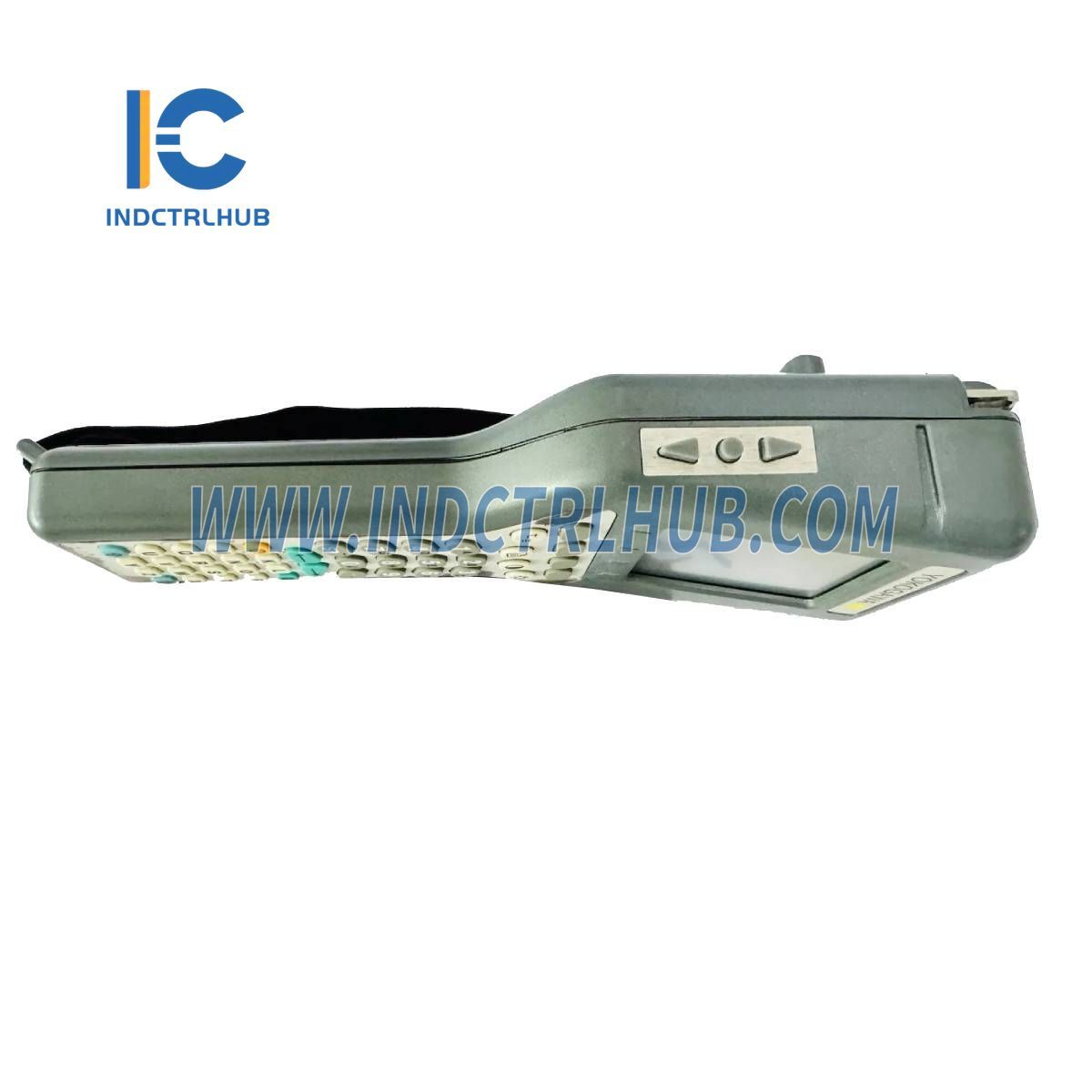

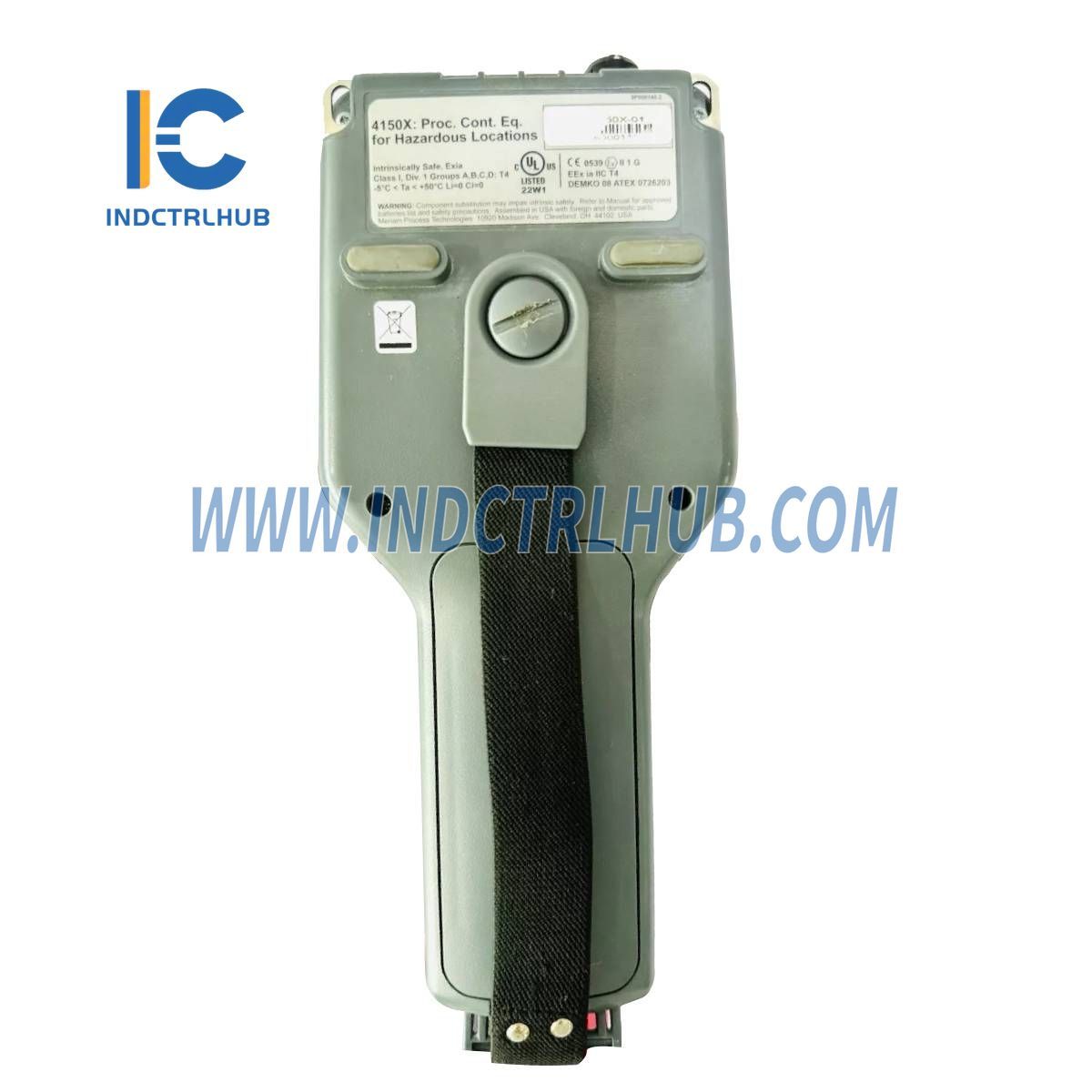

The Yokogawa YHC4150X-01 is a Portable HART Communicator designed for efficient configuration and diagnostics of HART-compatible field devices. This handheld device offers a robust set of features, including a long battery life, quick startup, and the ability to update device profiles via the internet, ensuring it remains a versatile tool for industrial professionals. With its ergonomic design and comprehensive functionality, it supports cloning, uploading, downloading, and storing configurations, making it ideal for fieldwork.
Standard Features
- 60 hours battery life (without backlight) using AA alkaline batteries
- Quick startup and connect: 15 seconds
- Update new device profiles and firmware via the internet – YHC4150X stays with you
- Dongle coordinates AC power adapter and serial communication
- Clone, upload, and download configurations
- Off-line mode for developing and reviewing configurations
- Document and store more than 200 configurations
- As-found / As-left history with DMS software
- 13-line, 128 x 128 pixel graphic, backlit display
- Full alpha-numeric keypad
- Edit directly from Review/Edit mode
- Quick Menu access key
- HART® menu Home key
- Dedicated text edit keys
- Programmable lock-out settings
- Contrast key for direct adjustment from any mode
- Elastic hand strap and adjustable shoulder strap
- Thumb keys (left hand) for menu Up, Down, and Select
- Custom “use-in-place” soft case with lead kit compartment
Technical Information
| Item | Specifications |
|---|---|
| Base Unit | Dimensions: 10 3/8” L x 4 1/4” to 2 ½” W x 1 ¼” to 1 7/8” D Material: ABS plastic case Weight: 0.77kgs (with batteries) |
| Keypad | Membrane keypad: 4 soft keys, 8 single-function keys, 30 dual-function keys, 3 thumb keys |
| Display | 13-line, 128 x 128 pixel graphic display Viewable area: 2.1” x 2.1” Backlight: Included |
| Power | Six AA alkaline batteries or 100–240 V AC power adapter Note: Use only approved alkaline batteries for Intrinsically Safe certified YHC4150X |
| Temperature Specifications | Storage: -40° F to 140° F (-40° C to 60° C) Operating: 23° F to 122° F (-5° C to 50° C) |
| Connections | Standard banana jacks (¾” center) for HART® Odu connector for dongle (coordinates AC power and DB-9 serial communications) |
| Certification | Intrinsically Safe: ATEX, CULUS (approved AA alkaline batteries only) |
Specific Configuration
- Model/Part Number: YHC4150X-01
- Configuration Details:
- Portable HART Communicator with standard features and certifications as listed
