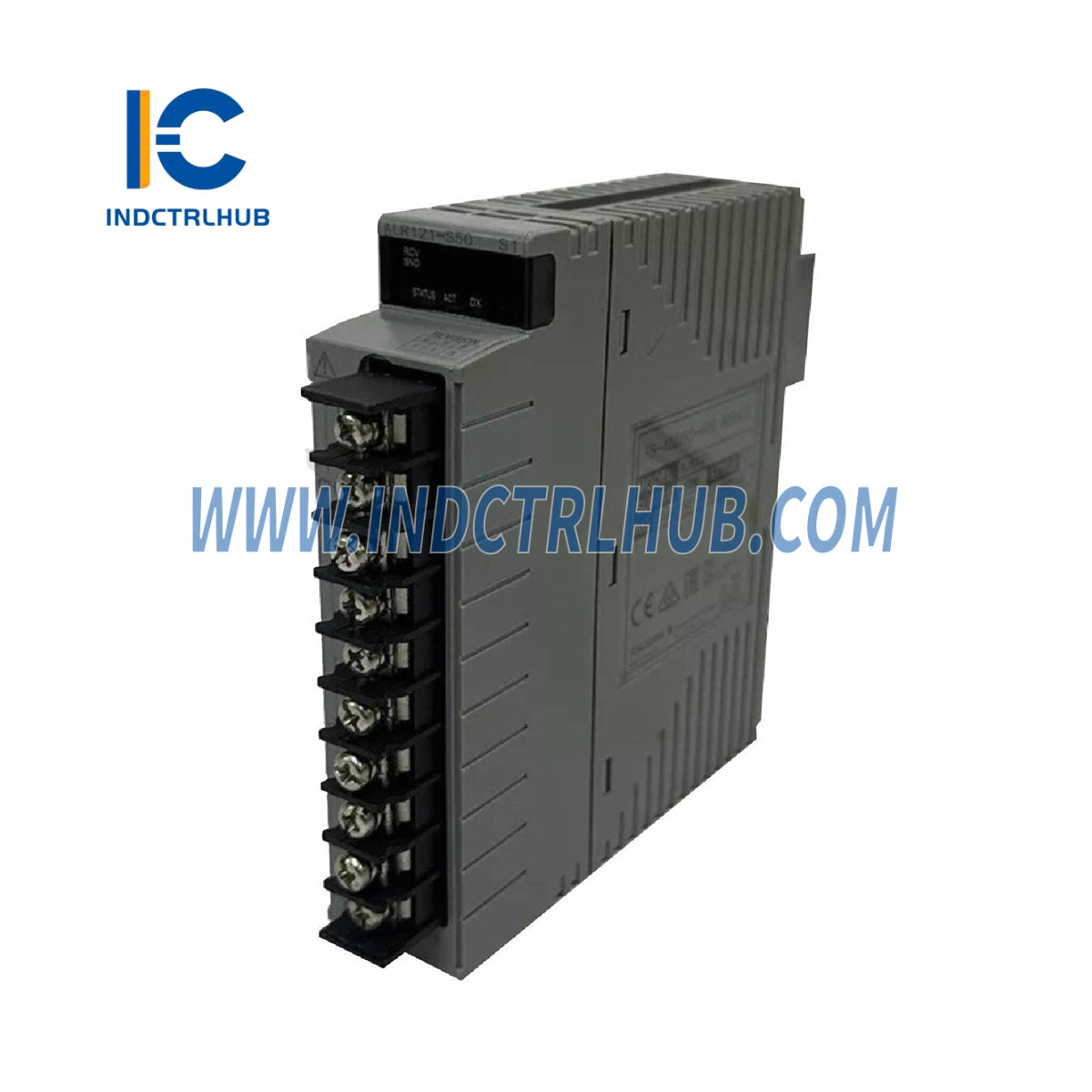

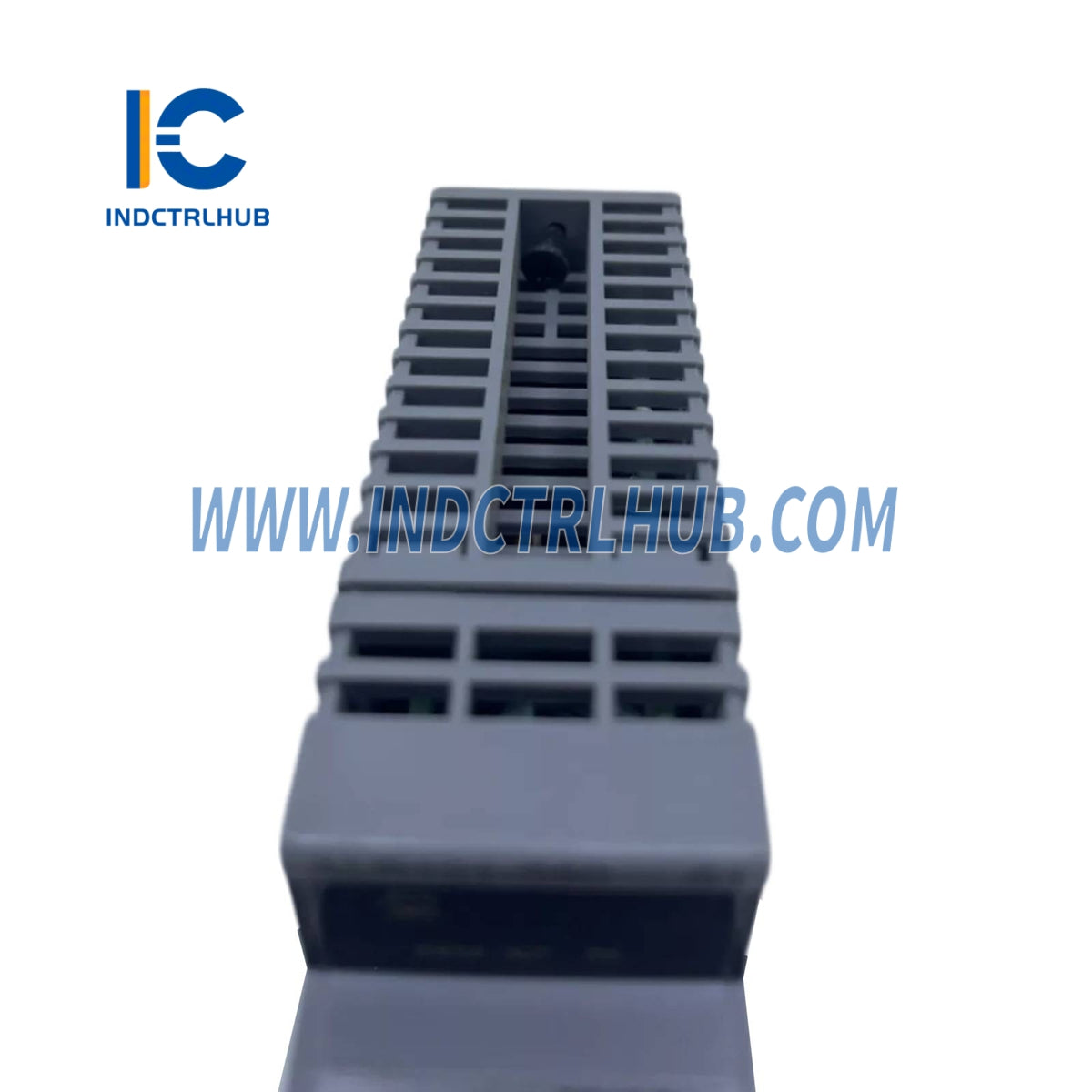

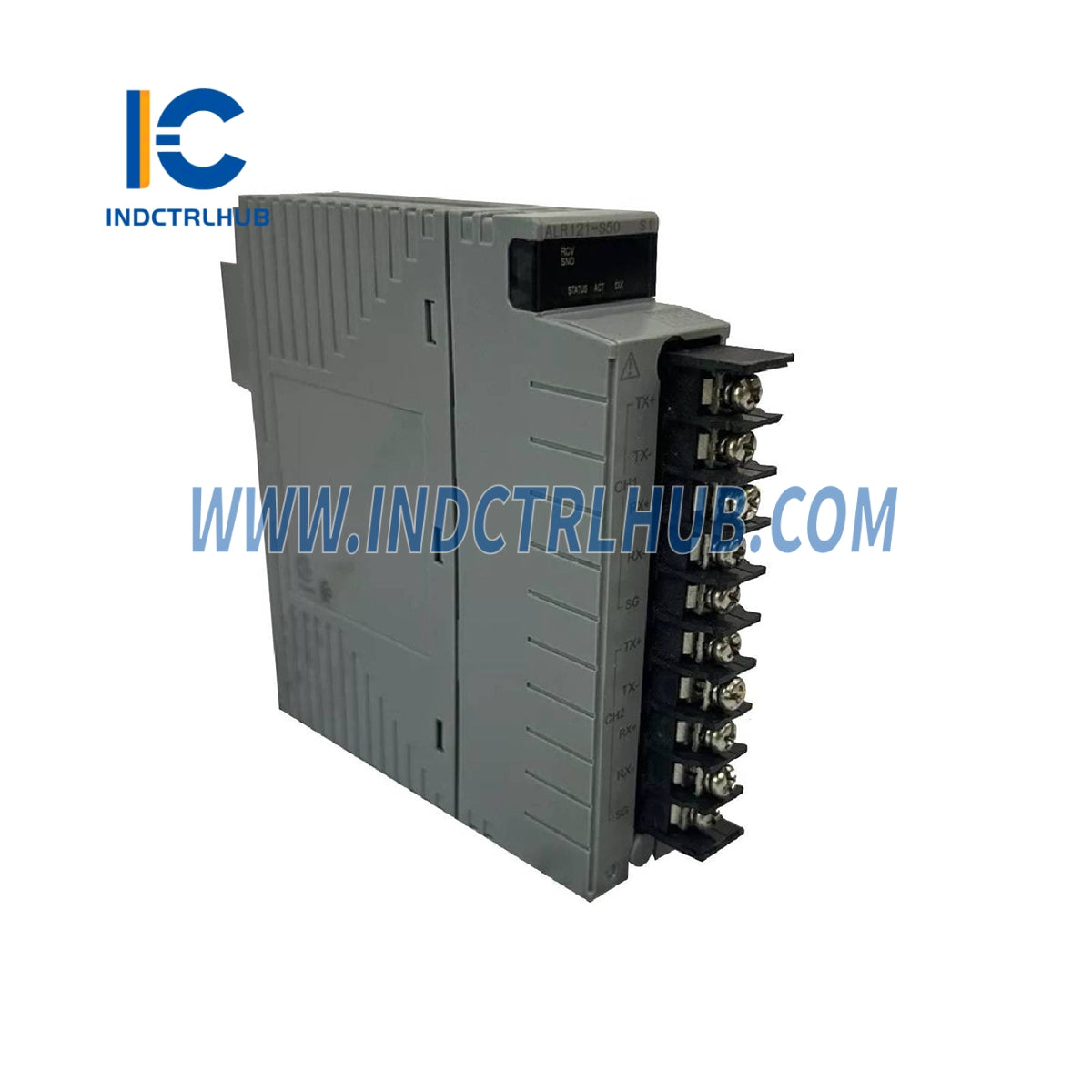

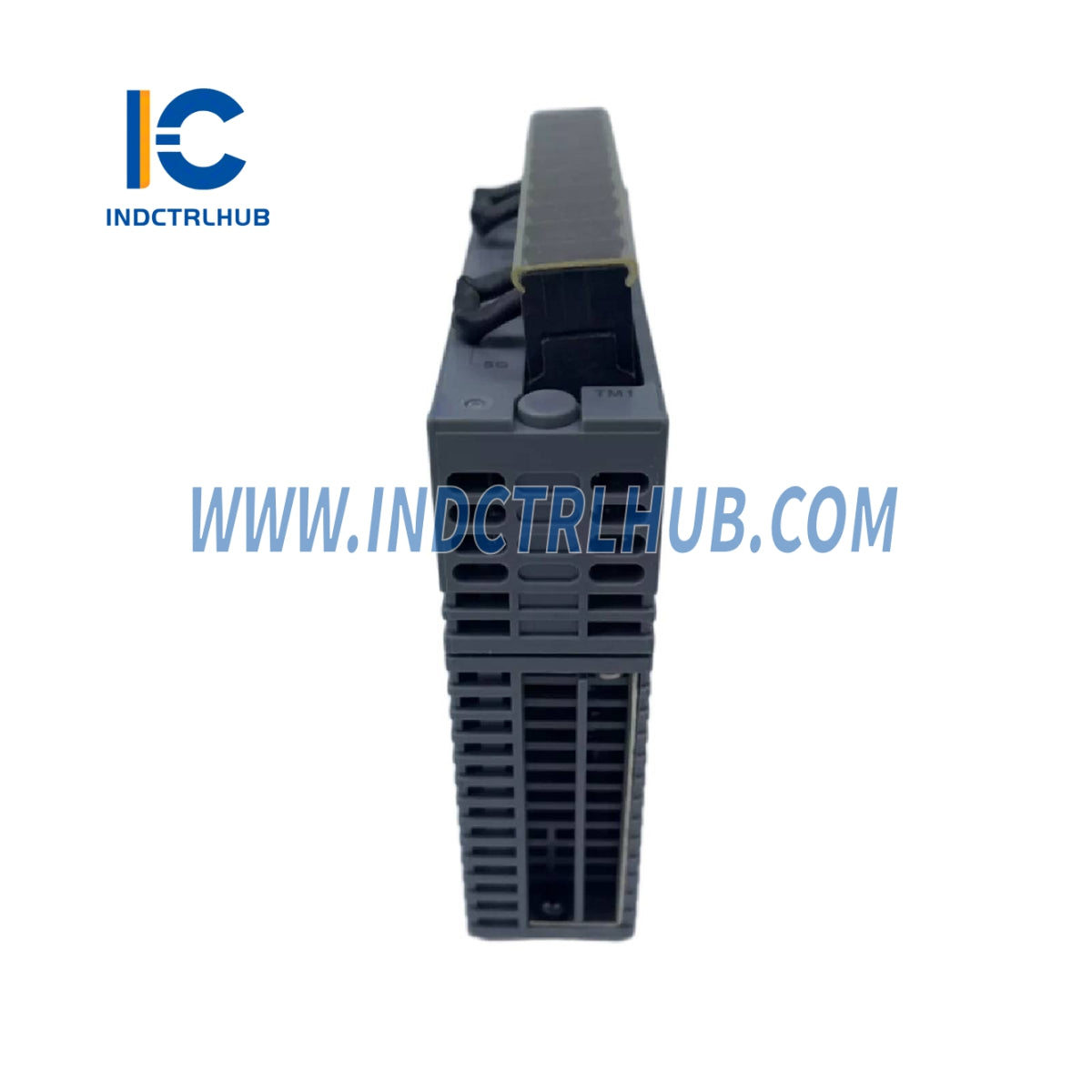

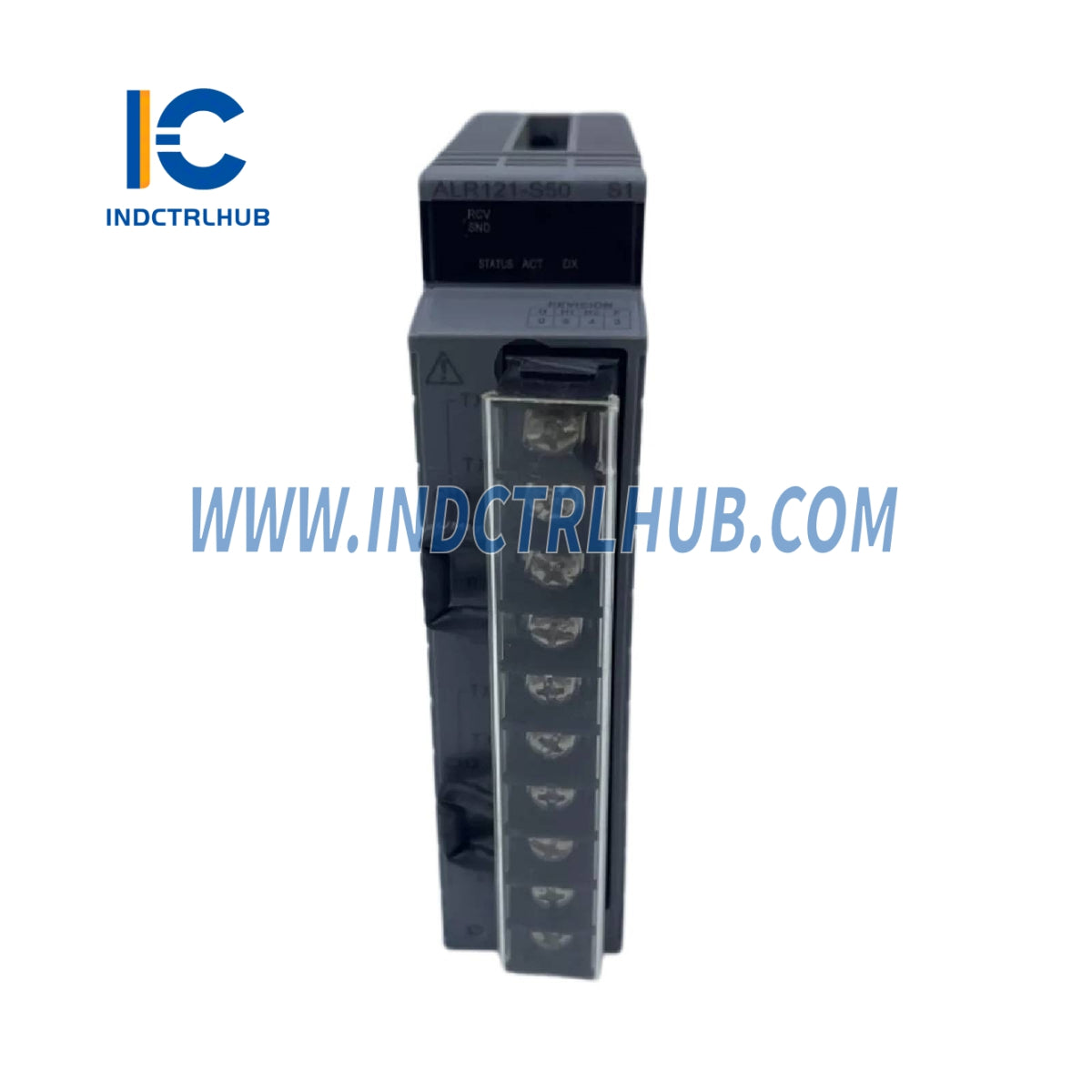

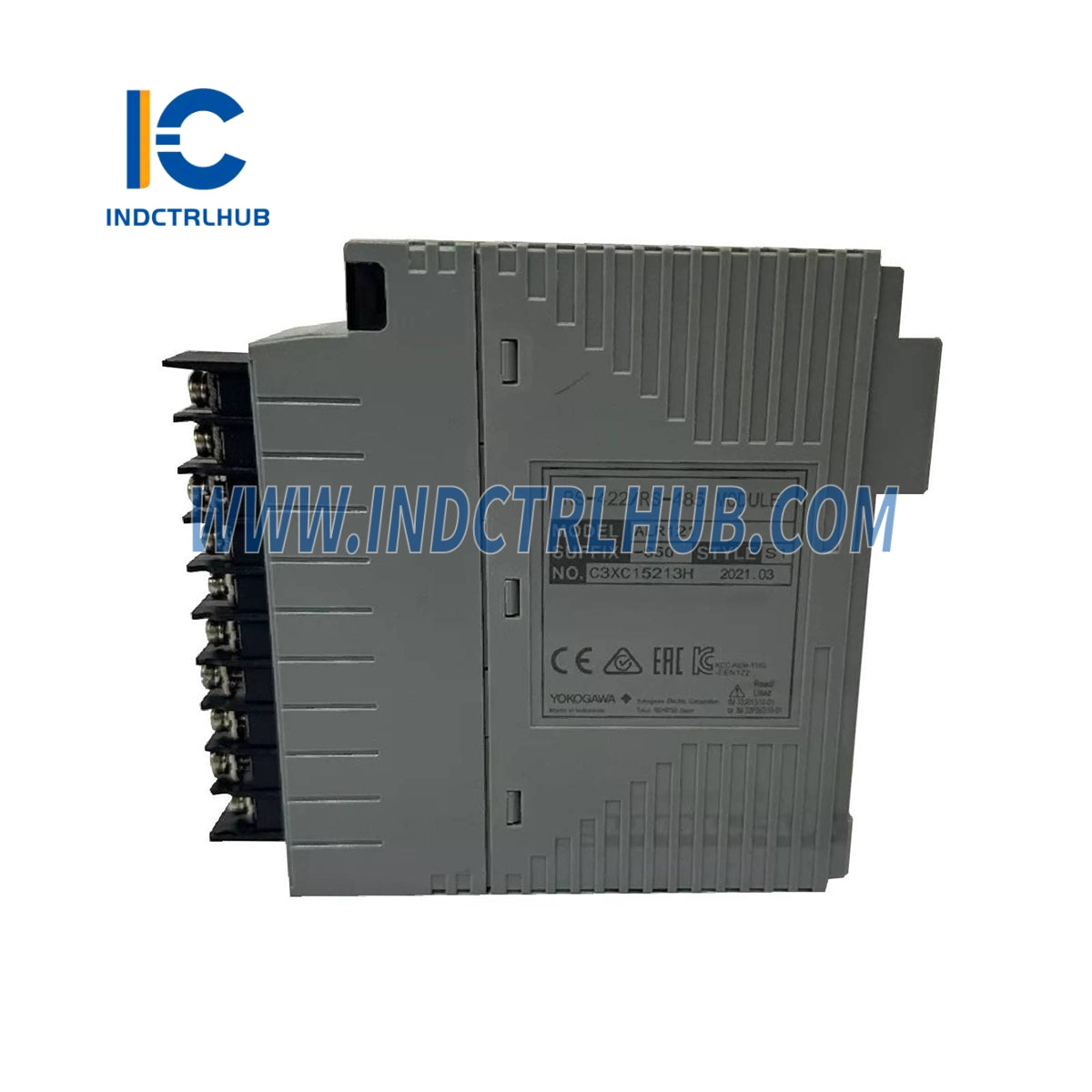

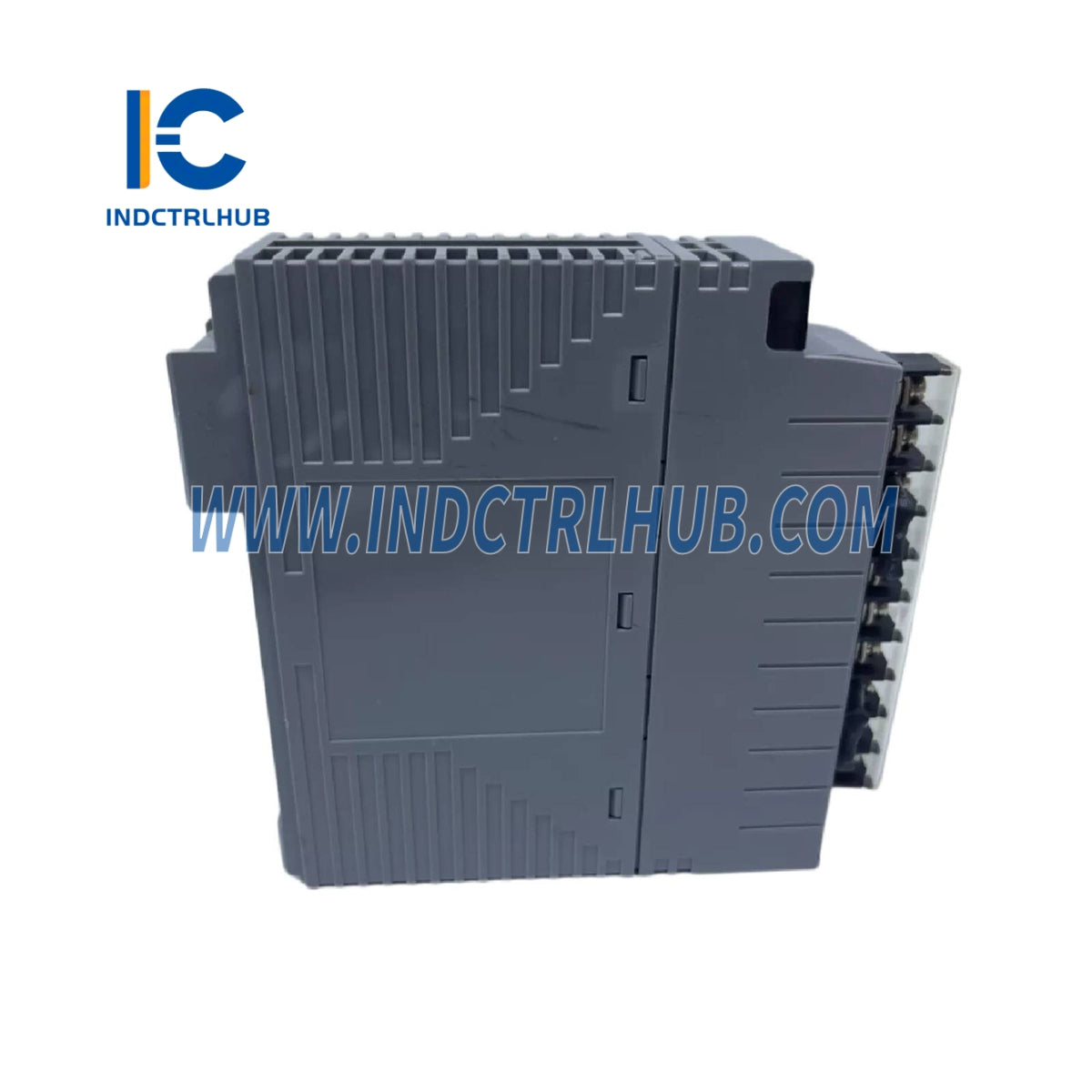

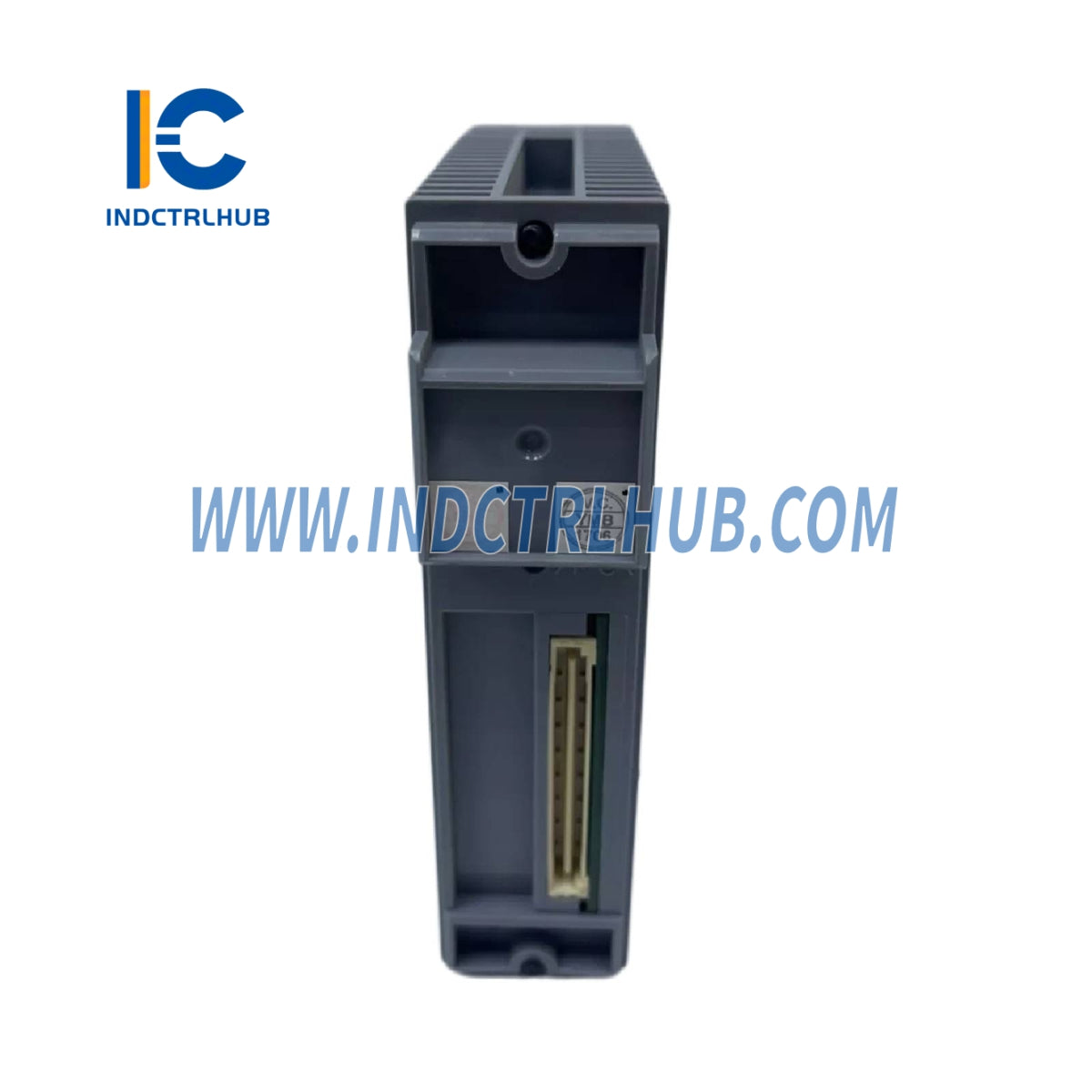

Yokogawa ALR121-S50 Serial Communication Module
Yokogawa ALR121-S50 Serial Communication Module
Manufacturer: Yokogawa
Product No.: ALR121-S50
Condition:1000 in stock
Product Type: Serial Communication Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Yokogawa Electric Corporation |
|
Model/Part Number |
ALR121-S50 |
|
Description |
Serial Communication Module (RS-422/RS-485, 2 ports) for use in control systems requiring serial communication |
_
_
__ Hardware Specifications
|
Item |
Specifications |
|---|---|
|
Model |
ALR121 |
|
Interface |
RS-422 / RS-485 |
|
Connection Method |
Point-to-point (RS-422), Multipoint (RS-485) |
|
Communication Function |
Half-duplex |
|
Synchronization Method |
Start-stop synchronization |
|
Transmission Speed |
1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps (*1) |
|
Transmission Code |
ASCII / Binary |
|
Character Length |
7 or 8 bits |
|
Stop Bit Length |
1 or 2 bits |
|
Parity Check |
None / Even / Odd |
|
Lag Time After Transmission |
1 ms (time to resume receiving data after sending) |
|
Transmission Distance |
Max. 1200 m (total extended length) |
|
Installation Method |
Mounted on ANB10_, ANB11_, ANR10_, AFF50_, AFV10_, AFV30_, or AFV40_ |
|
I/O Wiring |
AKB131, AKB132, AKB133, AKB134; shielded 3-pair cable; AKB161, AKB162 |
|
Wiring Connection |
Terminal block (5 poles _ 2), M4 screws |
|
Current Consumption |
0.5 A |
|
Weight |
Approx. 0.3 kg |
_
_
__ Model and Suffix Codes
|
Category |
Details |
|---|---|
|
Model |
ALR121 _ Serial Communication Module |
|
Suffix Codes |
|
|
-S |
Standard type |
|
5 |
Without explosion protection |
|
E |
With explosion protection |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
_
