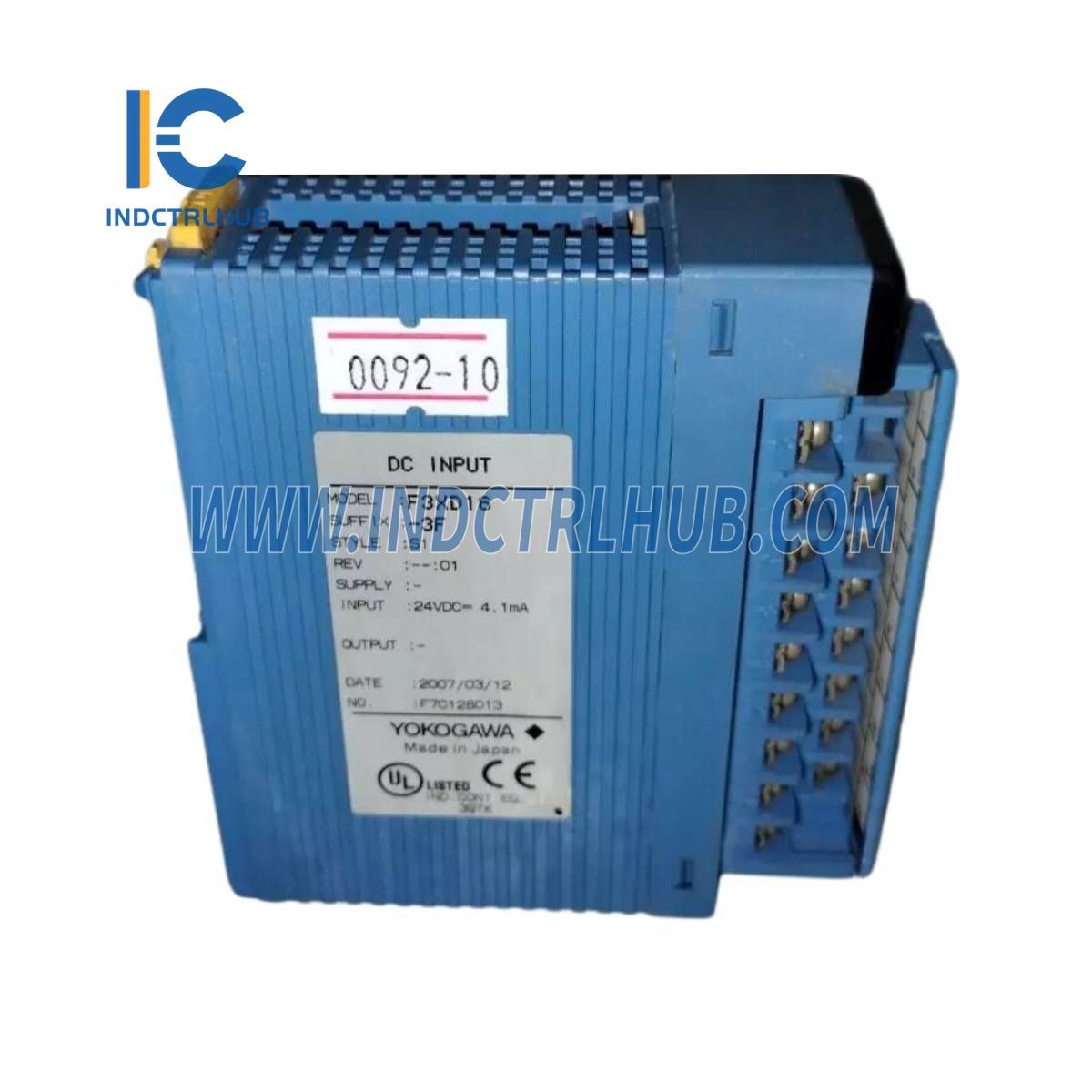

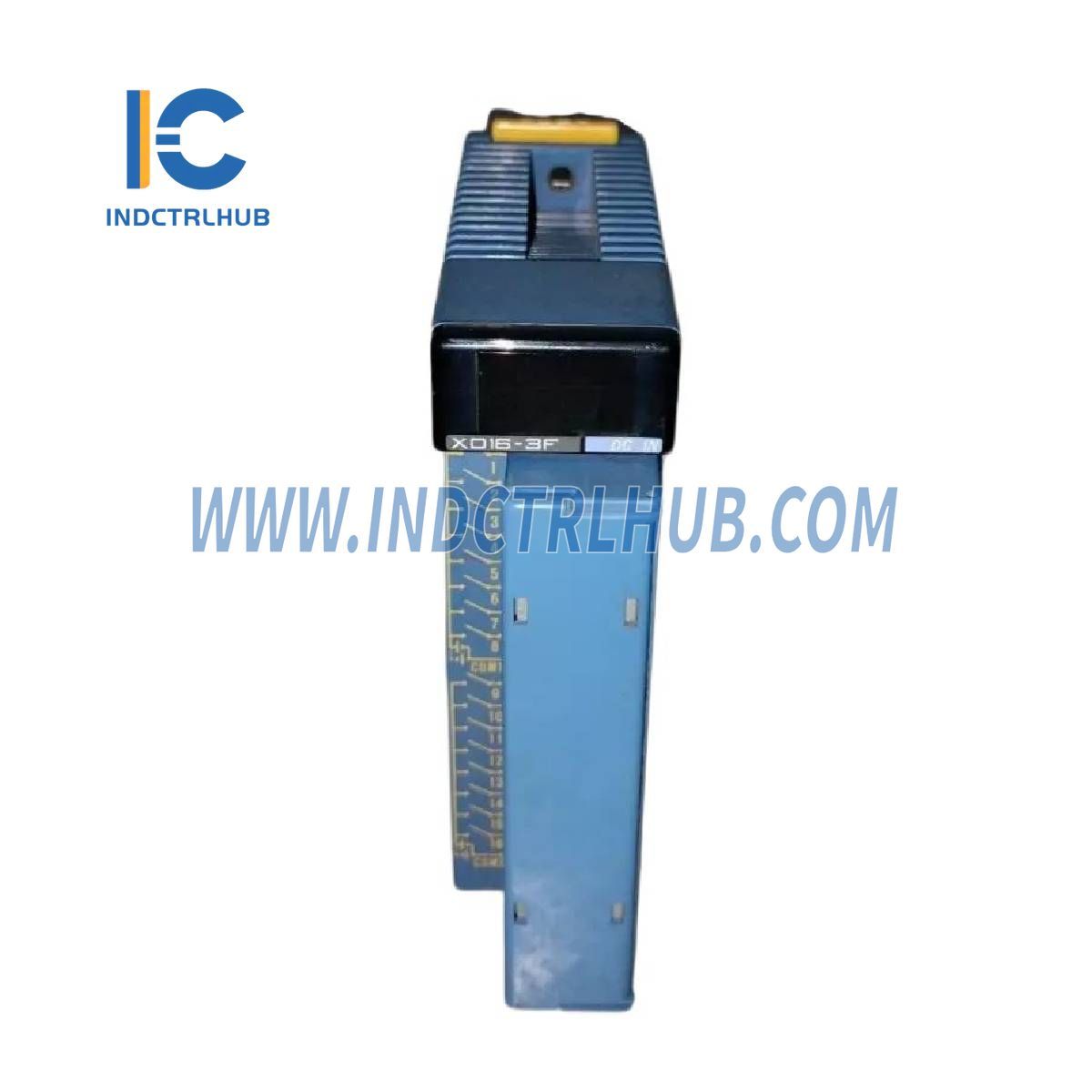

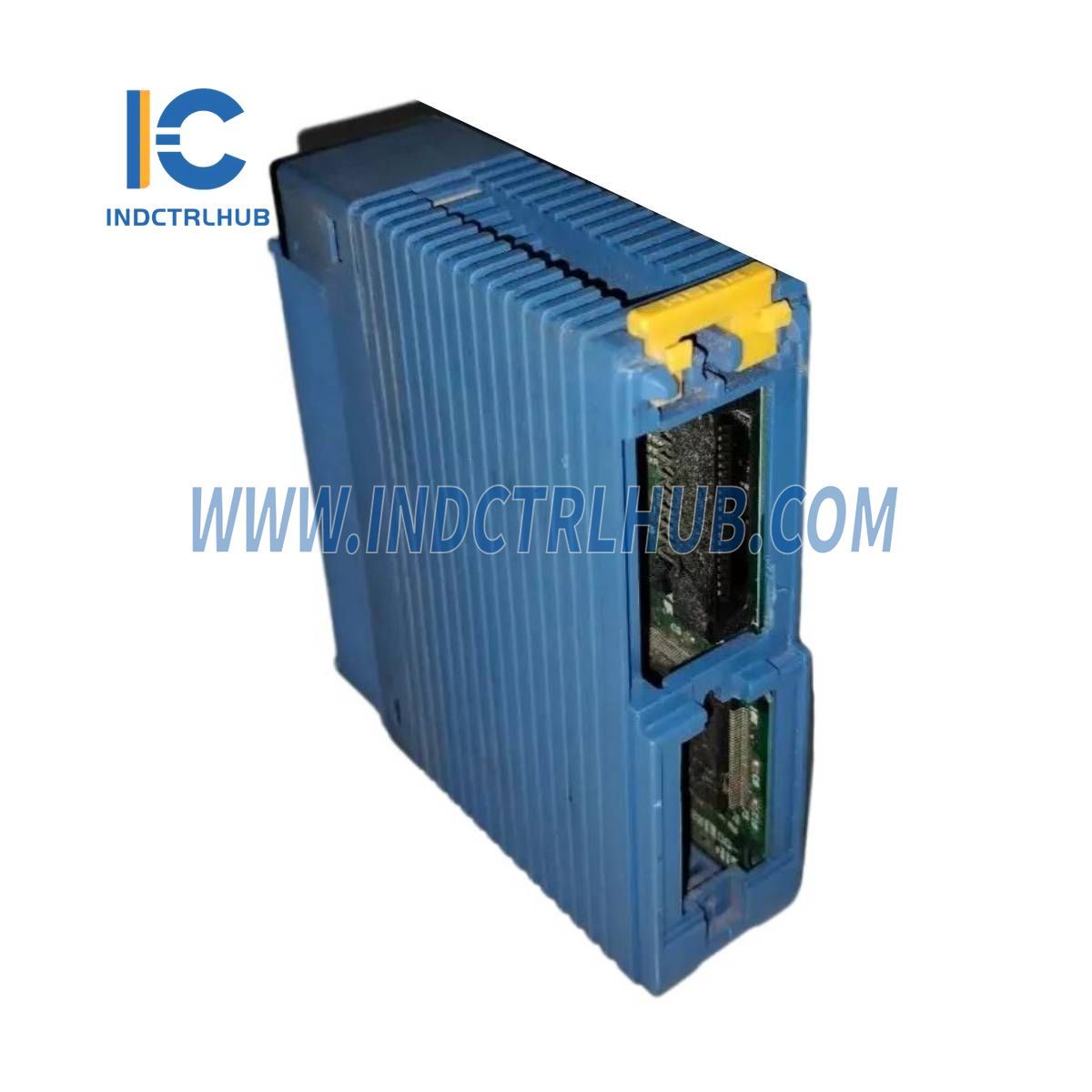

Product Description
General Information
|
Manufacturer |
Model/Part Number |
Description |
|---|---|---|
|
Yokogawa |
F3XD16-3F |
DC input sink/source, 24 V DC, 16 points |
Specifications
|
Parameter |
Value |
|---|---|
|
Model |
F3XD16-3F |
|
Input Type |
DC voltage (sink/source) |
|
Number of Inputs |
16 |
|
Isolation Method |
Photocoupler isolation |
|
Rated Input Voltage |
24 V DC |
|
Rated Input Current |
4.1 mA/point |
|
Operating Voltage Range |
20.4 - 26.4 V DC |
|
ON Voltage (Min.) |
16.0 V DC |
|
ON Current (Min.) |
3.2 mA |
|
OFF Voltage (Max.) |
5.8 V DC |
|
OFF Current (Max.) |
0.9 mA |
|
External Connection |
18-point terminal block, M3.5 screw |
|
Current Consumption |
65mA (5V DC) |
|
Weight |
160g |
