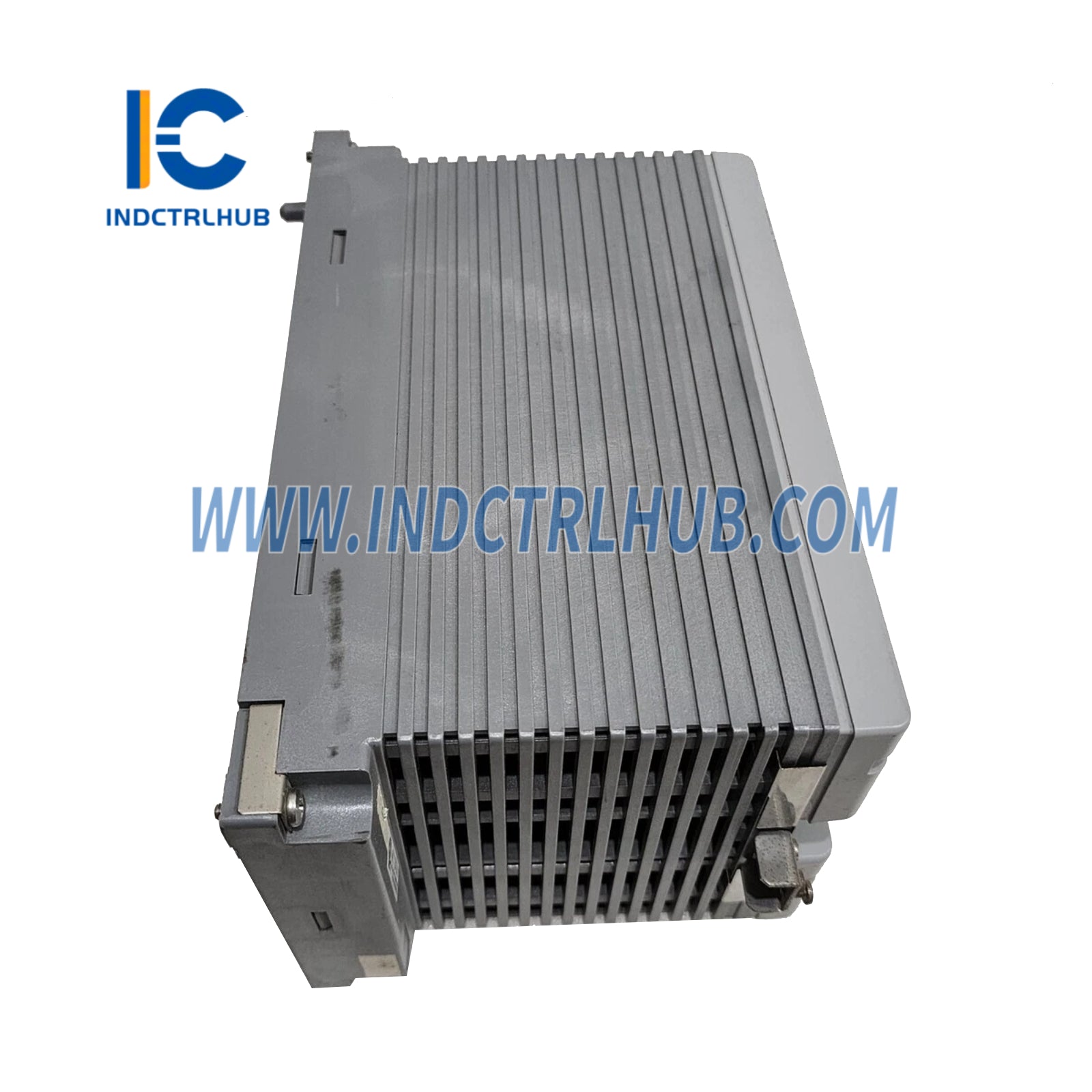

Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | AMC80/ZCT |
| Description | Analog Multiplexer Module designed for Yokogawa CENTUM series Distributed Control Systems, providing 8-channel analog input and 8-channel analog output for multi-point control applications |
| Key Features | 8 analog inputs, 8 analog outputs, supports dual-redundant configuration, high packaging density, compatible with CENTUM CS and CS 3000, ZCT suffix for specific configuration |
Technical Specifications
| Specification | Details |
|---|---|
| Model | AMC80/ZCT |
| Product Type | Analog Multiplexer Module |
| Series | CENTUM (CS, CS 3000) |
| Analog Inputs | 8 channels (e.g., 4-20 mA, 1-5 VDC) |
| Analog Outputs | 8 channels (e.g., 4-20 mA) |
| Power Supply | 24 VDC (via system backplane) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approx. 0.3-0.5 kg (0.66-1.1 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal blocks for field wiring, connects to CENTUM Field Control Station (FCS) via I/O unit |
Functional Features
| Feature | Details |
|---|---|
| Signal Processing | Multiplexes 8 analog inputs and outputs for efficient I/O handling |
| Redundancy | Supports dual-redundant setup for high reliability |
| Compatibility | Integrates with CENTUM CS and CS 3000 Field Control Stations |
| Efficiency | High packaging density reduces system footprint and cost |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | AMC80 |
| Configuration | ZCT: Specific variant, likely indicating enhanced features or compliance |
