Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |

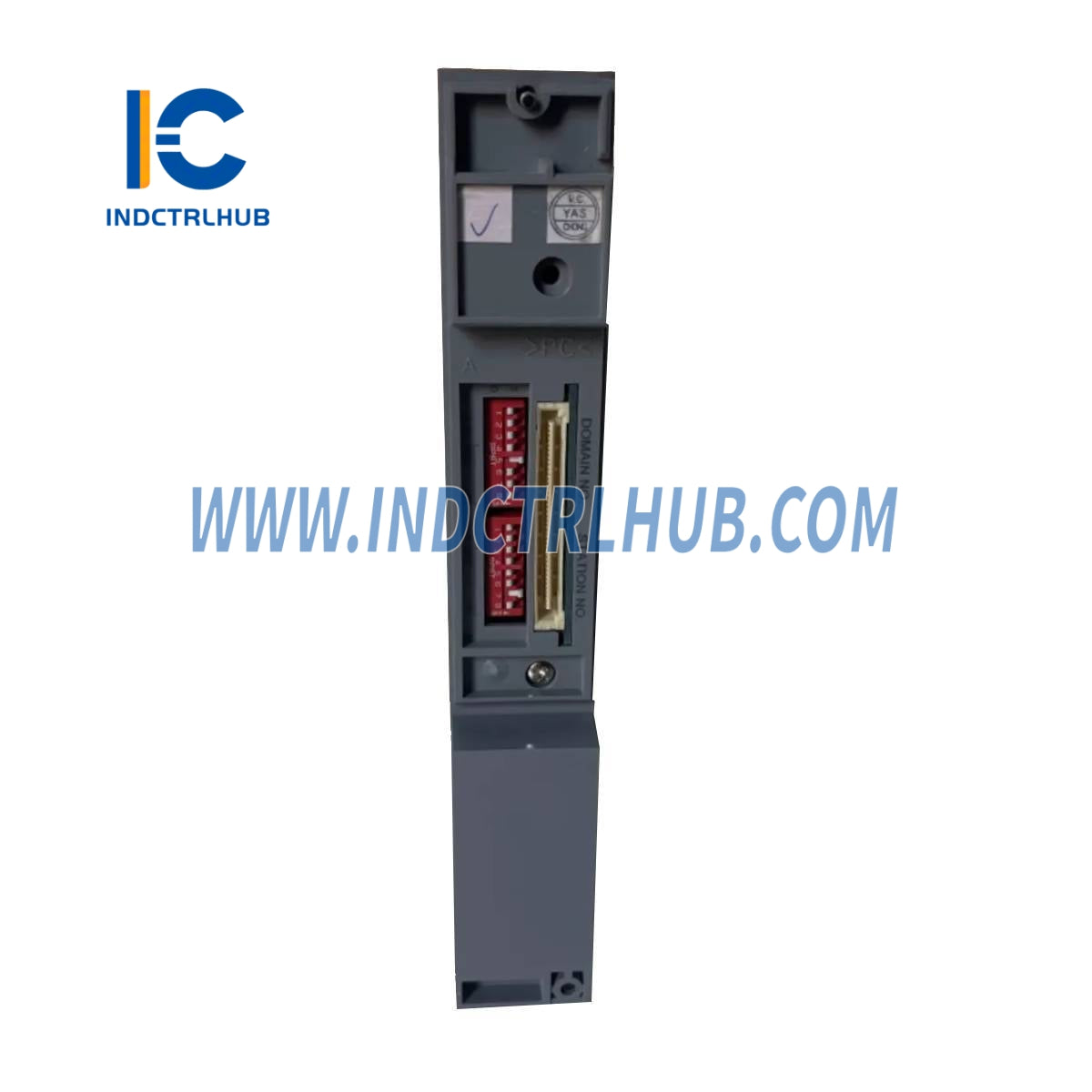

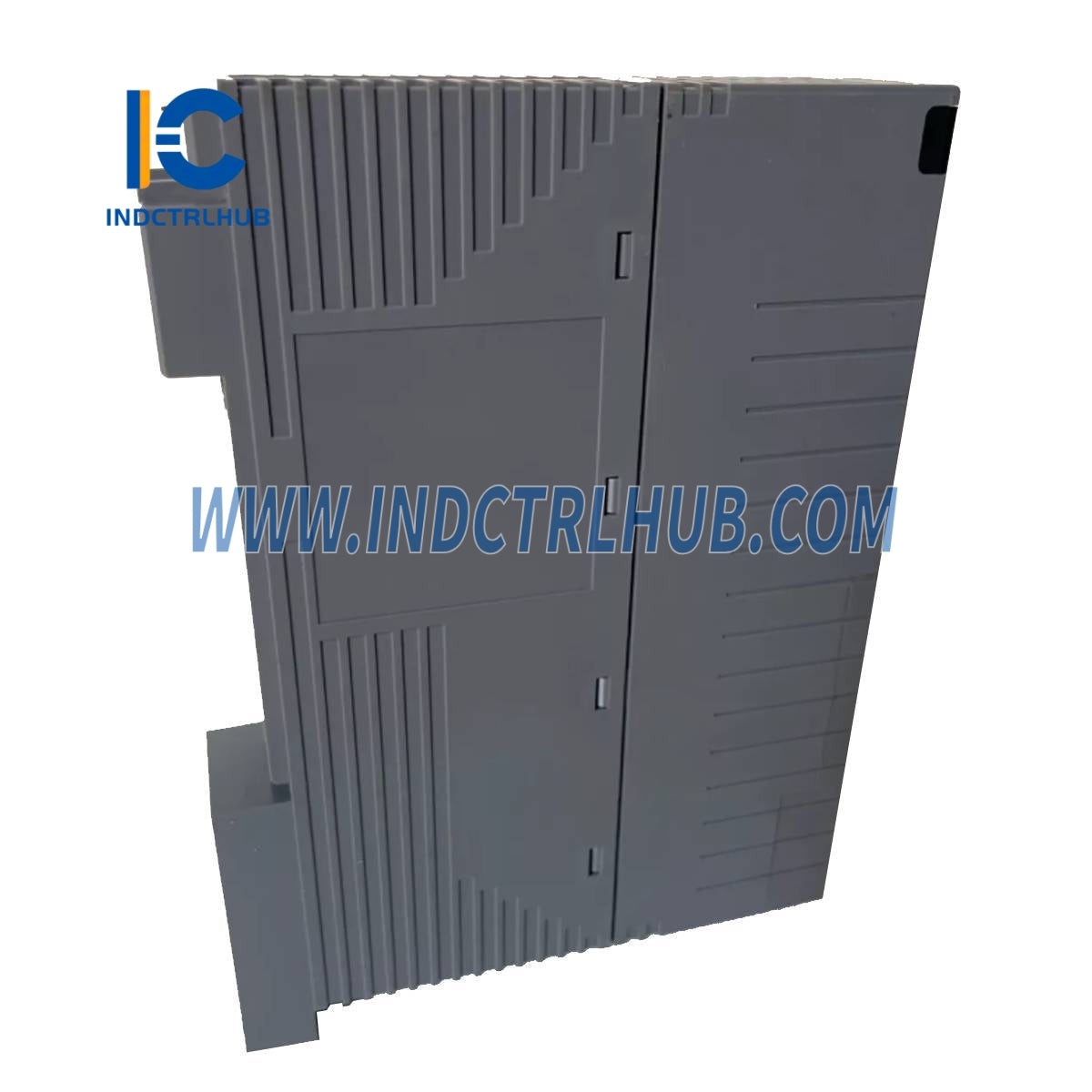

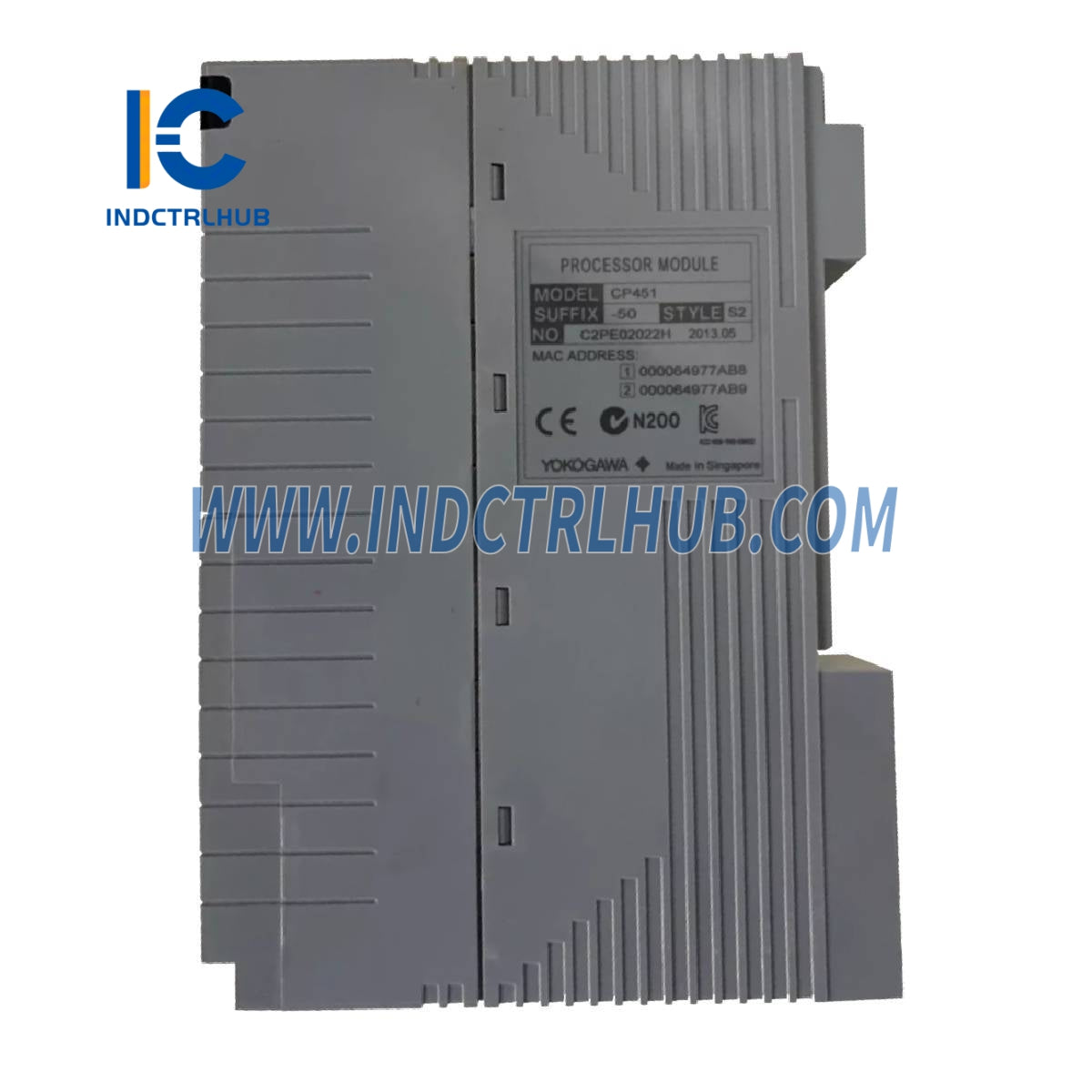

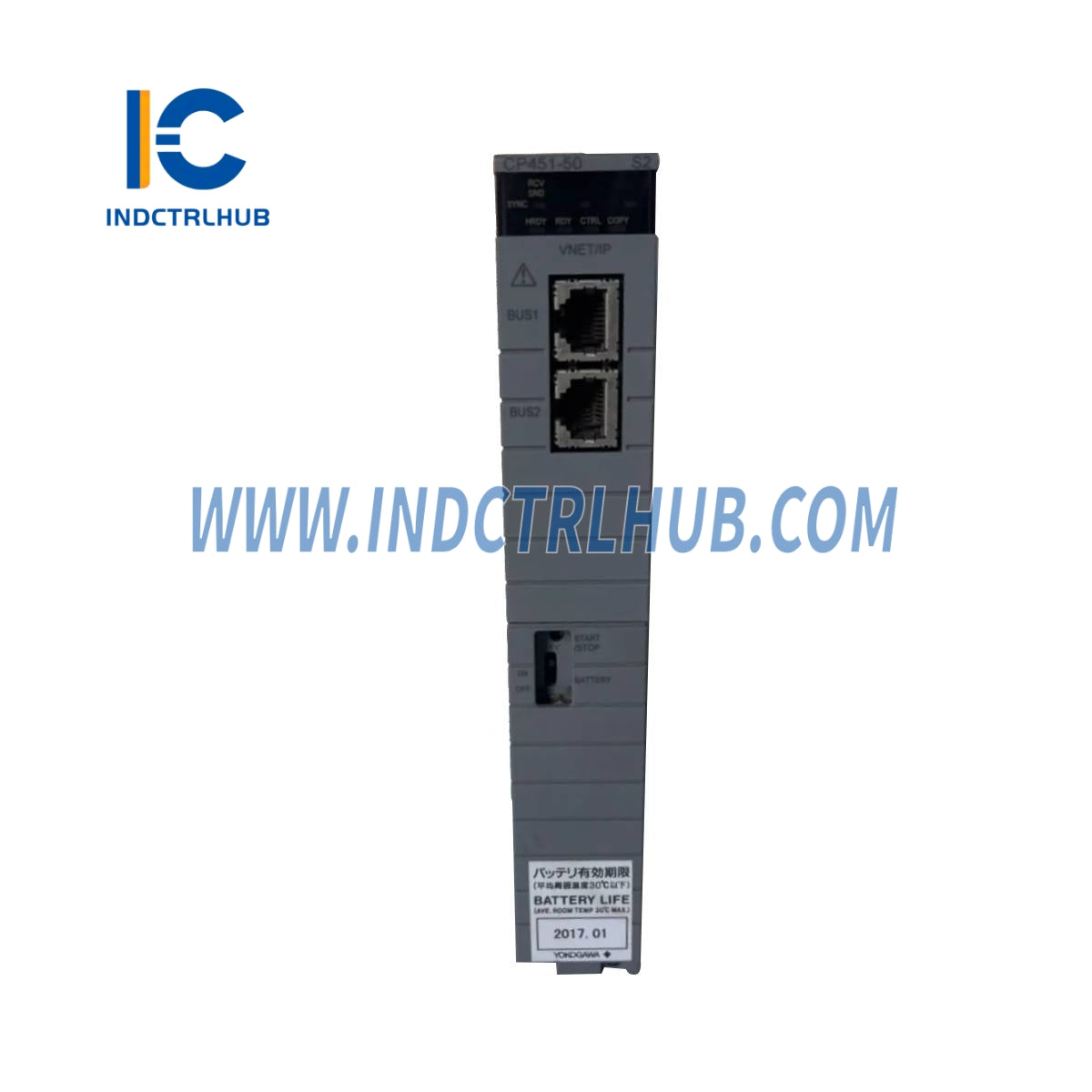

| Model/Part Number | CP451-50 |
| Description | Processor Module designed for the CENTUM VP Distributed Control System (DCS) with high-performance control capabilities |
| Key Features | High-speed processing, supports dual-redundant configuration, integrates with Field Control Station (FCS) for plant operations |
Technical Specifications
| Specification | Details |
|---|---|
| Model | CP451-50 |
| Suffix | -50 |
| Style | S2 |
| Dimensions | 6.0″ x 2.0″ x 8.0″ (15.2 cm x 5.1 cm x 20.3 cm) |
| Weight | Approx. 0.7 kg (1 lb 10.1 oz) |
| Operating Temperature | -20°C to 70°C (with optional temperature environment restrictions) |
| Country of Origin | Japan |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Interfaces with Field Control Unit (FCU) via Vnet/IP network; compatible with ESB Bus Coupler Module (EC401) for I/O expansion |
Functional Features
| Feature | Details |
|---|---|
| Processing Capability | High-performance CPU for real-time control and monitoring |
| Redundancy | Supports dual-redundant configuration with two CP451-50 modules for enhanced reliability |
| System Integration | Core component of the CENTUM VP FCS, managing up to 8 I/O modules |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | CP451-50 (Processor Module for CENTUM VP DCS) |
| Configuration | Installed in Field Control Unit (FCU); requires EC401 in slots 7 and 8 for ESB Bus Node Unit connectivity in dual-redundant setups |
