Product Description

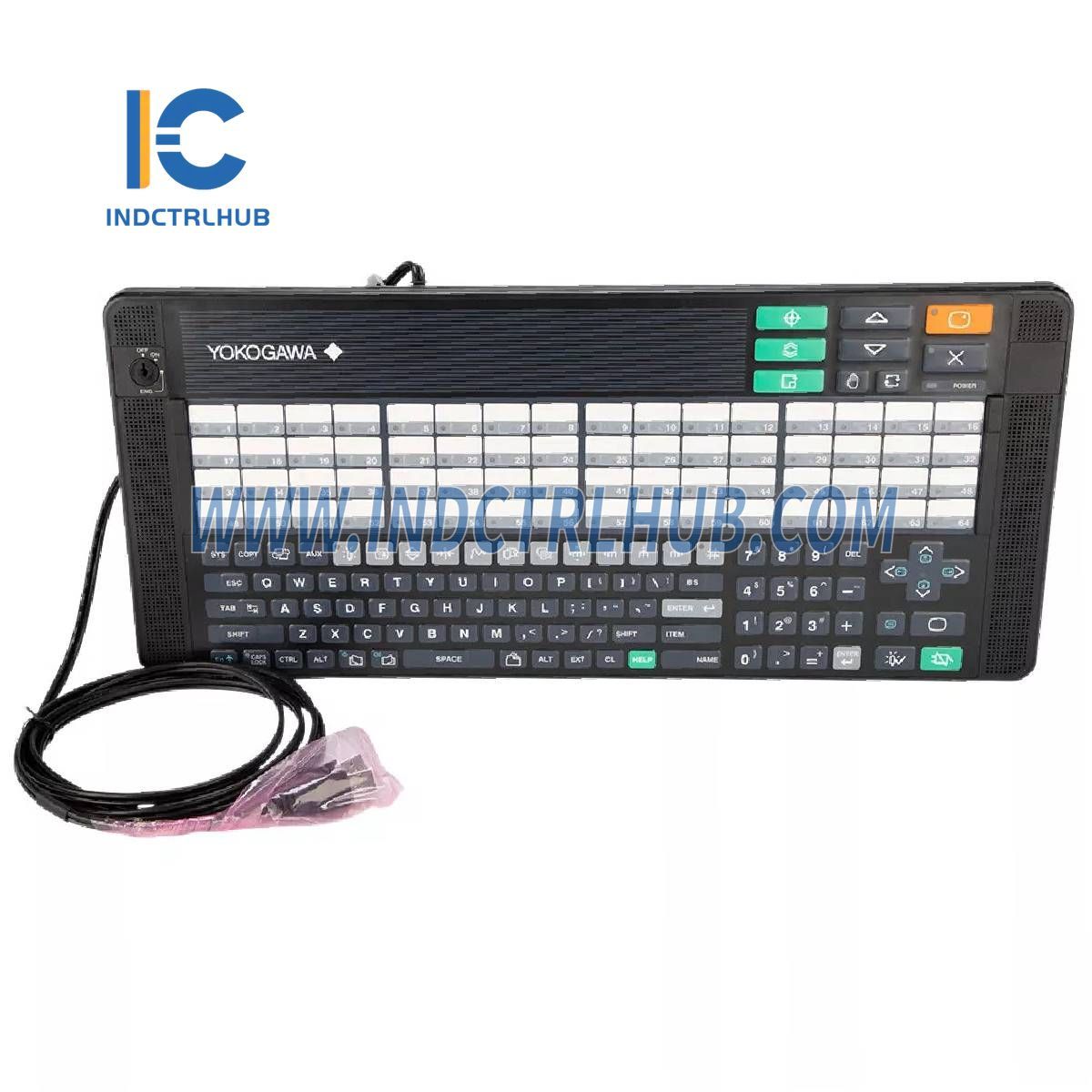

Product Information: Yokogawa Operation Keyboard for Single-loop Operation (AIP830-001/EIM)
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | AIP830-001/EIM |
| Description | Operation Keyboard for Single-loop Operation |
Standard Specifications
| Specification | Details |
|---|---|
| Type | Flat keyboard (Sound Function: USB Speaker) |
| PC Interface | USB A type x 2 (*1) |
| USB Standard | USB 2.0 (Full-speed, Bus-powered) for keyboard function; USB 1.1 (Full-speed, Bus-powered) for sound |
| Input Voltage | 5 V ± 5 % (Supplied from USB Port of PC) |
| Maximum Consumption Current | 1 A |
| Weight | Approx. 2.0 kg (without VESA Bracket), Approx. 2.5 kg (with VESA Bracket) |
| Chassis Color | Black (Equivalent to Munsell No. N1.5) |
| Installation Category | IEC 61010-1 Class I (device not directly connected to the main power supply) |
| Operating Environment | |
| Ambient Temperature | 5 to 40 °C (normal operation), -20 to 60 °C (storage/transport) |
| Ambient Humidity | 20 to 80 % RH (Non-condensing) |
Models and Suffix Codes
| Description | Model AIP830 Operation Keyboard for Single-loop Operation |
|---|---|
| Suffix Codes | -0: Without Mode selection switch |
| -1: With Mode selection switch | |
| 0: Operation confirmation key Type A | |
| 1: Operation confirmation key Type B | |
| 1: Always 1 | |
| Option Codes | /VESA: With VESA Bracket |
| /EIM: With English Instruction Manual | |
| /JIM: With Japanese Instruction Manual |
Key Features
- USB Interface: Compatible with USB 2.0 for operation, and USB 1.1 for sound functionality.
- Energy-efficient: Powered through the USB port with a maximum current draw of 1 A.
- Environmental Robustness: Operates within a temperature range of 5 to 40 °C and can be stored between -20 to 60 °C.
- Flexible Setup: Available with or without a mode selection switch and with either an English or Japanese instruction manual.
