Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa (Yokogawa Electric Corporation) |

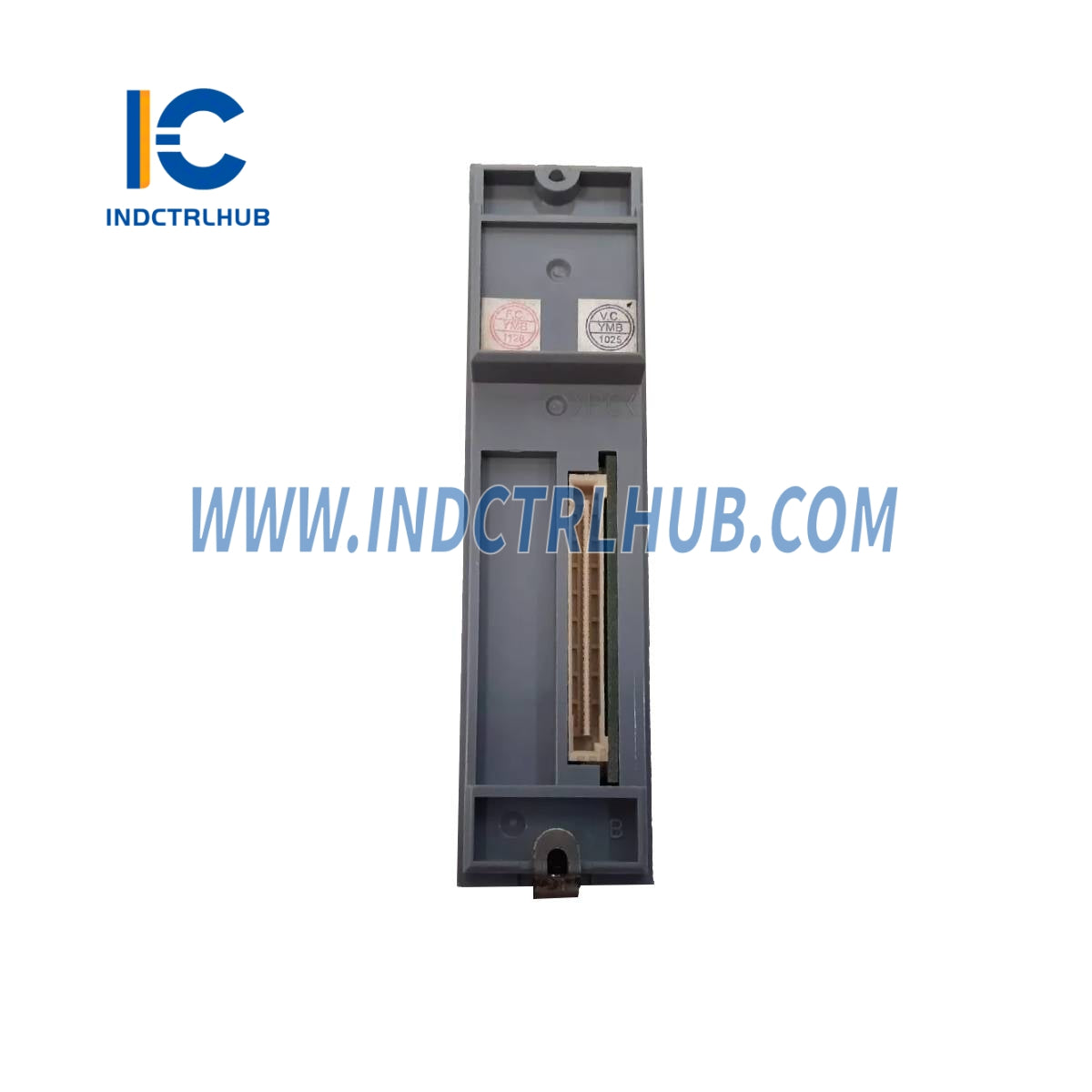

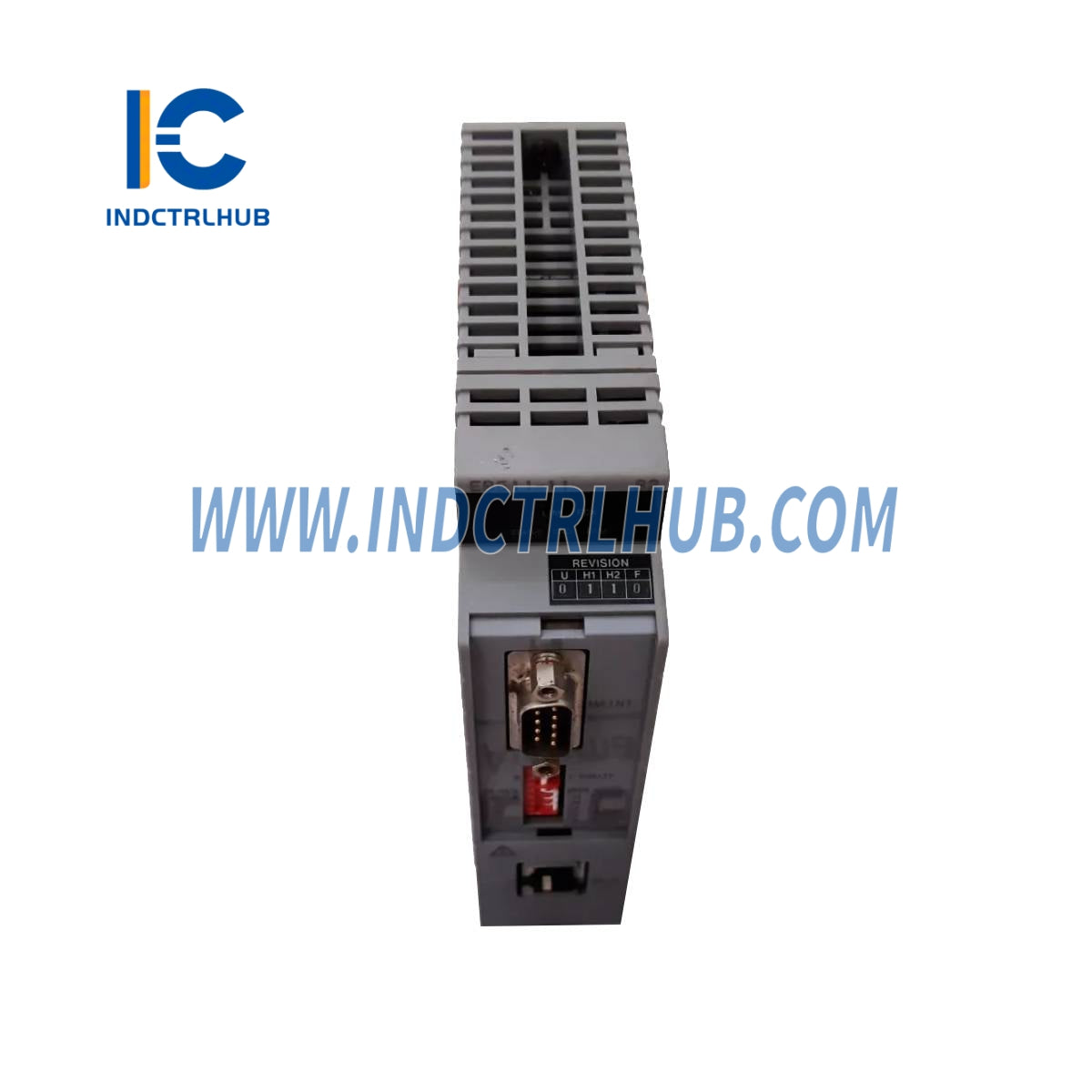

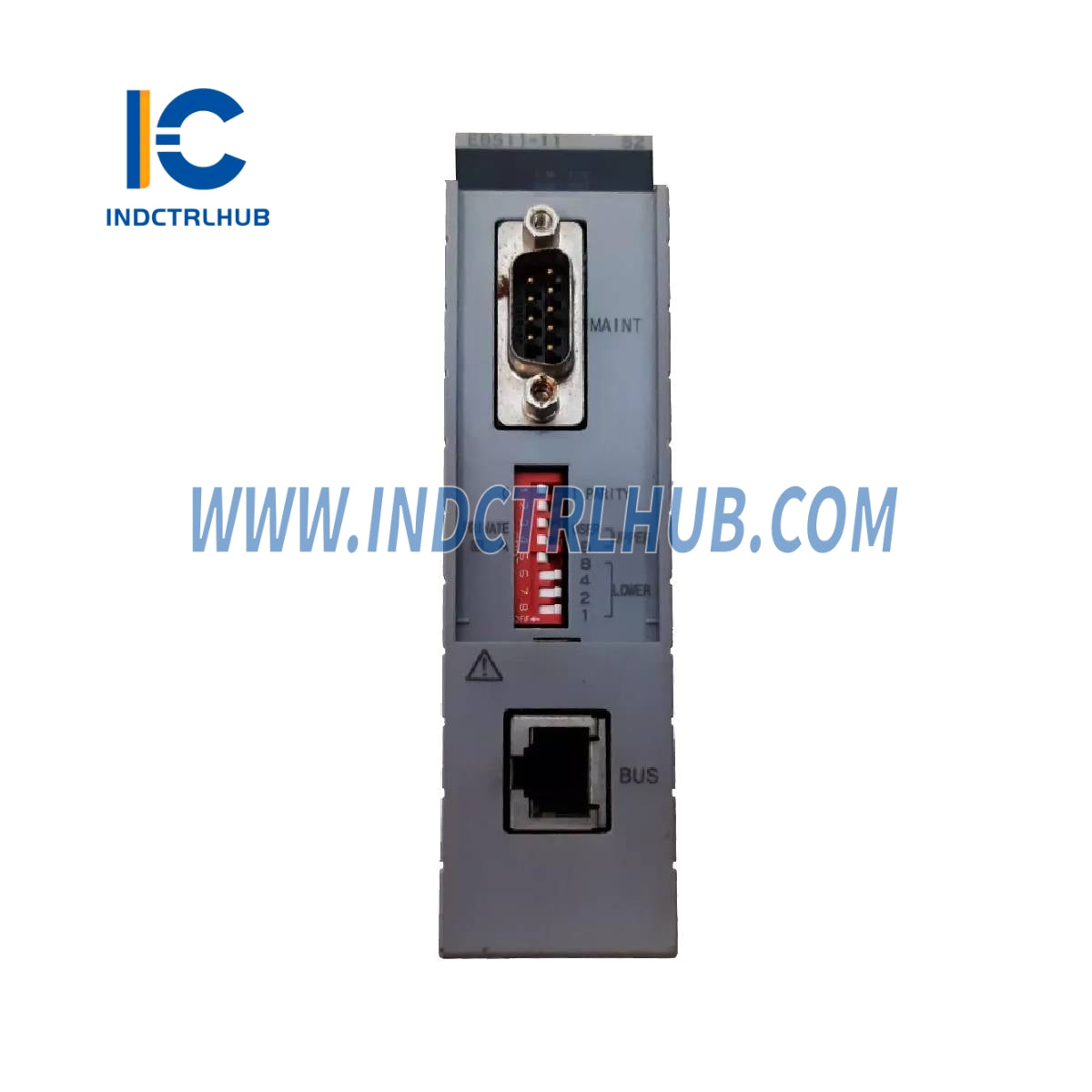

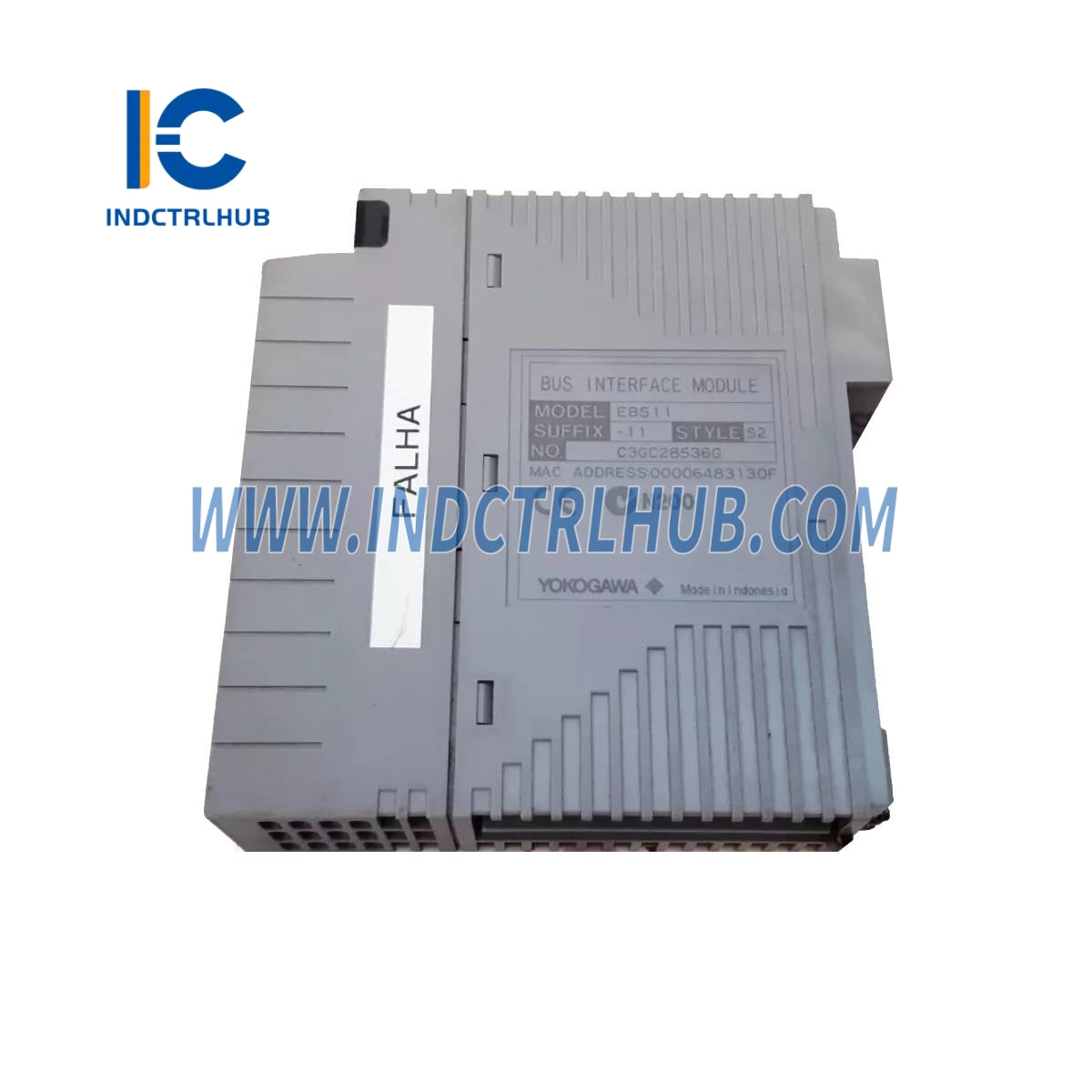

| Model/Part Number | EB511-11 S2 |
| Description | Bus Interface Module designed to connect field devices to the Field Control Station (FCS) in Yokogawa CENTUM VP or CS 3000 distributed control systems via the ESB bus |
| Key Features | High-speed ESB bus communication, reliable data transfer, supports CENTUM DCS architecture, compact design |
Technical Specifications
| Specification | Details |
|---|---|
| Model | EB511-11 S2 |
| Product Type | Bus Interface Module |
| Communication Protocol | ESB (Extended Serial Bus) |
| Power Supply | 24 VDC (via FCS power module) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approx. 0.3 kg (0.66 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | ESB bus interface for connecting local node units to FCS; links to I/O modules and field devices |
Functional Features
| Feature | Details |
|---|---|
| Data Acquisition | Collects real-time data from field devices via ESB bus |
| Control Command Transmission | Relays control commands from FCS to field devices |
| Compatibility | Integrates with CENTUM VP and CS 3000 FCS for local I/O connectivity |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | EB511-11 S2 (Bus Interface Module, Style 2) |
| Configuration | Installed in FCS local node; supports ESB bus for I/O module communication |
