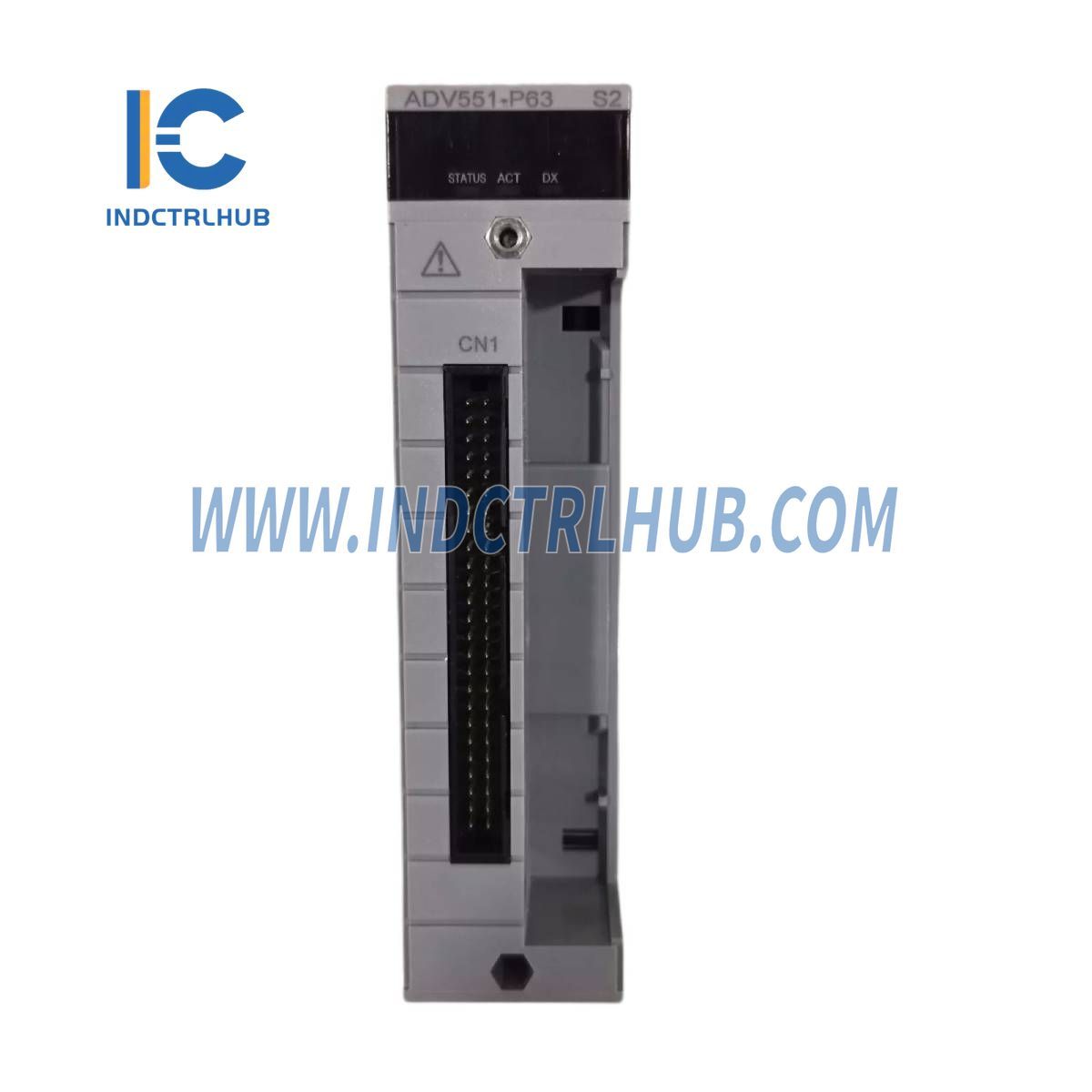

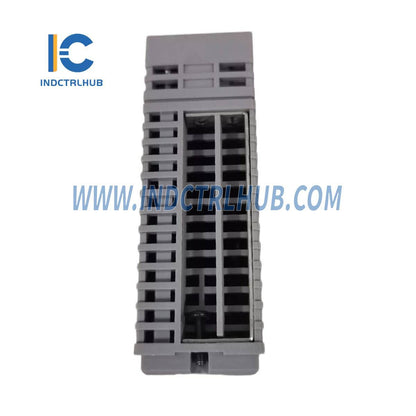

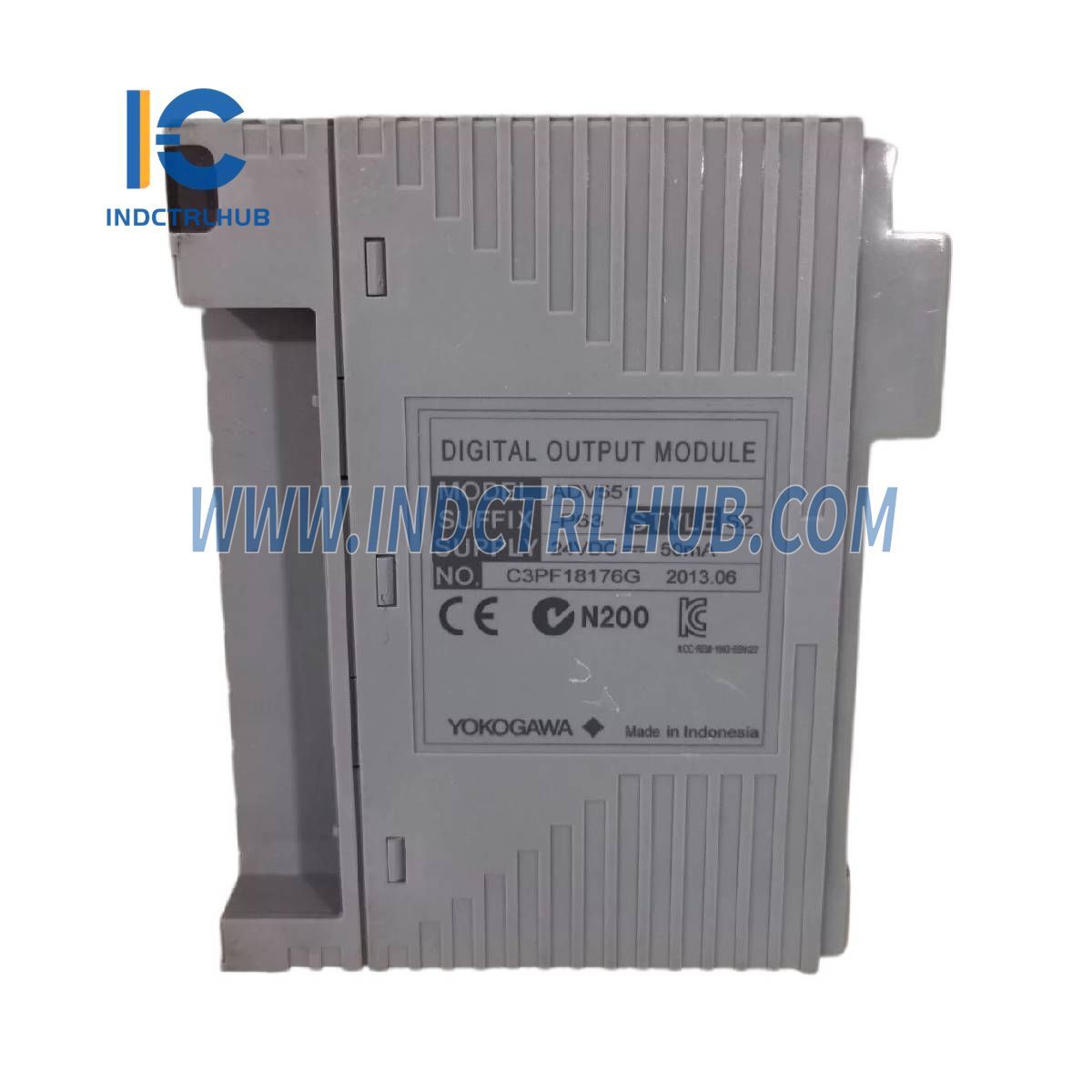

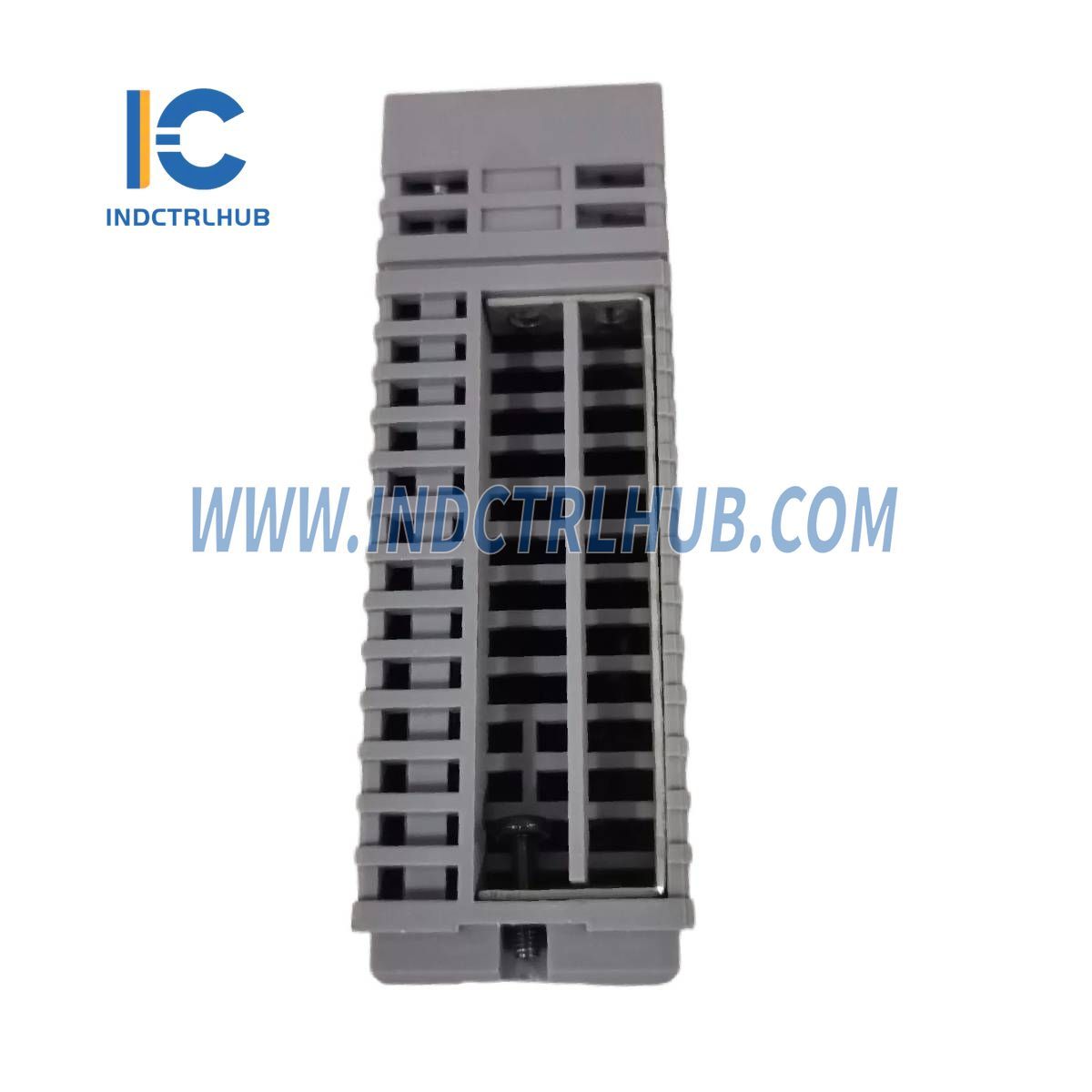

Yokogawa ADV551-P63 Digital Output Module
Yokogawa ADV551-P63 Digital Output Module
Manufacturer: Yokogawa
Product No.: ADV551-P63
Condition:1000 in stock
Product Type: Digital Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV551-P63 |
|
Description |
Digital Output Module (32-channel, 24 V DC, Isolated) |
_
Standard Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
32 |
|
Rated Applied Voltage |
24 V DC |
|
External Power Supply Rating |
24 V DC, 50 mA |
|
External Power Supply Voltage Range |
20.4 to 26.4 V DC |
|
Output ON Voltage Maximum Value |
2 V DC |
|
Leak Current Maximum Value When Output OFF |
0.1 mA |
|
Output Format |
Current Sink |
|
Maximum Load Current (*1) |
100 mA/channel, 26.4 V |
|
Withstanding Voltage |
Between output signal and system: 2 kV AC, for 1 minuteBetween commons: 500 V AC, for 1 minute, common minus (-) side every 16-channel (*2) |
|
Functions |
Status output ON/OFF, Pulse width output, Time-proportioning output |
|
Output Response Time |
3 ms or less (for status output)10 ms or less (for mixed status and pulse outputs) |
|
Pulse Width |
8 ms to 7200 s |
|
Pulse Width Resolution |
8 ms, but ON/OFF delay of maximum 1 ms is added |
|
Maximum Current Consumption |
700 mA (5 V DC), 60 mA (external power supply) |
|
Weight |
Approx. 0.20 kg |
|
External Connection |
Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
_
Model and Suffix Codes
|
Description |
Model |
Suffix Code |
Specification |
|---|---|---|---|
|
Digital Output Module (32-channel, 24 V DC, Isolated) |
ADV551 |
-P |
With pulse width output function/time-proportional output function |
|
5 |
Without status display; with no explosion protection |
||
|
6 |
With status display; with no explosion protection |
||
|
E |
Without status display; with explosion protection |
||
|
F |
With status display; with explosion protection |
||
|
0 |
Basic type |
||
|
3 |
With ISA Standard G3 option and temperature (-20 to 70 °C) |
_
Optional Accessories
|
Option Code |
Description |
|---|---|
|
/D5A00 |
With KS Cable Interface Adapter for 32-channel Digital [Model: ATD5A-00] |
|
/D5S00 |
With Pressure Clamp Terminal Block for Digital Output [Model: ATD5S-00] |
|
/D5S10 |
With Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5S-10] |
|
/D5D00 |
With Dual Pressure Clamp Terminal Block for Digital Output [Model: ATD5D-00] |
|
/D5D10 |
With Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model: ATD5D-10] |
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
_
_
