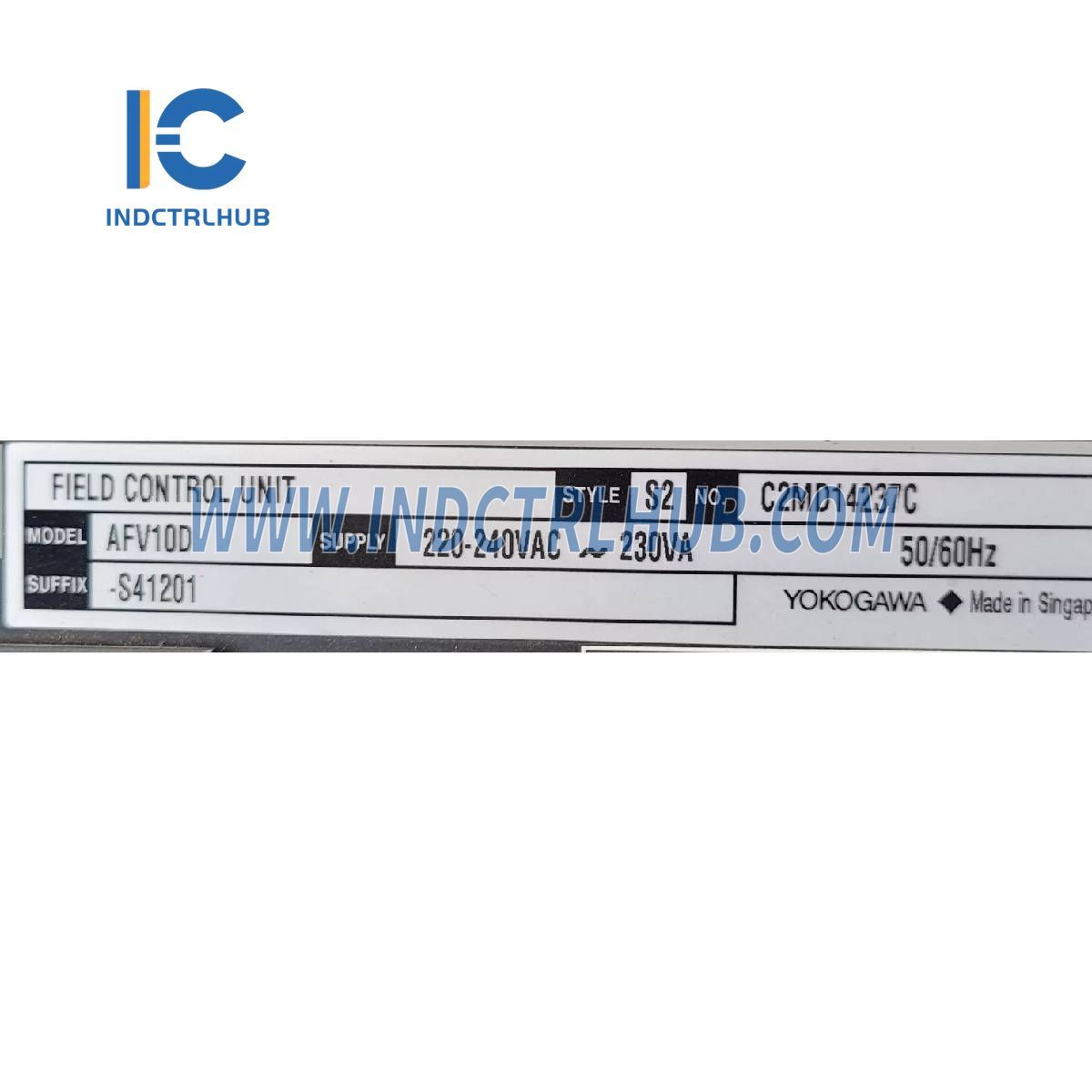

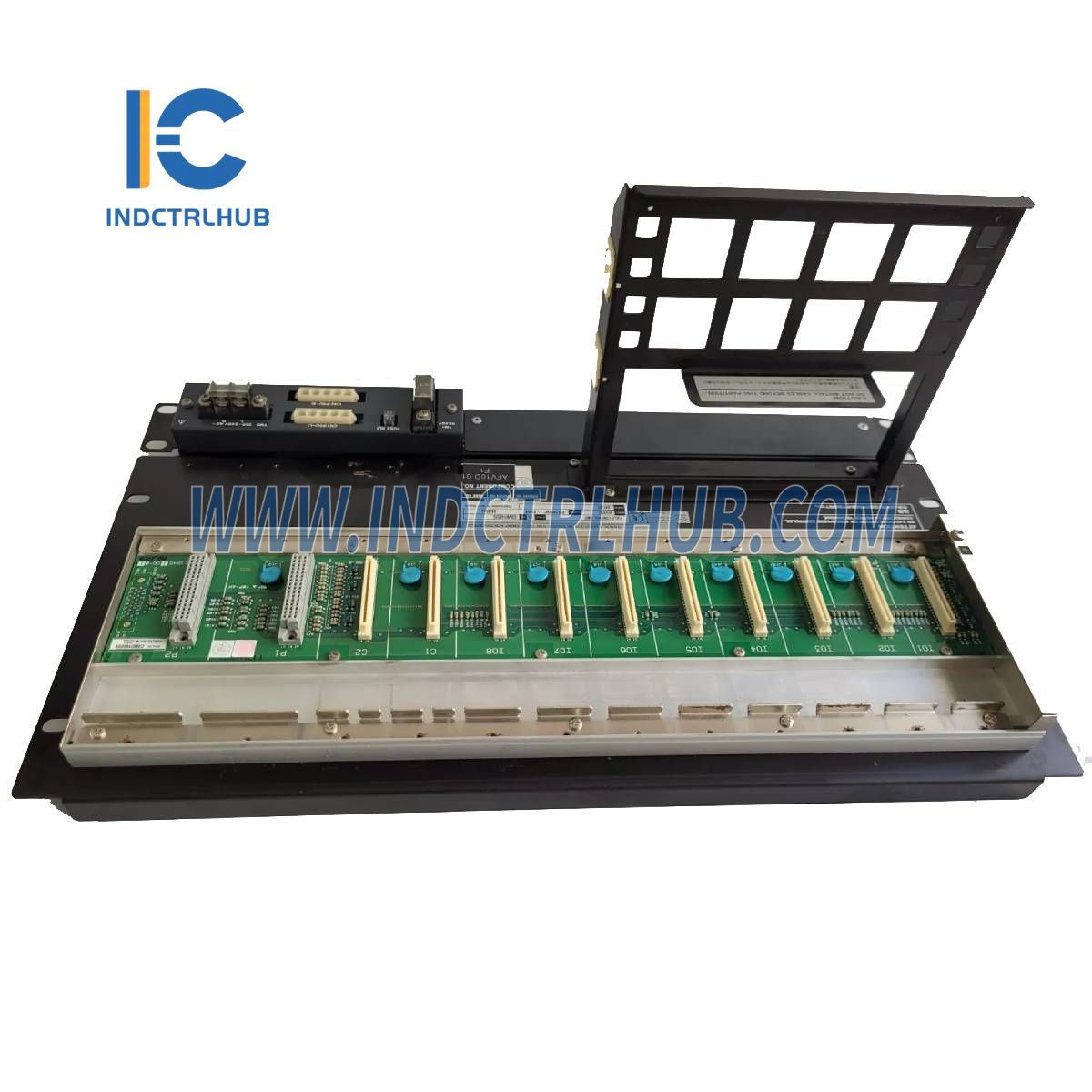

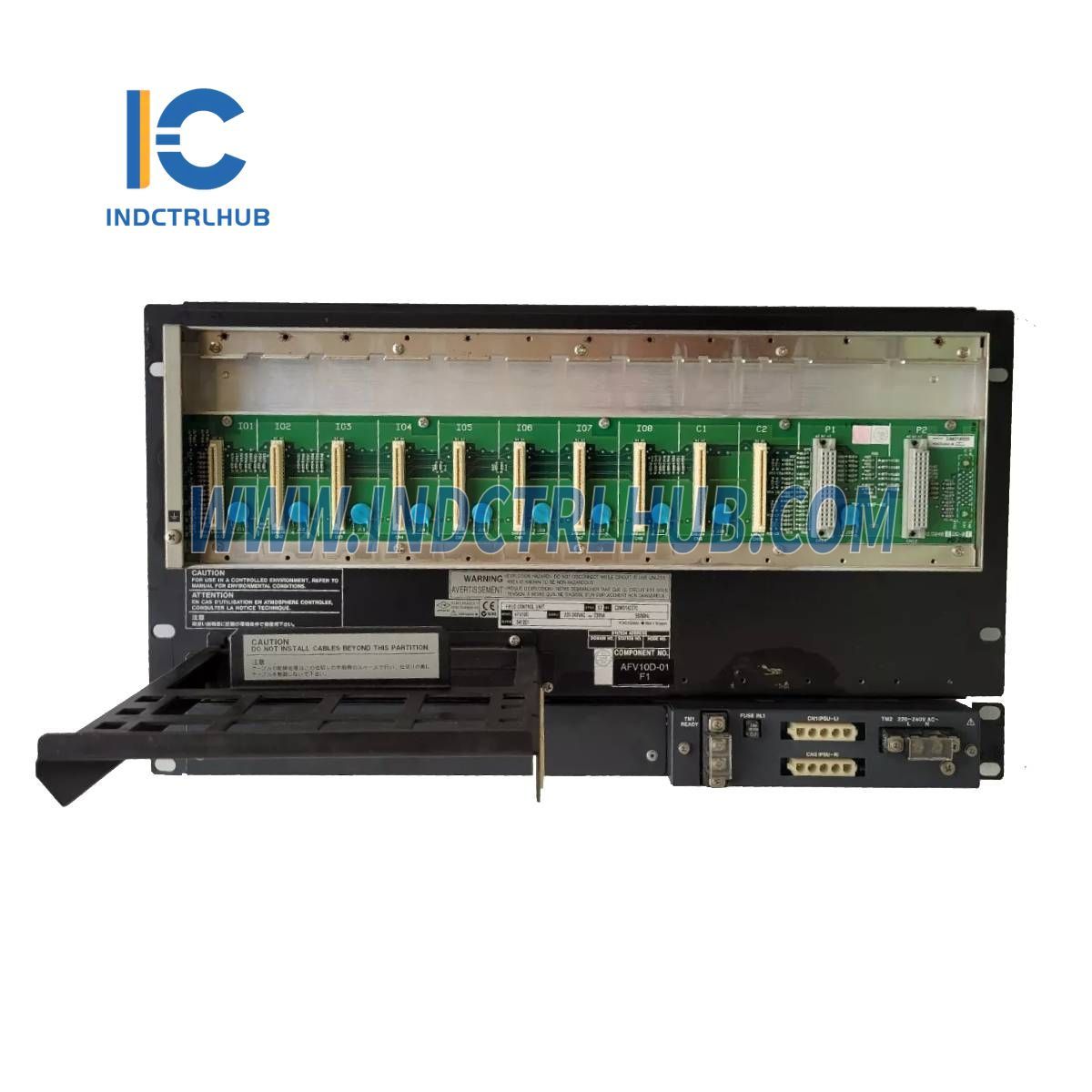

Yokogawa AFV10D-S41201 S2 Duplexed Field Control Unit

Yokogawa AFV10D-S41201 S2 Duplexed Field Control Unit

  • Manufacturer: Yokogawa

  • Product No.: AFV10D-S41201 S2

  • Condition:1000 in stock

  • Product Type: Duplexed Field Control Unit

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 8000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Yokogawa AFV10D-S41201 S2 Duplexed Field Control Unit (FCU) is a robust control processor designed for Yokogawa’s industrial automation systems, such as the CENTUM VP platform, supporting Vnet/IP and FIO (Field Input/Output) architectures. This 19-inch rack-mountable unit features dual-redundant Vnet/IP communication and power supply configurations, ensuring high reliability for critical process control applications. Operating on a 220-240 V AC power supply with a power consumption of 230 VA, it weighs approximately 8 kg and is engineered for seamless integration into distributed control systems, offering standard functionality without additional explosion protection options.

Technical Information

Parameter Specifications
Manufacturer Yokogawa
Model/Part Number AFV10D-S41201 S2
Description Duplexed Field Control Unit
Model AFV10D (for Vnet/IP and FIO, 19-inch Rack Mountable)
Power Supply Voltage: 100-120 V AC, Frequency: 50/60 Hz
Voltage: 220-240 V AC, Frequency: 50/60 Hz
Voltage: 24 V DC
(Specify with Suffix Codes)
Power Consumption 100-120 V AC: 200 VA
220-240 V AC: 230 VA
24 V DC: 5.5 A
Weight Approx. 8 kg (17.64 lb)

Specific Configuration

  • Model/Part Number: AFV10D-S41201 S2
  • Configuration Details:
    • Suffix Codes: -S (Standard type), 4 (Dual-Redundant Vnet/IP, Dual-Redundant power supply), 1 (Always 1), 2 (220-240 V AC power supply), 0 (Basic type), 1 (With ISA Standard G3 option)
    • "S2" is not explicitly listed in suffix codes; may indicate a style or revision (e.g., S2 vs. S1), assumed as part of standard configuration here
