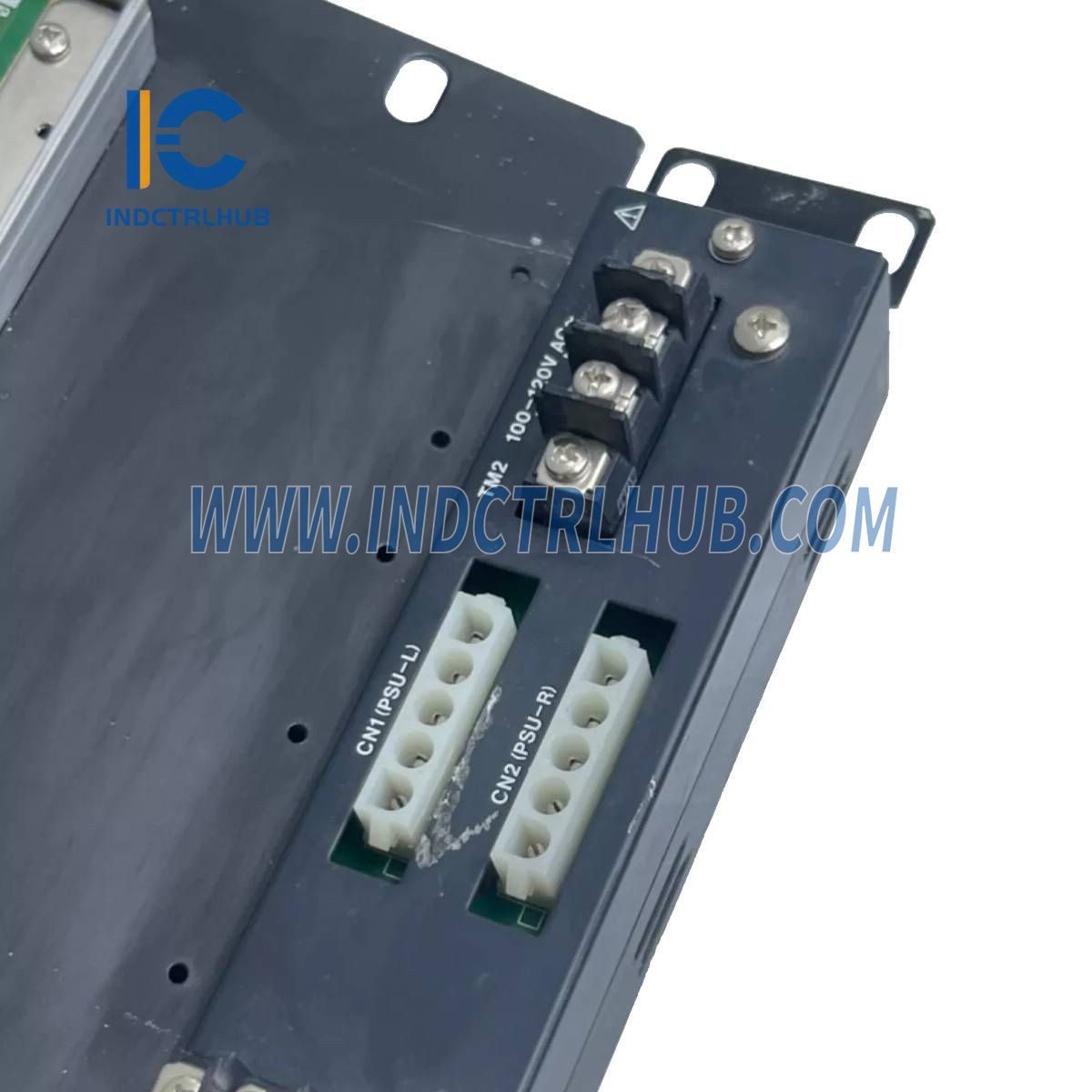

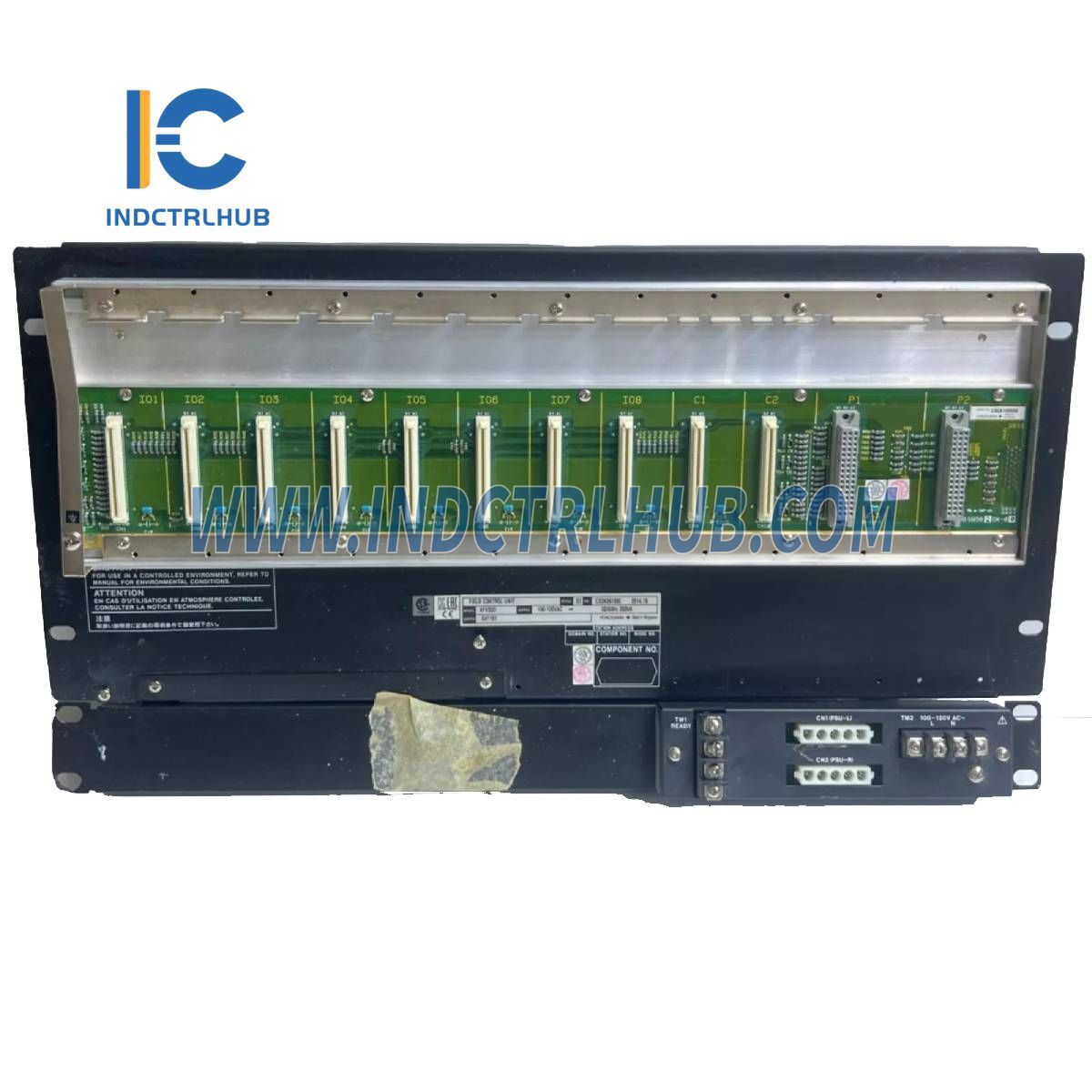

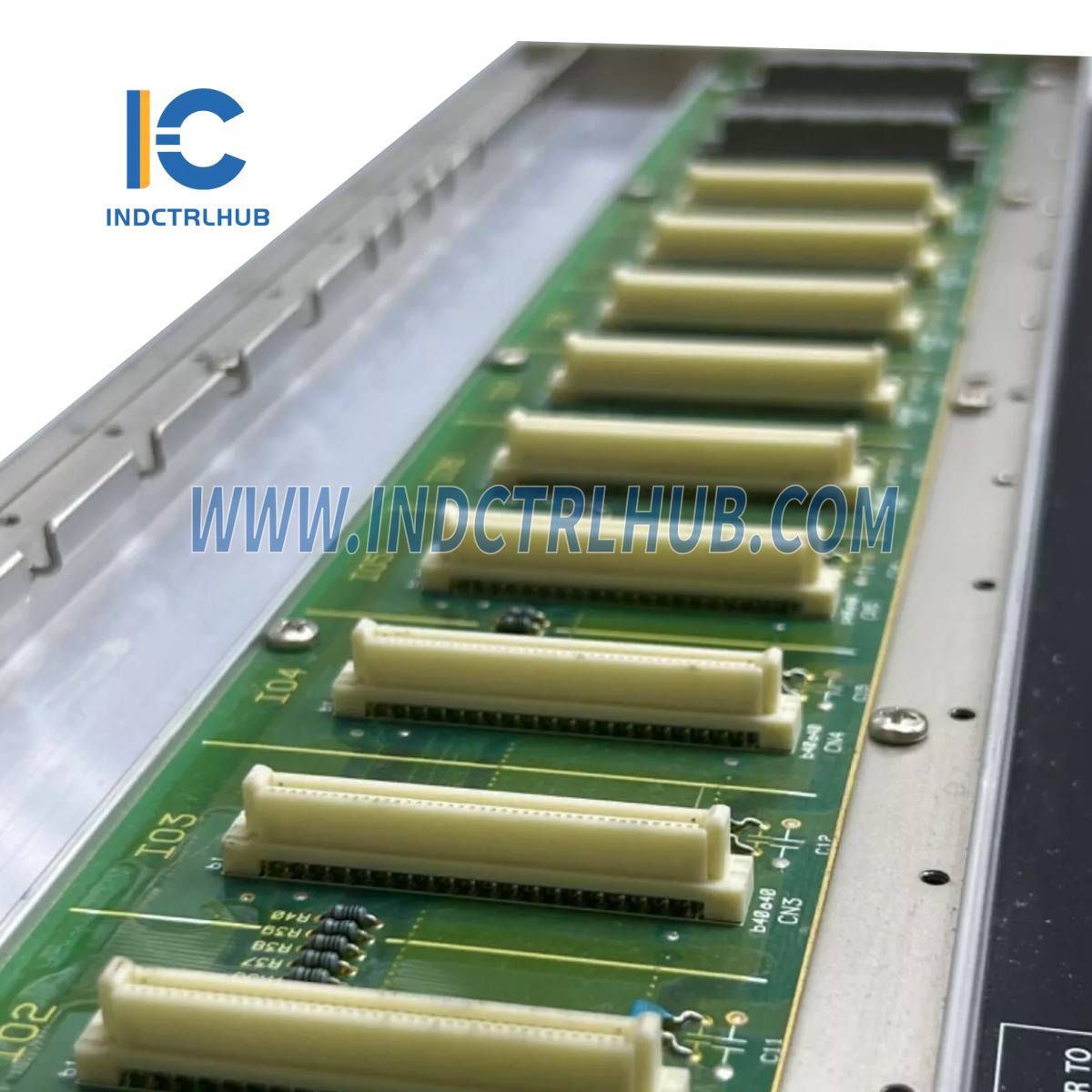

YOKOGAWA AFV30D-S41251 Duplexed Field Control Unit

YOKOGAWA AFV30D-S41251 Duplexed Field Control Unit

  • Manufacturer: YOKOGAWA

  • Product No.: AFV30D-S41251

  • Condition:1000 in stock

  • Product Type: Duplexed Field Control Unit

  • Product Origin: JAPAN

  • Payment: T/T, Western Union

  • Weight: 8000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer YOKOGAWA
Model/Part Number AFV30D-S41251
Model Type Duplexed Field Control Unit (FCU)

General Overview

The AFV30D Duplexed Field Control Unit is the core of the control function within the Field Control Station (FCS). It is designed to ensure reliable operation through redundancy, protecting critical processes from failures.


Standard Specifications

Parameter Value
Memory Protection During Power Failure Battery Back-up for Main Memory: Max. 72 hours
Battery Recharge Time: Min. 48 hours
READY Contact Output 2 terminals (NC, C)
Contact Points open during FCU failure
Contact Rating: 30 V DC, max. 0.3 A
Module Configuration Power Supply Module (PW481, PW482, PW484): 2 modules for dual-redundant configuration
Processor Module (CP471 or CP461): 2 modules for dual-redundant configuration
Max. 8 I/O Modules
Weight Approx. 8.0 kg (AFV30D)

Description

The AFV30D Duplexed Field Control Unit is used for Vnet/IP and FIO applications and is mountable in a 19-inch rack. It provides dual-redundant configuration options, including power supplies and processors, to enhance reliability.


Suffix Codes & Configuration Options

Code Description
-A Standard type (for CP471)
-S Standard type (for CP461)
4 Dual-redundant Vnet/IP, dual-redundant power supply
1 100 - 120 V AC power supply
2 220 - 240 V AC power supply
4 24 V DC power supply
0 Basic type
1 With ISA Standard G3 option
5 Basic type with no explosion protection
6 With ISA Standard G3 option and no explosion protection
E Basic type with explosion protection
F With ISA Standard G3 option and explosion protection
1 LFS1700 Control function for FCS (for AFV30D/AFV40D)
2 Always 2 (R6.01 or later)

Option Codes

Option Code Description
/HKU With HKU interface
/ATDOC Explosion Protection Manual
/MRN With Marine Standards
