Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |
AEA4D-05 |
|
Product Description |

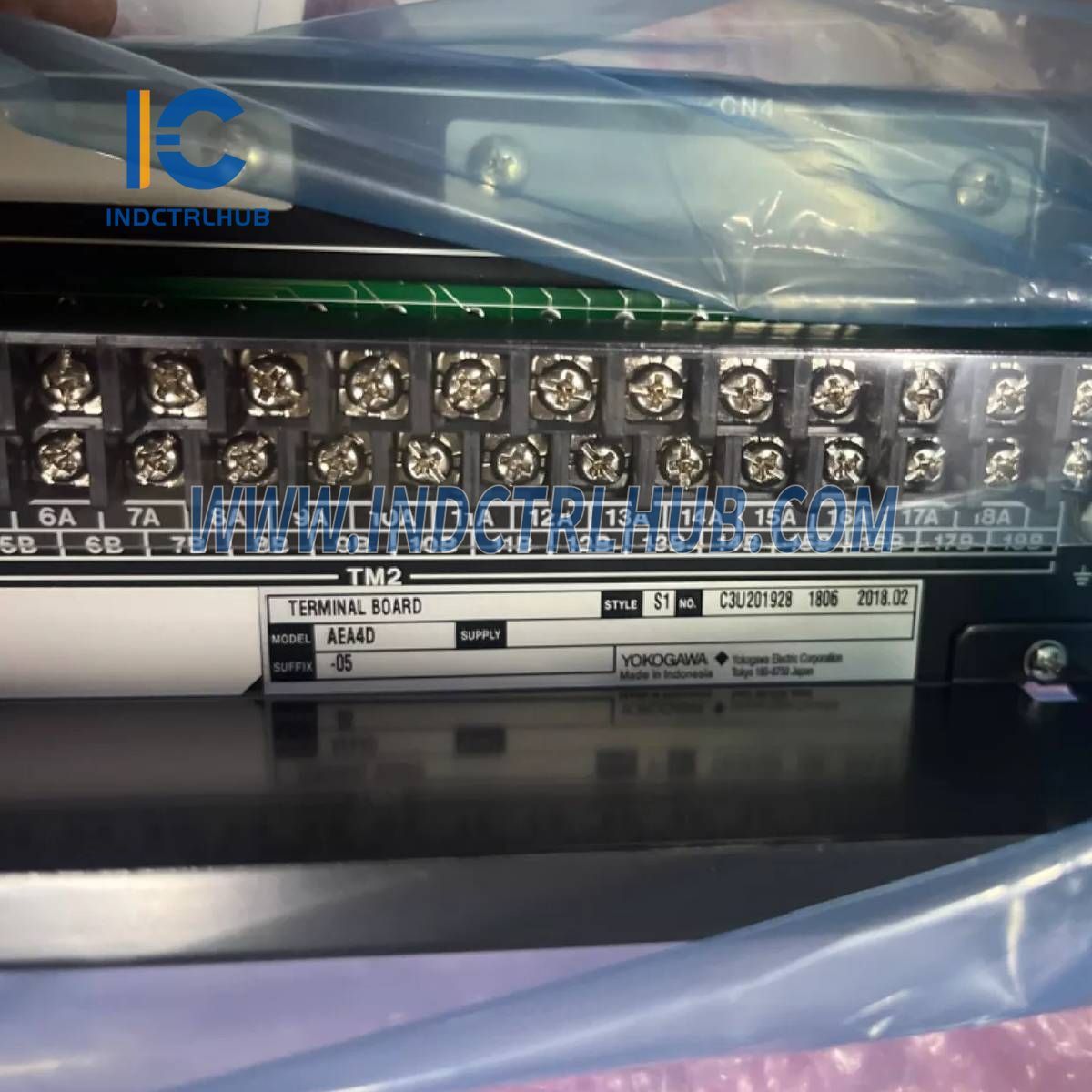

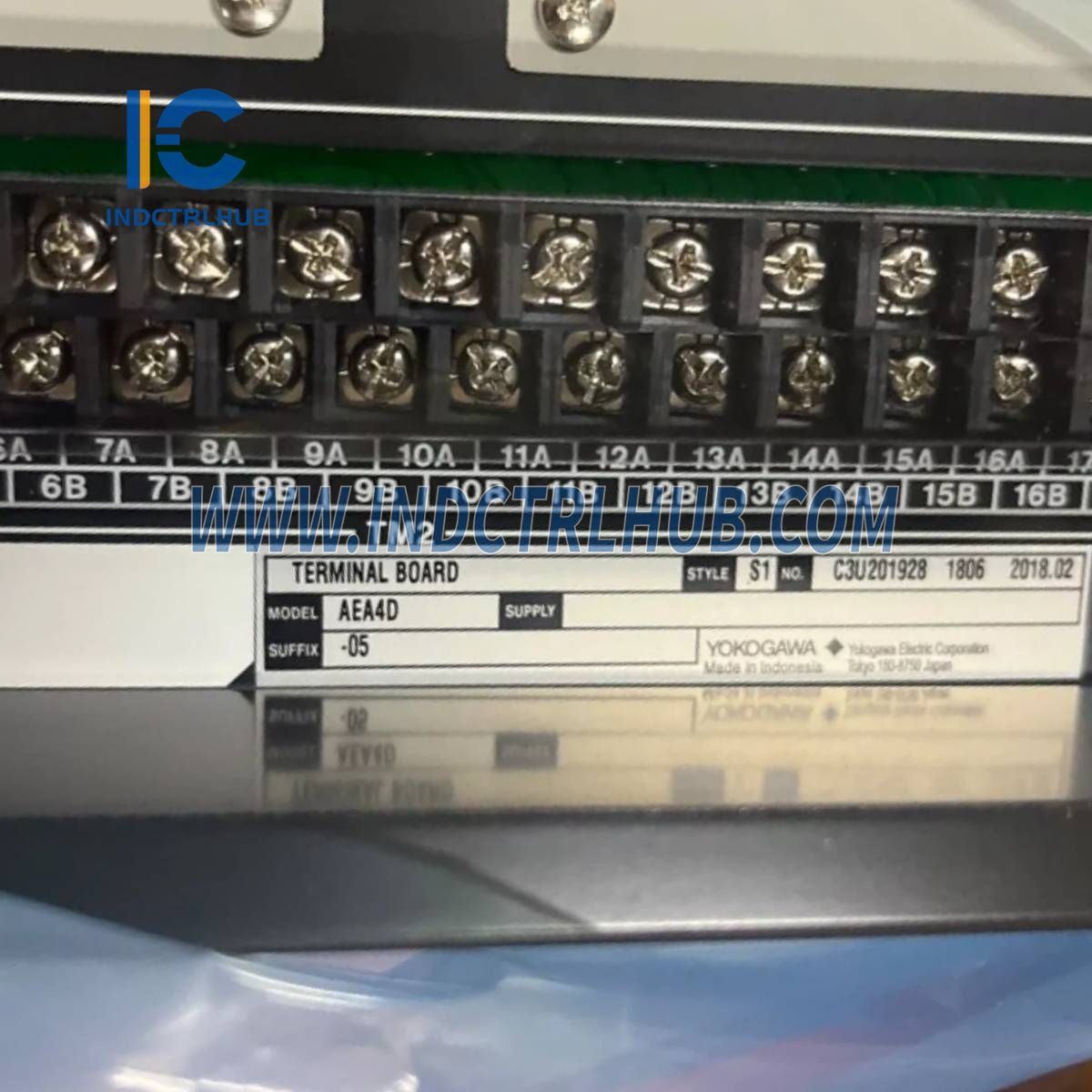

Terminal Board for Analog (Single and Dual-Redundant, 16-Channel) |
Specifications
Standard Specifications
|
Parameter |
AEA4D (Analog Terminal Board) |
|---|---|
|
Usage |
For analog signals (single or dual redundant modules) |
|
Connection Type |
M4 screw terminals |
|
Modules Connected |
AAI135, AAI835, AAP135 (8 pts x 2 terminals) AAI141, AAV141, AAV142, AAV144, AAB841, AAI841, AAV542, AAV544, AAI143, AAI543 (16 pts x 2 terminals) |
|
Connection Cable |
KS1 |
|
Weight |
Approx. 1.5 kg |
|
Insulation Resistance |
100 MΩ or greater at 500 V DC |
|
Withstanding Voltage |
500 V AC for 1 minute |
Model Variations & Options
Model Variations (Suffix Codes)
|
Suffix Code |
Description |
|---|---|
|
-0 |
Without surge absorber |
|
5 |
Basic type with no explosion protection |
|
6 |
With ISA Standard G3 option and no explosion protection |
|
E |
Basic type with explosion protection |
|
F |
With ISA Standard G3 option and explosion protection |
Optional Features
|
Option Code |
Description |
|---|---|
|
/NTRY |
Without cable tray |
