Product Description

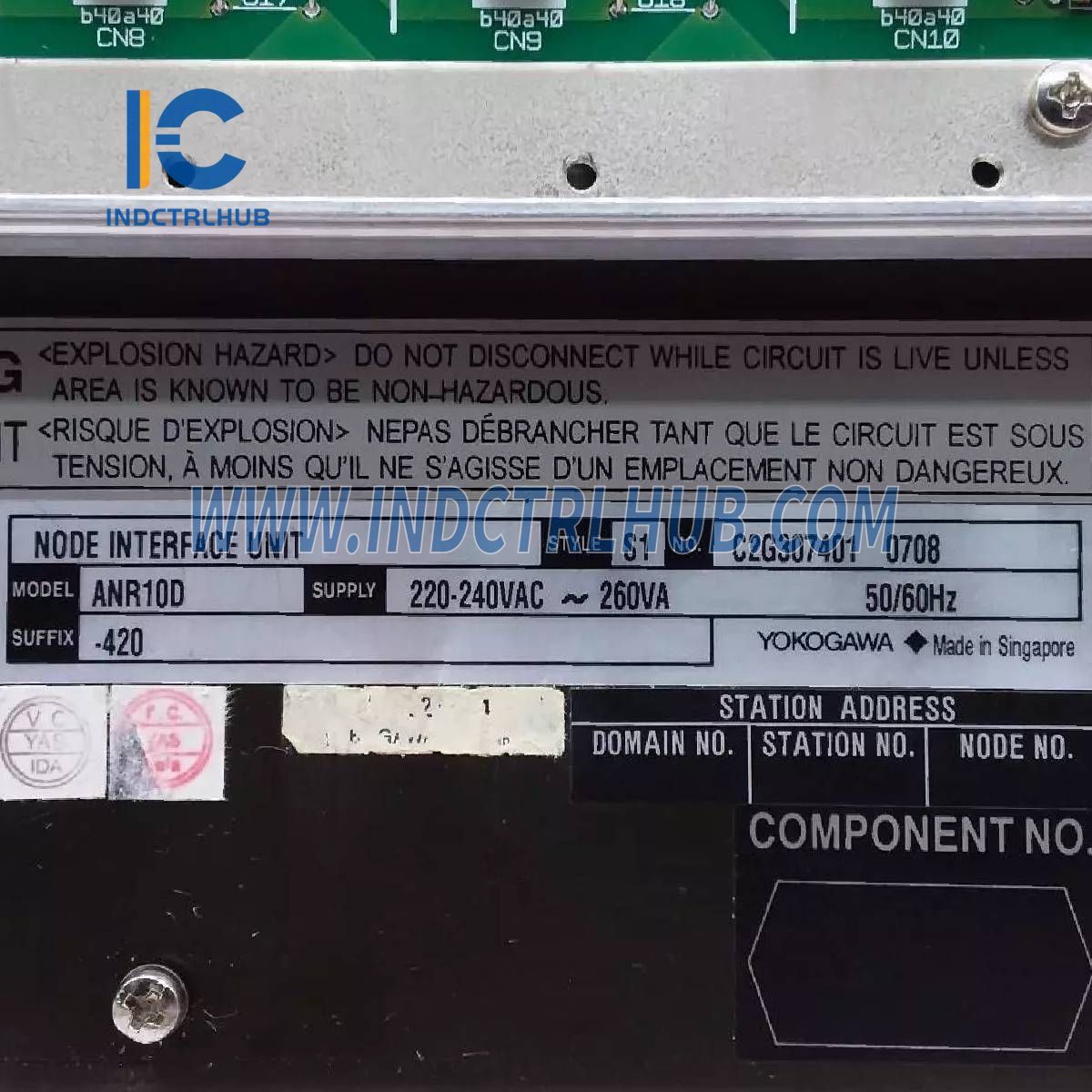

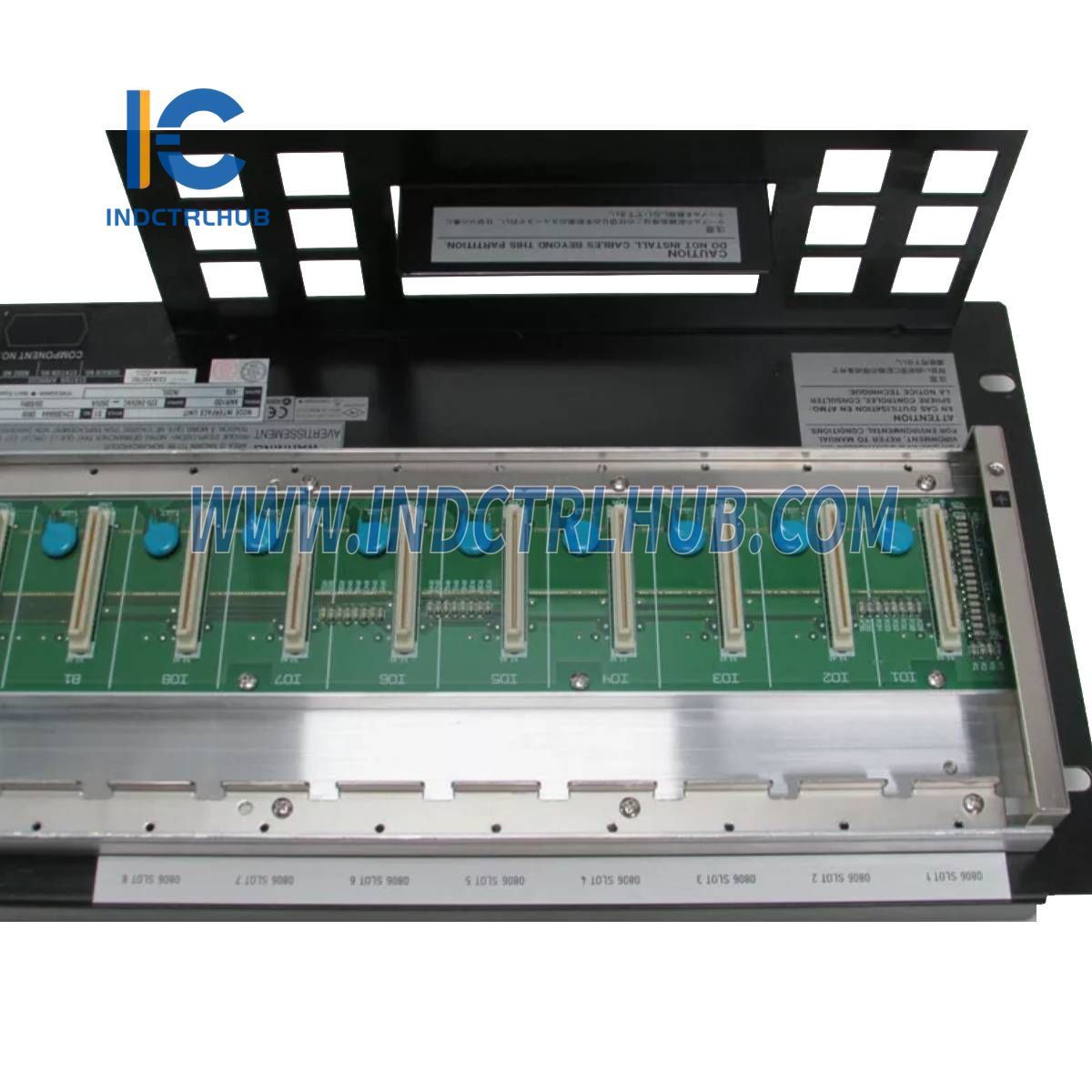

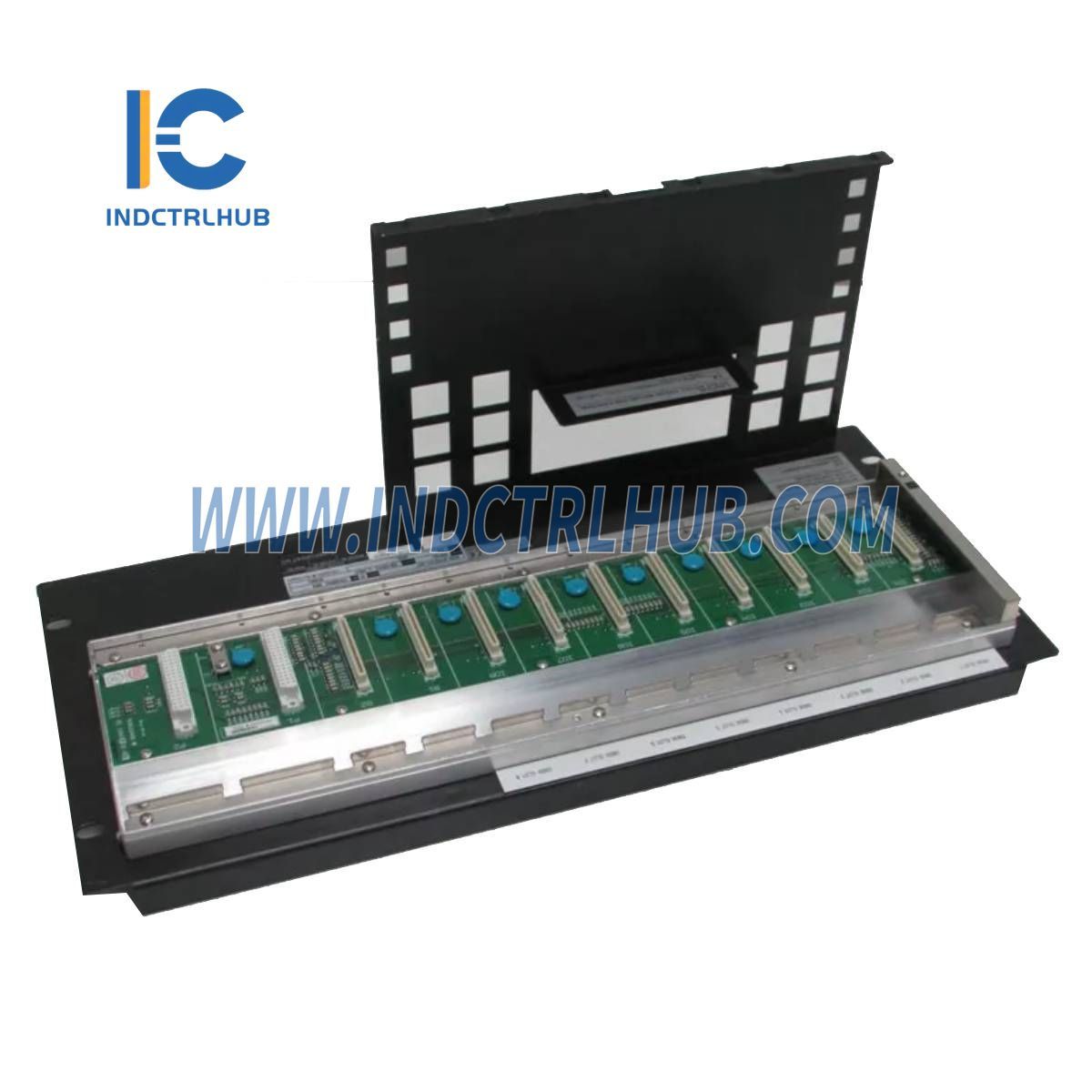

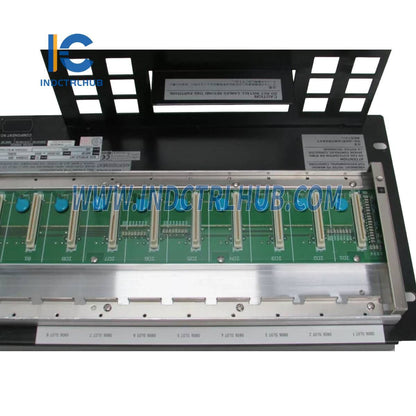

Product Information: Yokogawa ANR10D-420 S1 Node Unit for Dual-Redundant ER Bus
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | ANR10D-420 S1 |
| Description | Node Unit for Dual-Redundant ER Bus |
Key Specifications
| Specification | Details |
|---|---|
| Type | ER Bus Node Unit (Remote Node) |
| Connection | Connected to EB401 (ER Bus Interface Master Module) via ER bus |
| Power Supply (Suffix Codes) | - 100-120 V AC, 50/60 Hz - 220-240 V AC, 50/60 Hz - 24 V DC |
| Electric Power Consumption | - 100-120 V AC: 200 VA, 120 W - 220-240 V AC: 230 VA, 120 W - 24 V DC: 5.5 A |
| Weight | 10 kg (including 8 IOMs) |
Suffix Codes
| Suffix Code | Description |
|---|---|
| -4 | Dual-redundant power supply |
| 1 | 100-120 V AC power supply |
| 2 | 220-240 V AC power supply |
| 4 | 24 V DC power supply |
| 5 | Basic type with no explosion protection |
| 6 | With ISA G3 option, temperature (-20 ˚C to 70 ˚C) option, and no explosion protection |
| E | Basic type with explosion protection |
| F | With ISA G3 option, temperature (-20 ˚C to 70 ˚C) option, and explosion protection |
Option Codes
| Option Code | Description |
|---|---|
| /ATDOC | Explosion Protection Manual |
| /NDEL | Software License for Node Expansion (Mandatory for connection with AFF50 or AFV10) |
