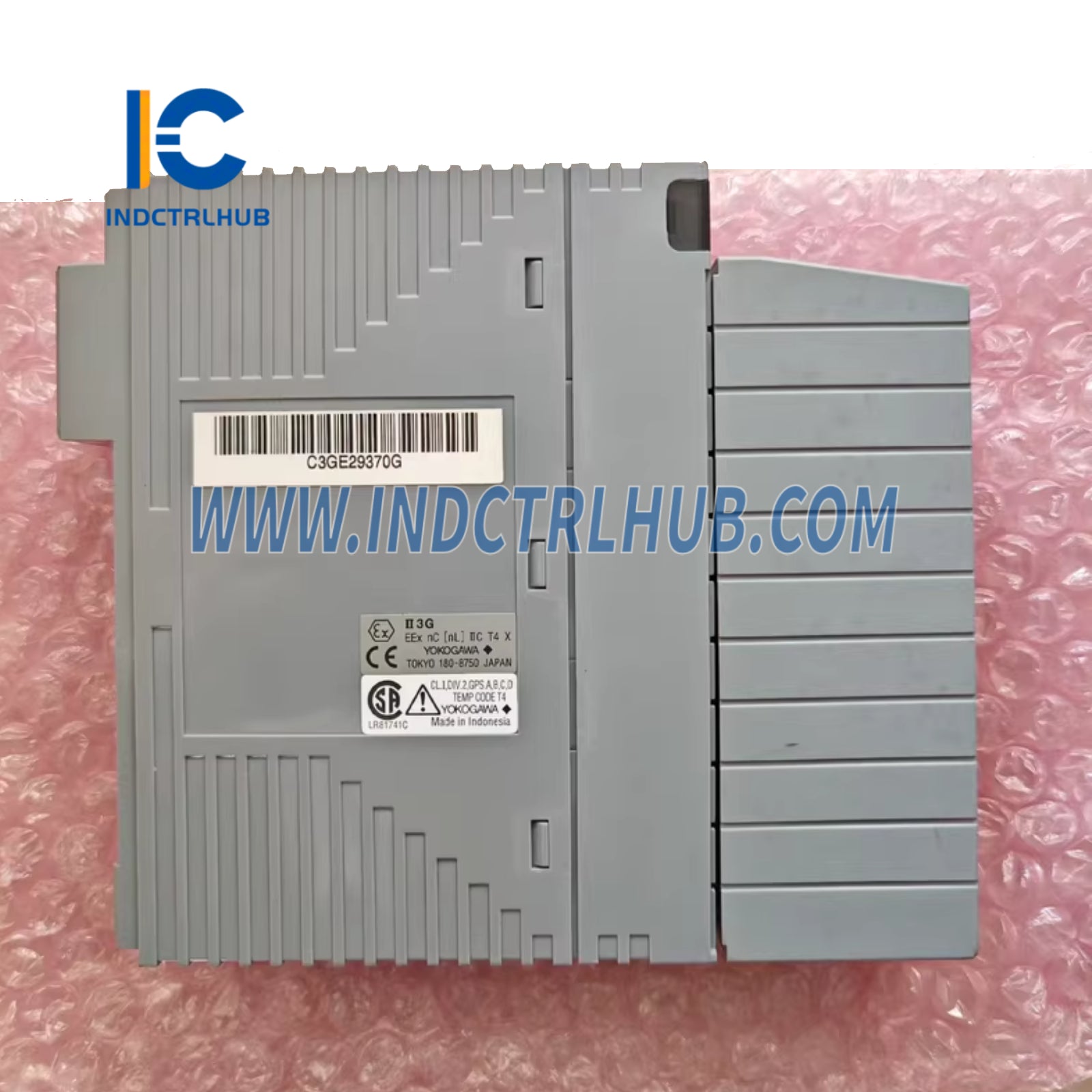

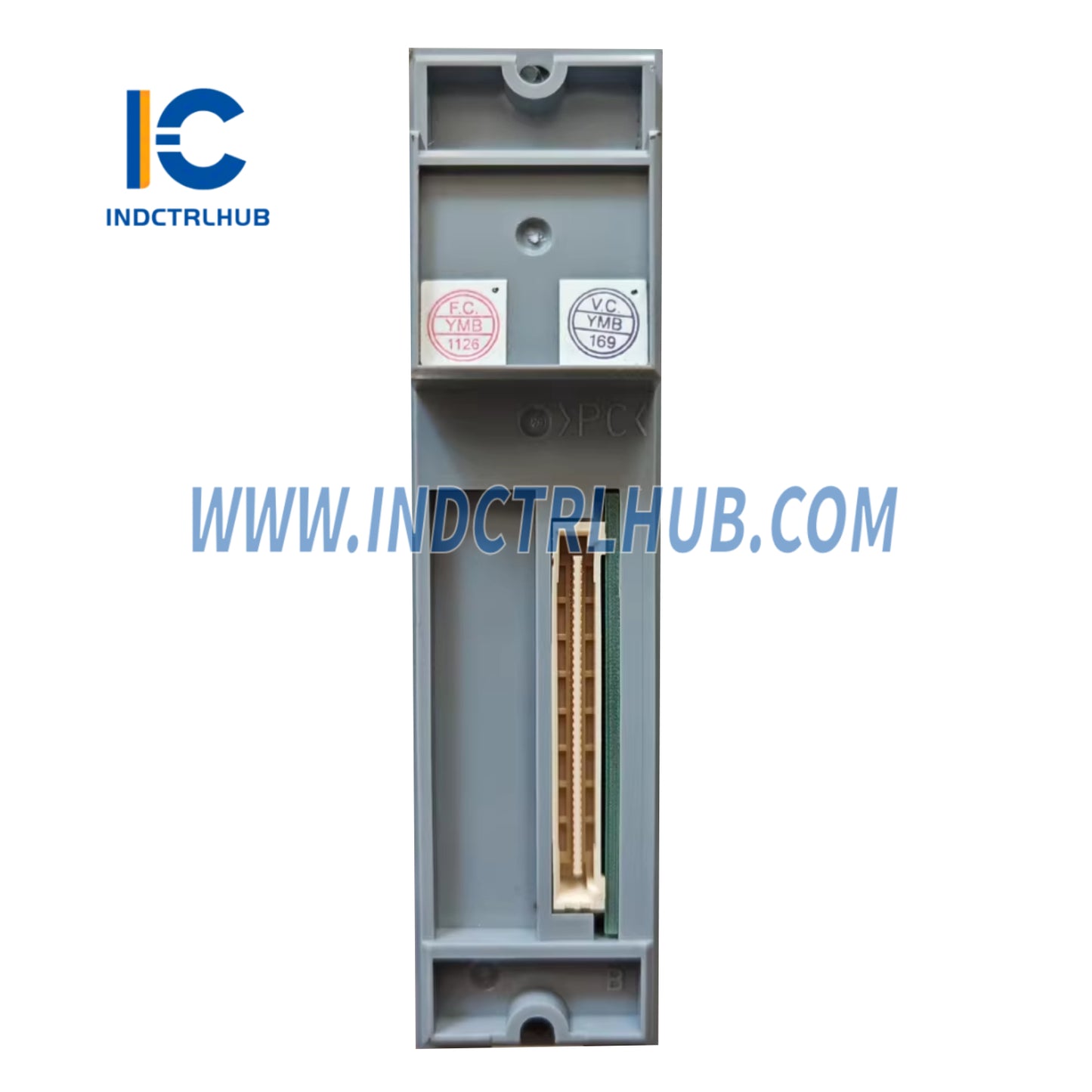

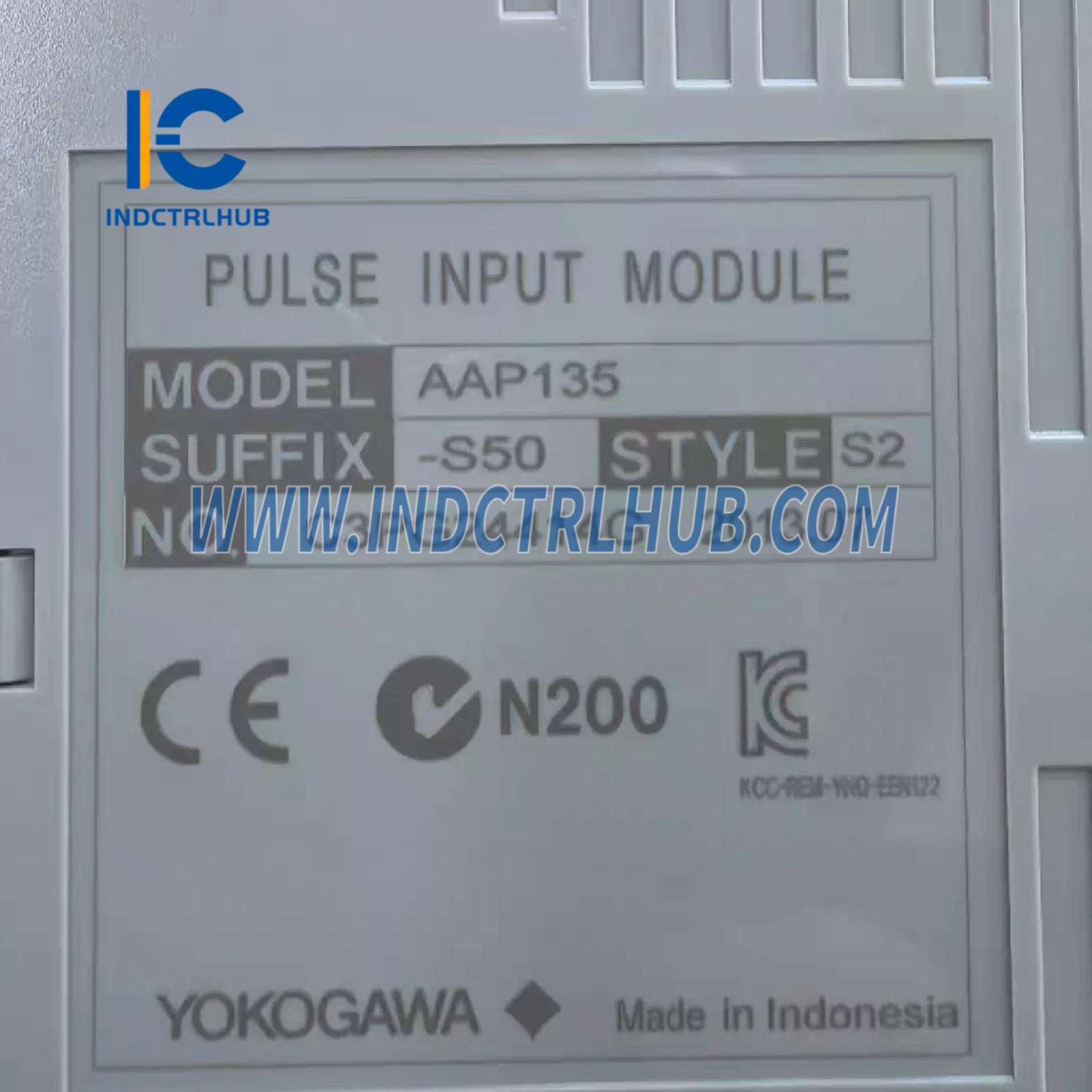

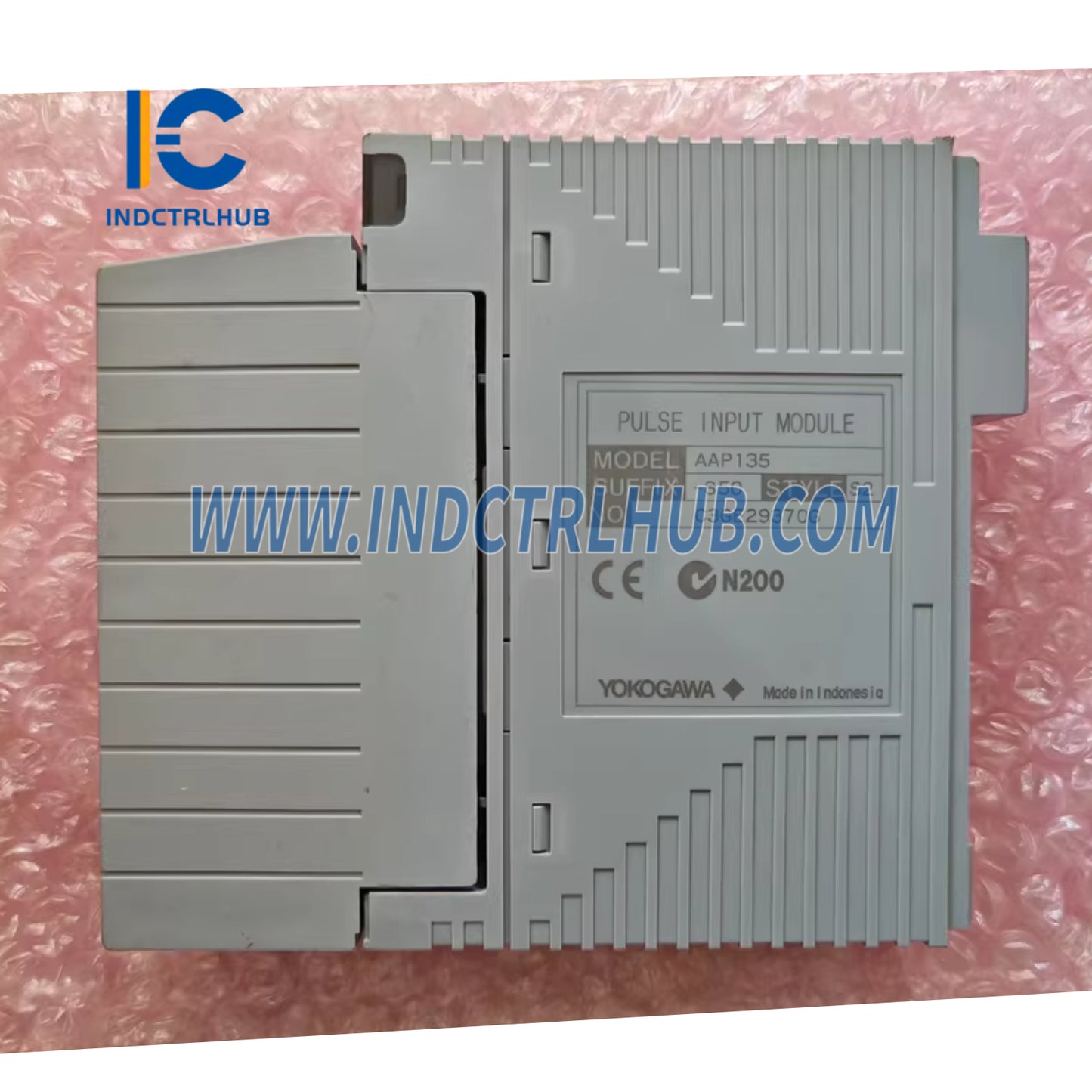

Yokogawa AAP135-S50/13S00 Pulse Input Module
Yokogawa AAP135-S50/13S00 Pulse Input Module
Manufacturer: Yokogawa
Product No.: AAP135-S50/13S00
Condition:1000 in stock
Product Type: Pulse Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAP135-S50/13S00 |
|
Description |
Pulse Input Module (8-channel, Isolated, Pulse Count, 0 to 10 kHz) |
_
_
__ Description Summary
The_AAP135-S50/13S00_is an 8-channel pulse input module that accepts_contact ON/OFF,_voltage pulse, and_current pulse_signals. Each channel is_isolated_from the others and from the system. The module supports_dual-redundant configurations_and comes with a_pressure clamp terminal block for pulse signals_(model: ATI3S-00).
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Input Channels |
8 (individually isolated) |
|
Input Signal Types |
2-wire: Contact ON/OFF, voltage pulse, current pulse3-wire: Voltage pulse |
|
Input Frequency Range |
0 to 10 kHz |
|
Minimum Pulse Width |
40 µs |
|
Withstanding Voltage |
500 V AC (1 min) between channels and between input/system |
|
Input Signal Levels |
Voltage/Current Pulse:VH: 3_24 V DCVL: -1_8 V DCSwing _ 3 V |
|
Contact Input:Open _ 100 k_, Close _ 200 _ |
|
|
Contact Capacity |
15 V DC 15 mA min (with 12 V supply)30 V DC 30 mA min (with 24 V supply) |
|
Signal Source Resistance |
_ 1 k_ |
|
Selectable Shunt Resistance |
None / 200 _ / 500 _ / 1000 _ |
|
Pull-up Resistance |
68 k_ (for 12 V or 24 V DC) |
|
Transmitter Power Supply |
Selectable 12 V DC or 24 V DC |
|
Transmitter Current Limit |
12 V: 40 mA ±10%24 V: 30 mA ±10% |
|
Filter Function |
Chattering filter can be enabled |
|
Data Update Period |
2 ms |
|
Maximum Current Consumption |
300 mA (5 V DC), 400 mA (24 V DC) |
|
Weight |
Approx. 0.3 kg |
|
External Connection |
Pressure clamp terminal, KS cable, MIL connector cable |
_
_
__ Model and Suffix Code Breakdown
|
Model |
AAP135__ Pulse Input Module (8-channel, 0 to 10 kHz, Isolated) |
|---|---|
|
-S |
Standard type |
|
5 |
With no explosion protection |
|
0 |
Basic type |
|
/13S00 |
With Pressure Clamp Terminal Block for Pulse Input [Model: ATI3S-00] |
_
_
__ Optional Accessories (Included: /13S00)
|
Option Code |
Description |
|---|---|
|
/13A00 |
KS Cable Interface Adapter [ATI3A-00] |
|
/K4A00 |
KS Cable Interface Adapter [ATK4A-00] |
|
/13S10 |
Pressure Clamp Terminal Block with Surge Absorber [ATI3S-10] |
|
/13D00 |
Dual Pressure Clamp Terminal Block [ATI3D-00] |
|
/13D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber [ATI3D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [ACCC01] |
_
