Product Description
Product Overview

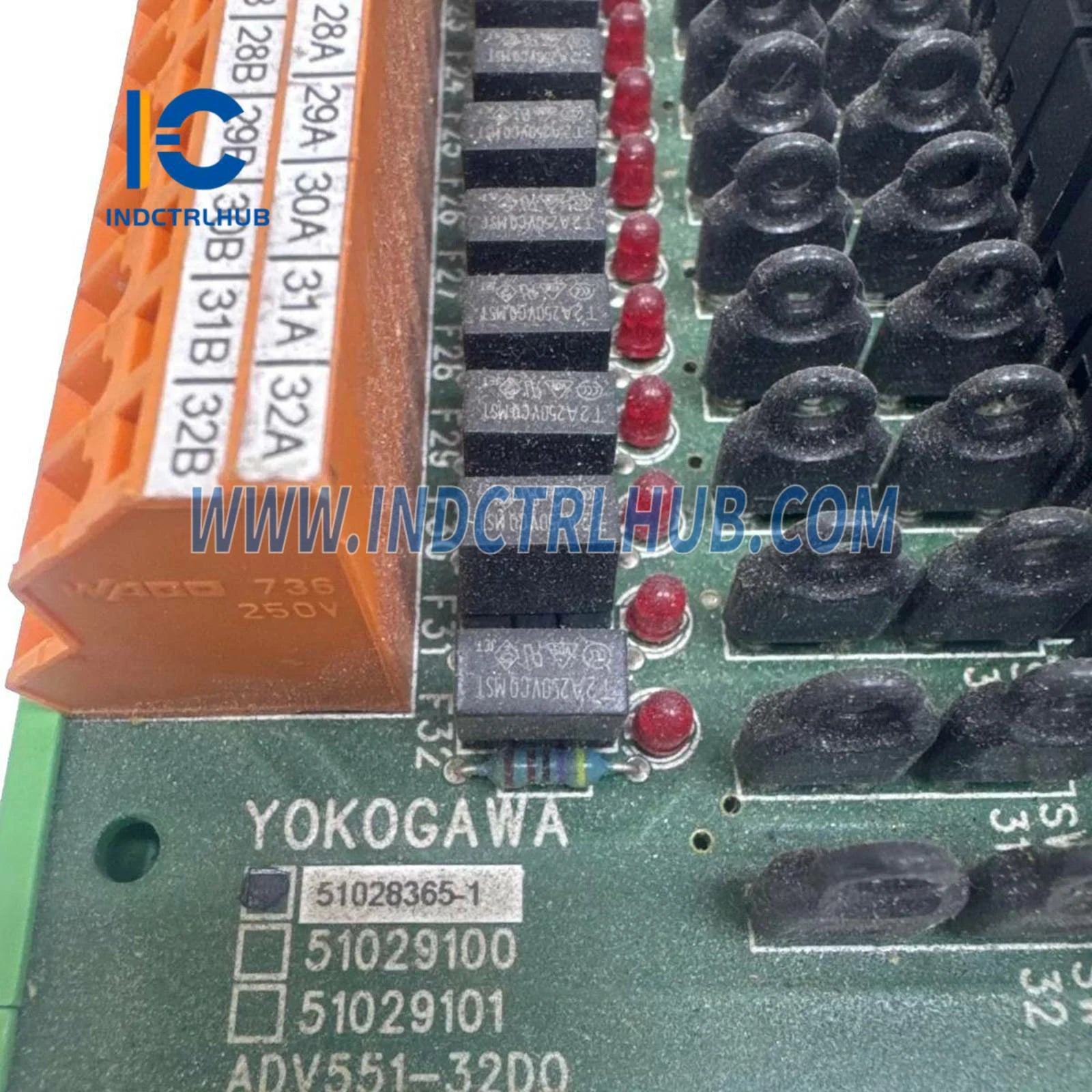

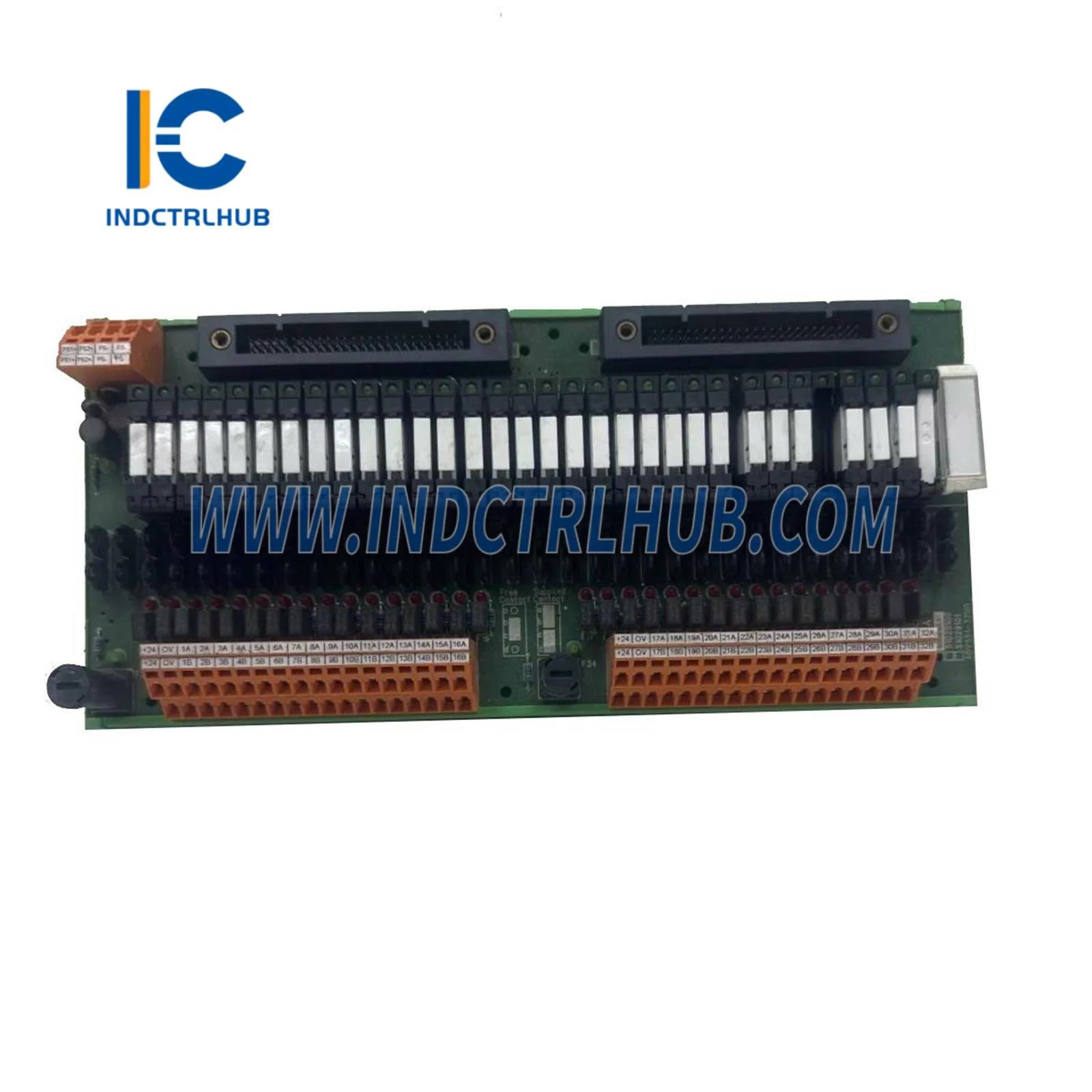

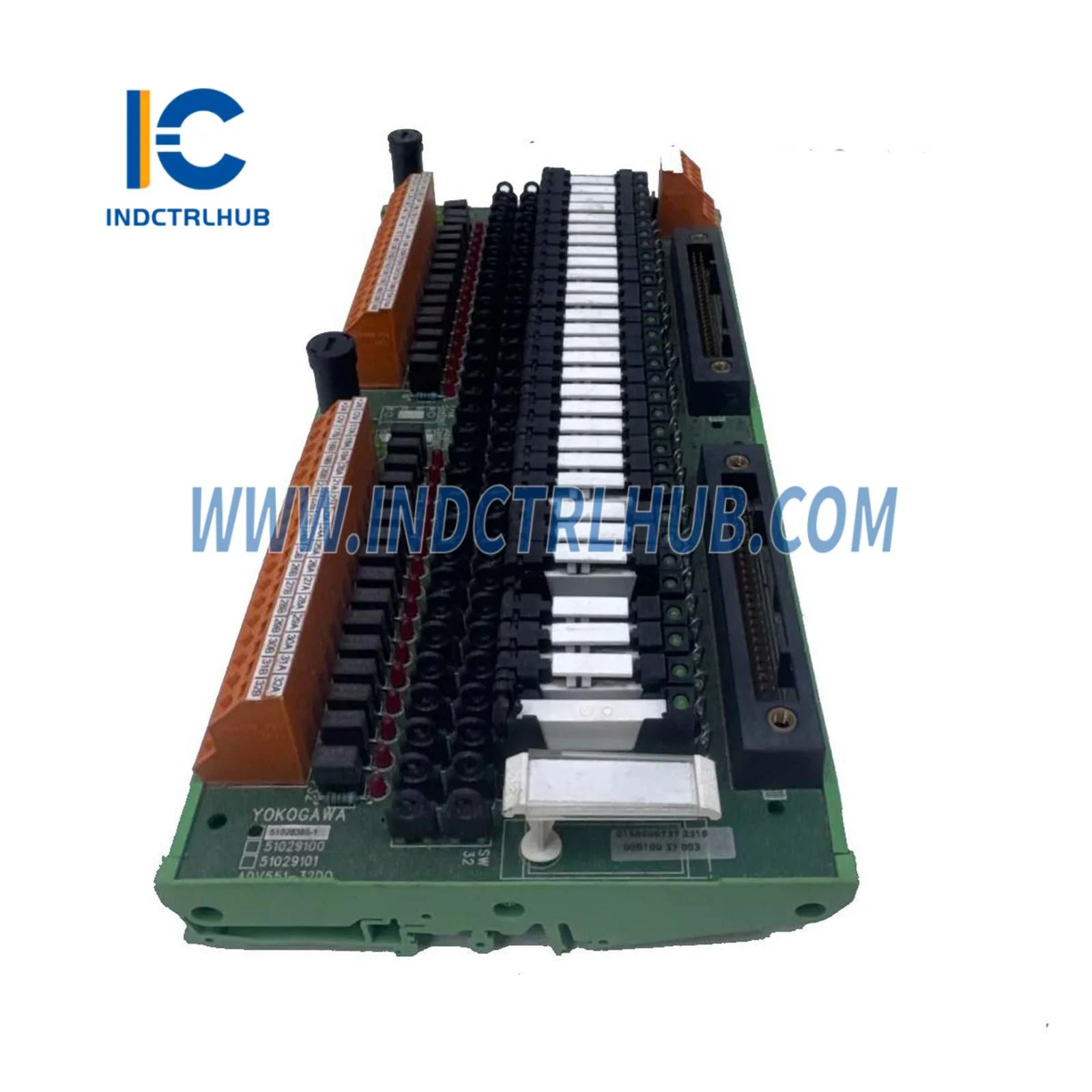

The Yokogawa ADV551-32DO is a Digital Output Module designed for use in Yokogawa’s CENTUM Distributed Control Systems (DCS) or ProSafe-RS Safety Instrumented Systems (SIS). This module features 32 output channels to transmit 24 V DC transistor contact signals to field devices such as actuators, valves, or relays, providing isolated digital output capabilities. It is typically installed in ESB Bus Node Units or Field Control Units and supports dual-redundant configurations, making it suitable for industrial applications in oil & gas, chemical processing, and power generation where reliable control signaling is essential.
Technical Specifications
The ADV551-32DO has the following specifications based on standard characteristics for the ADV551 series:
| Item | Specification |
|---|---|
| Model/Part Number | ADV551-32DO |
| Manufacturer | Yokogawa |
| Description | Digital Output Module (32-channel, 24 V DC, Isolated) |
| Series | ADV551 (CENTUM / ProSafe-RS FIO) |
| Number of Outputs | 32 channels, isolated |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Maximum Load Current | 100 mA per channel, 26.4 V |
| Output ON Voltage Maximum | 2 V DC |
| Leak Current Maximum (Output OFF) | 0.1 mA |
| Output Format | Current sink |
| Output Response Time | 3 ms or less (for status output) 10 ms or less (for mixed status and pulse outputs) |
| Withstand Voltage | 2 kV AC between output signal and system for 1 minute |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approximately 0.2 kg (0.44 lbs) |
Additional Details
The ADV551-32DO includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Transmits 32-channel 24 V DC transistor contact signals to field devices |
| Mounting | Installed in ESB Bus Node Unit (e.g., ANB10S) or Field Control Unit (e.g., AFV30S) |
| Compatibility | CENTUM DCS, ProSafe-RS SIS, supports dual-redundant setup |
| Connection Options | Pressure clamp terminal block, MIL cable, or KS cable interface adapter |
| Features | Channel isolation, dual-redundancy capable, status/pulse/time-proportioning output functions |
| Certifications | Meets industrial standards (e.g., CE) |
| Part Type | New, surplus, or refurbished |
